SD card DVR

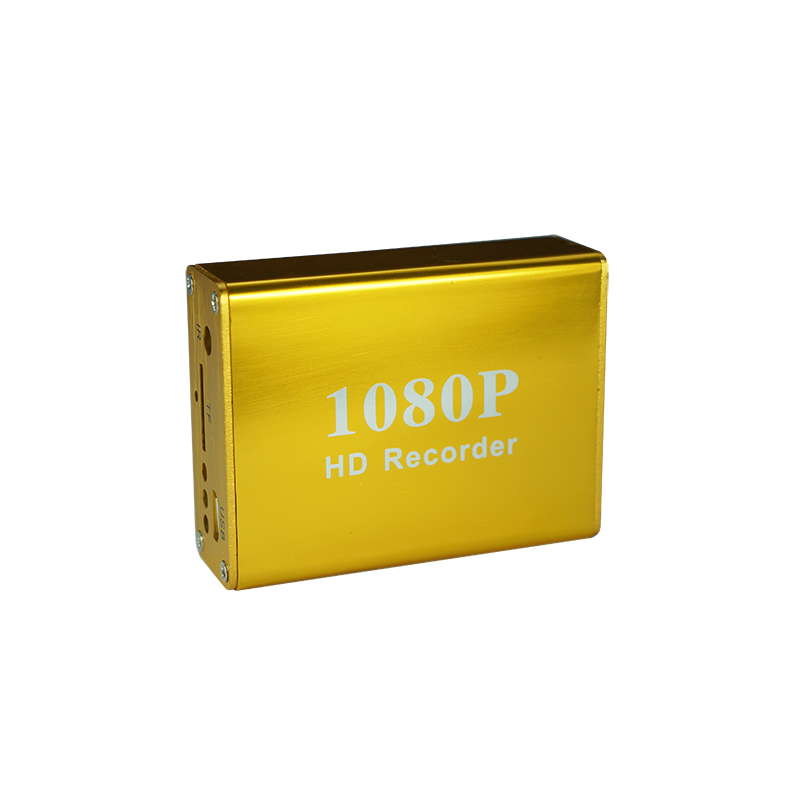

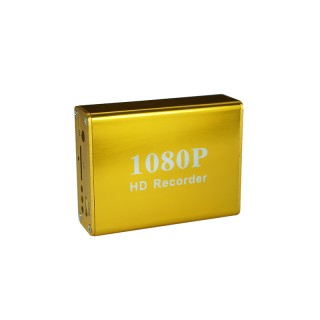

1 Channel 1080P TVI SD DVR,golden DVR model BD-3118

It is a 1 channel 1080P SD DVR, support 2.0MP TVI or 2.0MP AHD video input, Max. 128GB micro sd card used. 9 different language menu, offer OEM service.
  • Details

Features:

> 1080P/720P/D1 resolution optional

> 128GB Micro sd memory used

> Works with 2.0MP AHD or 2.0MP TVI camera

> 1080P@30f/s, 720P@60f/s,720P@30f/s,D1@30f/s

> Multi language(English,Chinese,French,Germany,Italian,Spanish,Portuguese,Korean,Japanese)

> 5V-30V wide power

> Highest quality memory cost: 4G-8G per hour. (depends on video)

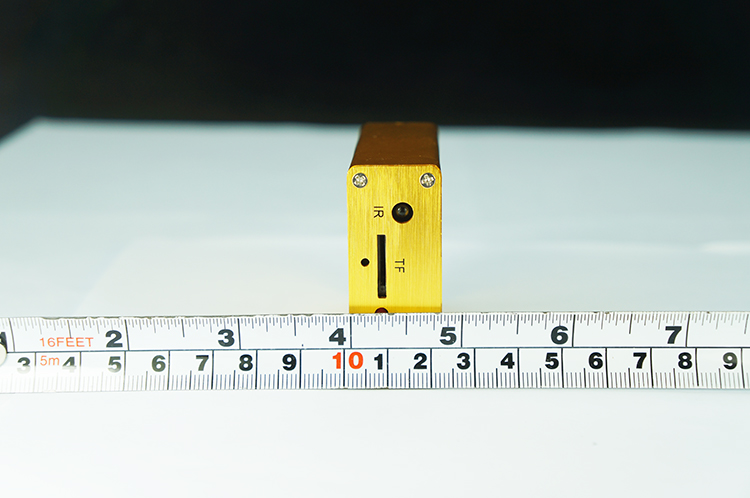

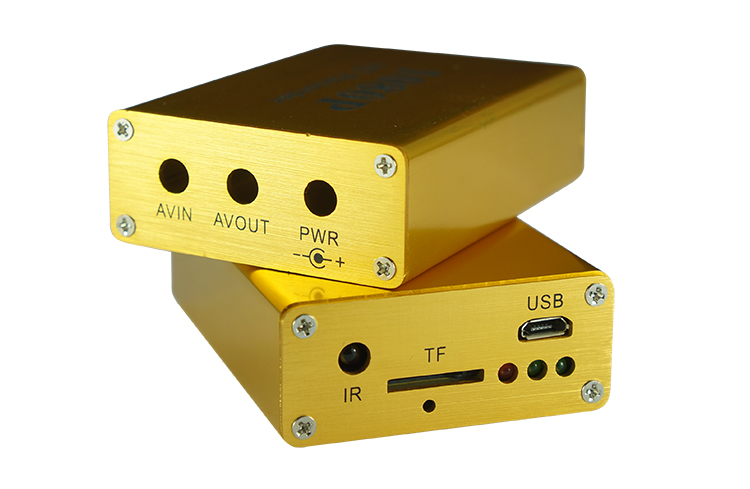

Front and real panel

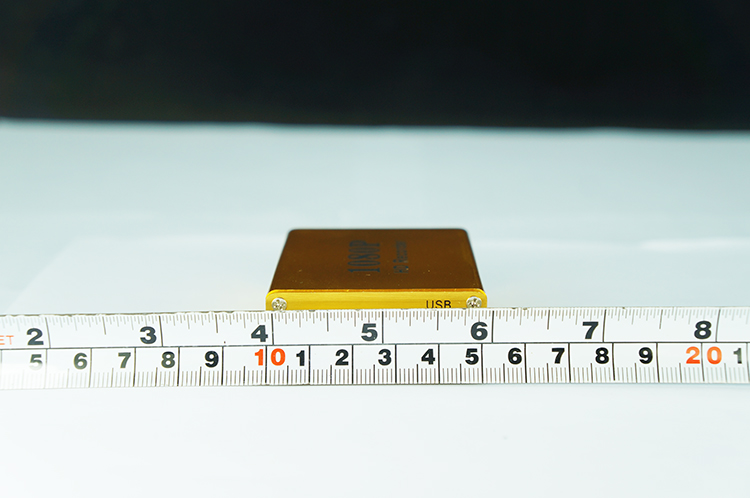

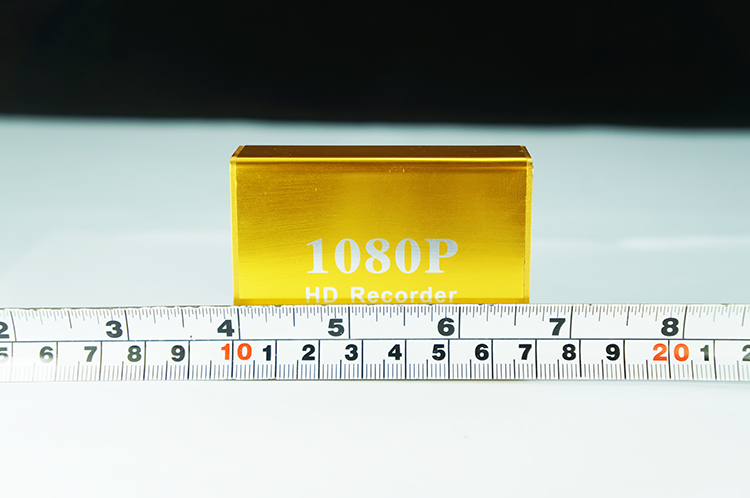

DVR dimension

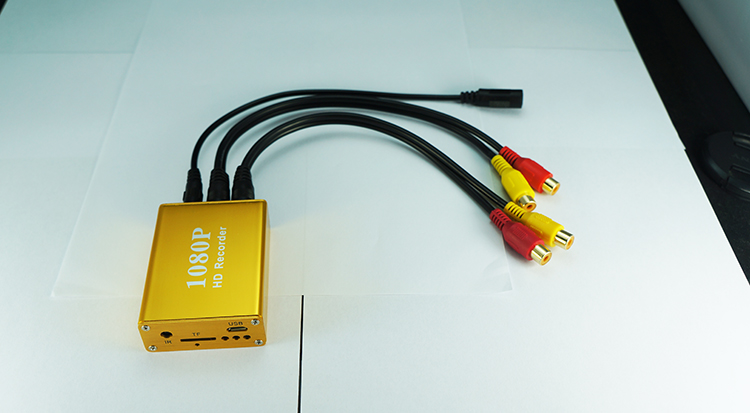

DVR connection ports

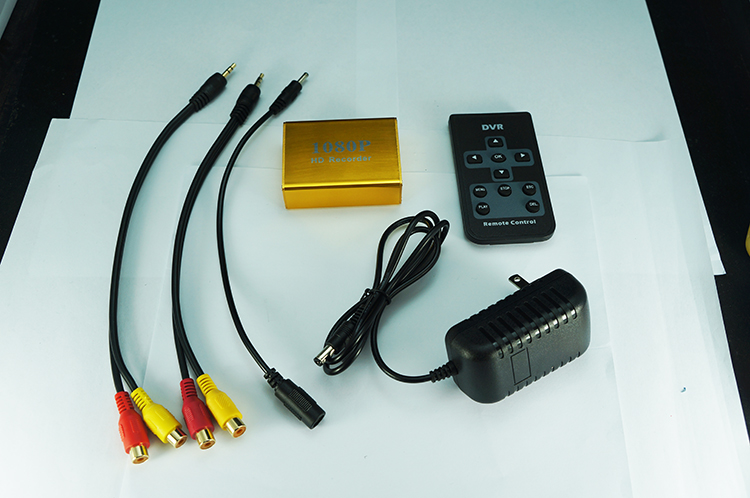

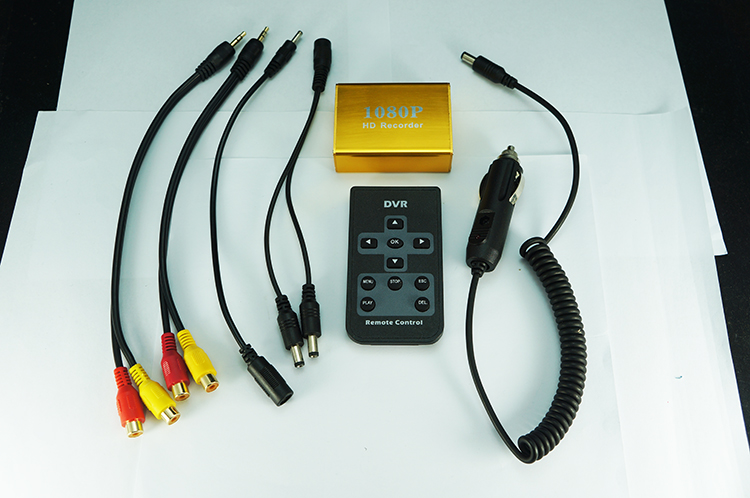

Support home power adapter or Car cigarette charger

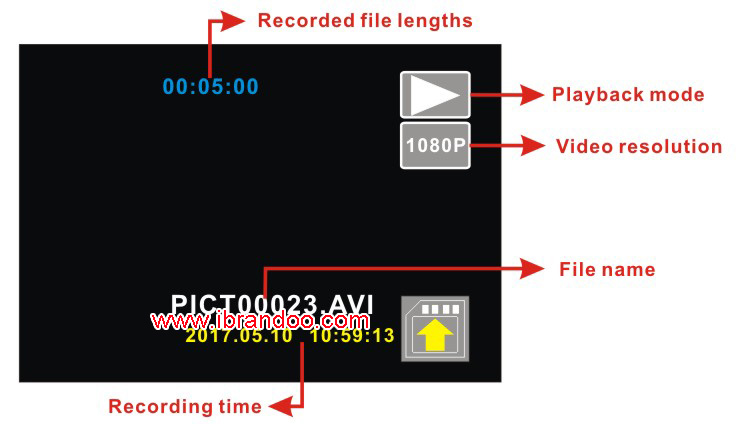

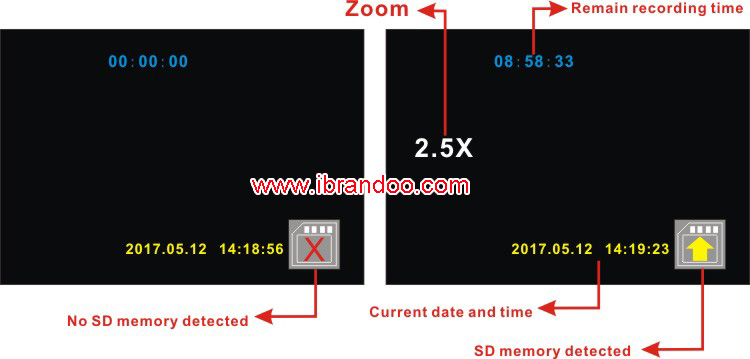

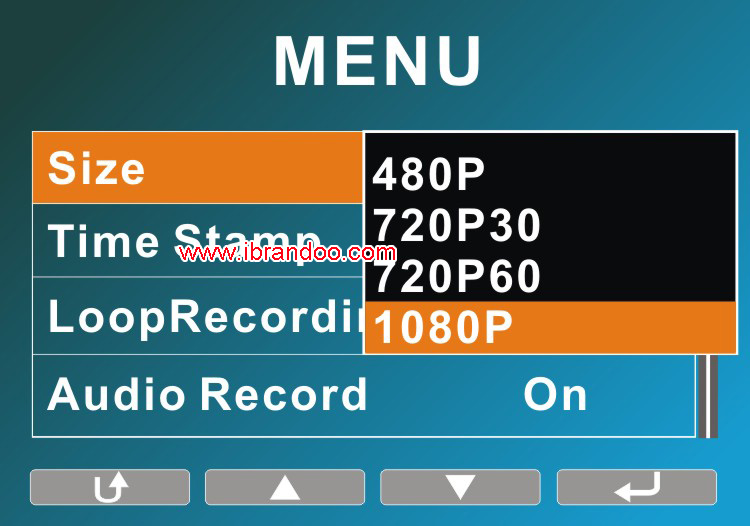

OSD instruction

Simple operation menu

Specifications:


Specifications:

Item Data
Resolution 1080P (1920X1080)
720P (1080X720)
D1 (704X576)
Frame 1080P@30f/s
720P@60f/s
Compression H.264
Video format AVI
Video clip 1/3/5 minutes optional
Playback  Support
Remote control Support
Memory Micro SD Max.128GB
Recording mode Power up/Manual
Power input DC 5V-30V
Power consulption 2W-3W
Motion detection     Support
Module dimension 70x54mm
Language

English/Chinese/French/Spanish/Germany

Portugnese/Japanese/Korean/Italian
