SD card DVR

1 channel DVR SD DVR module Model: BD-300P

This is a mini size DVR module works with 1 channel A/V input and 1 channel A/V output. Max. 256GB sd card memory.Support alarm I/O function start recording and RS232 communication
  • Details

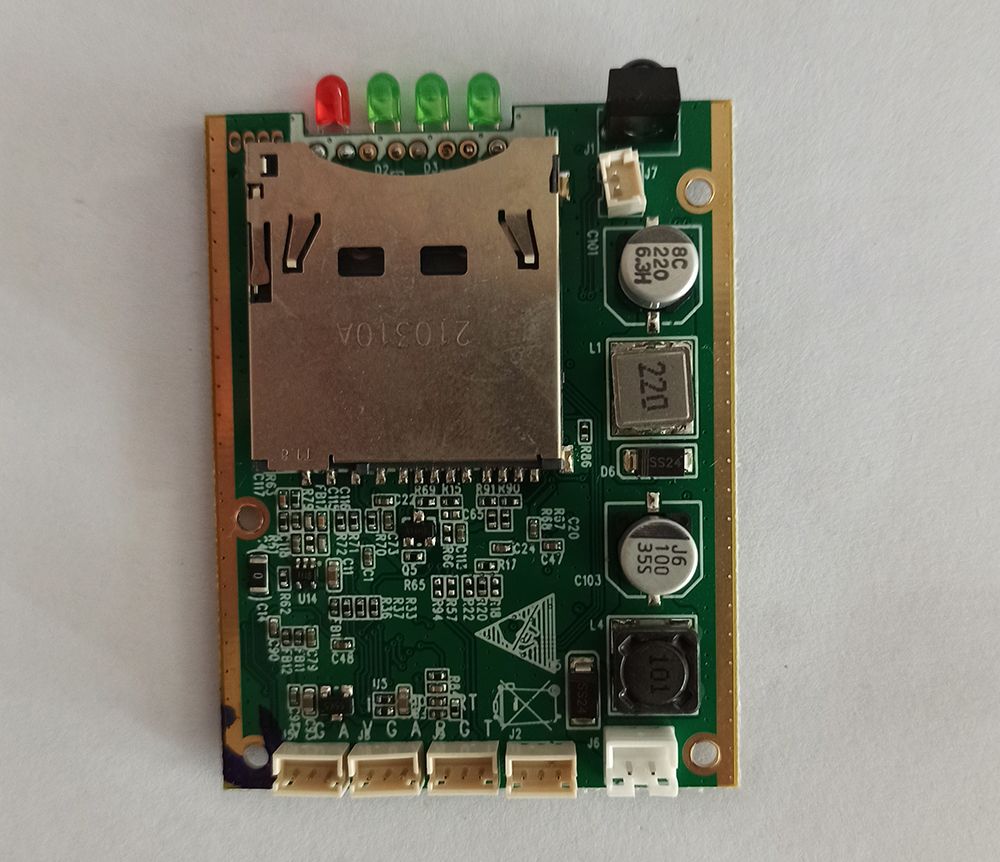

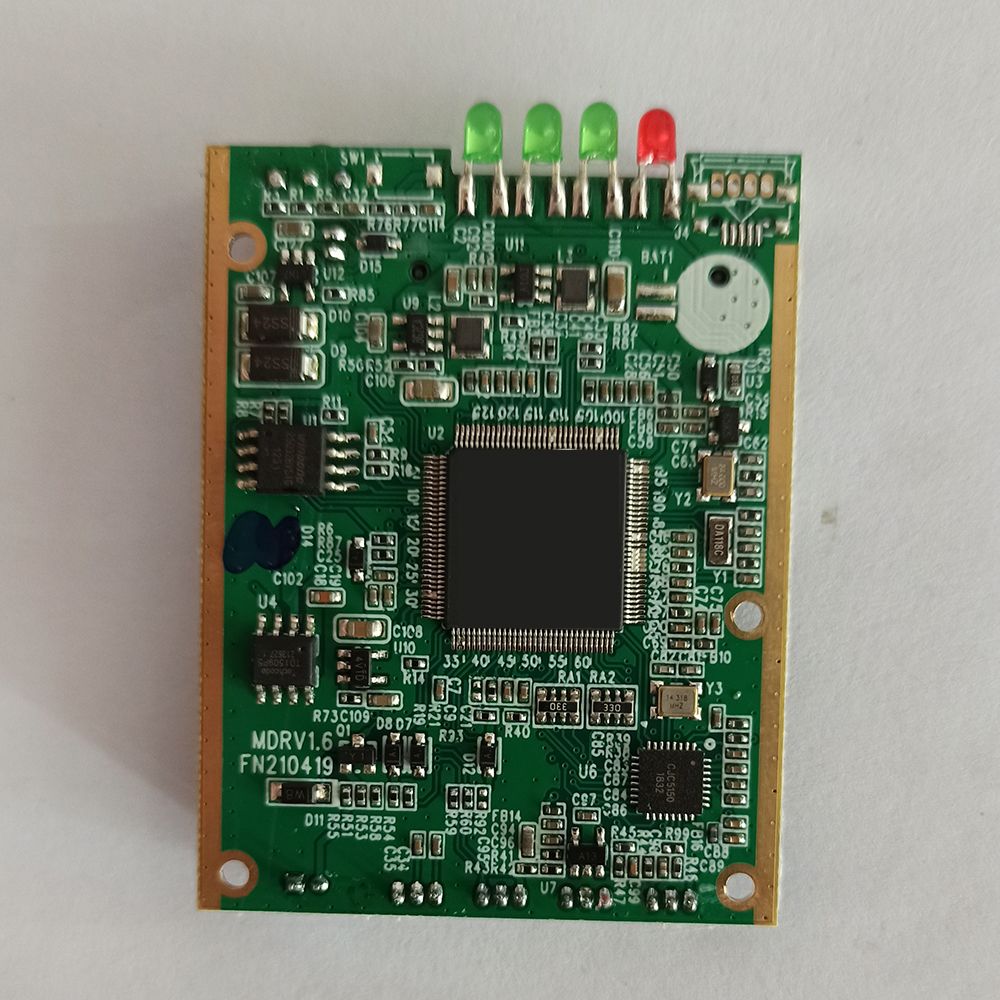

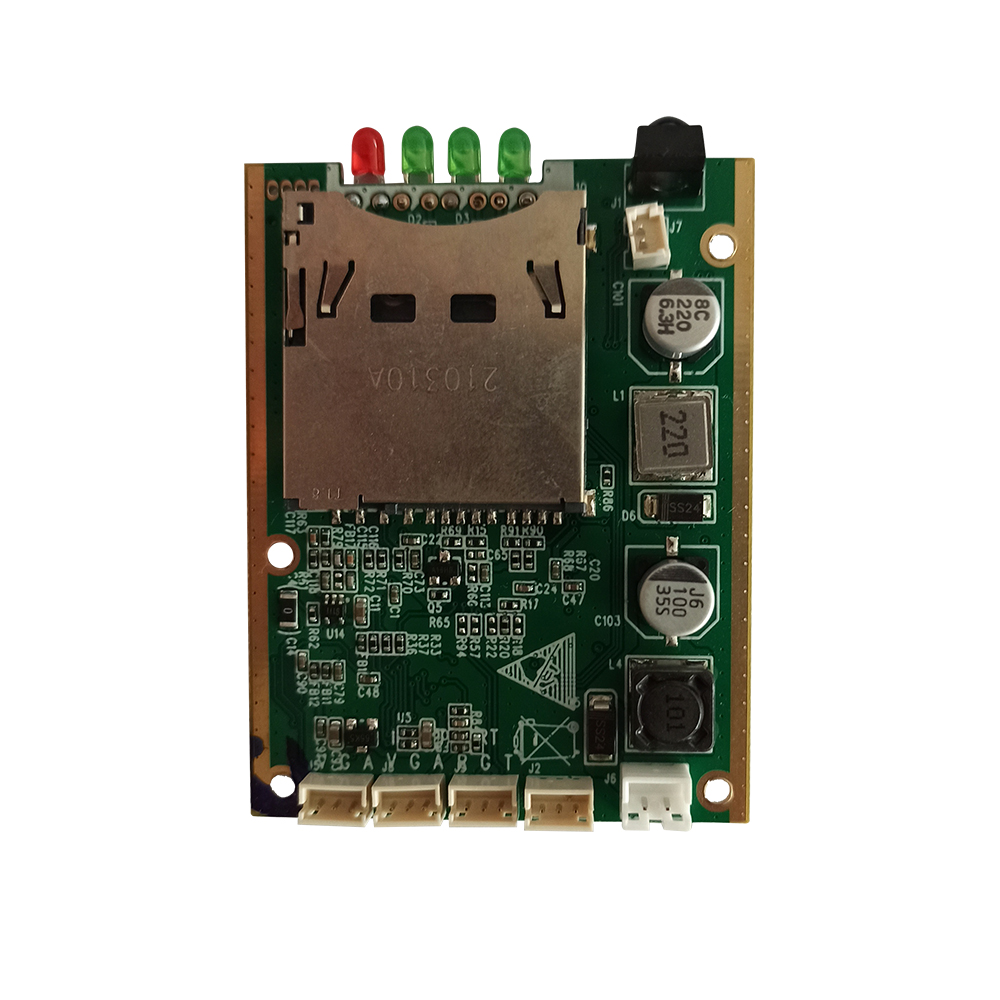

It is a micro size SD DVR module (45.8mm x 59.8mm). We open all functions for customized with UI, function, and also language. This DVR module has alarm I/O for recording start and stop and also RS232(TTL) communication.

Some of our customers installed this board into auto door, video door phone, camera case, inspection system, hericoopter model and so on. the small size helps easy installation.

Feature:
>MPEG-4 Compression
>D1 resolution at 704*576.
>Remote control supported
>Time stamp on videos and pictures
>Overwriting when memory is full
>Record video or snap shot optional
>5, 15, 30 frame per second optional
>Support 256GB SD card memory (HCSD card supported also)

>recording mode: manaully,motion detection,power up, scheduled,and alarm I/O

> RS232 available (need to be customized)

> 8-32V power input

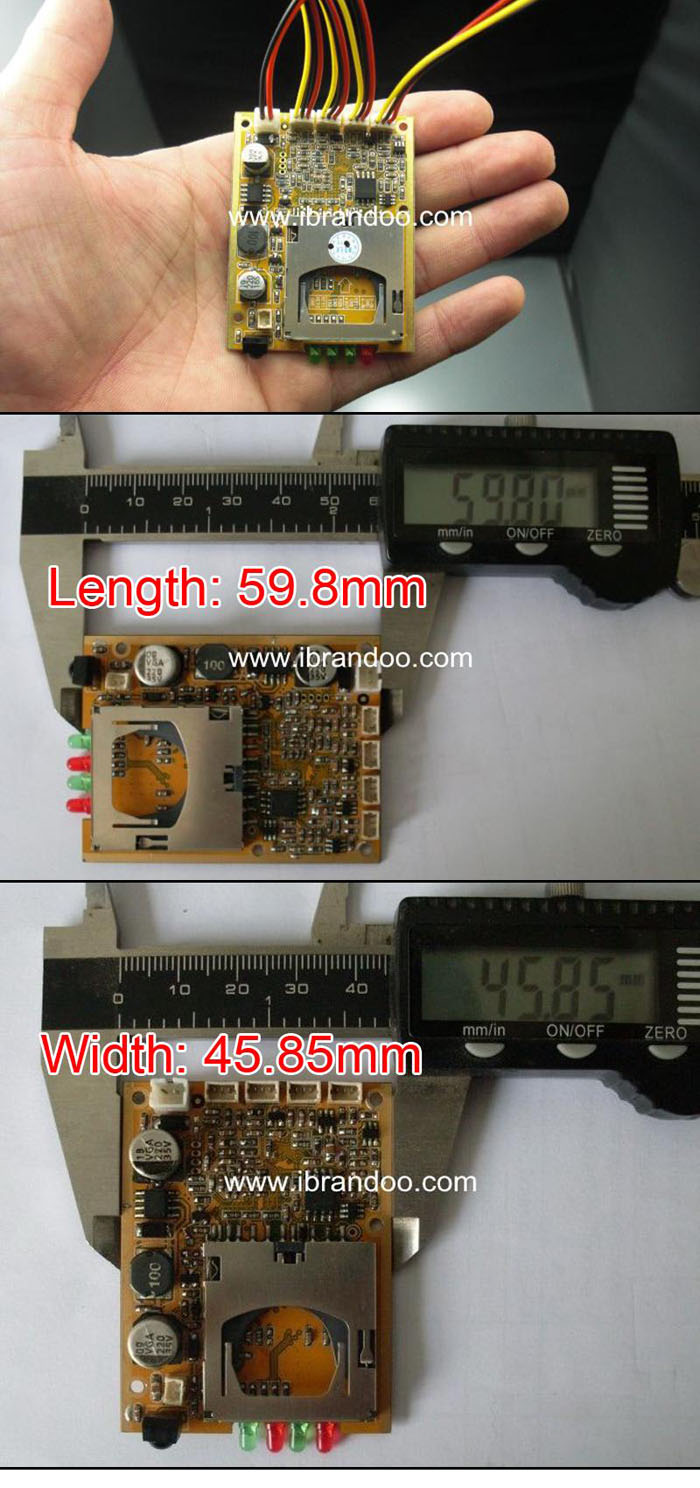

DVR size information

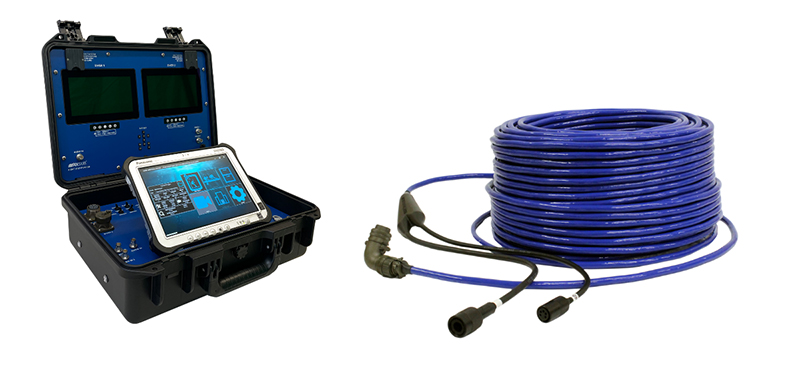

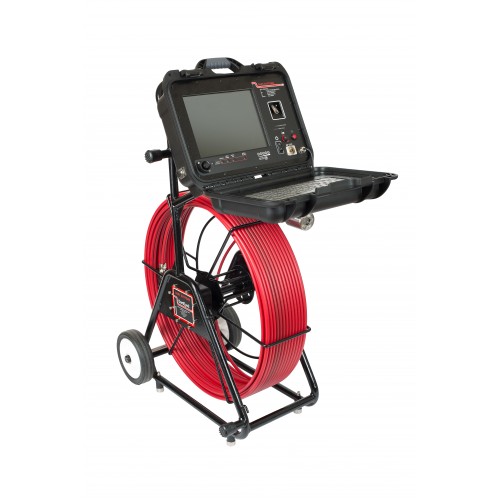

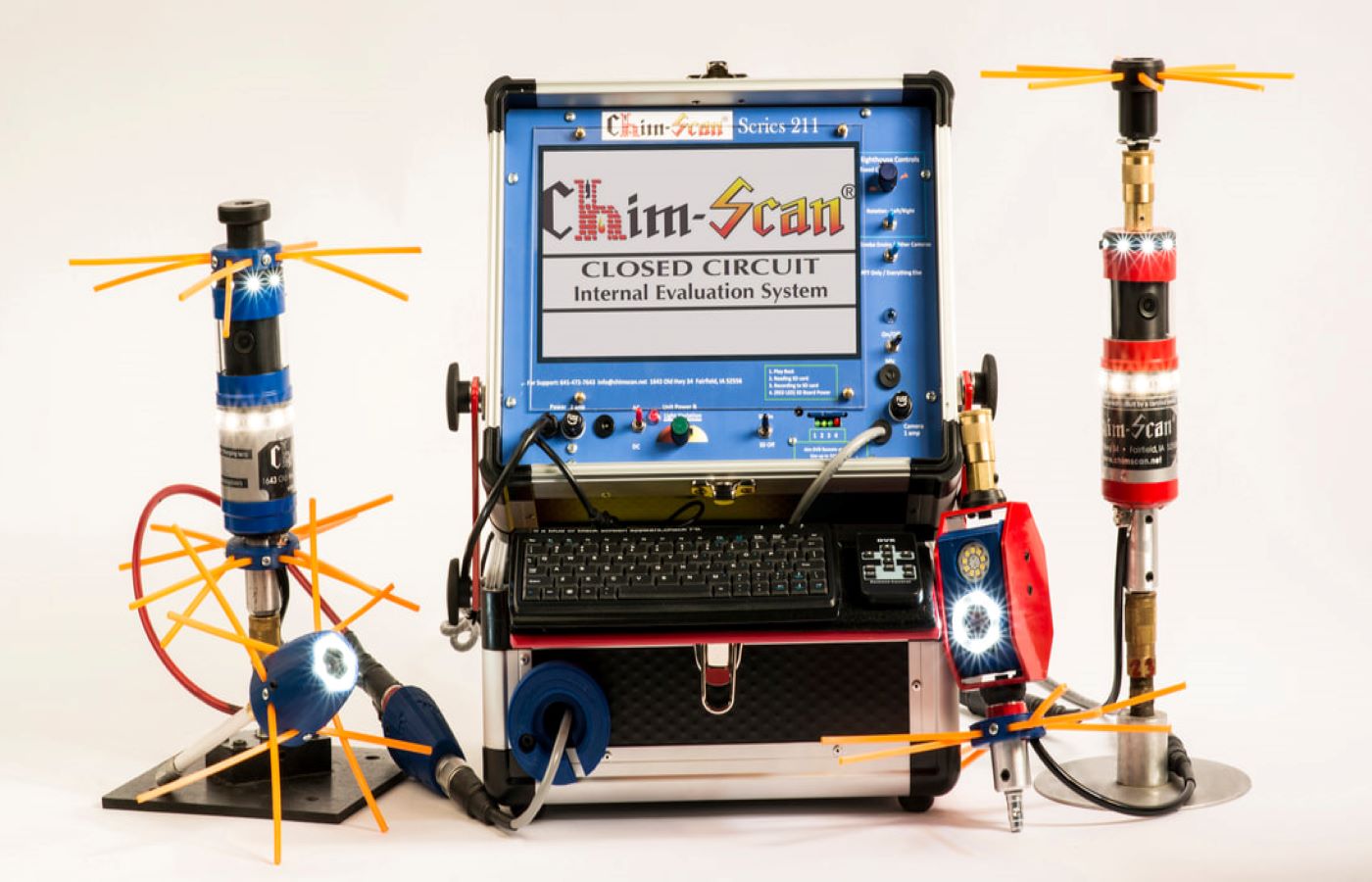

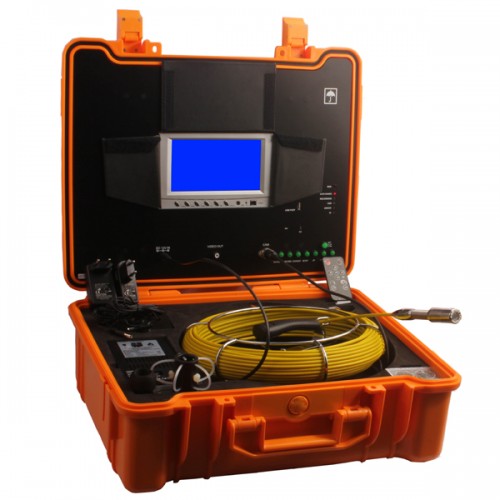

Some ODM case

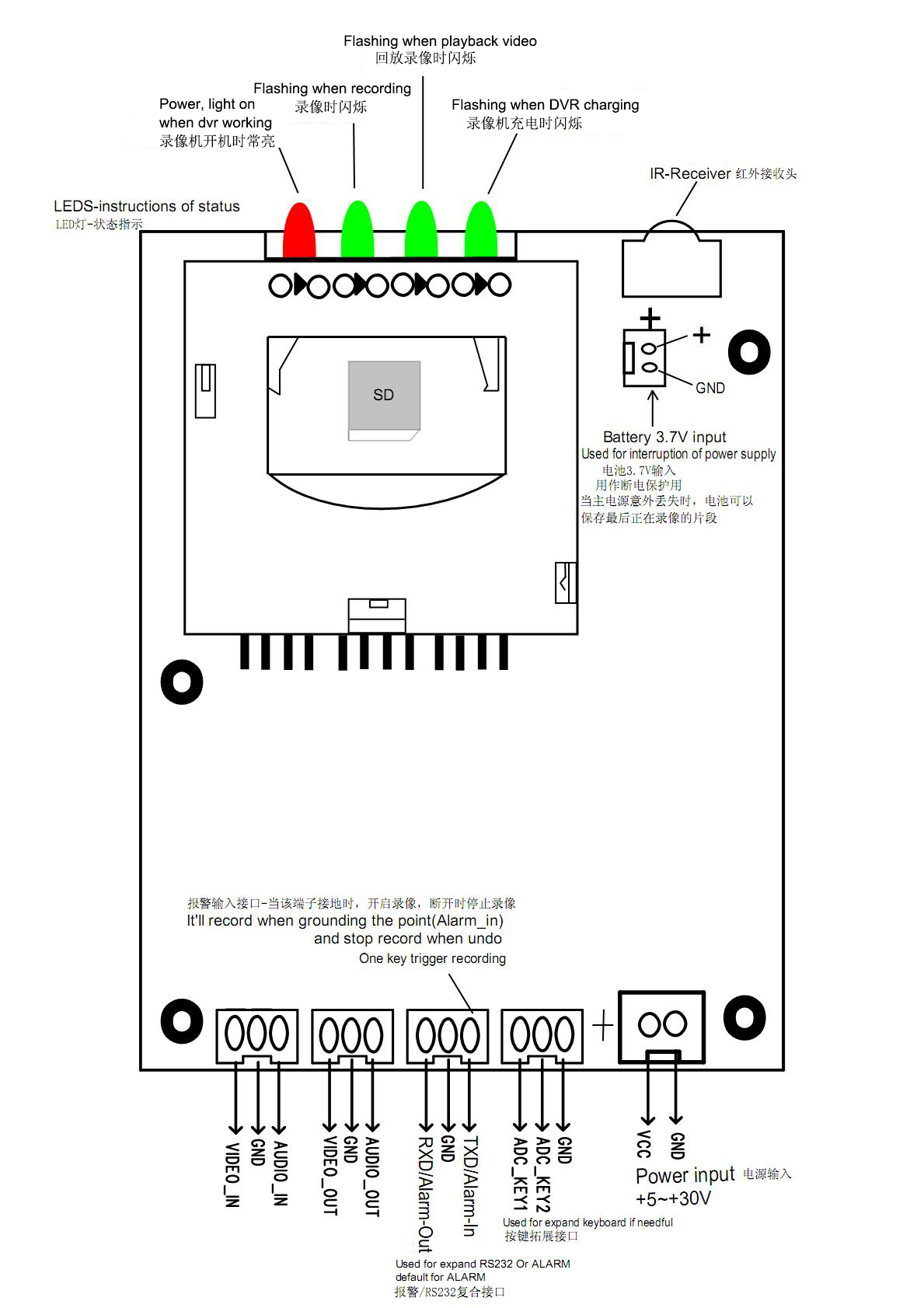

Instruction of DVR interface

Applications


Specification

Item Data
Format Mpeg-4, Video for ASF
Resolution 704*576
Frame 30f/s, 15f/s, 5f/s
Video input 1V,75Ω
Video output 1V,75Ω
Remote control Support
Media SD/ SDHC Card for 256GB
Manual recording yes
Schedule recording yes
Motion detective recording yes
Power up recording yes
Electricity Input DC 8V-32V
Working electricity <150MA
Power expend <2W
G.W./Set 350g
Gift box size 124x100x75 mm
Language
English, Russian, Chinese (customized)
