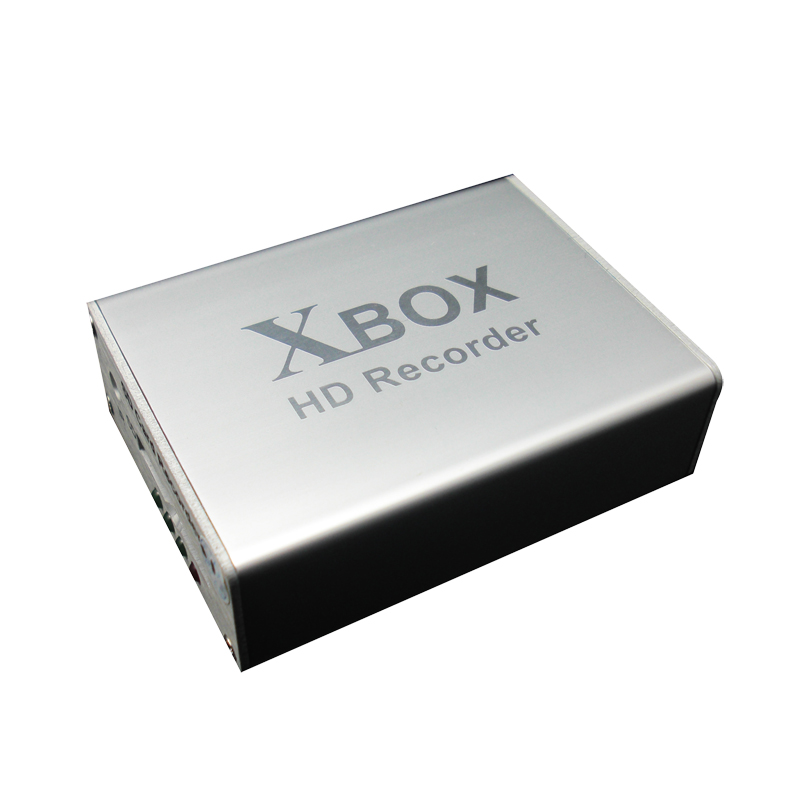

1 Channel Mini SD DVR Model: BD-300
it is a micro DVR works with 256GB memory. It is availbale for both home and car used. We are ODM of this unit, language customized, and function modification are available for orders.
- Details
Features:
>Mpeg-4 Compression
>Remote control supported
>Time stamp on videos and pictures
>Overwriting when memory is full
>Record video or snap shot optional
>5, 15, 30 frame per second optional
>AV out supported
>Mpeg-4 Compression
>D1 resolution at 704*576.
>Support 256GB SD card memory (HCSD card supported also)
>Remote control supported
>Time stamp on videos and pictures
>Overwriting when memory is full
>Record video or snap shot optional
>5, 15, 30 frame per second optional
>AV out supported

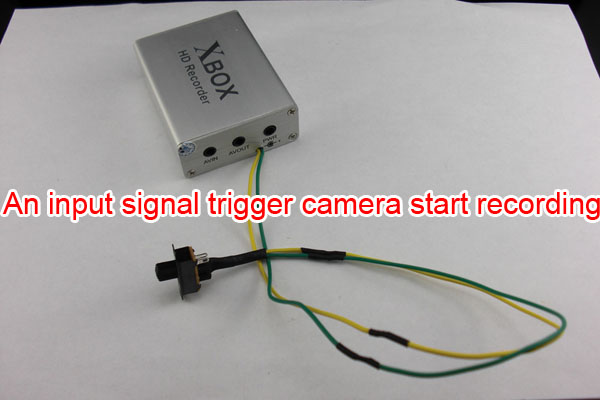

>Recording mode: power up, motion detection,manual,scheduled

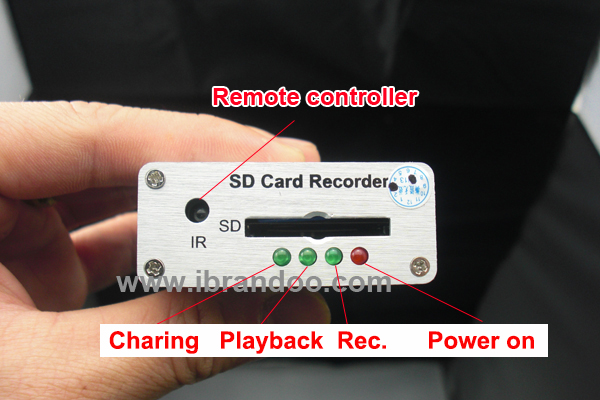

Front panel

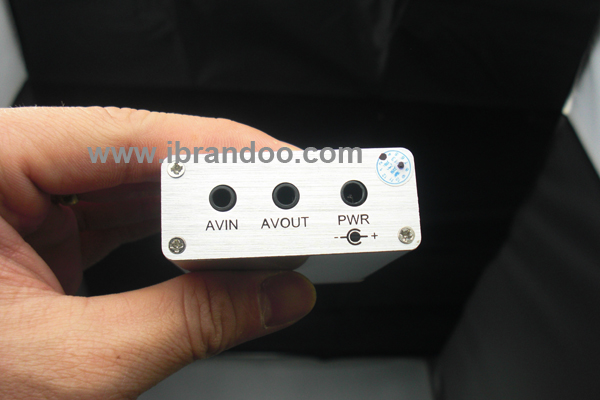

Back panel ,3.5mm jack for AV connection

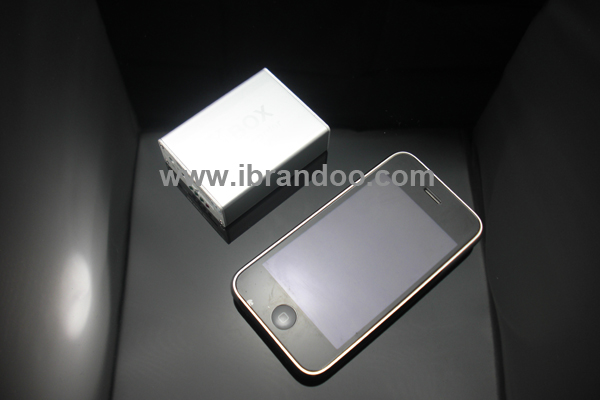

Small size, compared with iphone 3GS

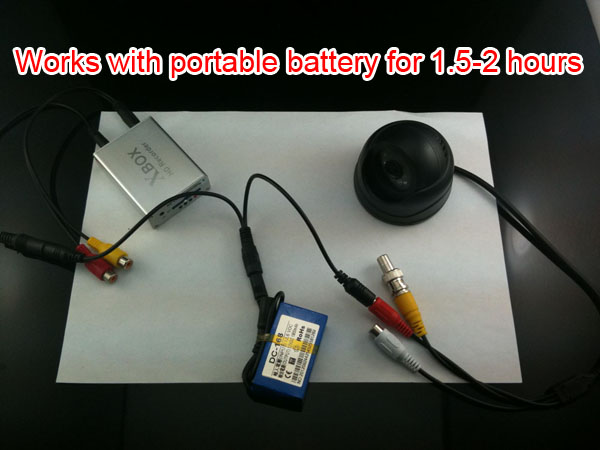

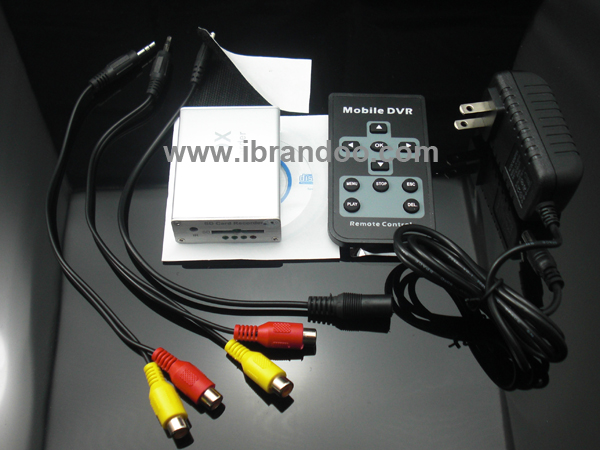

Whole kit

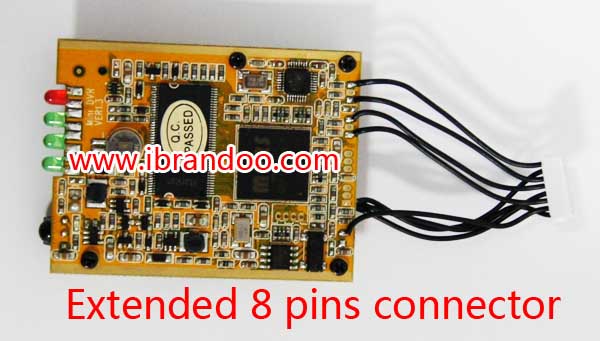

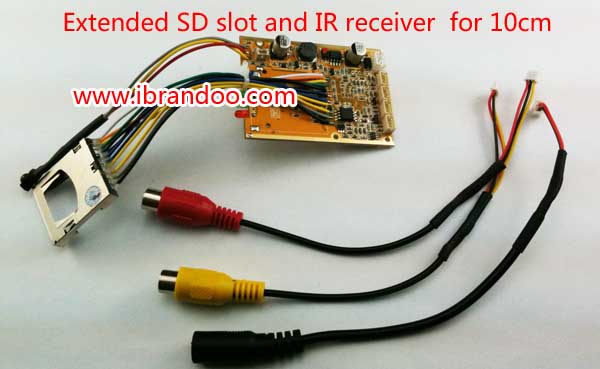

Some ODM case

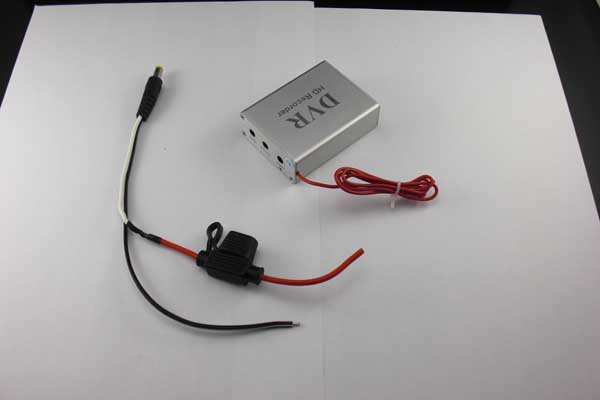

Works with extended power cable and fuse wire

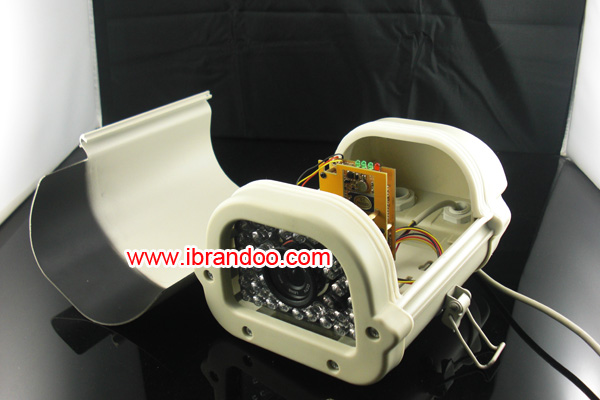

Installed inside waterproof camera housing
Specifications:
| Item | Data |
| Format | Mpeg-4, Video for ASF |
| Resolution | 704*576 |
| Frame | 30f/s, 15f/s, 5f/s |
| Video input | 1V,75Ω |
| Video output | 1V,75Ω |
| Remote control | Support |
| Media | SD/ SDHC Card for 256GB |
| Manual recording | yes |
| Schedule recording | yes |
| Motion detective recording | yes |
| Power up recording | yes |
| Electricity Input | DC 8V-32V |
| Working electricity | <150MA |
| Power expend | <2W |
| G.W./Set | 350g |
| Gift box size | 124x100x75 mm |
| Language | |
| English, Traditional Chinese, Simple Chinese | |
