4 channel
1080P 4 Channel Car DVR Model: BD-310
Features:
>4 channel 1080P>1GB/hour for each channel.
>3G/GPS/WIFI support
>4 channel recording 1 hour need 4GB (highest quality)
>Extended 1TB HDD workable by USB 2.0
>Set up system by computer or smart phones (p2p wifi)

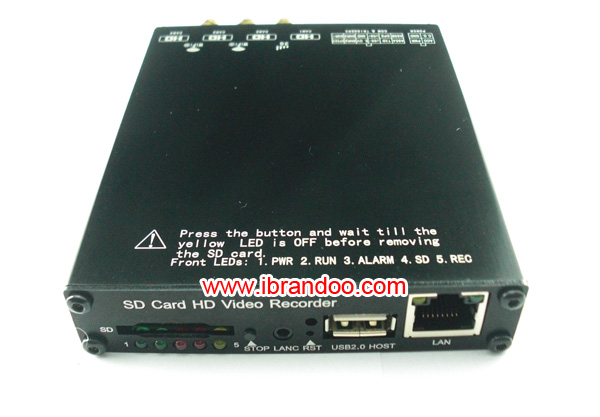

- Details
SD card slot: insert SD memory (Max.128GB)
Stop: stop recording before take out sd card
LANC: connect with external control keypad
RST: Reset DVR system
USB: Work with external HDD (1TB Max.)
LAN: works with LAN for connecting with PC

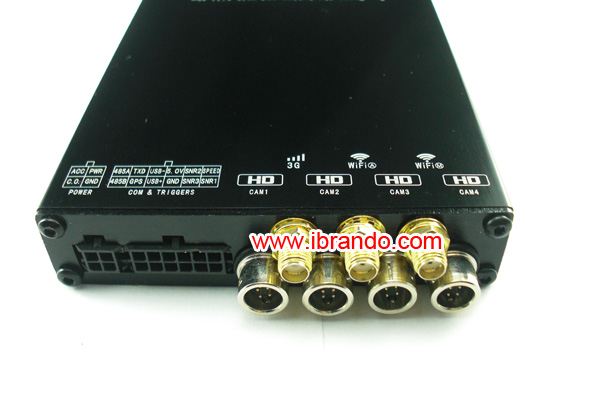

Back panel

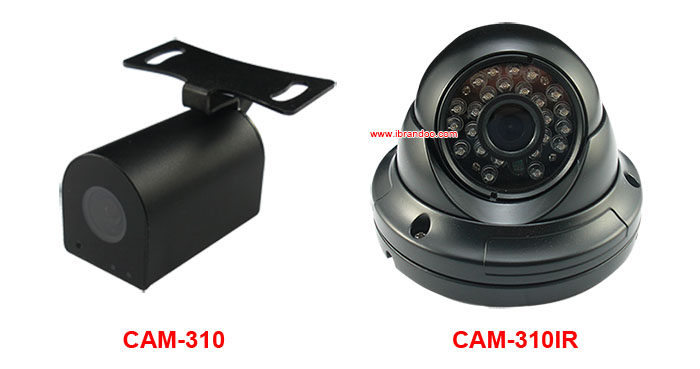

Matched camera used only.
CAM-310, audio only. no waterproof, no IR.
CAM-310IR, waterproof(IP55) and 15 meters IR night vision.

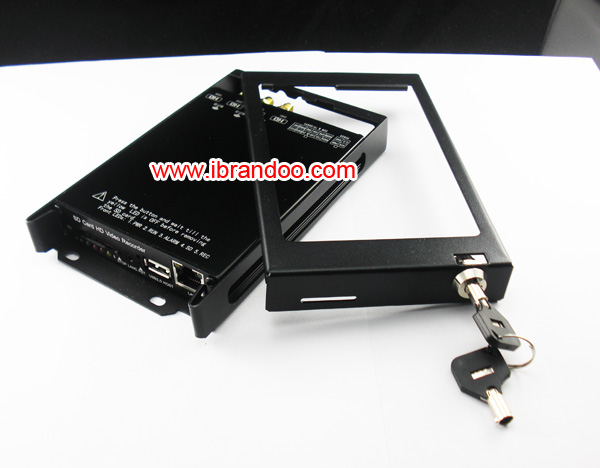

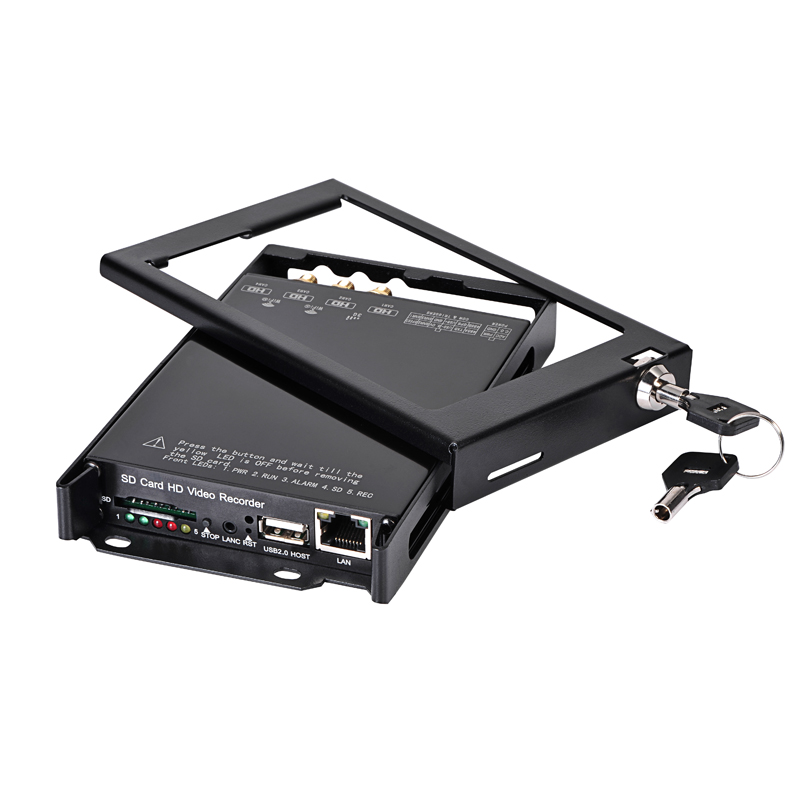

Lockable housing

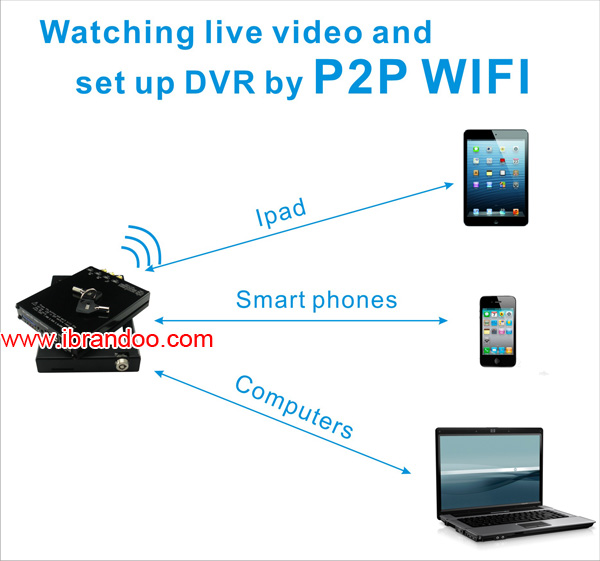

Working diagram
1080P resolution for high quality video, record running car number clearly

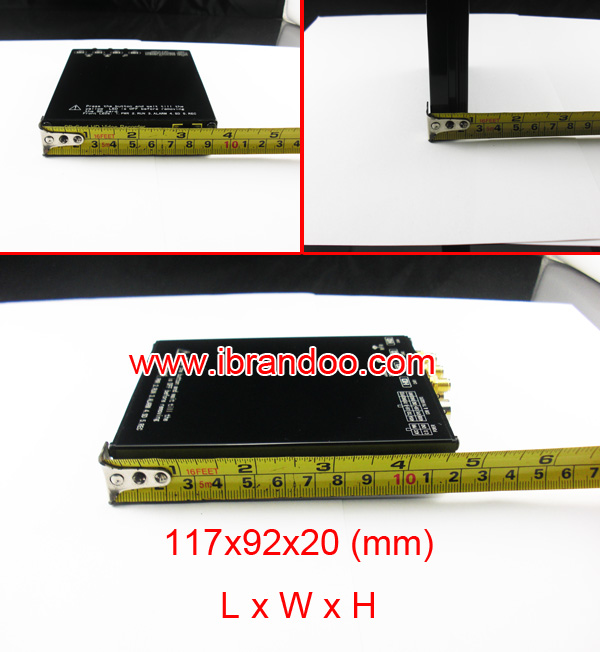

Small size for easy installation

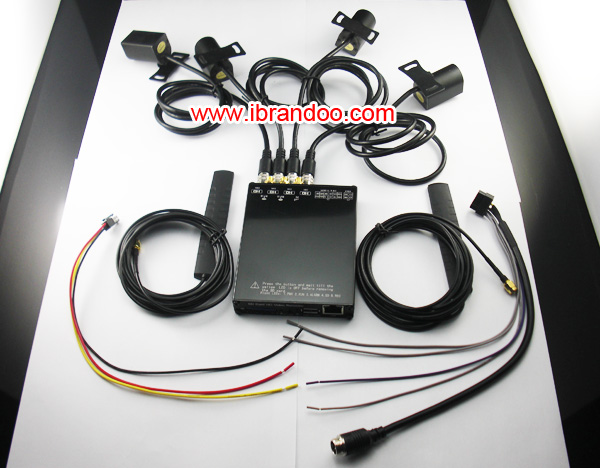

Whole kit

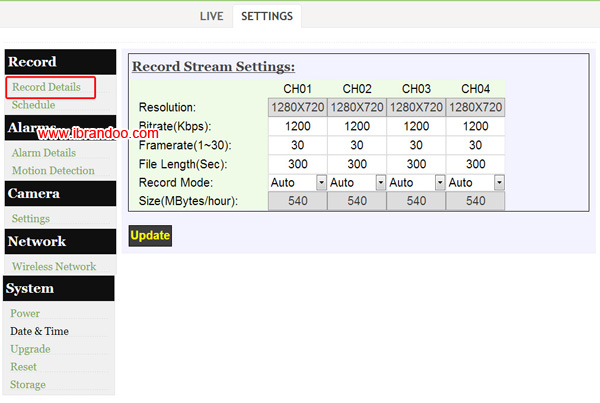

Software interface
Specification of DVR
Item
Description
Parameter
System
Language
English
Interface
IE Interface
Security
Administrator and
user password protected
Video
Video Sensor
1920×1080, 1/3''
progressive scan cmos,1/2/4channel
Video Standard
1920×1080,
30fps
Audio
Audio Input
1/2/4 channel
audio input
Recording mode
Audio and video
synchronize
Compression
AAC
Storage
Video Compression
H.264 High Profile
Resolution
720p at 120fps
Video bitrate
720p: 200Kbps ~
8Mbps
Audio bitrate
8KB/s
Storage
SD card,USB2.0
port(For flash disk or hard drive)
Format
AVI
Sensor
Sensors
1 speed sensor, 1
ignition sensor, 3 common use sensors
Communication
WiFi
802.11b/g/n, max
300M
Network
RJ45,10M/100M Lan port
COM
Two RS232 connector
and one RS485 connector
GPS
supported
Software
Player
3rd party player
VLC media player,Storm
player,WINAMP
Firmware update
Via SD card or USB
disk
Power
Power input
DC:+8V ~
+32V
Power output
+12V@1.5A;+5V@1A
Power consumption
Less than 5W;less
than 0.1W in standby mode
Working temperature
-10℃ ~ +60℃
Size
9.2CM(Width)×2.0CM(Height)×11.7CM(Length)
Item
Description
Parameter
System
Language
English
Interface
IE Interface
Security
Administrator and user password protected
Video
Video Sensor
1920×1080, 1/3'' progressive scan cmos,1/2/4channel
Video Standard
1920×1080, 30fps
Audio
Audio Input
1/2/4 channel audio input
Recording mode
Audio and video synchronize
Compression
AAC
Storage
Video Compression
H.264 High Profile
Resolution
720p at 120fps
Video bitrate
720p: 200Kbps ~ 8Mbps
Audio bitrate
8KB/s
Storage
SD card,USB2.0 port(For flash disk or hard drive)
Format
AVI
Sensor
Sensors
1 speed sensor, 1 ignition sensor, 3 common use sensors
Communication
WiFi
802.11b/g/n, max 300M
Network
RJ45,10M/100M Lan port
COM
Two RS232 connector and one RS485 connector
GPS
supported
Software
Player
3rd party player
VLC media player,Storm player,WINAMP
Firmware update
Via SD card or USB disk
Power
Power input
DC:+8V ~ +32V
Power output
+12V@1.5A;+5V@1A
Power consumption
Less than 5W;less than 0.1W in standby mode
Working temperature
-10℃ ~ +60℃
Size
9.2CM(Width)×2.0CM(Height)×11.7CM(Length)
Specification of Camera
Item |
Data |
|
Video |
Sensor |
1/2.7" Progressive Scan CMOS |
Video compression |
H.264 High Profile |
|
Effective pixels |
1920×1080 |
|
Min. Illuminance |
Color Mode, 0.05Lux |
|
Video bitrate |
0.5Mbps ~ 4Mbps |
|
Frame rate |
1~30fps |
|
Noise to signal ratio |
>50db(AGC OFF) |
|
Electronic shutter |
Automatic |
|
Audio |
Audio input |
1 channel |
Audio compression |
AAC |
|
Optical lens |
Interface |
12mm bayonet |
Lens |
fixed |
|
Focal distance |
6mm |
|
Power |
Power input |
DC,+8V~+32V |
Power consumption |
<1.5W |
|
Other |
Working temp. |
From -10℃ ~ +60℃ |
Working humidity |
0%~90% |
|
Dimension |
26.7mm x 24.4mm x 42.5mm |
