Rear camera

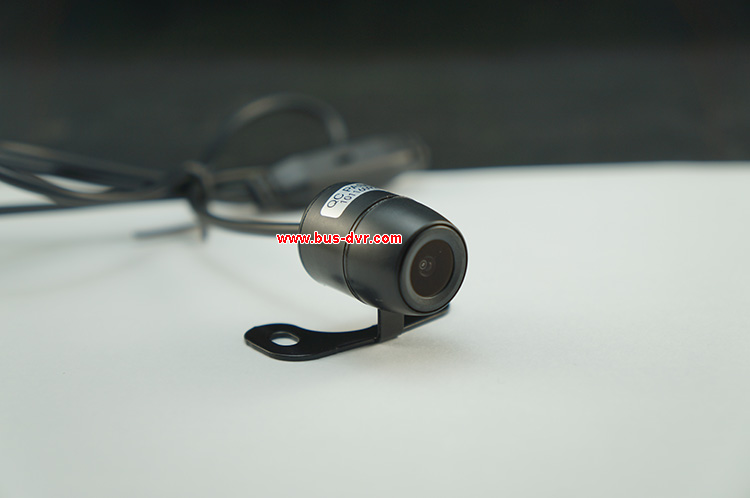

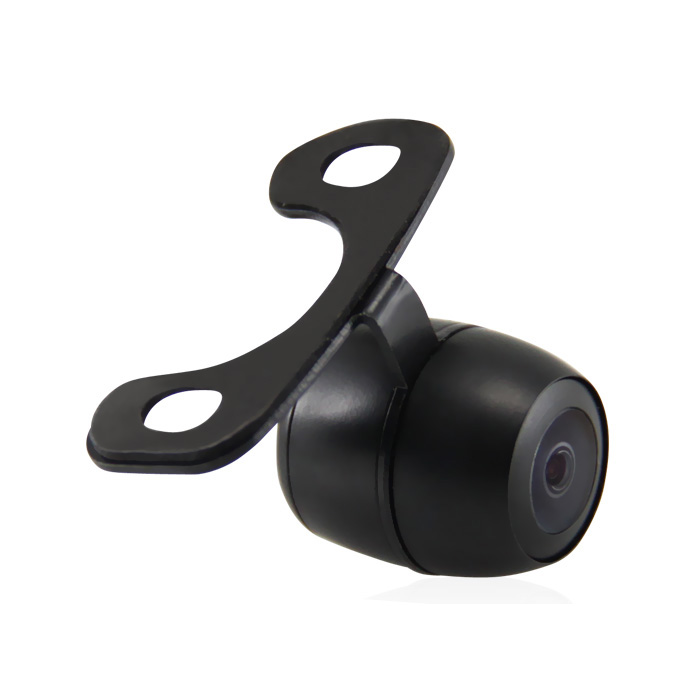

170° HD Mini car camera Model: BD-S651

This is a mini size car camera with 170 degree view angle. Waterproof but no IR night vision.
  • Details

Features:

Image feature:PC1030/MT136
TV System:NTSC/PAL
Image area:5.961mm×4.276mm
Effective pixels:656*492
Horizontal Resolution(TV lines):420 TV lines
View angel:1.8mm 170°
water-proof rating:IP67-IP68
minimum Illumination:0.2 Lux
Electronic Shutter Time:1/50(1/60)-1/100,000sec.
Scanning System:2:1 Interlace
Sync System:Internal
S/N ratio:>48dB
Video Output:1.0Vp-p，75ohm
Power Source:DC12V±10%
BLC :automatism
AGC:automatism
White Balance:automatism
Operation Temperature:-20℃～＋75℃（RH95％Max.）
Storage Temperature:-40℃～＋85℃（RH95％Max.）

Rear drive ruler available

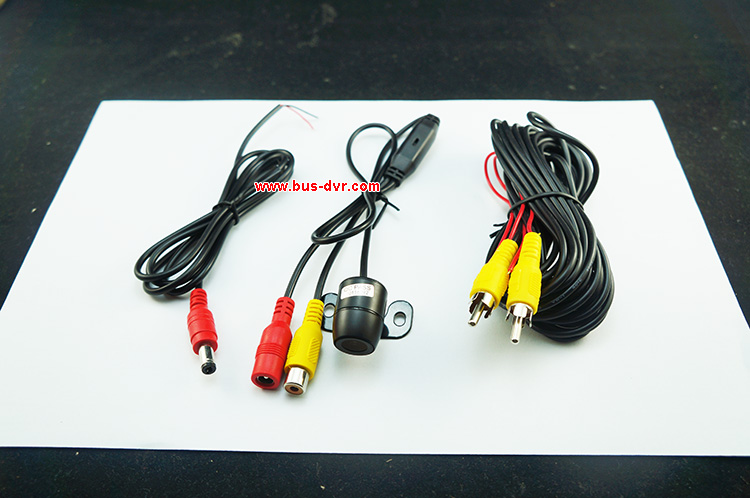

Accessories

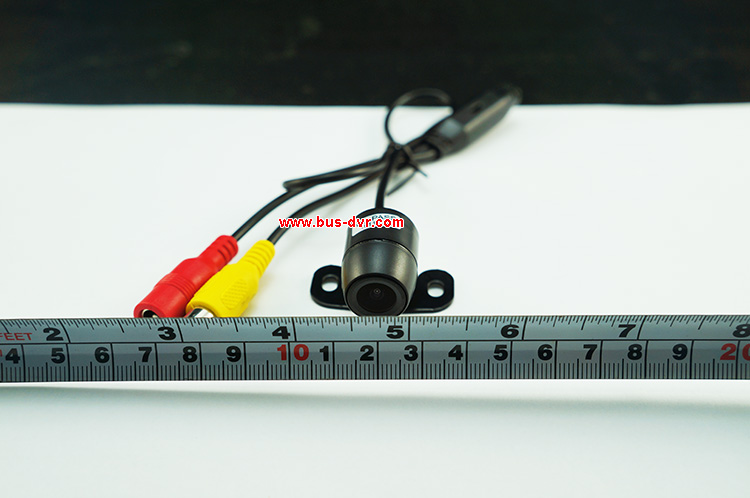

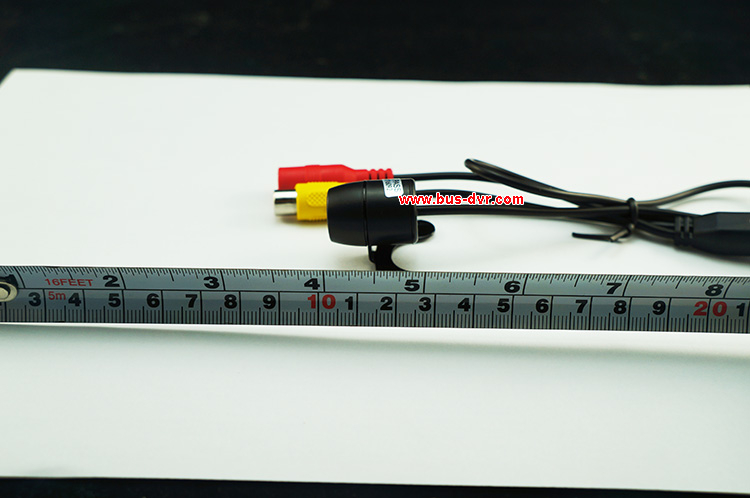

Camera dimension
