4.3 inch

4.3 inch Foldable type car LCD monitor Model: BD-7004

This is a foldable type car LCD monitor. Color TFT LCD with RCA connectors.
  • Details
Features:
Foldable LED backlit 4.3-inch digital high-definition display
Number of Pixel: 480x272
Display Format: RGB Stripe
Color: 16.7M color
Input Data: 24bits RGB interface
Viewing Direction: 6 O, CLOCK
Backlight: White LED
Driver IC: OTA5180A-C2
Video color system: NTSC/PAL
Power supply: DC12V(+ -10%)
Item: Specifications Unit
Dimensional outline: 102.04(W)x63.01(H)x1.43(D)
LCD A. A: 95.04(W)x53.86(H)
Pixel Pitch: 0.198(W)x0.198(H)
Menu adjust the function: (BRIGHTNESS/ CONTRAST/HUE/SATURATION/SHARPNESS/MODE: 16: 9/4: 3)

When input signal automatically boot up

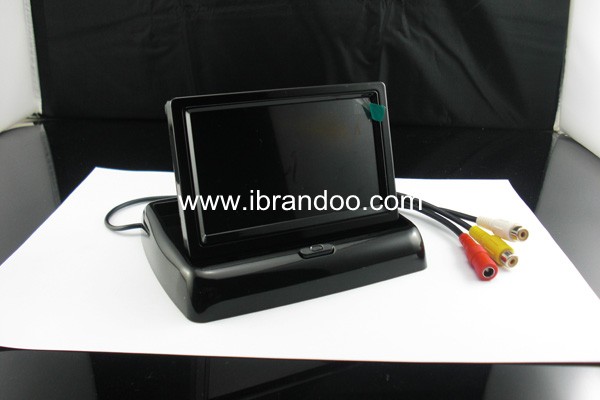

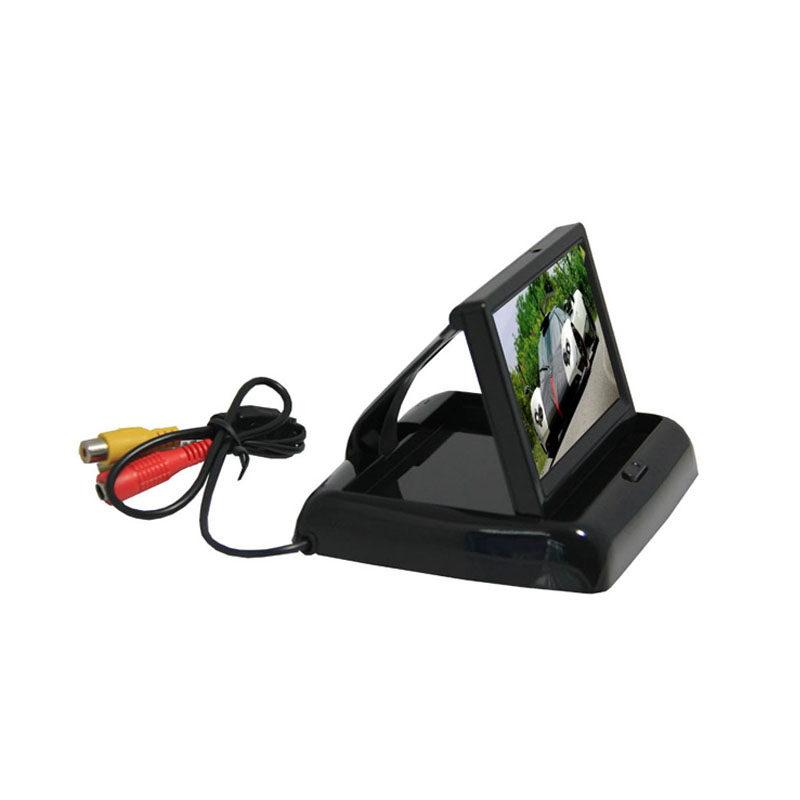

LCD unfold

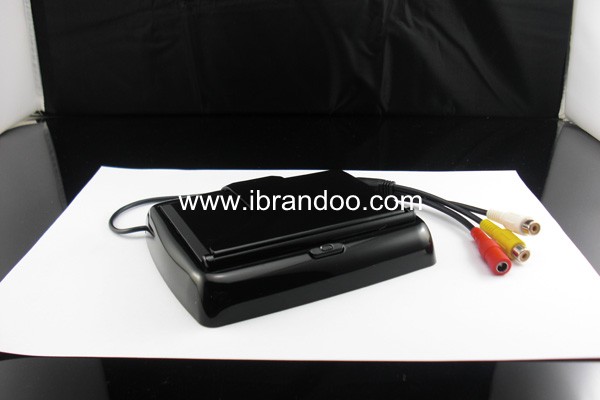

LCD folded
