4 channel
4 channel 1080P HDD Car DVR Model: BD-313
- Details
Features:
> 2TB HDD / 512MB SSD memory available
> 1080P video resolution for each channel
> Language for menu can be customized
> Video output to laptop or smart phone by WIFI
> 3G/GPS function available
> APP for cell phone used (developing)

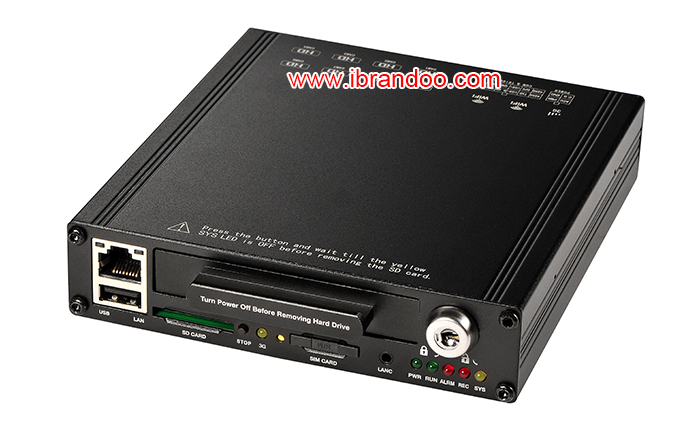

Front panel of DVR

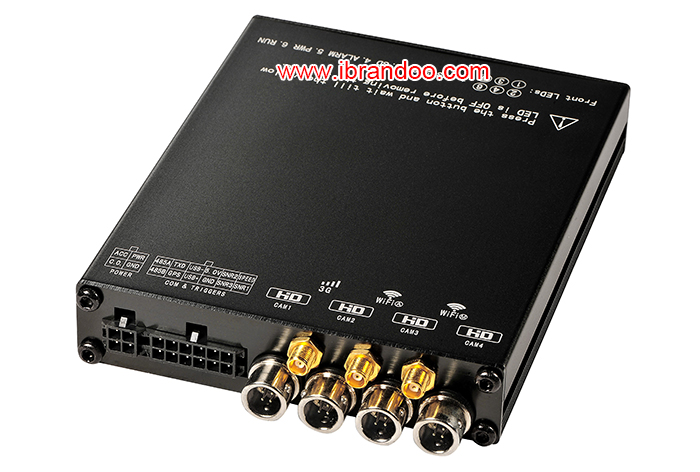

Rear panel of DVR

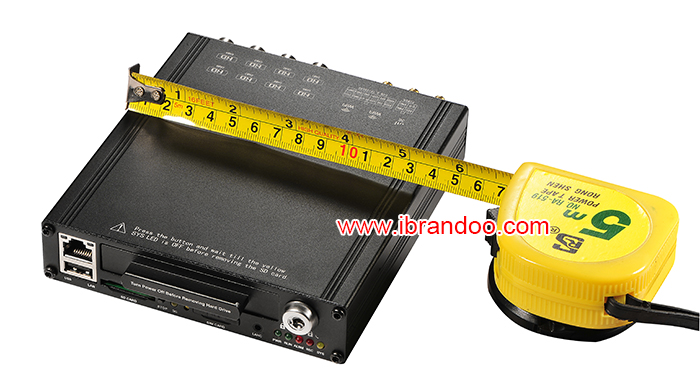

Small size for easy installation

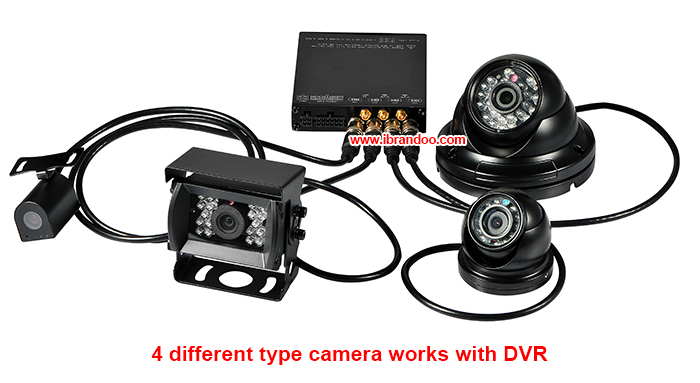

4 different type camera works

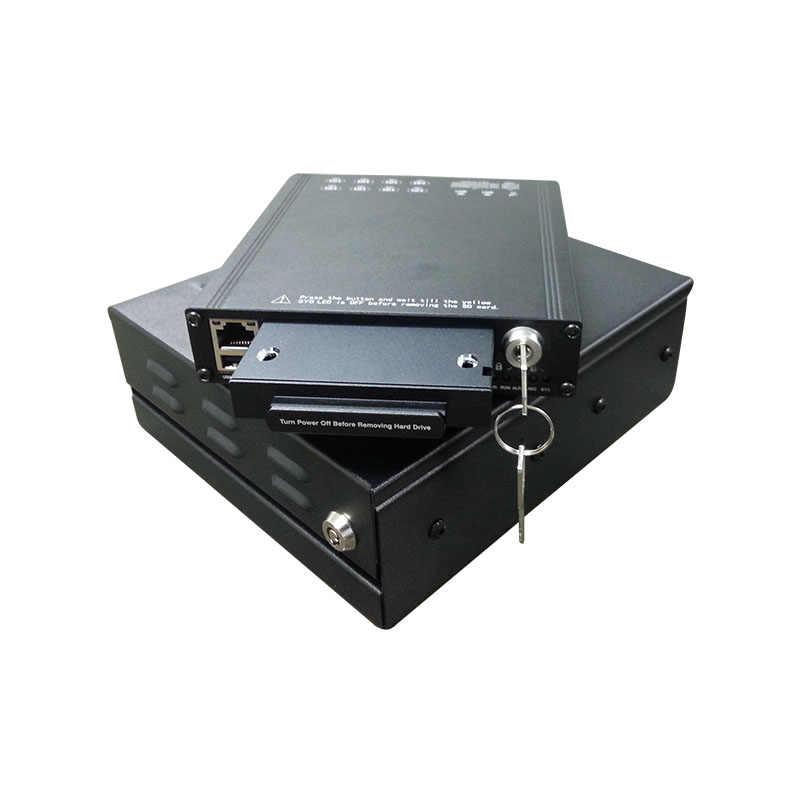

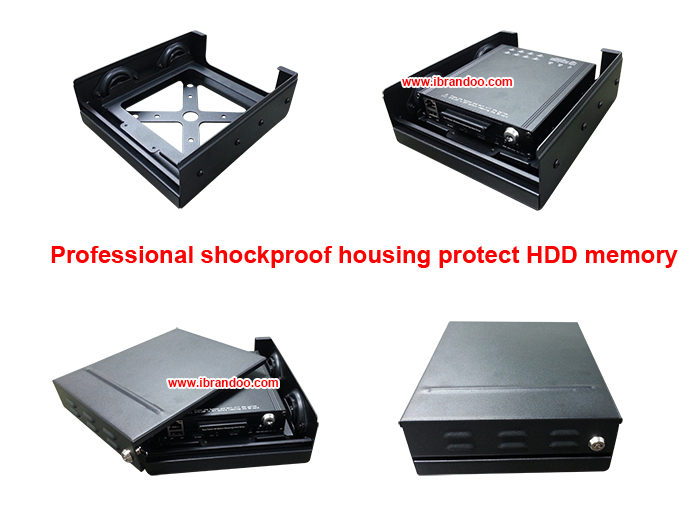

Standard version-shock proof housing

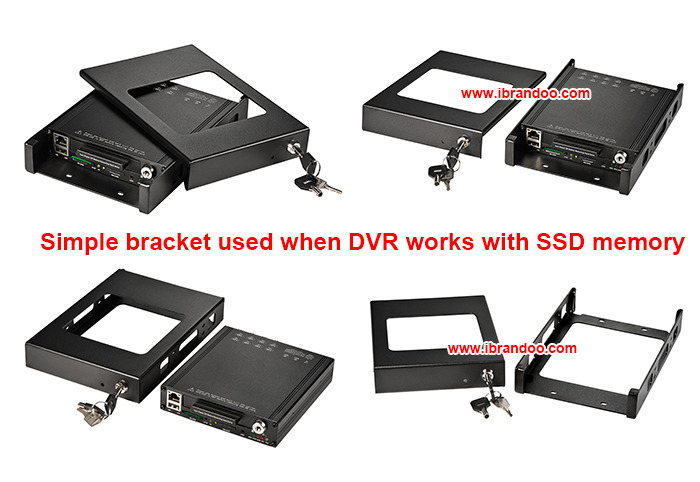

If you prefer to use SSD memory, simply bracket is OK.

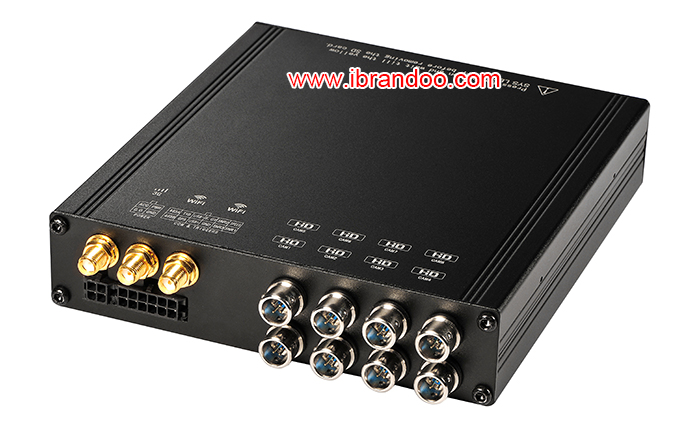

8 channel version
Specification of DVR
Item
Description
Parameter
System
Language
English (Customized available)
Interface
IE Interface
Security
Administrator and user password protected
Video
Video Sensor
1920×1080, 1/3'' progressive scan cmos,1/2/4channel
Video Standard
1920×1080, 30fps
Audio
Audio Input
1/2/4 channel audio input
Recording mode
Audio and video synchronize
Compression
AAC
Storage
Video Compression
H.264 High Profile
Resolution
1080p at 120fps
Video bitrate
1080p: 200Kbps ~ 8Mbps
Audio bitrate
8KB/s
Storage
2TB HDD/ 512MB SSD
Format
AVI
Sensor
Sensors
1 speed sensor, 1 ignition sensor, 3 common use sensors
Communication
WiFi
802.11b/g/n, max 300M
Network
RJ45，10M/100M Lan port
COM
Two RS232 connector and one RS485 connector
GPS
supported
Software
Player
3rd party player
VLC media player，Storm player，WINAMP
Firmware update
Via SD card or USB disk
Power
Power input
DC：+8V ~ +32V
Power output
+12V@1.5A；+5V@1A
Power consumption
Less than 5W；less than 0.1W in standby mode
Working temperature
-10℃ ~ +60℃
Dimension
DVR size: 9.7CM（Width）×2.6CM（Height）×11.6CM（Length）
Housing size: 10.3CM（Width）×2.8CM（Height）×15.1CM（Length）
Item
Description
Parameter
System
Language
English (Customized available)
Interface
IE Interface
Security
Administrator and user password protected
Video
Video Sensor
1920×1080, 1/3'' progressive scan cmos,1/2/4channel
Video Standard
1920×1080, 30fps
Audio
Audio Input
1/2/4 channel audio input
Recording mode
Audio and video synchronize
Compression
AAC
Storage
Video Compression
H.264 High Profile
Resolution
1080p at 120fps
Video bitrate
1080p: 200Kbps ~ 8Mbps
Audio bitrate
8KB/s
Storage
2TB HDD/ 512MB SSD
Format
AVI
Sensor
Sensors
1 speed sensor, 1 ignition sensor, 3 common use sensors
Communication
WiFi
802.11b/g/n, max 300M
Network
RJ45，10M/100M Lan port
COM
Two RS232 connector and one RS485 connector
GPS
supported
Software
Player
3rd party player
VLC media player，Storm player，WINAMP
Firmware update
Via SD card or USB disk
Power
Power input
DC：+8V ~ +32V
Power output
+12V@1.5A；+5V@1A
Power consumption
Less than 5W；less than 0.1W in standby mode
Working temperature
-10℃ ~ +60℃
Dimension
DVR size: 9.7CM（Width）×2.6CM（Height）×11.6CM（Length）
Housing size: 10.3CM（Width）×2.8CM（Height）×15.1CM（Length）
Specification of Camera
|
Item |
Data |
|
|
Video |
Sensor |
1/2.7" Progressive Scan CMOS |
|
Video compression |
H.264 High Profile |
|
|
Effective pixels |
1920×1080 |
|
|
Min. Illuminance |
Color Mode, 0.05Lux |
|
|
Video bitrate |
0.5Mbps ~ 4Mbps |
|
|
Frame rate |
1~30fps |
|
|
Noise to signal ratio |
>50db(AGC OFF) |
|
|
Electronic shutter |
Automatic |
|
|
Audio |
Audio input |
1 channel |
|
Audio compression |
AAC |
|
|
Optical lens |
Interface |
12mm bayonet |
|
Lens |
fixed |
|
|
Focal distance |
6mm |
|
|
Power |
Power input |
DC，+8V~+32V |
|
Power consumption |
<1.5W |
|
|
Other |
Working temp. |
From -10℃ ~ +60℃ |
|
Working humidity |
0%~90% |
|
|
Dimension |
26.7mm x 24.4mm x 42.5mm |
