Bus/taxi camera
Taxi Camera Model: CAM-613
This is a HD taxi camera with very small size and customized housing.
- Details
Features:
> SONY CCD, 700TVL
> Audio available
> Metal housing
> IR night vision 1.5-2 meters
> PAL/NTSC optional

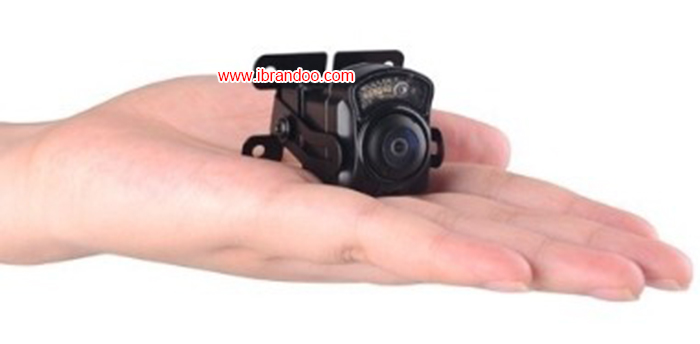

Small size for easy installation
Small size for easy installation
BNC/RCA connector selectable
140 degree wide angle for all seats in taxi
Specifications:
| Item | Data |
| Pick up Device | 2090+1/3” Color Sony 811 CCD |
| TV System | PAL |
| Effective Pixel Array | 976H x 582V |
| Horizontal Resolution | 700TVL |
| Sensitivity | 0 Lux (LED On) |
| Scanning System | 2:1 Interlace |
| Synchronization | Internal |
| Infrared Spectrum | 850nm |
| Infrared LED | 5 LEDs with SMD type |
| IR range | 1.5 M |
| S/N Ratio | 50 dB, (AGC Off) |
| Audio | Available |
| Switchable IR filter | No |
| Auto Gain Control | Auto |
| White Balance | Auto |
| Electronic Shutter | Auto |
| Back Light Compensation | Auto |
| Video Output | 1 Vp-p, 75ΩComposite |
| Gamma Ratio | 0.45 |
| Lens | Waterproof f2.35mm fixed iris |
| Lens Angle (D) | 145° |
| Pan Adjusting | +/-30 Degree |
| Tilt Adjusting | 0-90 Degree |
| Power Supply | 12V DC ±10% |
| Power Consumption | 130mA |

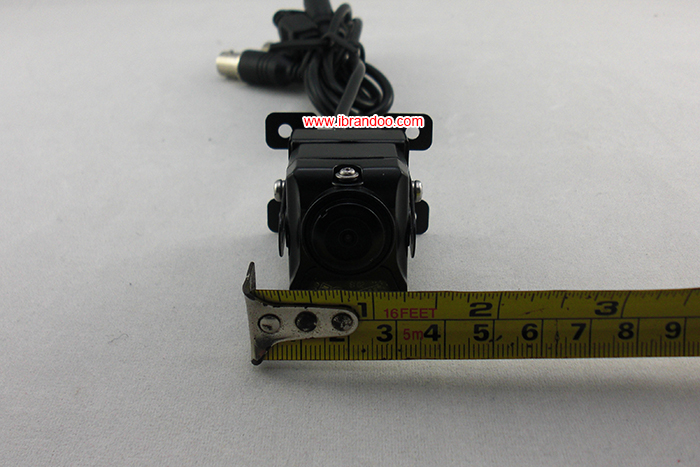

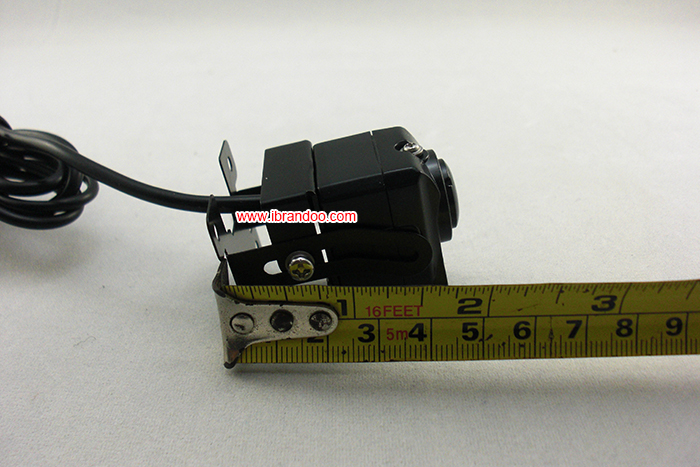

| Dimensions | 32.2(L) x 42.6(H) x 29.5 (W) mm |
| Net Weight | 51 g |
| Weatherproof | N/A |
| Operating Temperature | -20°C to +50°C |
