AHD car camera

Car rear camera waterproof AHD-S690

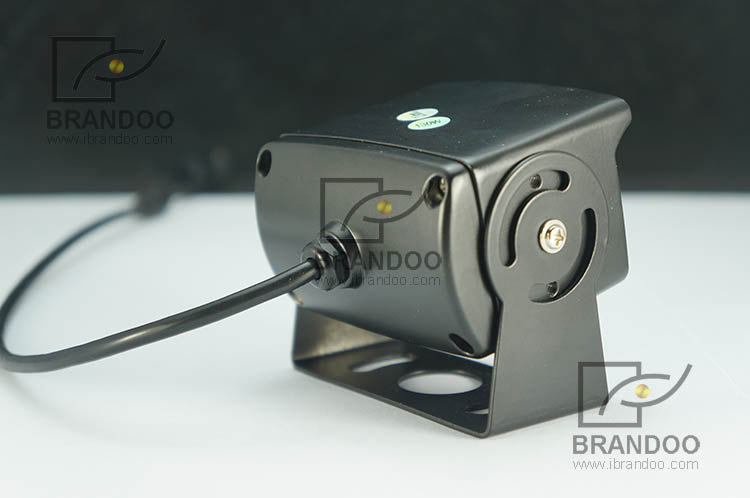

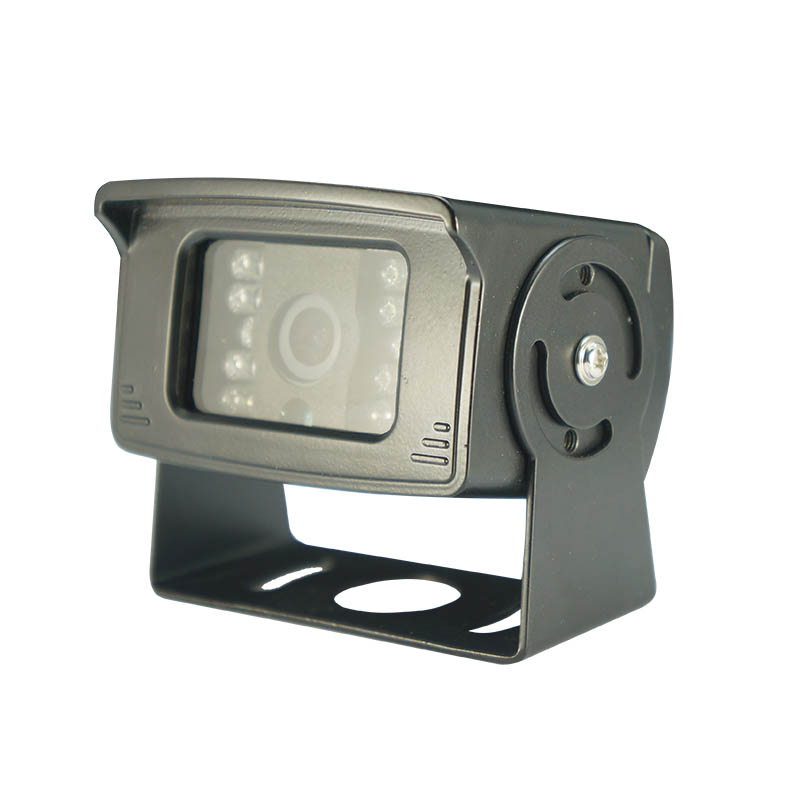

This is a 1.3 mega pixel AHD car camera, used as car rear view camera, waterproof, can be installed out of car. Metal housing with IR leds for 10 meters night vision.
  • Details

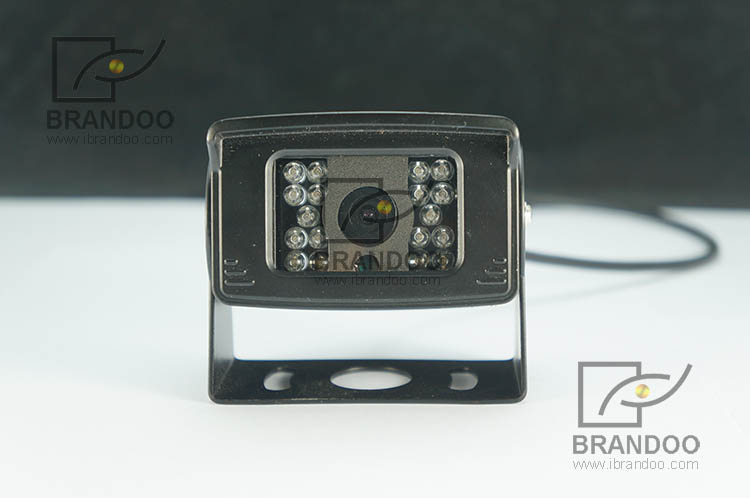

18 IR leds for 10-15m night vision

Special waterproof screw designing.



Specifications:

Image sensor

1/3  AR0130  CMOS

Mode

PAL

NTSC

Pixel

PAL：1280（H）×960（V）

NTSC：1280（H）×960（V）

Min. Illuminance

0.0001 LUX / F1.2

Horizontal

AHD：1.3MP 960P，Analog：1200 TVL

Lens and view angle

 3.6mm(80°) / 2.8mm(90°-110°) lens optional

Scan frequency

50Hz@PAL, 60Hz @ NTSC

Gamma value

0.45

Electrical shutter

1/50～1/100000s

1/60～1/100000s

Noise

>46dB

Video out

1.0V p-p

Working temp.

-20 º C - 50 º C

Working Hum.

<95 %

Dimension

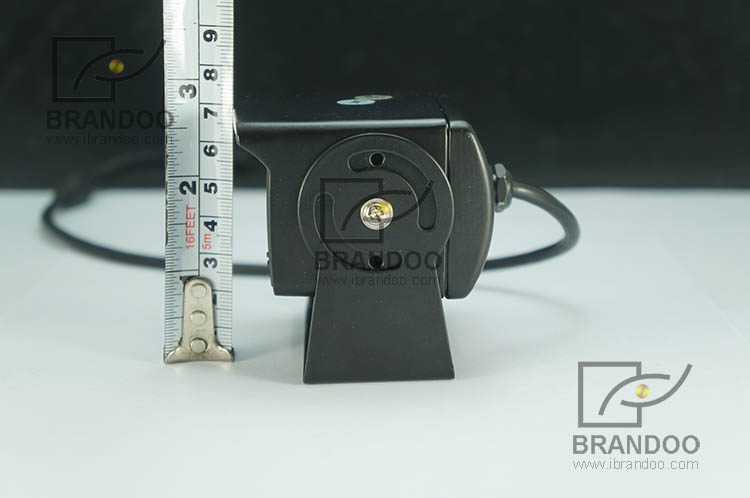

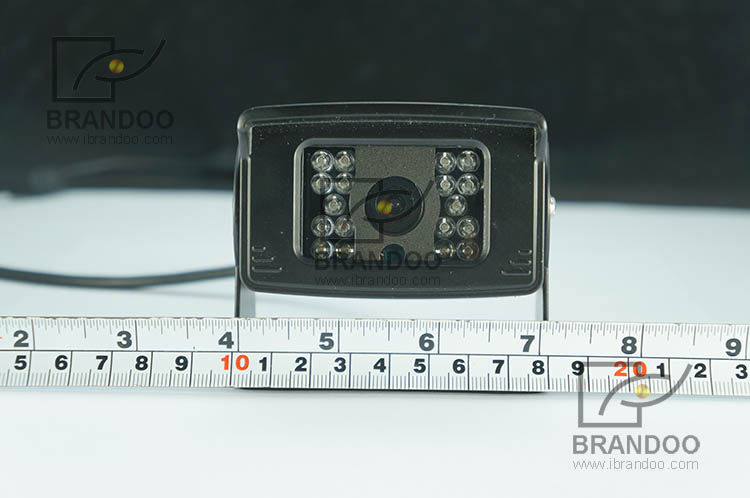

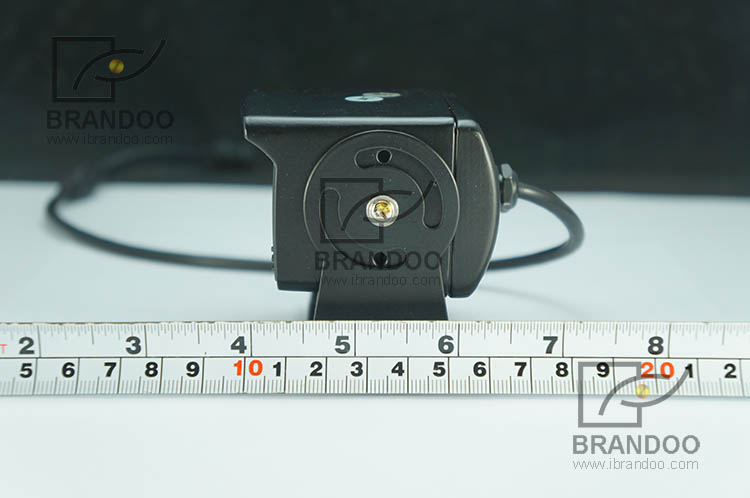

 80x65x70mm

Power

DC12V (±10%)
