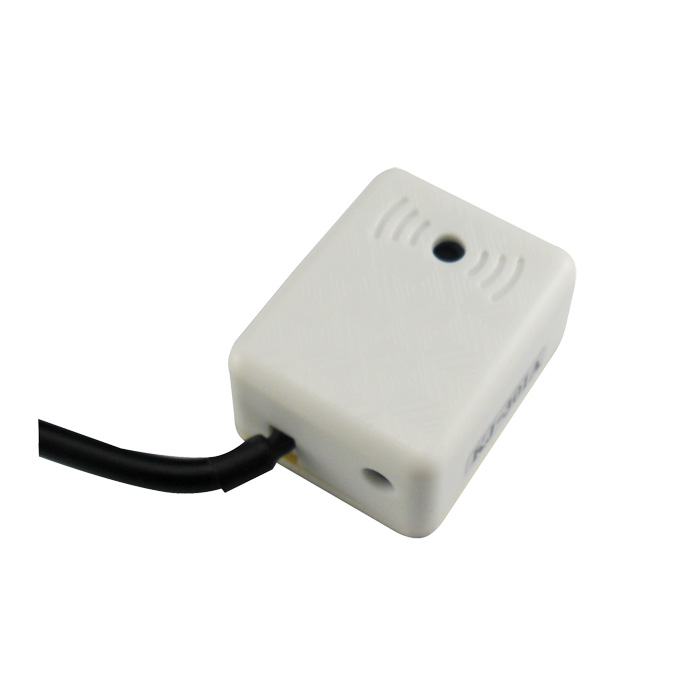

Car used audio pickup Model: KJ-301

20-35㎡ range used

RCA+12V jack for easy connecting with DVR

This product contains HIFI process chip with low noise performance. Such chip can restrain noise around environment through frequency response network for several times,and provides pure tone quality and powerful movement. The product contains dedicated AGC circuit ,so it is suitable for different types of Mic supervised listening environments such as bank, prison, vehicles, examination place, shopping mall, and industry factory etc.

Moreover, this product has lots of virtues including low nois, HIFl, wide range operation voltage, low electricity consumption, and long distance transmission.

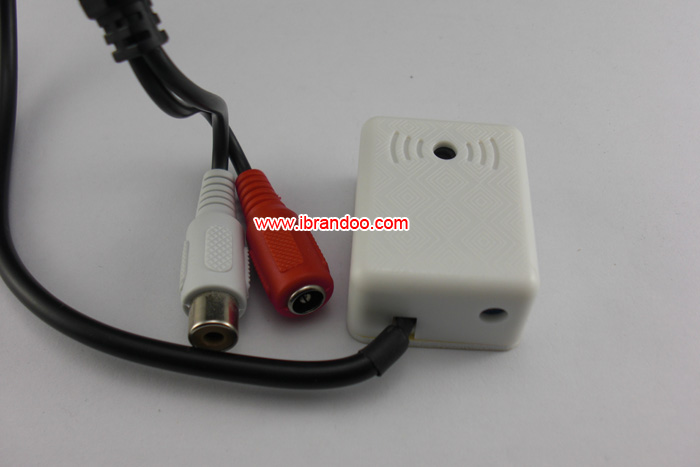

Red Connector for power +

The white RCA for audio input

Power supply: DC 6V ~~12V

Current consumption:12mA

Frequency range: 200 ~~ 10kHz

Frequency response: 2.5 dB

Output impedance: 600Ω

Output level: 0-5Vpp

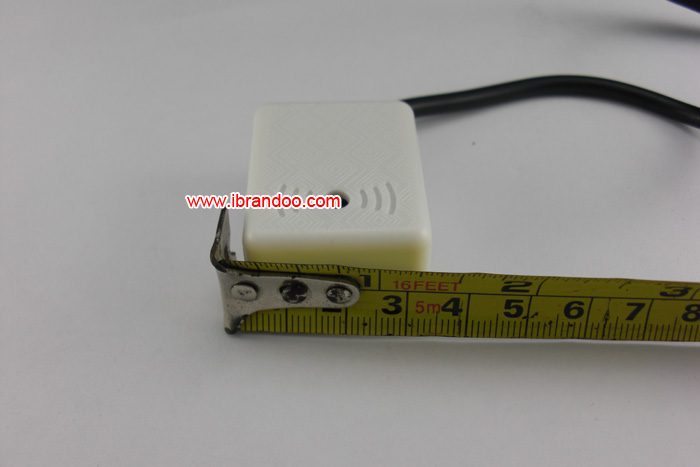

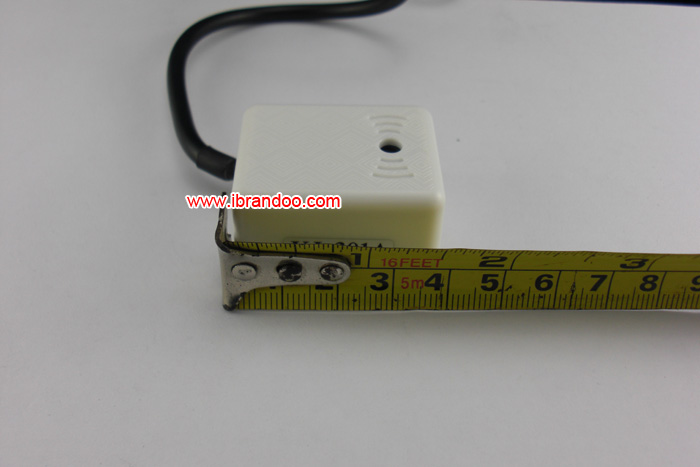

Size:(L)39.5mm x(W)31mm x(H)17 mm

Weight:36g
