Car GPS tracker
Car used GPS tracker Model: BD-103
This is a standard type GPS tracker for car used. Users track it by SMS, PC server and web server.Remote controller selectable.
- Details
Webserver for free testing
http://www.gpstrackerxy.com/
ID: DEMO PW:8888
This is a professional GPS tracker for vehicle used. you have 3 ways to track the car.
1. Track by SMS, see the position on mobile phone.
2. Track on web server. Free version save data for 7 days.
3. Track on PC server. This server helps save data in your computer, all for free.
Features:
>Support non-server based location
>Location memorization
>Auto location report
>Authorize/delete the tracking phone number
>Covert alert & voice surveillance
>Geo-Fence: alert in case of breaching the predefined district
>Movement alert: alert in case of movement
>Speed alert: alert in case of excess of the predefined speed
>Power alert: alert when device is being switched off
http://www.gpstrackerxy.com/
ID: DEMO PW:8888
This is a professional GPS tracker for vehicle used. you have 3 ways to track the car.
1. Track by SMS, see the position on mobile phone.
2. Track on web server. Free version save data for 7 days.
3. Track on PC server. This server helps save data in your computer, all for free.
Features:
>Support non-server based location
>Location memorization
>Auto location report
>Authorize/delete the tracking phone number
>Covert alert & voice surveillance
>Geo-Fence: alert in case of breaching the predefined district
>Movement alert: alert in case of movement
>Speed alert: alert in case of excess of the predefined speed
>Power alert: alert when device is being switched off
>GSM antenna and GPS antenna external for better signal.

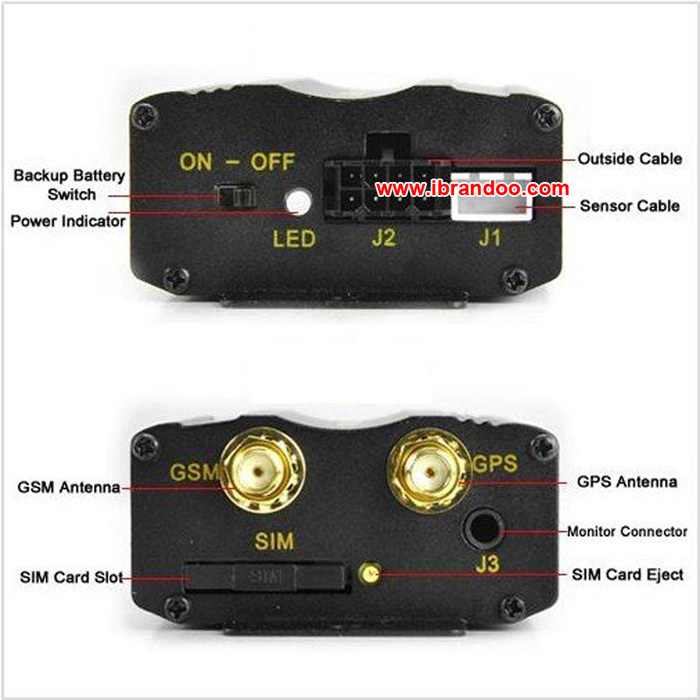

Detail instruction of device
Wide range for use

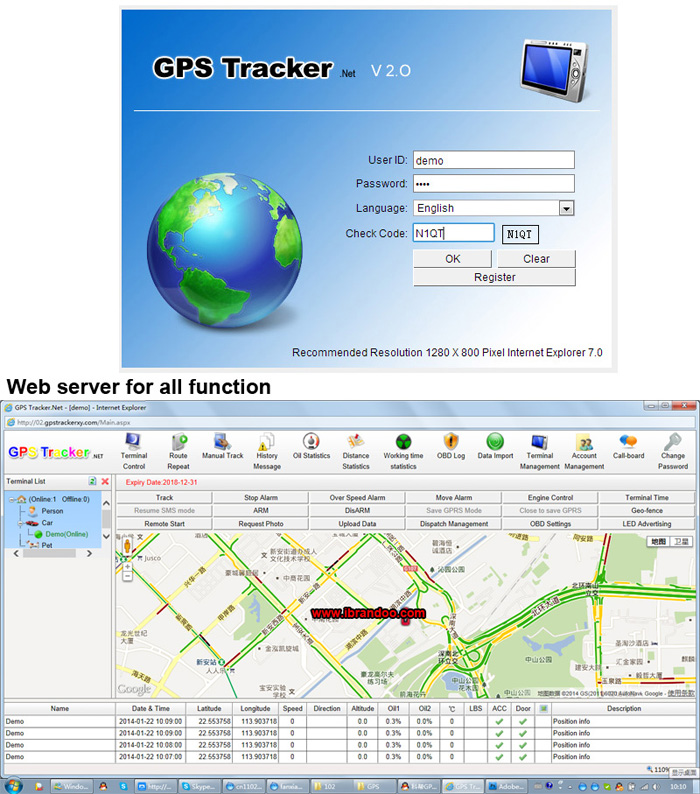

Webserver

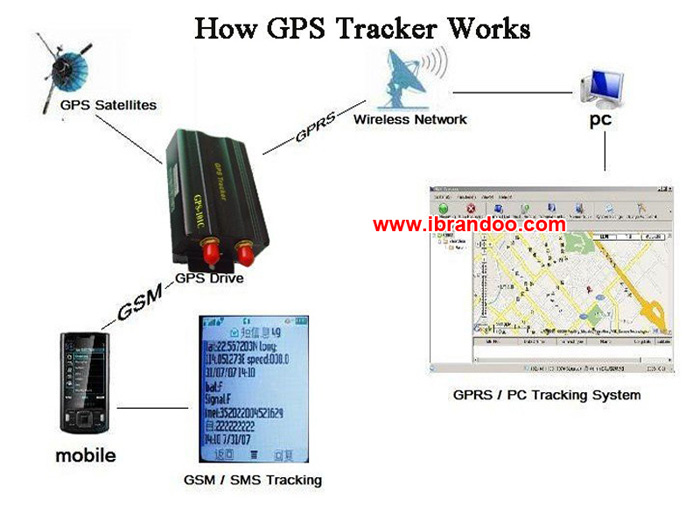

Working diagram

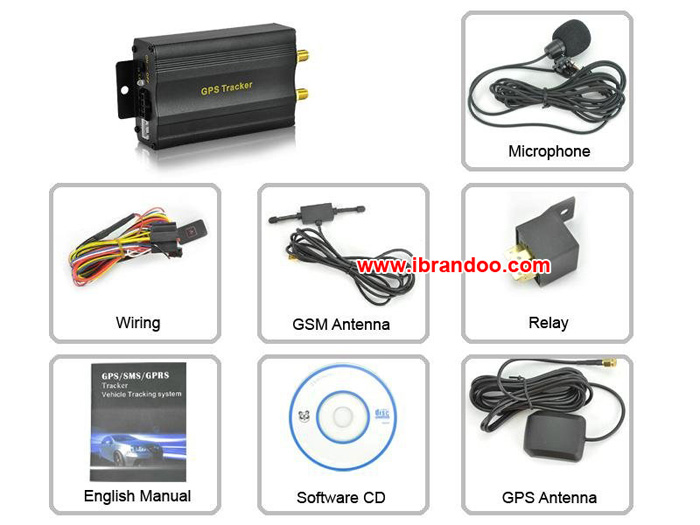

Accessories
Specifications:
Waterproof | No |
Dimension | 64X46X17mm |
Weight | 500g |
Band | 850/ 900/1800/1900Mhz |
Network | GSM/GPRS |
GPS chip | SIRF3 Chip |
GPS sensitivity | -159 dBm |
GPS accuracy | 5M |
Time of first fix | Cold status 45s, Warm status 35s,Hot status 1s |
Car charge | 12-24V input, 5V output |
Wall Charger | 110-220V input, 5V output |
Battery | Chargeable Changeable 3.7V, 800mAh Li-ion battery |
Standby time |
48 hours |
