Micro Camera

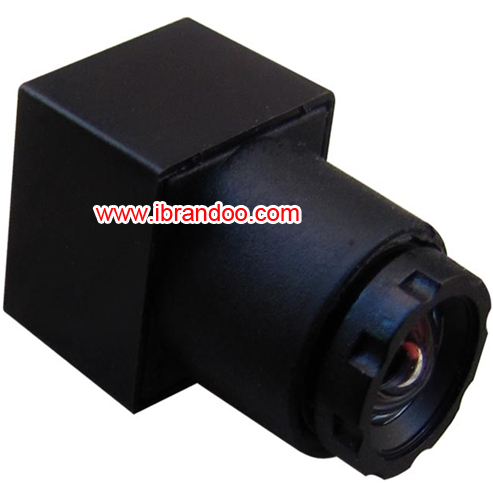

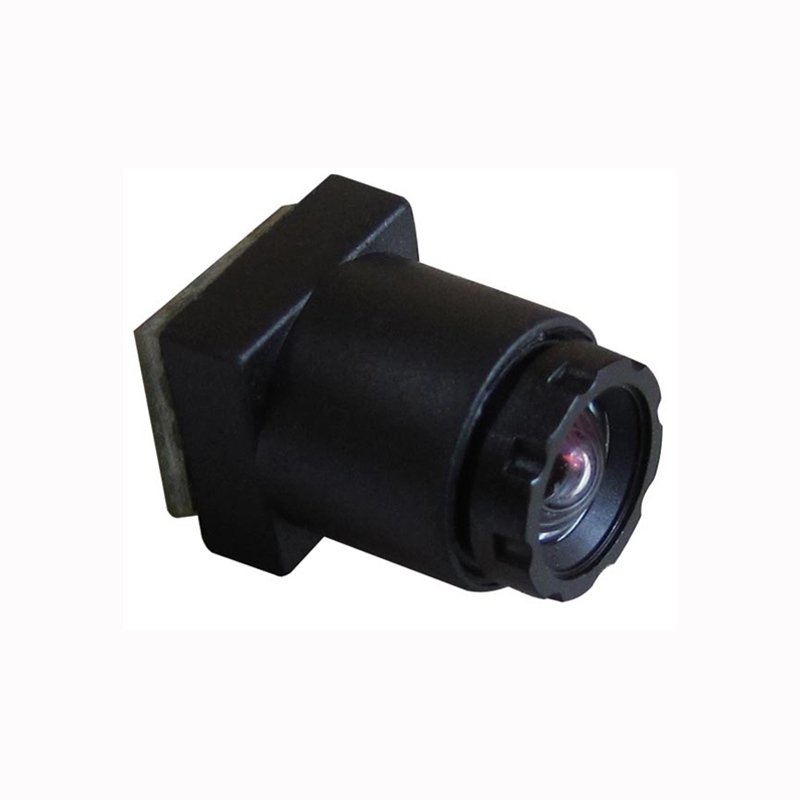

Cased Type Micro CCD Camera with 120 Degree Wide View Angle Model: BD-900-V9

This is a cased type mini camera with 120° wide angle camera.
  • Details
Features:
>High definition
>TV Mode: NTSC PAL
>Resolution:NTSC:656(H)×492(V) PAL:786(H)×576(V)
>Horizontal:520TV Lines
>0.008Lux /F1.2
>lens and view angle 0.5mm F1.2 / 90°
>dimentions:D x H:10.5mm x 10.5mm x 17.5mm
>power: DC 3.6V-5V

>Video out:1.0V p-p/75ohm

Audio available. model: BD-900A-V9

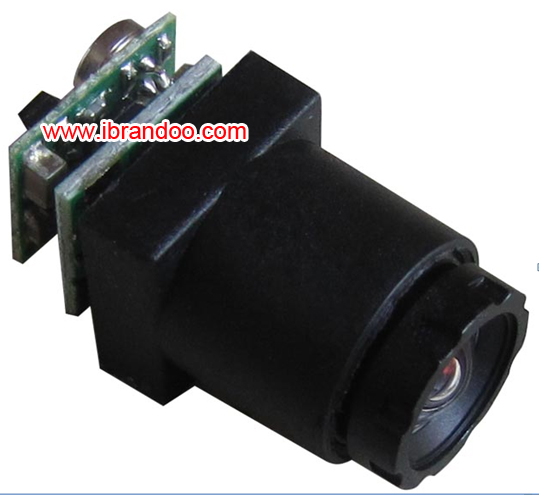

Board cased type Model: BD-900D-V9
