Car GPS tracker

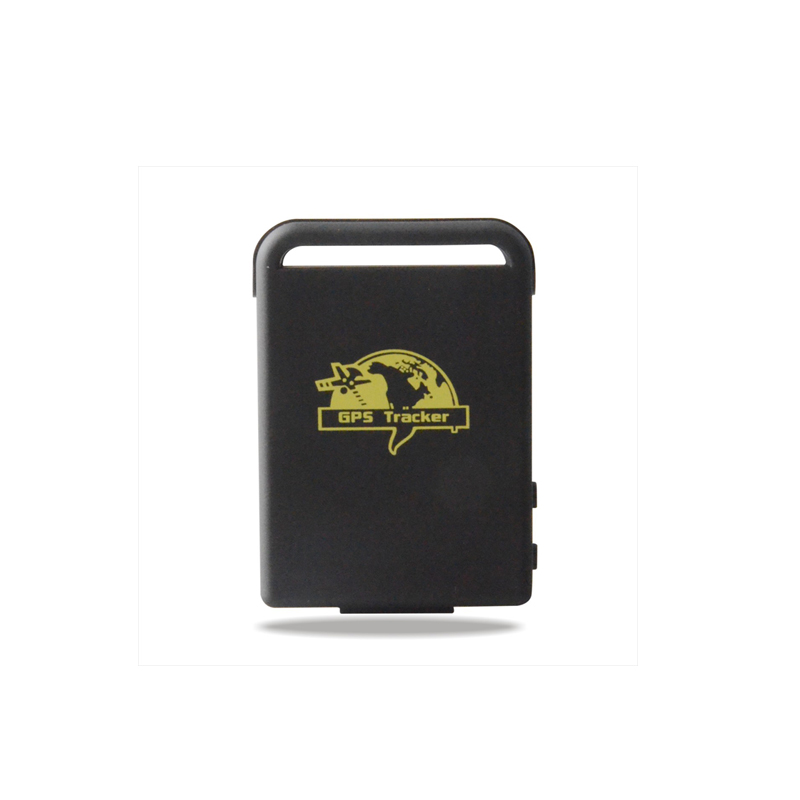

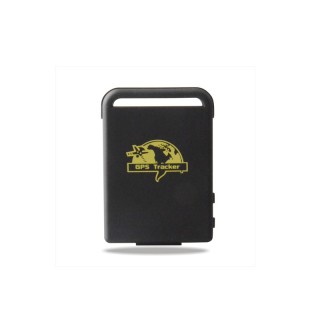

Portable small size GPS tracker Model: BD-102
This is a portable type GPS tracker can be used on vehicle, also for children,pet, elders.
- Details
Webserver for free testing
http://www.gpstrackerxy.com/
ID: DEMO PW:8888
And you have 3 ways to track the device.
1. Track by SMS, see the position on mobile phone.
2. Track on web server. Free version save data for 7 days.
3. Track on PC server. This server helps save data in your computer, all for free.
Features
>Locate by SMS or GPRS, and check position by google earth.
>Auto Report position.
>Send the last location if it enters into the blind area.
>Add or change Username and Password.
>Monitoring and SOS feature.
>Alert users when it breaches the restricted area.
>Alert userS when it begins to move.
>Alert user when it overspeed
http://www.gpstrackerxy.com/
ID: DEMO PW:8888
And you have 3 ways to track the device.
1. Track by SMS, see the position on mobile phone.
2. Track on web server. Free version save data for 7 days.
3. Track on PC server. This server helps save data in your computer, all for free.
Features
>Locate by SMS or GPRS, and check position by google earth.
>Auto Report position.
>Send the last location if it enters into the blind area.
>Add or change Username and Password.
>Monitoring and SOS feature.
>Alert users when it breaches the restricted area.
>Alert userS when it begins to move.
>Alert user when it overspeed
>Alert users when battery with low power

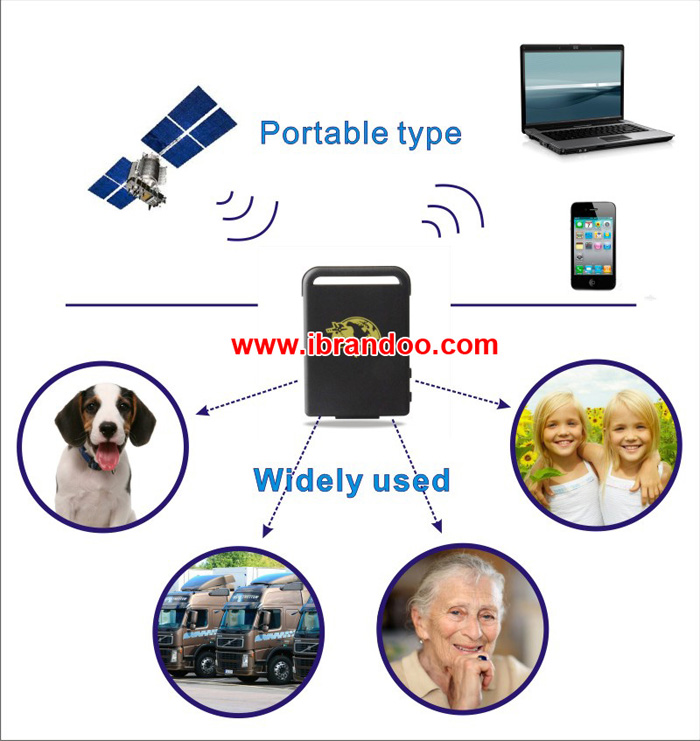

Working diagram

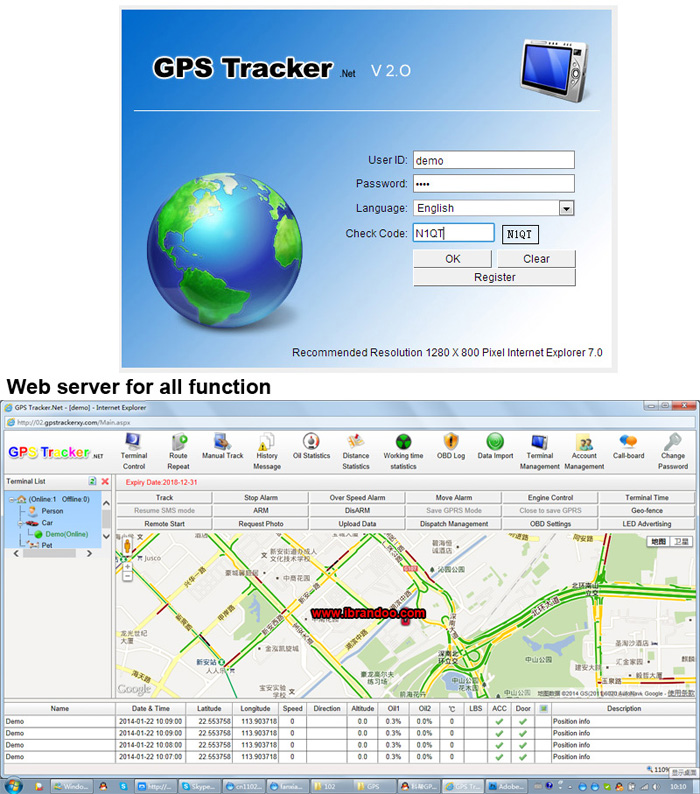

Webserver

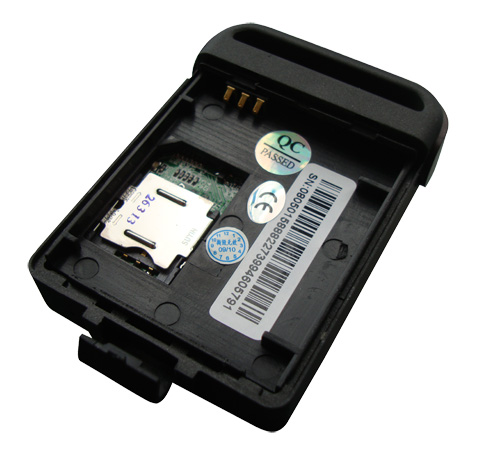

Sim slot inside

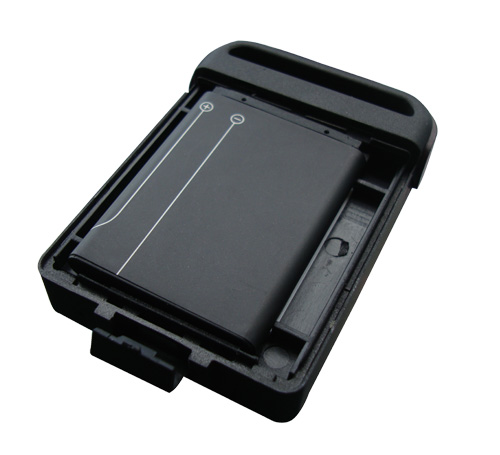

Works with a chargeable battery

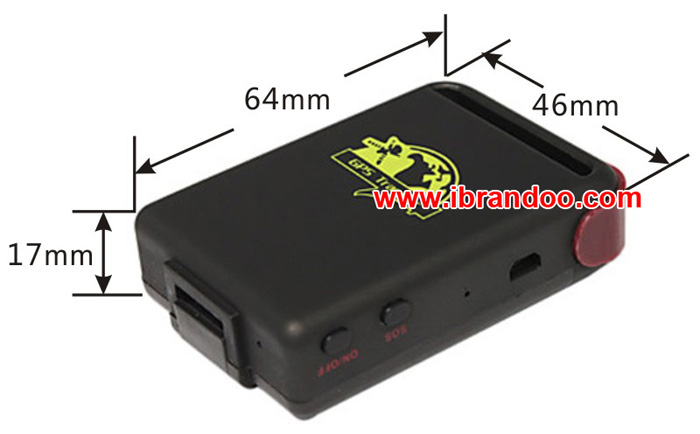

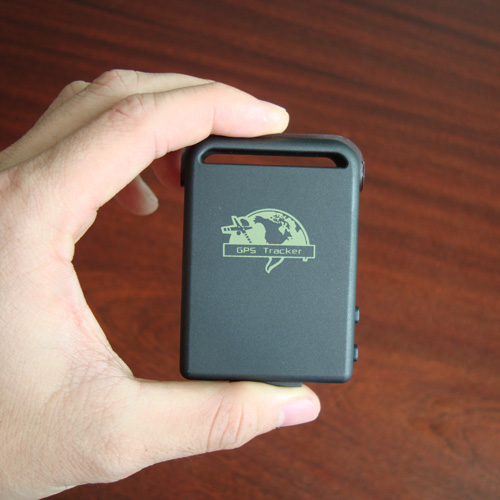

Small size

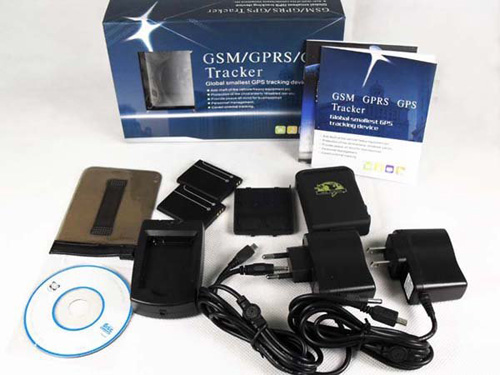

Complete kit
Specification
| Item | Parameter |
| Dimension | 46(L)x64(W)x17(H) mm |
| Weight | 50g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GSM sensitivity | Less than -102dBm |
| GPS chipset | SirF III chipset |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
| Cold/ Hot TTFF | 35/2s |
| Car charger | 1224V input, 5V ouput |
| Wall charger | 110220V input, 5V output |
| Battery Power | 3.7V DC Li-Ion Battery,700mA |
| Battery Life | About 48hours |
| Operating Temperature | -10 to +65 |
| Storage Temperature |
-20 to +70 |
