Licence plate camera

Russia type car license plate camera Model: BD-S665

This is Russia type car license plate camera.
  • Details

  This is a car license plate camera for Russia vehicles , it can be installed at rear of the vehicle, and for rear driving.It has a waterproof housing.

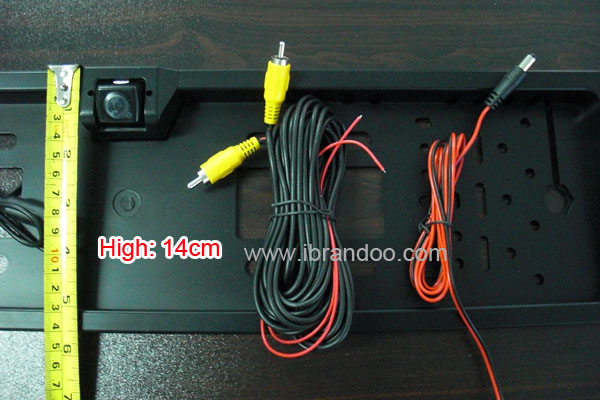

High

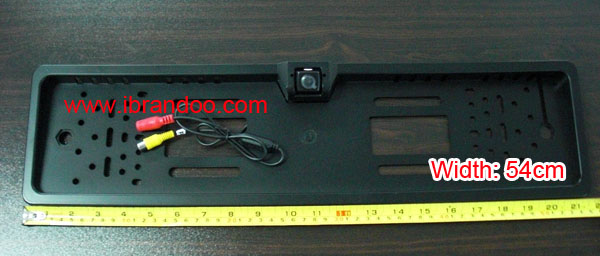

Width

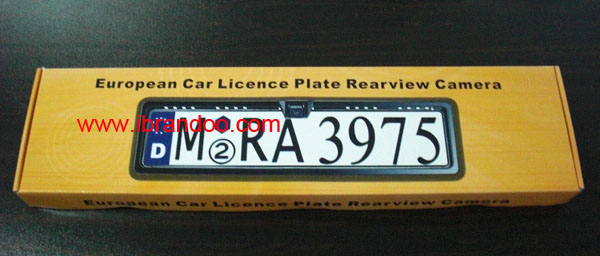

Gift box

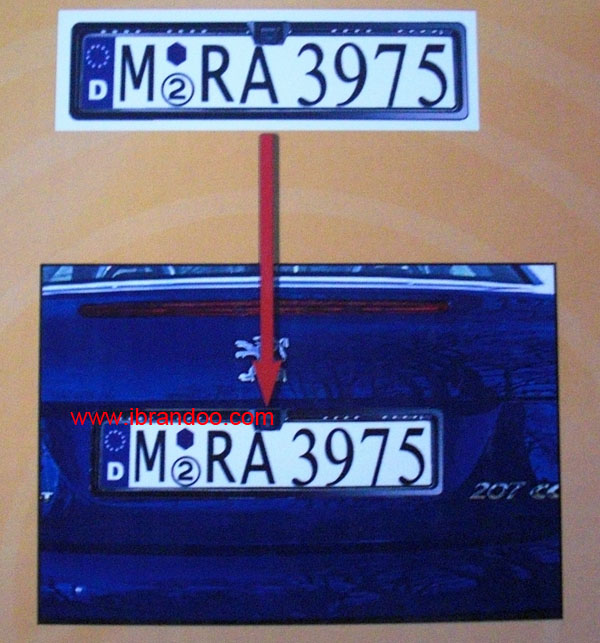

Installed on vehicle


Model BD-S665
Image Pick-up Device PC 1030
TV system NTSC
Effective pixels NTSC:656*492
SensingArea 5.961mm×4.276mm
Horizontal Resolution 420line
Dimension 548*140mm
Usable Illumination 2.26V/Lux-sec@5600k
Lens Angle 170°
Electronic Shutter Time 1/60-1/100,000sec.
Video Output CCIR/EIA(PAL/NTSC)Standard Video Signal 1.0Vp-p,75ohm
Sync System Internal Synchronization
Power Supply DC8-12V  120mW
Operation Temperature -20~+75(RH95%Max.)
Storage Temperature -40~+85(RH95%Max.)
Net Weight 448g
Gross Weight 590g
Packing Color Box
