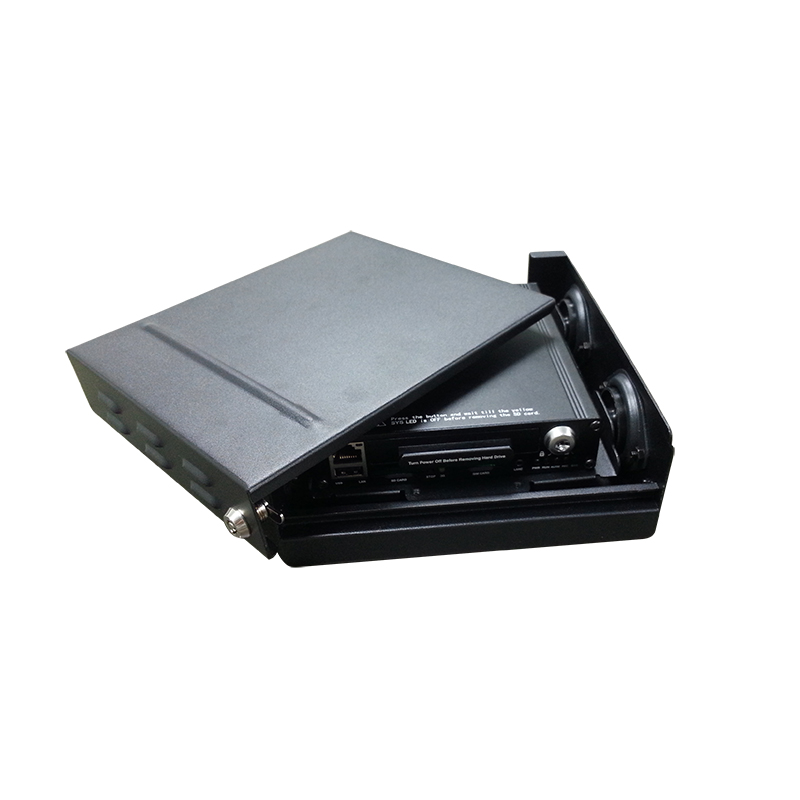

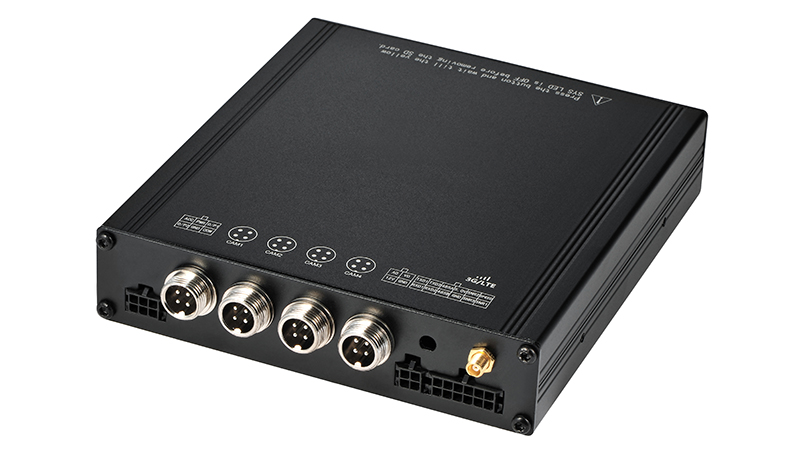

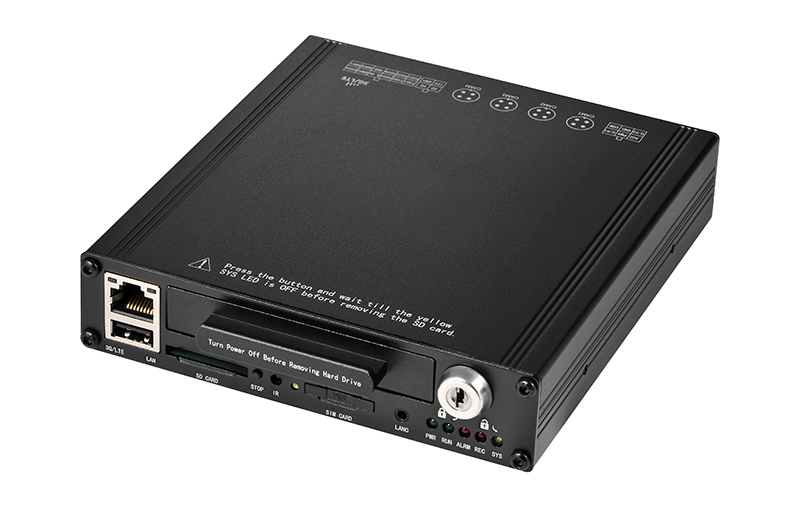

Shockproof HDD type 4 Channel Bus DVR Model:BD-303A
This mobile DVR works with 1TB HDD memory with shockproof bracket. 4 channel D1 resolution offer better video quality. 3G,GPS,WIFI function available too.
- Details
Features:

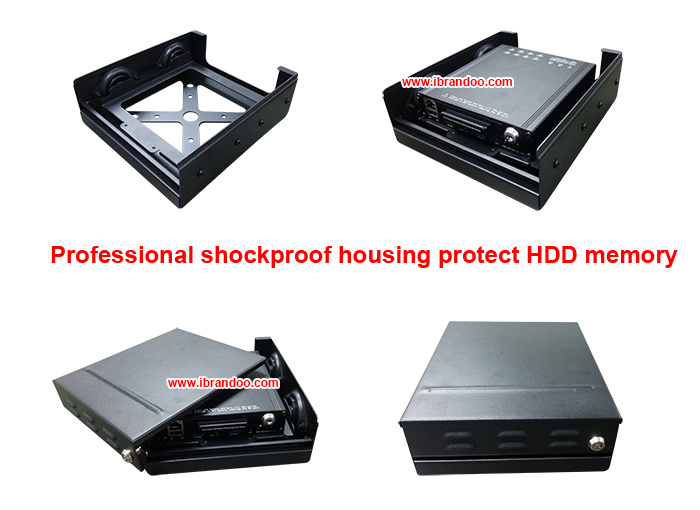

> Professional shockproof bracket
> Advanced H.264 compression
> 4 channel D1 resolution,NTSC: 704 x 480 / PAL: 704 x 576.
> Built-in SATA 2.5" Hard Drive up to 1TB memory and 64GB SD card .
> Standard AVI file format and FAT32 file system
> Reliable power management, wide voltage: +8VDC~+40VDC.
> -40 to +70 deg. C working arrange
> Professional shockproof bracket
> Advanced H.264 compression
> 4 channel D1 resolution,NTSC: 704 x 480 / PAL: 704 x 576.
> Built-in SATA 2.5" Hard Drive up to 1TB memory and 64GB SD card .
> Standard AVI file format and FAT32 file system
> Reliable power management, wide voltage: +8VDC~+40VDC.
> -40 to +70 deg. C working arrange
> 3G,GPS,Wifi available

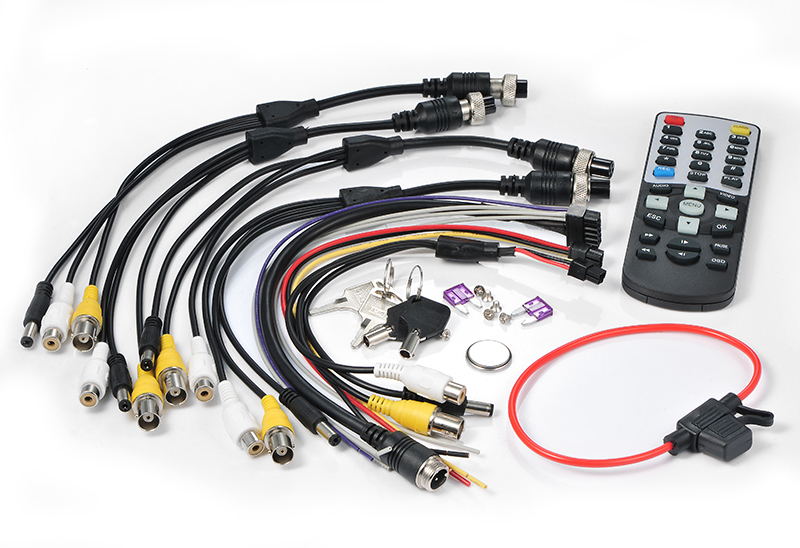

Accessories
|
Specifications |
||||
| ITEM | 1 channel | 2 channels | 4 channels | |
| VIDEO | VIDEO INPUT | 1 channel | 2 channels | 4 channels |
| VIDEO OUTPUT | 1 channel, 1.0V, p-p, 75?, BNC | |||
| VIDEO FORMAT | Support PAL/NTSC | |||
| VIDEO COMPRESSION | H.264 High Profile | |||
| RECORD RESOLUTION | 720x576(PAL)/ | 1280x512(PAL)/ | 1280x1024(PAL)/ | |
| 720x480(NTSC) | 1248x416(NTSC) | 1248x832(NTSC) | ||
| FRAME RATE | 25fps(D1 PAL) | 50fps(D1 PAL) | 100fps(D1 PAL) | |
| 30fps(D1 NTSC) | 60fps(D1 NTSC) | 120fps(D1 NTSC) | ||
| VIDEO BITRATE | 660Kbps ~ 1.5Mbps, | 1.32Mbps ~ 3Mbps, 4 level video quality | 1.98Mbps ~ 4.5Mbps, 4 level video quality | |
| 4 level video quality | ||||
| AUDIO | AUDIO INPUT | 1 channel | 2 channels | 4 channels |
| AUDIO INPUT FORMAT | 20K RCA | |||
| AUDIO OUTPUT | 1 channel, 500?, RCA | |||
| AUDIO LEVEL | 1V ~2V, p-p | |||
| AUDIO COMPRESSION | G.711 | |||
| STORAGE | STORAGE | Hard Disc, external USB device (memory stick or hard drive) | ||
| FILE FORMAT | AVI | |||
| INTERFACE | SENSORS | 1 speed sensor, 1 ignition sensor, 3 sensors for brake, return etc. | ||
| COM PORT | 2 RS232 port, 1 RS485 port | |||
| NETWORK | RJ45, 10M/100M Ethernet | |||
| GPS | Support GPS receiver (optional), Synchronize the DVR system time with GPS automatically, can record GPS information along with video and audio. GPS data format: NEMA0183, Baudrate: 4800bps | |||
| SOFTWARE | PLAYER | Specially designed player for the DVR | ||
| THIRD PARTY | Windows Media Player(Ver 11.0 or above), VLC Media Player(Ver1.0.0 or above) | |||
| SOFTWARE | ||||
| POWER | INPUT POWER | From +8VDC to +32VDC | ||
| POWER OUTPUT | DC, +12V/1.5A, +5V/1A | |||
| POWER COMSUMPTION | Working power: <5W, Strand by power: 0.1W (exclude camera, Hard Disc, monitor) | |||
| OTHER | WORK TEMPRETURE | From -30°C ~ +60°C | ||
| SIZE | 18cm X 18cm X 4.2cm | |||
| WEIGHT | 1.0 KG | |||
| PACKAGE SIZE AND WEIGHT | 36cm X 26cm X 10cm , 3KG | |||
