TVI camera 1080P

1080P Mini DOME Camera,TVI type, TC-616

This is a Mini DOME camera with TVI signal, 1080P HD resolution, main chip AR0237+V30,resolution 1920×1080. Works with BD-3118 DVR perfectly.
  • Details


Specifications:

Image sensor

1/2.7  AR0237  +  V30FH8536

Video mode

PAL/NTSC

Resolution

1920H×1080V

Lux

0.01 LUX / F1.2

Lens and view angle

1.8mm(160°),2.8mm(110°),3.6mm(90°) optional

Horizontal

2.0mp, 1080p,2000TVL

Day/night mode

Auto/Color/blackwhite

Frame

1080P@25fps       /       1080P@30fps

Sync.

Internal

Shutter

AUTO /1/501/0000s

Noise

>46dB

Video signal

AHD/TVI/CVI/CVBS selectable (need buy control cable extra)

Working temp.

-20 º C -  60 º C

Working humi.

<90 %

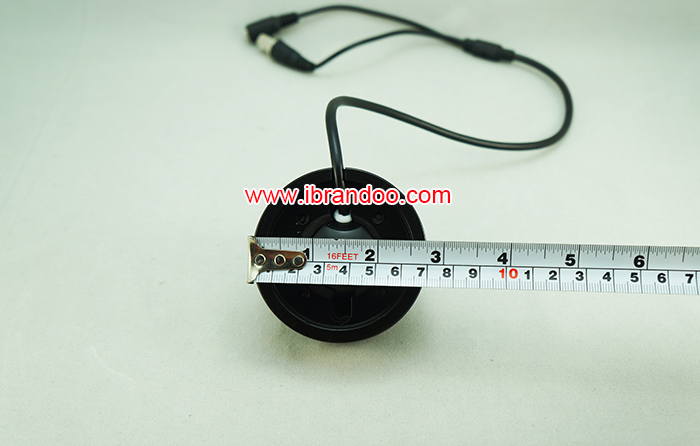

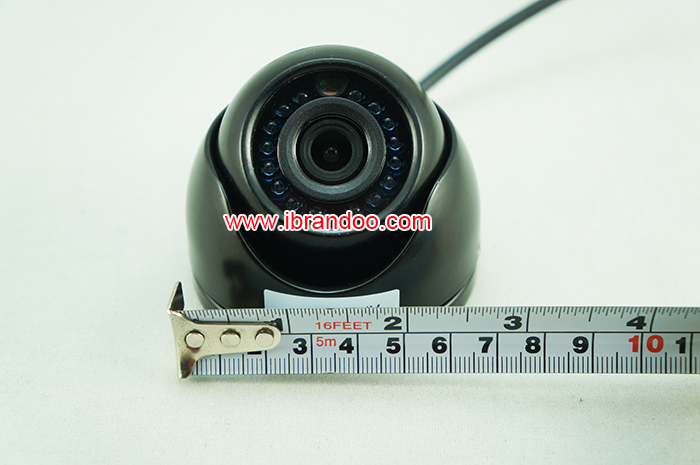

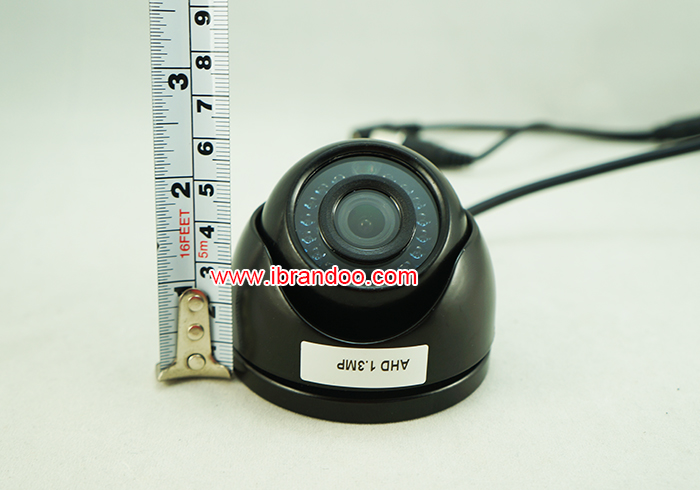

Dimension

70x70x65mm (WxLxH)

Power in

DC12V (±10%)
