Rear camera

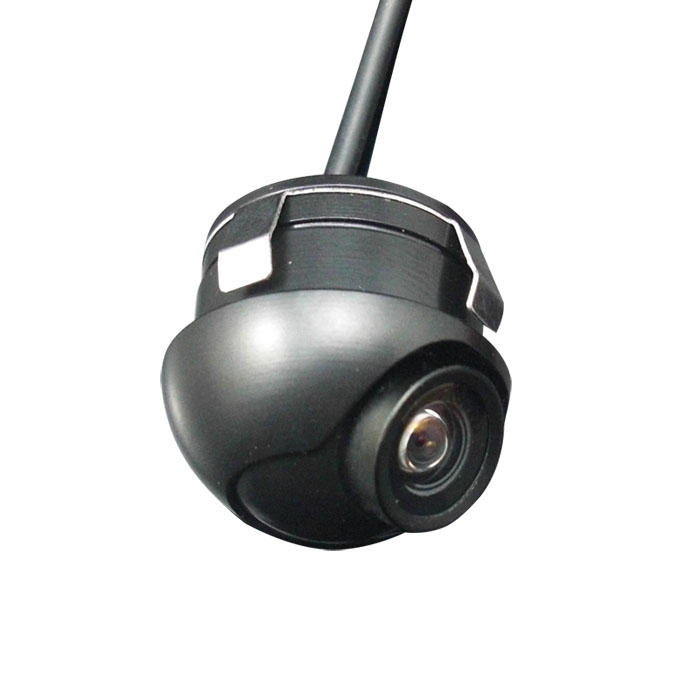

170° embeded car camera with adjustable lens Model: BD-S656

This is a small waterproof camera can be installed under the rear mirror. Lens adjustable for different view direction.
  • Details

Features:

Sensor CMD

TV SystemPALNTSC
Effective pixel628x586658x462
Electronic Shutter1/50-1/100, 000sec1/60-1/100, 000sec
Scanning system2: 1 interlace
Sync systeminternal
Resolution420 TV Line
Lens view angle2.8mm/120degree, 1.8mm-170degree
Sensor area5.961mmx4.276mm
Video output1.0Vp-p, 75Ohm
S/N ratioMore than 48db
WaterproofIP67-IP68
Minium 11 ilumination0.2Lux/F1.8
Vurrent Consumpitionless than 300mA

Power supplyDC12V

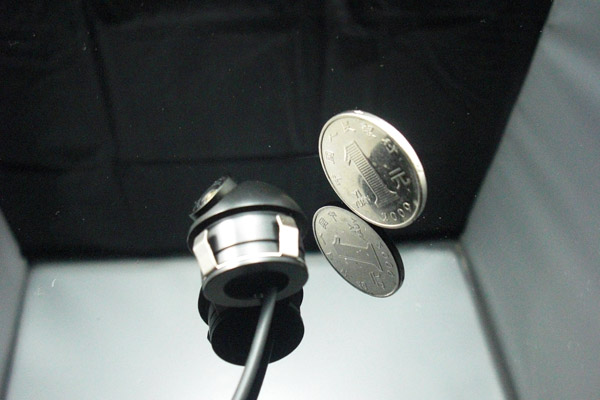

Compared with a coin

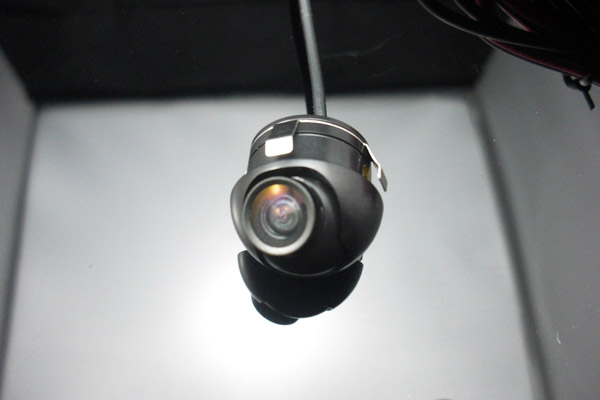

Lens adjustable
