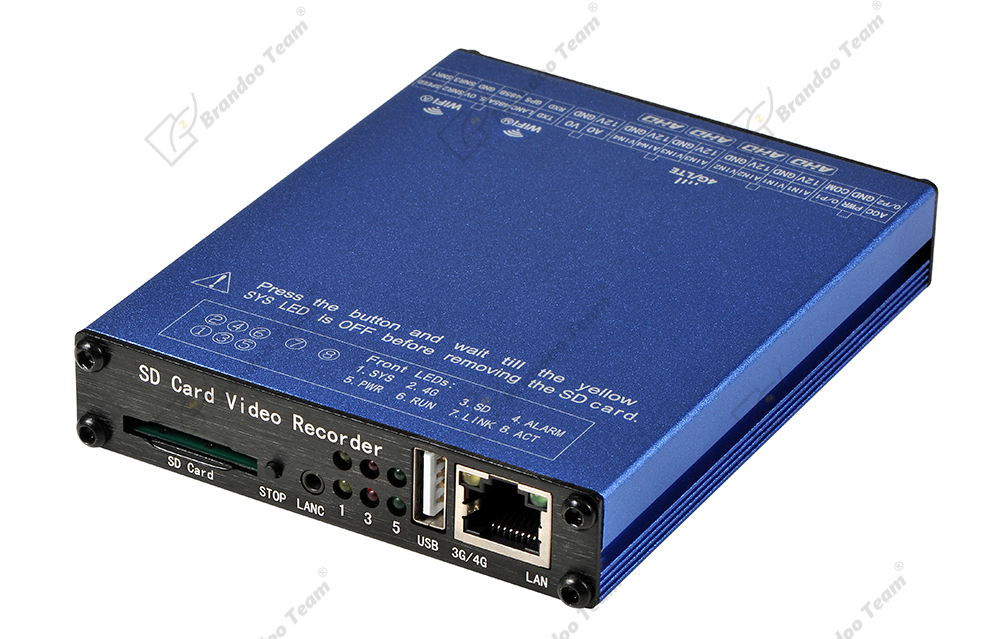

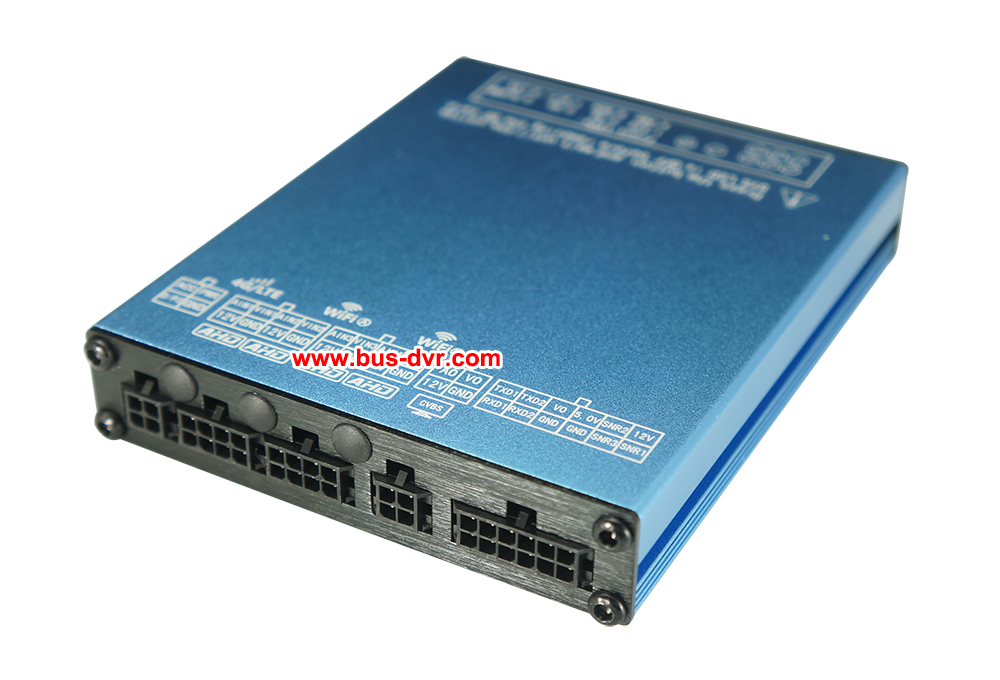

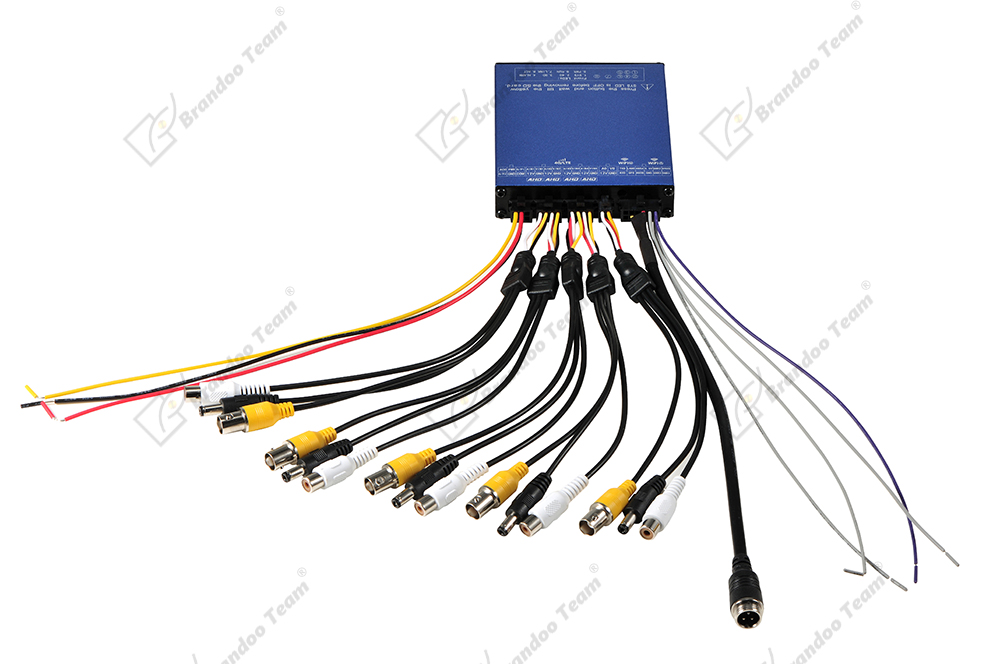

4CH 1080P SD MDVR CE FCC ECE Model BD-301HD
The Mobile SD video recorder is a compact, full-featured recording system that uses a SD card as a storage device. The recorder unit and associated accessories are specifically designed for operation in a mobile environment.
- Details
Product Main Features:
> Max. 256GB SD card used
> 4CH 1080P/720P/D1 Resolution
> H.264 and H.265 compression optional
> 100-120 frame

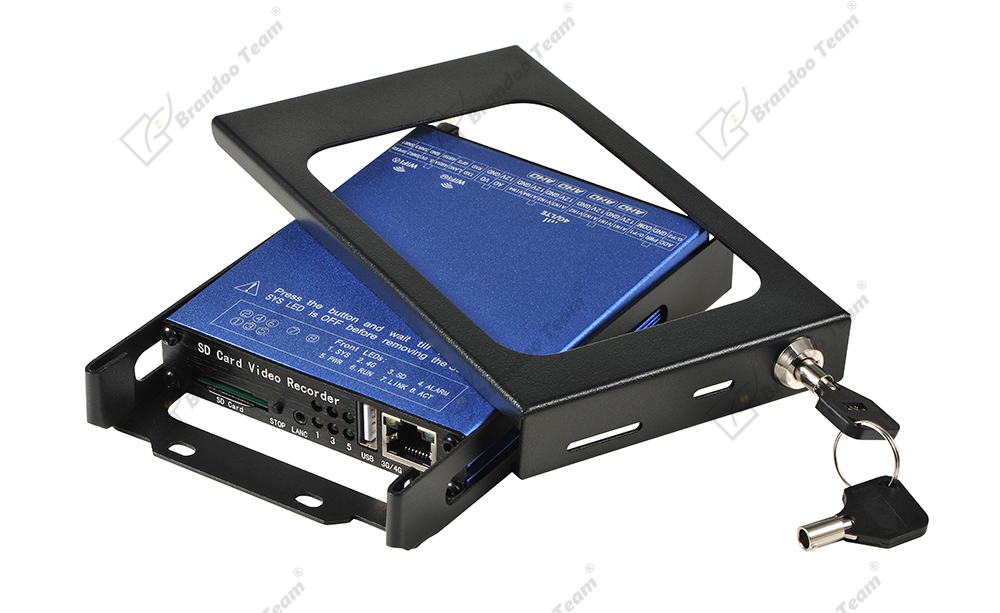

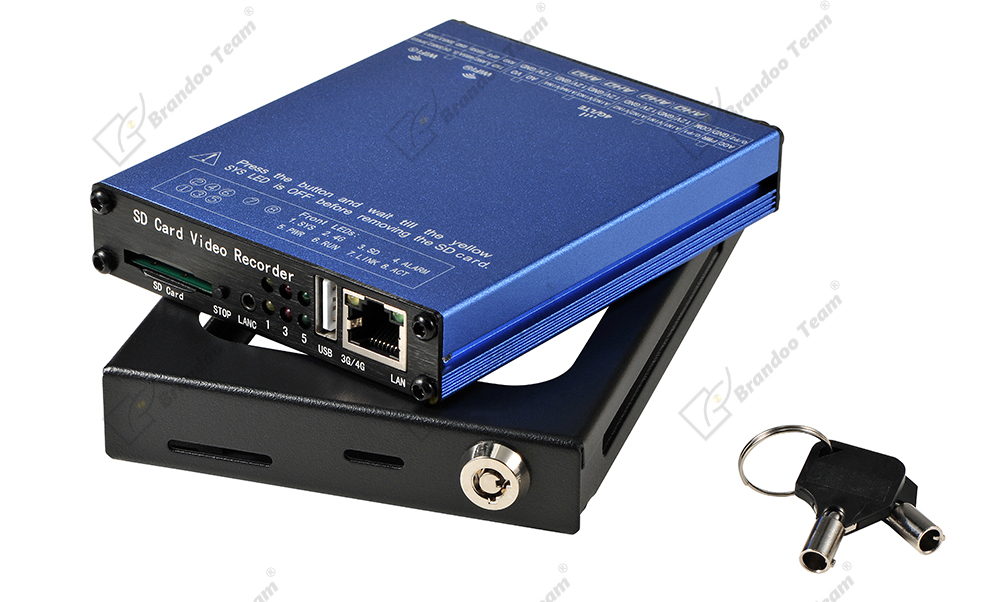

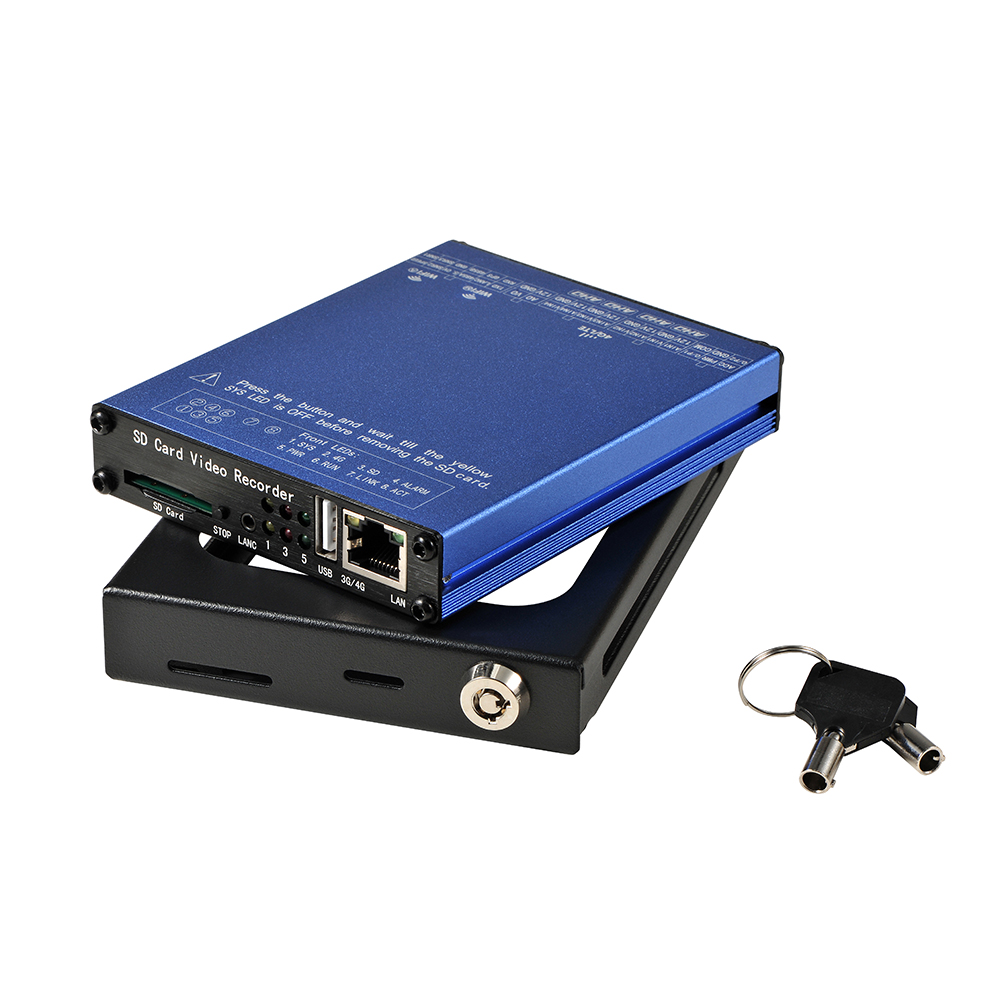

> Lockable security enclosure.
Specifications:
Item | Data | |
SYSTEM | OS | Linux 3.18.20 |
Booting Time | <20 s (From Powered on to start recording) | |
Language | Chinese/English | |
UI | GUI | |
Encoder | H.264/H.265 | |
Power | Power In: 8V ~ 32V DC, | |
Power out for analog camera: 12V/1.5A (4 cameras) | ||

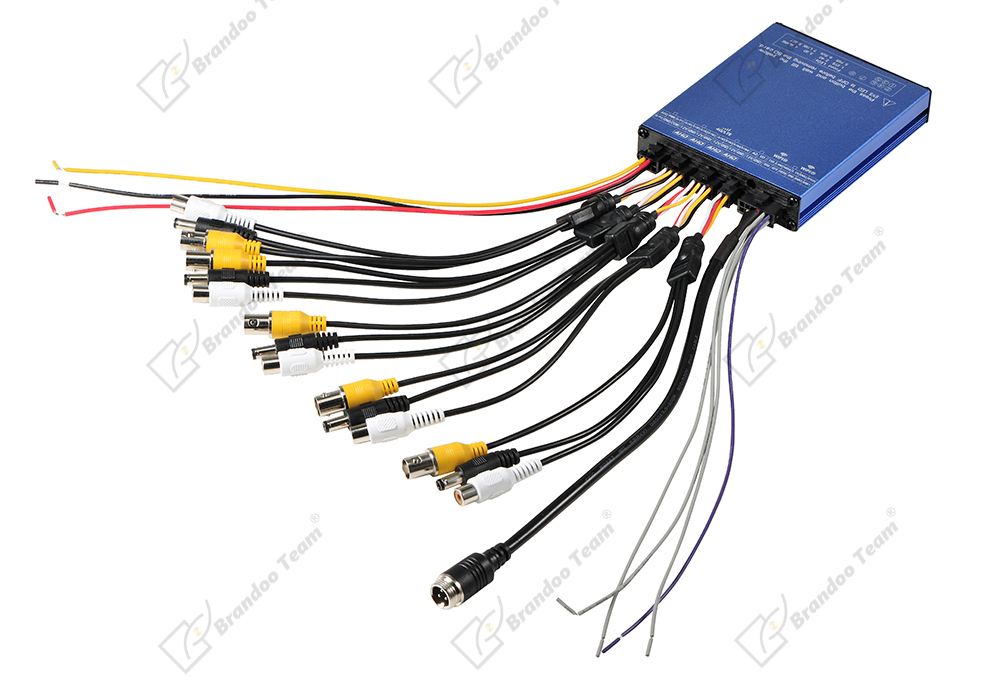

Video | Video Input | Maximum for 4x 1080p/720p Analog/AHD cameras |
Video Output | 1 Video Output (1 CVBS output) | |
Preview | Support FullScreen/Dual View/Quad View | |
Record Mode | Auto Record, Schedule Record, Alarm Record | |
Record File | Record video and audio at same time | |
Compression | H.264/H.265 | |
Frame Rate | 120fps@1080p | |
Audio | Audio Input | 4 audio input (audio is built in the camera) |
Audio Compression | AAC (16bit, 48KHz) and PCM | |
Video Process | Record Resolution | Support 1920x1080/1280x720/960x540 |
Bitrate | 100~8000 kbps for each camera | |
Storage | SD card up to 256GB | |
Alarm | Alarm Input | 3 alarm sensors input, 1 speed input, 1 ignition input, 1 panic button alarm, 1 G-Sensor alarm |
Alarm Output | 1 beeper, Alarm OSD | |
Event | Video Loss Event, Over Speed Event, G-Sensor Event, Storage Event, Motion Detection Event, Panic button Event | |

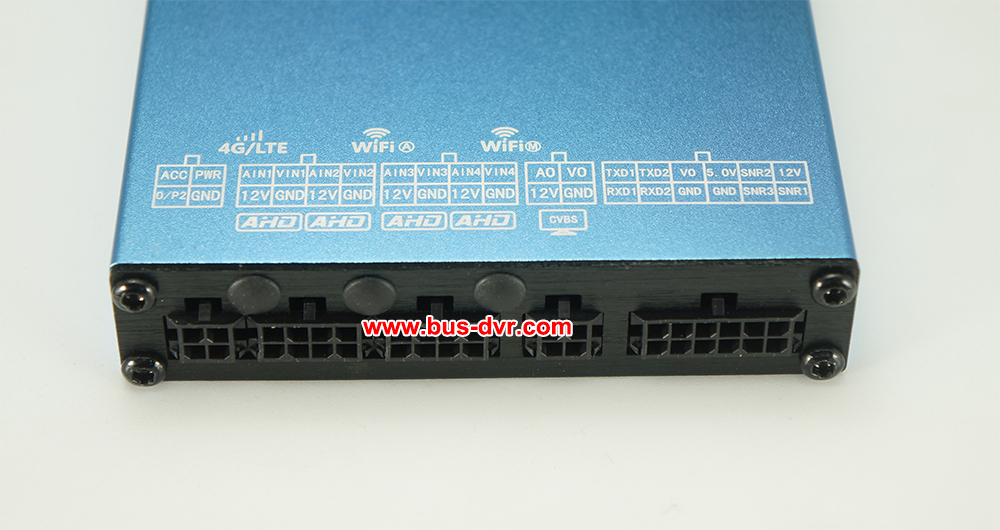

Communication | RS485 | One RS485 port |
RS232 | One RS232 port | |
RJ45 | One RJ45 port, 100M network | |
USB | One USB, can be used for mouse, USB stick | |
Network | Protocol | TCP / IP |
3G/4G | Optional, build in 3G/4G(HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA/FDD-LTE/TDD-LTE) | |
GPS | Support GPS/GLONASS/BEIDOU,recording location, speed, live tracking | |
Firmware | Frame Rate | Recording frame rate: 1~30fps selectable for each camera |
License ID | Support | |
Camera Name | Support | |
OSD | Display and record time, license ID, camera name, location, speed | |
Firmware Upgrade | Can use hard disk/USB disk/SD card/remote upgrade via 4G | |
G-Sensor | Support | |
Play back | Support play back, file listed by time, alarm | |
Play Speed | Support from 1/32 to 32 | |
Software | hPlayer | Player software, play multiple cameras together, can also play the encrypted file |

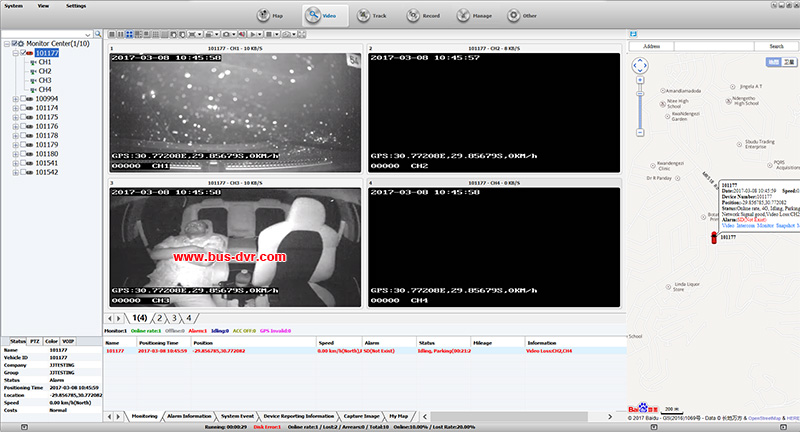

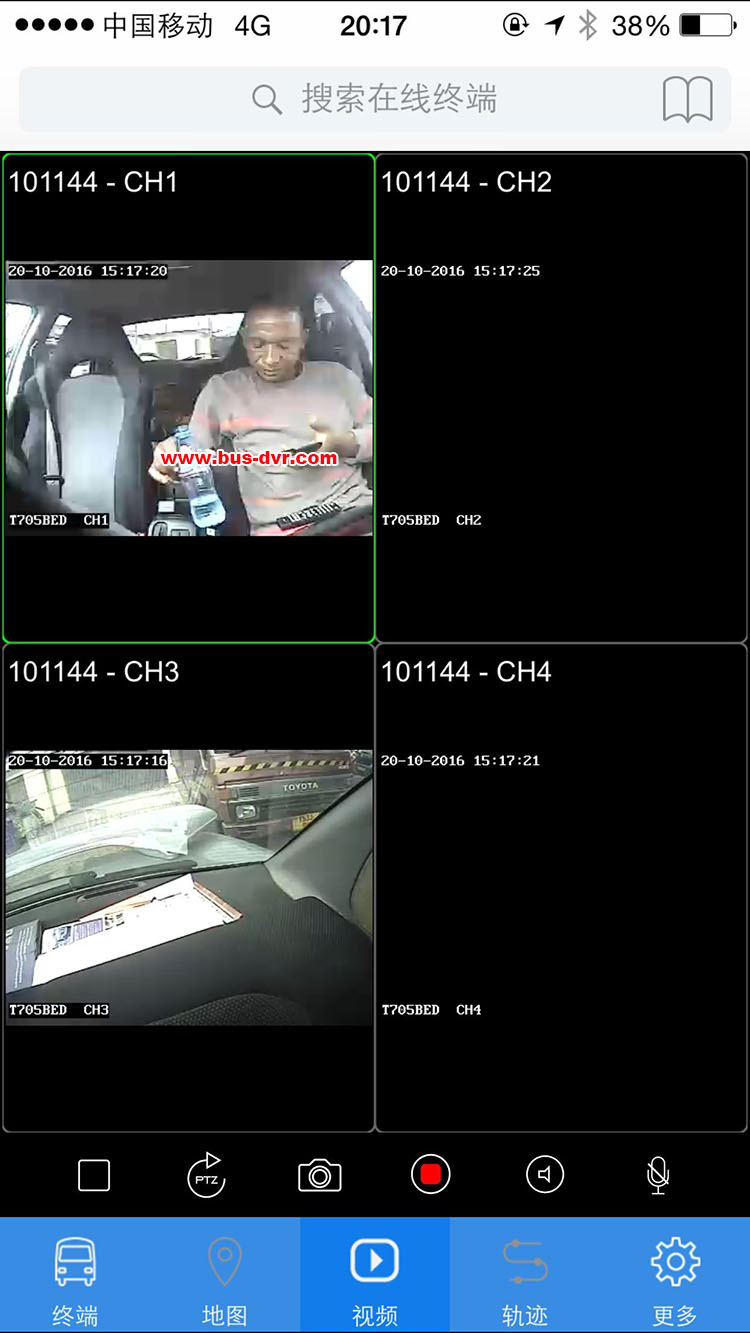

CMSV6 | Used for 4G/3G model only, support live view/live tracking/historical track/remote upgrade | |
Power Input | Power Input | 8VDC~32VDC |
Power Output | Power Output | Power output for cameras: 11.5V/3A |
ACC | <4.5V | Ignition Off |
>6.2V | Ignition ON (high leve) | |
Power Control | Ignition | Turn on the DVR when ignition is on, can set DVR to turn off after a specified time when ignition is off |
Power Consumption | Less 5.0W (No camera power consumption included) | |

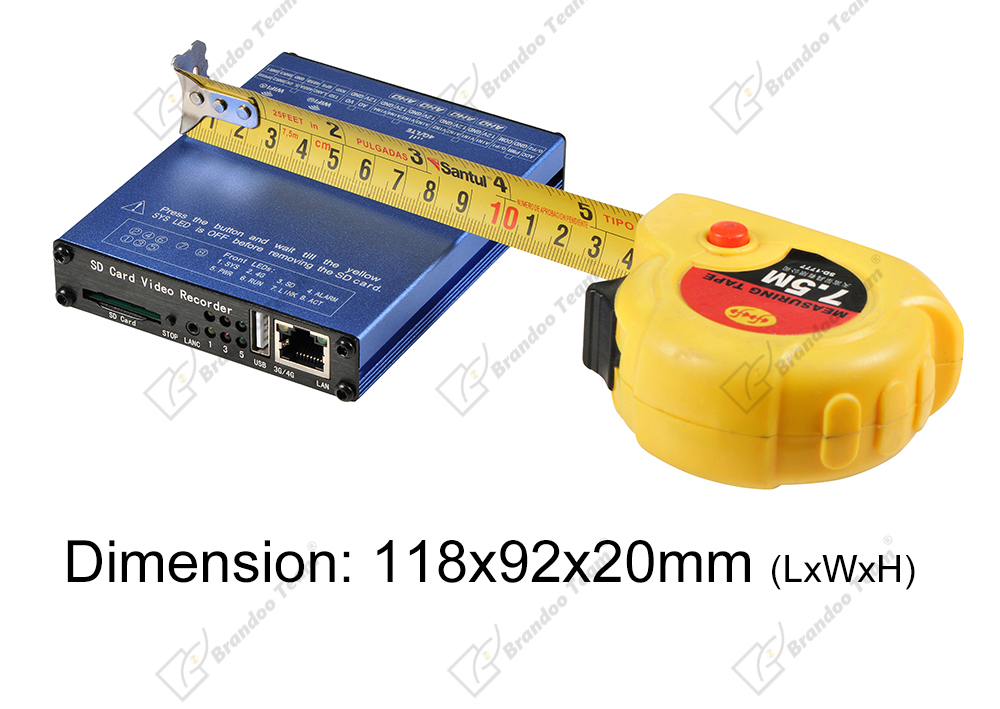

Other | Size | 118x92x20 mm |
Weight | About 0.2kgs | |
Time | Internal clock, can synchronize with GPS | |
Dual bit stream | Two different bit stream for recording and live streaming via 4G/3G | |
Power Protection | Protect power from short cut, over load and error connection | |
Default | Can set to default setting | |
Light Indicator | Light Indicator for power, run, alarm network, 4G/3G | |
Over Write | Support | |
Time Synchronize | Synchronize with GPS | |
Working Condition | Working Temperature | -25 ~ 55°C |
Working Humidity | 5%~93% |
