Features:

> 2TB HDD / 512MB SSD memory available

> 1080P video resolution for 8 channels

> 30f/s real time recording for each channel

> Language for menu can be customized

> Video output to laptop or smart phone by WIFI

> 3G/GPS function available

> APP for cell phone used (developing)

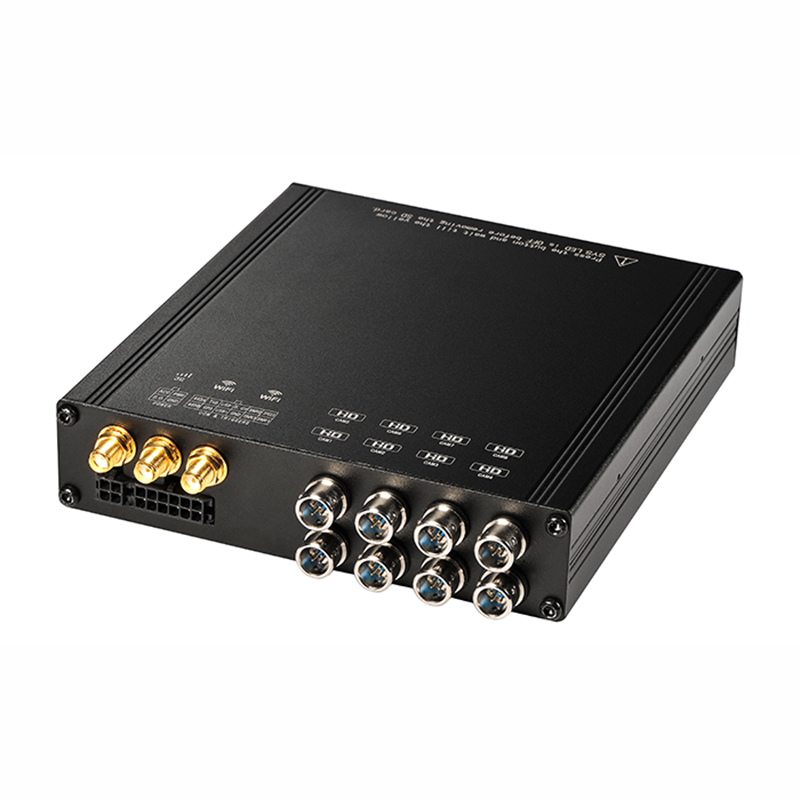

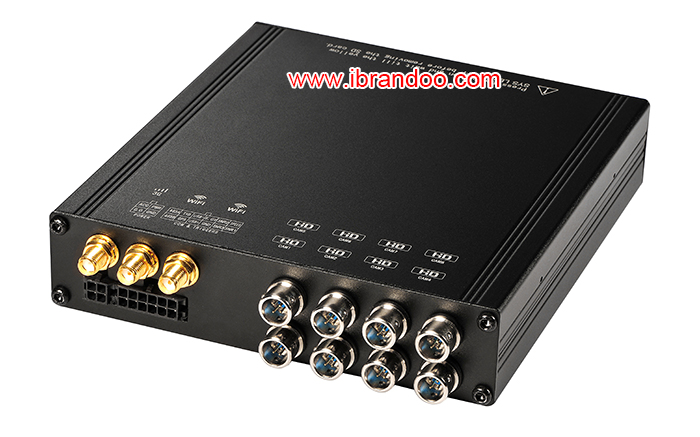

Rear panel of the DVR

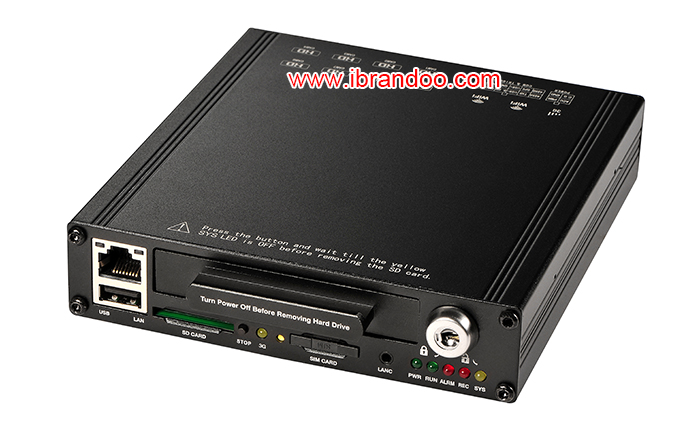

Front panel of the DVR

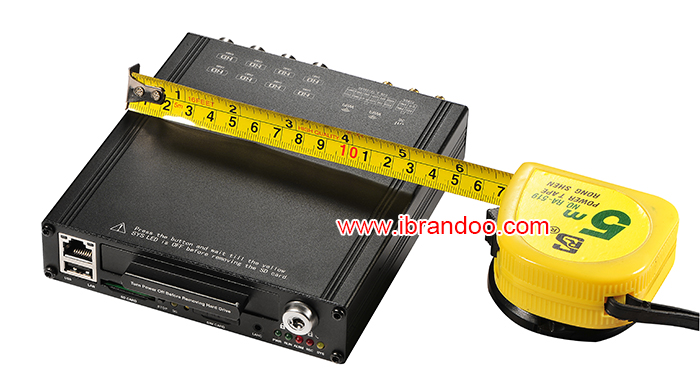

Small size for easy installation

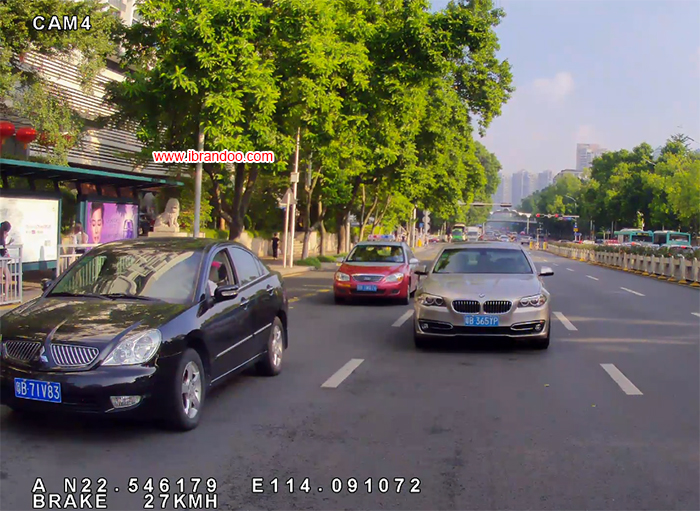

Real HD video quality at 1080P. see other car number clear!

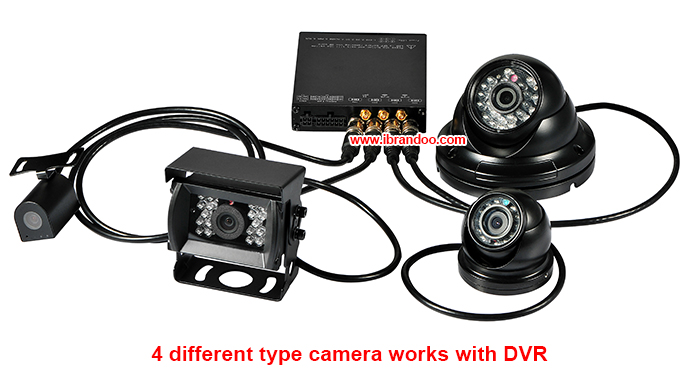

4 different type matched camera selectable

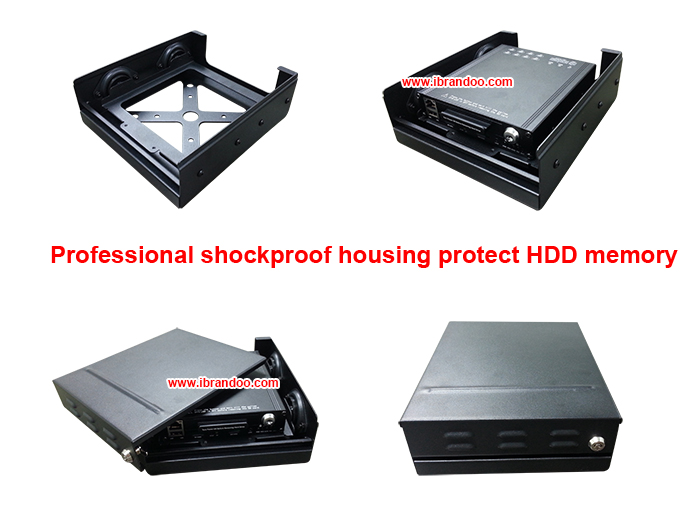

Professional shockproof housing for DVR works with HDD memory

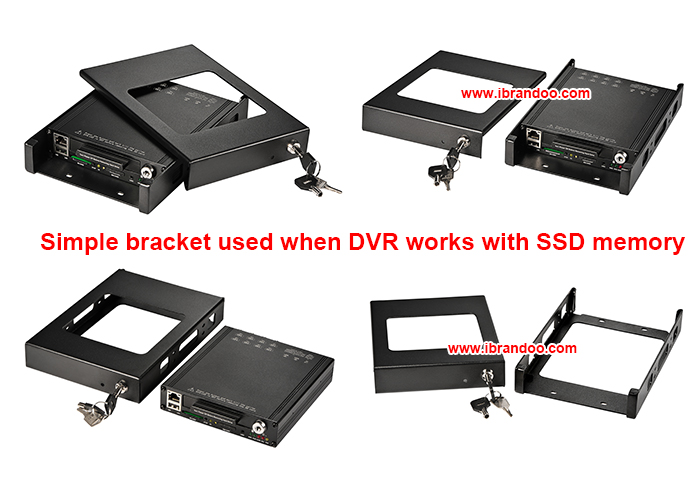

Simple lockable housing for DVR works with SSD memory

Specifications of DVR

Item	Description	Parameter
System	Language	English (Customized available)
	Interface	IE Interface
	Security	Administrator and user password protected
Video	Video Sensor	1920×1080, 1/3'' progressive scan cmos,1/2/4channel
	Video Standard	1920×1080, 30fps
Audio	Audio Input	1/2/4/8 channel audio input
	Recording mode	Audio and video synchronize
	Compression	AAC
Storage	Video Compression	H.264 High Profile
	Resolution	1080p at 240fps
	Video bitrate	1080p: 200Kbps ~ 8Mbps
	Audio bitrate	8KB/s
	Storage	2TB HDD/ 512MB SSD
Format	AVI
Sensor	Sensors	1 speed sensor, 1 ignition sensor, 3 common use sensors
Communication	WiFi	802.11b/g/n, max 300M
	Network	RJ45，10M/100M Lan port
	COM	Two RS232 connector and one RS485 connector
GPS	supported
Software	Player
3rd party player	VLC media player，Storm player，WINAMP
Firmware update	Via SD card or USB disk
Power	Power input	DC：+8V ~ +32V
	Power output	+12V@1.5A；+5V@1A
	Power consumption	Less than 5W；less than 0.1W in standby mode
Working temperature	-10℃ ~ +60℃
Dimension	DVR size: 9.7CM（Width）×2.6CM（Height）×11.6CM（Length） Housing size: 10.3CM（Width）×2.8CM（Height）×15.1CM（Length）

Specification of Camera
