Item

Data

SYSTEM

OS

Linux 3.18.20

Booting Time

<20 s (From Powered on to start recording)

Language

Chinese/English/Russian

UI

GUI

Power

Power In: 8V ~ 32V DC,

Power out for analog camera: 12V/3A (8 cameras)

Video

Video Input

1x 1080p/720p/540p Digital Camera Recording, maximum for 8x 1080p Analog/AHD cameras

Video Output

2 Video Output (1 HDMI output, 1 CVBS output)

Preview

Support FullScreen/Dual View/Quad View/6 Cameras/9 Cameras

Record Mode

Auto Record, Schedule Record, Alarm Record

Record File

Record video and audio at same time

Compression

H.265/H.264

Frame Rate

230fps@1080p

Audio

Audio Input

9 audio input (audio is built in the camera)

Audio Compression

AAC (16bit, 48KHz) and PCM（According to the type of camera）

Video Process

Record Resolution

Support 1920x1080/1280x720/960x540(According to the type of camera)

Bitrate

100～8000 kbps for each camera

Storage

Support up to 6TB hard disk，one up to 256G SD card. SD card can be used as backup storage for hard disk when hard disk error, the video file format is AVI

Alarm

Alarm Input

3 alarm sensors input, 1 speed input, 1 ignition input, 1 panic button alarm, 1 G-Sensor alarm

Alarm Output

1 beeper, Alarm OSD

Event

Video Loss Event, Over Speed Event, G-Sensor Event, Storage Event, Motion Detection Event, Panic button Event

Communication

RS485

One RS485 port

RS232

One RS232 port (For GPS)

RJ45

One RJ45 port, 100M network

USB

One USB, can be used for mouse, USB stick

Network

Protocol

TCP / IP

3G/4G

Optional, build in 3G/4G(HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA/FDD-LTE/TDD-LTE)

WIFI

Optional, support WIFI connection and AP

Location

Location

Location feature is optional, Support GPS/GLONASS/BEIDOU，recording location, speed, live tracking

Firmware

Frame Rate

Recording frame rate: 1～30fps selectable for each camera

License ID

Support

Camera Name

Support

OSD

Display and record time, license ID, camera name, location, speed

Firmware Upgrade

Can use hard disk/USB disk/SD card/remote upgrade via 4G

G-Sensor

Support

Play back

Support play back, file listed by time, alarm

Play Speed

Support from 1/32 to 32

Software

hPlayer

Player software, play multiple cameras together, can also play the encrypted file

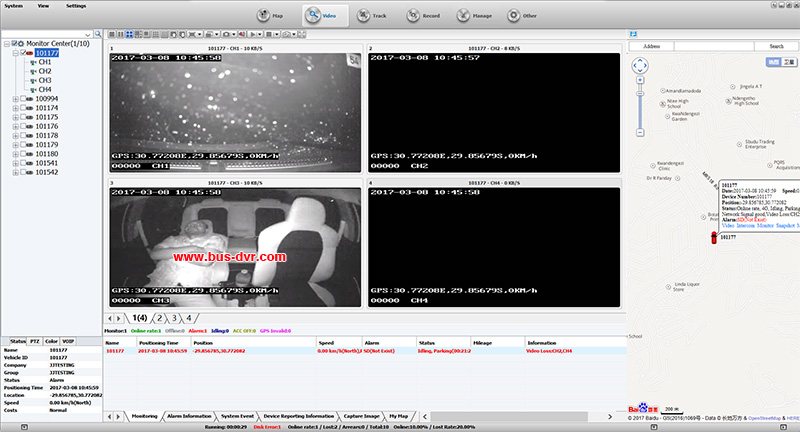

CMSV6

Used for 4G/3G model only, support live view/live tracking/historical track/remote upgrade

Power Input

Power Input

8VDC～32VDC

Power Output

Power Output

Power output for cameras: 10.5V/1.5A (8 cameras)

ACC

<4.5V

Ignition Off

>6.2V

Ignition ON

Power Control

Ignition

Turn on the DVR when ignition is on, can set DVR to turn off after a specified time when ignition is off

Power Consumption

Less 5.0W (No camera power consumption included)

Other

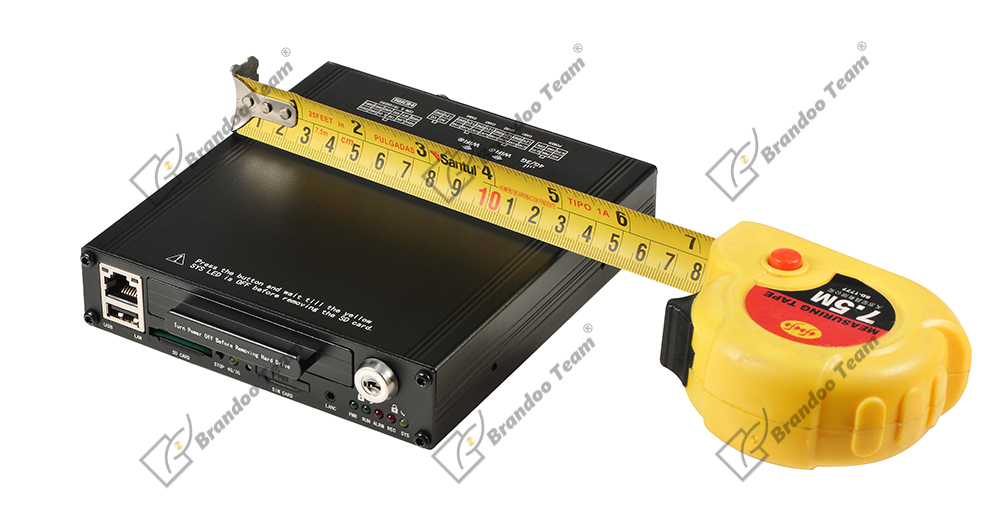

Size

162.3x133.0x30.2 mm

Weight

About 0.55kgs

Time

Internal clock, can synchronize with GPS

Dual bit stream

Two different bit stream for recording and live streaming via 4G/3G

Power Protection

Protect power from short cut, over load and error connection

Default

Can set to default setting

Light Indicator

Light Indicator for power, run, alarm network, 4G/3G

Over Write

Support

Time Synchronize

Synchronize with GPS

Working Condition

Working Temperature

 -25 ～ 55°C

Working Humidity

5%～93%
