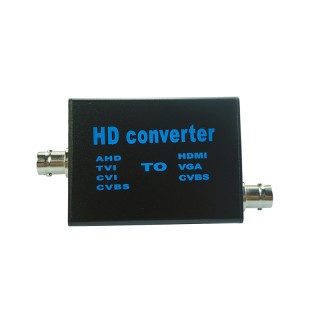

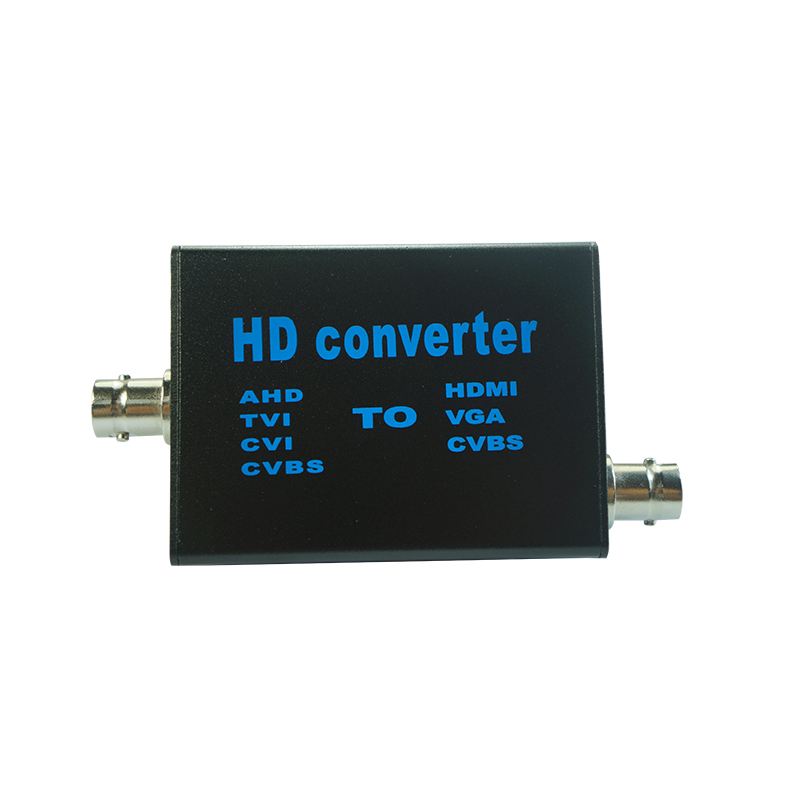

AHD to HD video converter Model A2H

  • Details

Features:


This is a 4 in 1 high definition video signal convertor, it convert AHD/TVI/CVI/CVBS signal to HD/VGA/CVBS signal. The convertor will recognize input video signal automatically. it compatible with 1080P,960P,720P,480P signal input. The output HD signal support 1080P and 720P. You can shift it by the button on convertor. MPS wide power 5V-20V design helps it widely used in different working conditions.


How to use:

1.    Connect with original 12V power adapter to DC port, after power on, the RED light on;

2.    V-IN connect with video signal input, the other side connect with the device which to receive converted video signal;

3.    If you connect V-OUT/VGA/HD at the same time, press button A to shift different signal to display. The default output signal type is HD.

4.    When using HD output, press button B to shift Video resolution between 1080P or 720P.

5.    When using CVBS output, press Button B to shift PAL/NTSC mode.

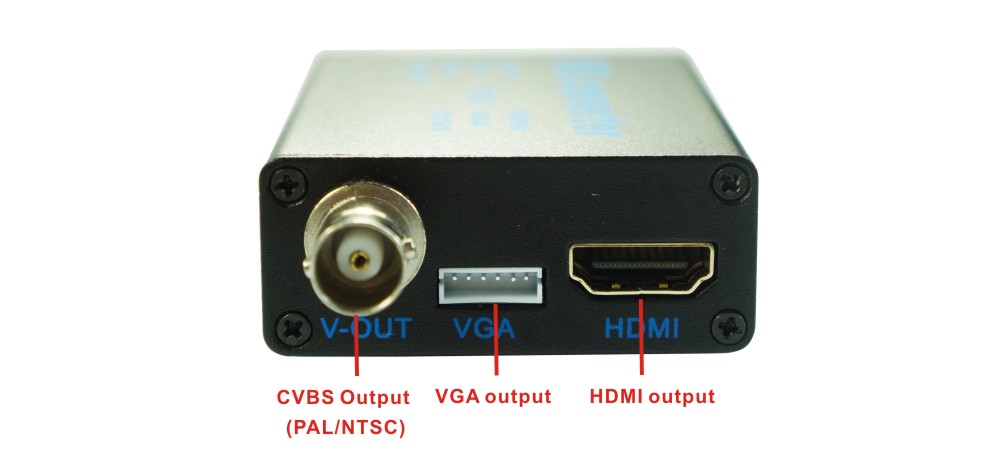

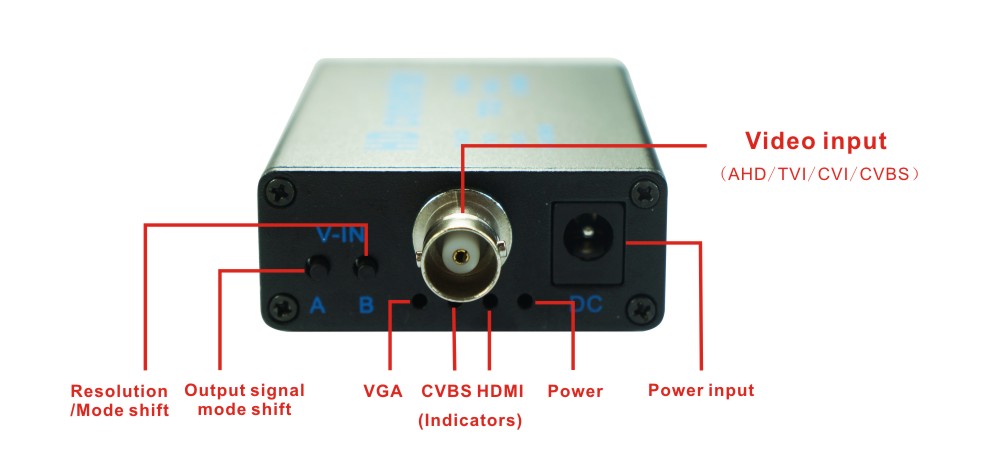

Device instruction

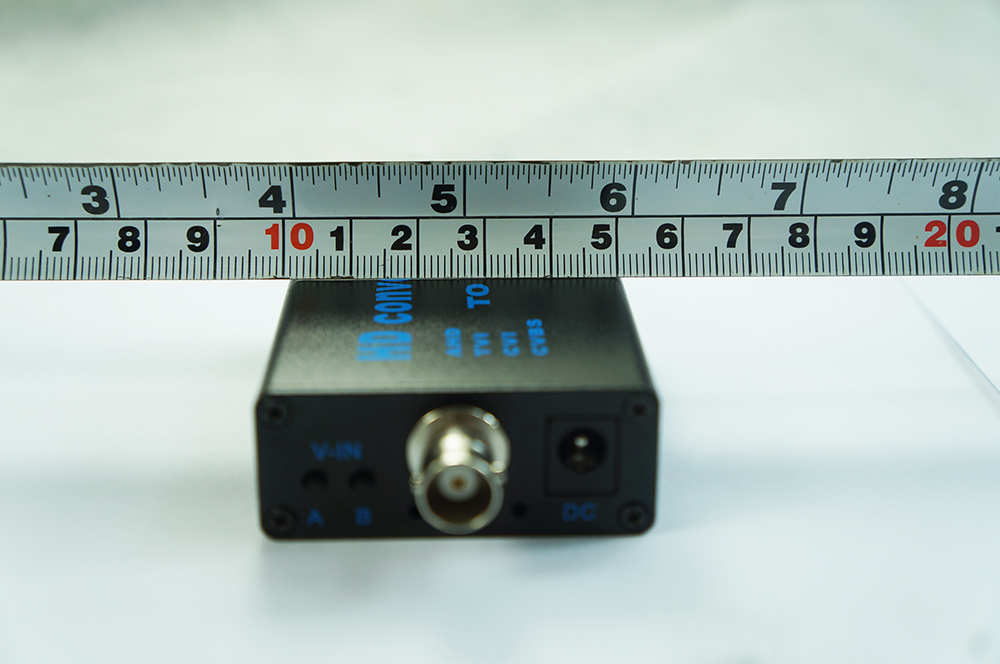

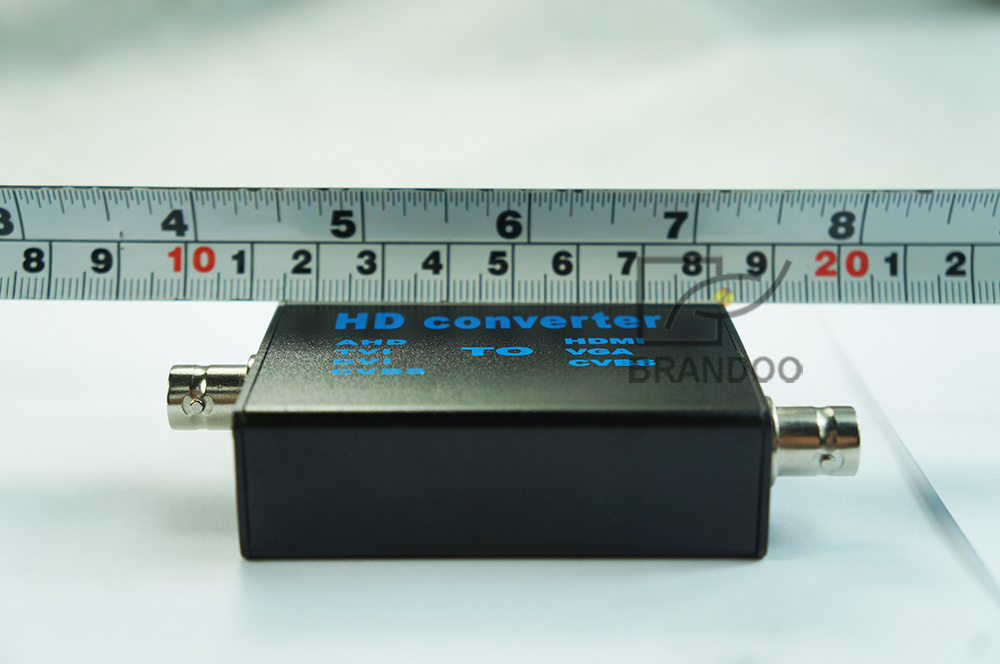

Dimension

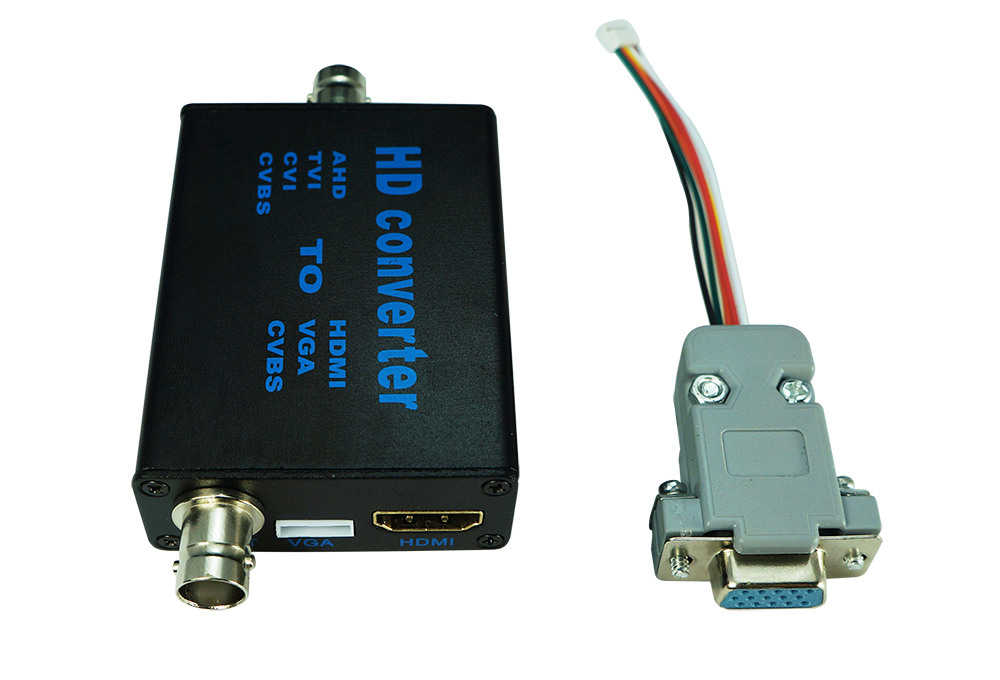

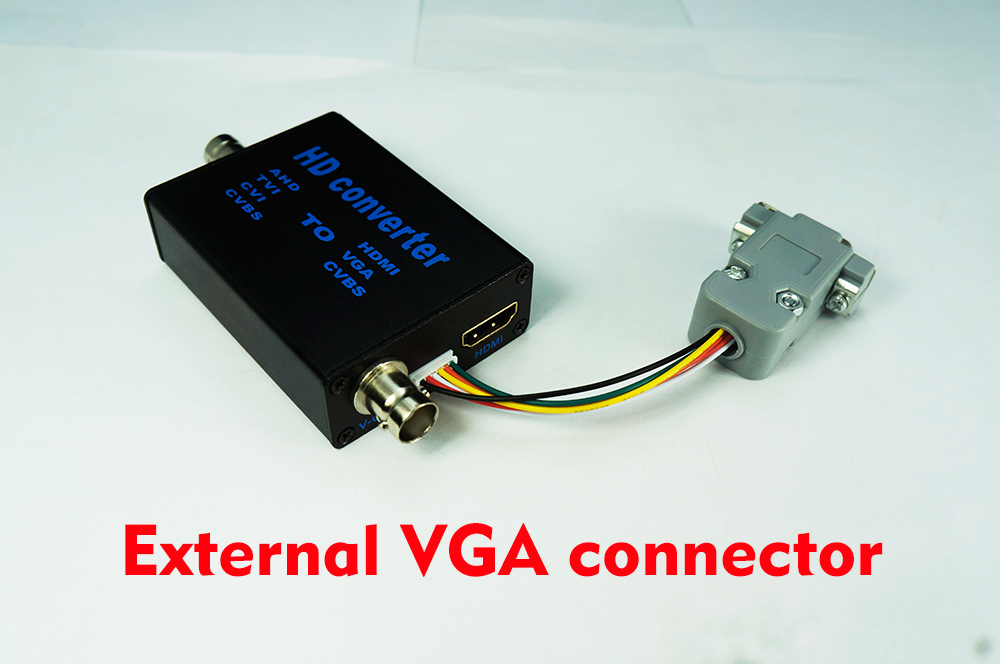

External VGA output connector, need pay extra



Specifications:

Power

DC 5V-20V

Working Current

150mAh

Consumption

≤2Wat

Signal input

AHD/TVI/CVI/CVBS1080P/960P/720P

Signal output

HD / VGA / CVBS(1080P/720P)

Dimension

66*53*21mm

Net Weight

73g

Accessories

Convertor*1  12V Power adapter*1  Manual*1 VGA module need buy extra
