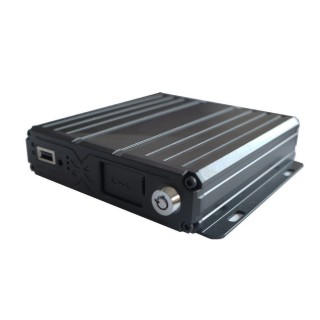

Compact Dual SD 4CH MDVR model BD-326
This is a Dual SD card 4 channel Mobile DVR designed in compact dimension,4 1080P Cameras working and recording in 4CH 720P resolution,Max. recording for 30 days.And It support 4G/GPS function for live monitoring.
- Details
Features:
> Max. 4CH 1080P (1920X1080) Input
> Max. 4CH 720P (1280x720) recording
> Dual SD memory, max. 256GB for each card

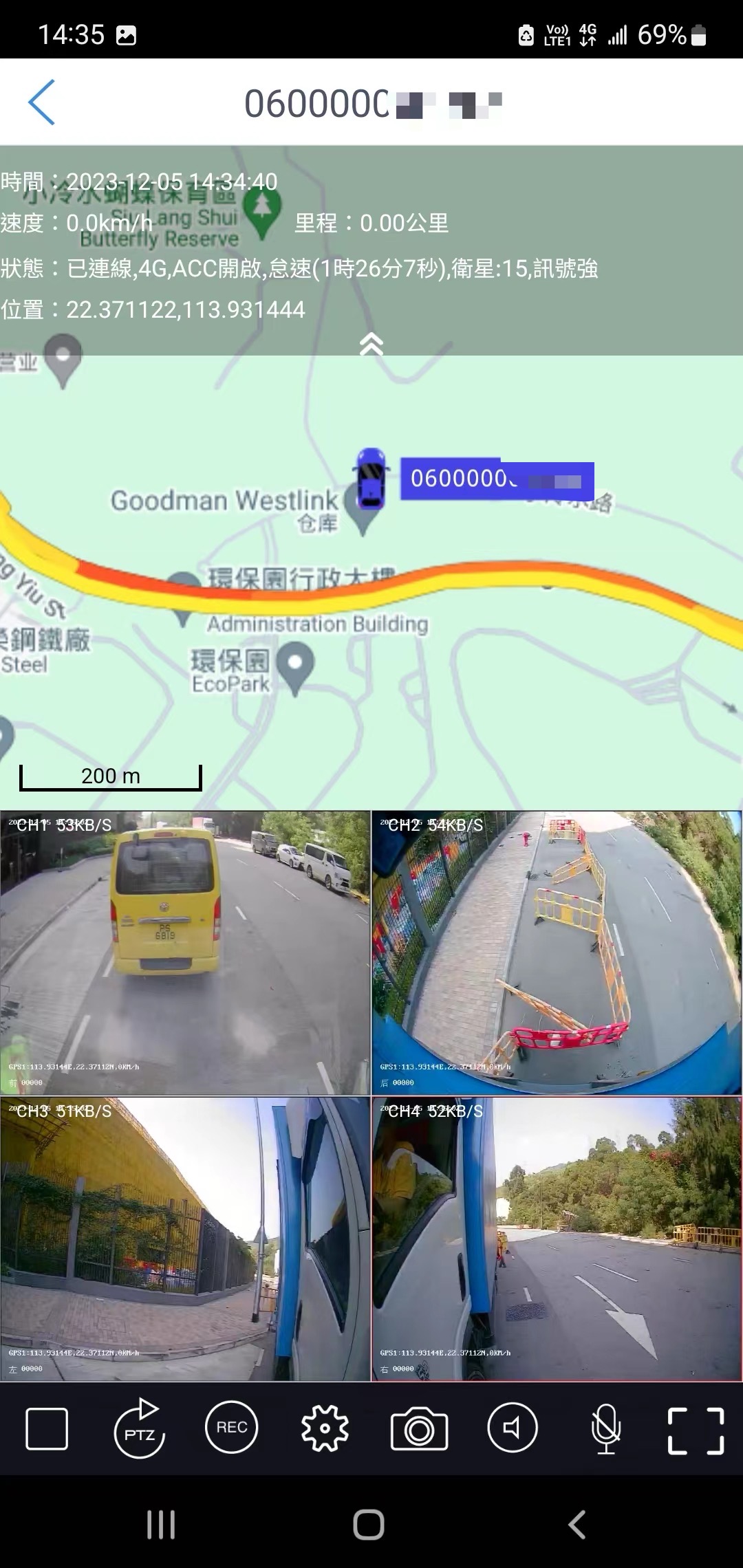

> 4G/GPS optional
> Support VGA or CVBS video output (ONLY 1 AVAILABLE)
> 3 alarm input
> 10V-36V power input
> Support 2.0mp/960P/1.0mp AHD camera and analog camera

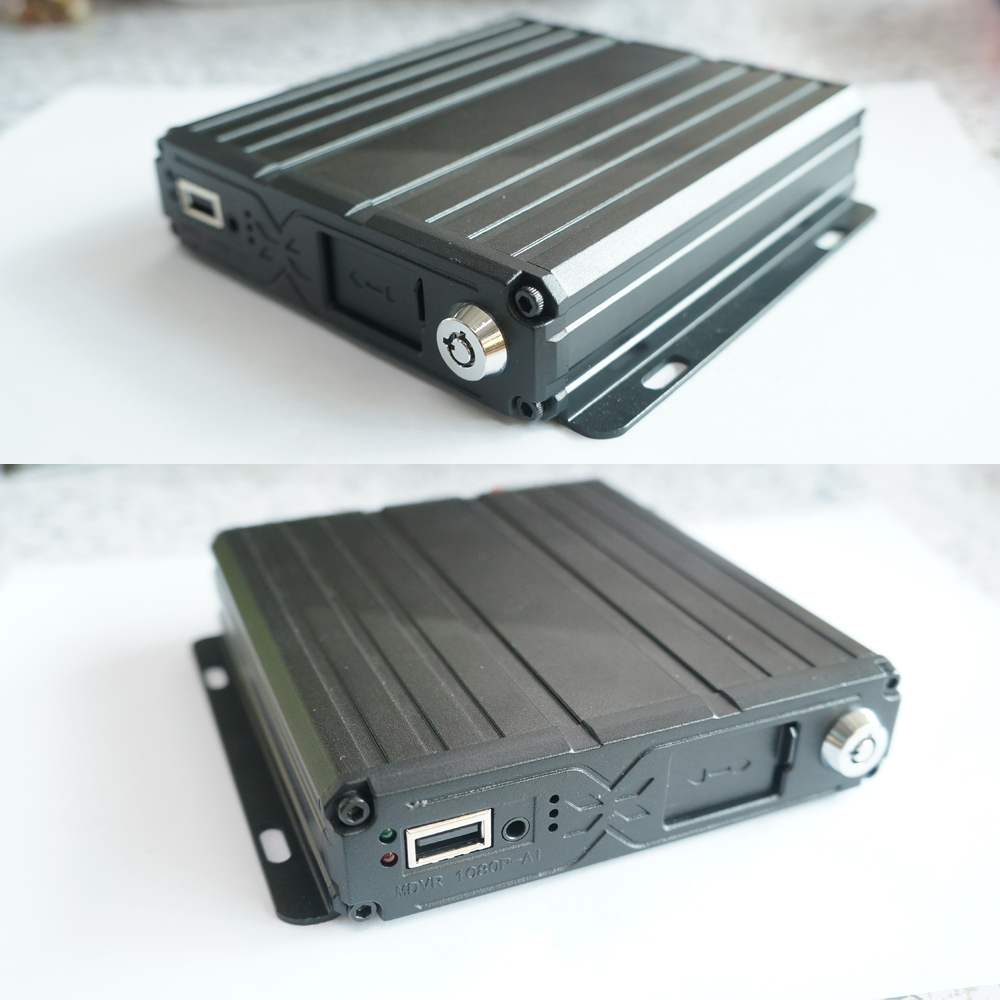

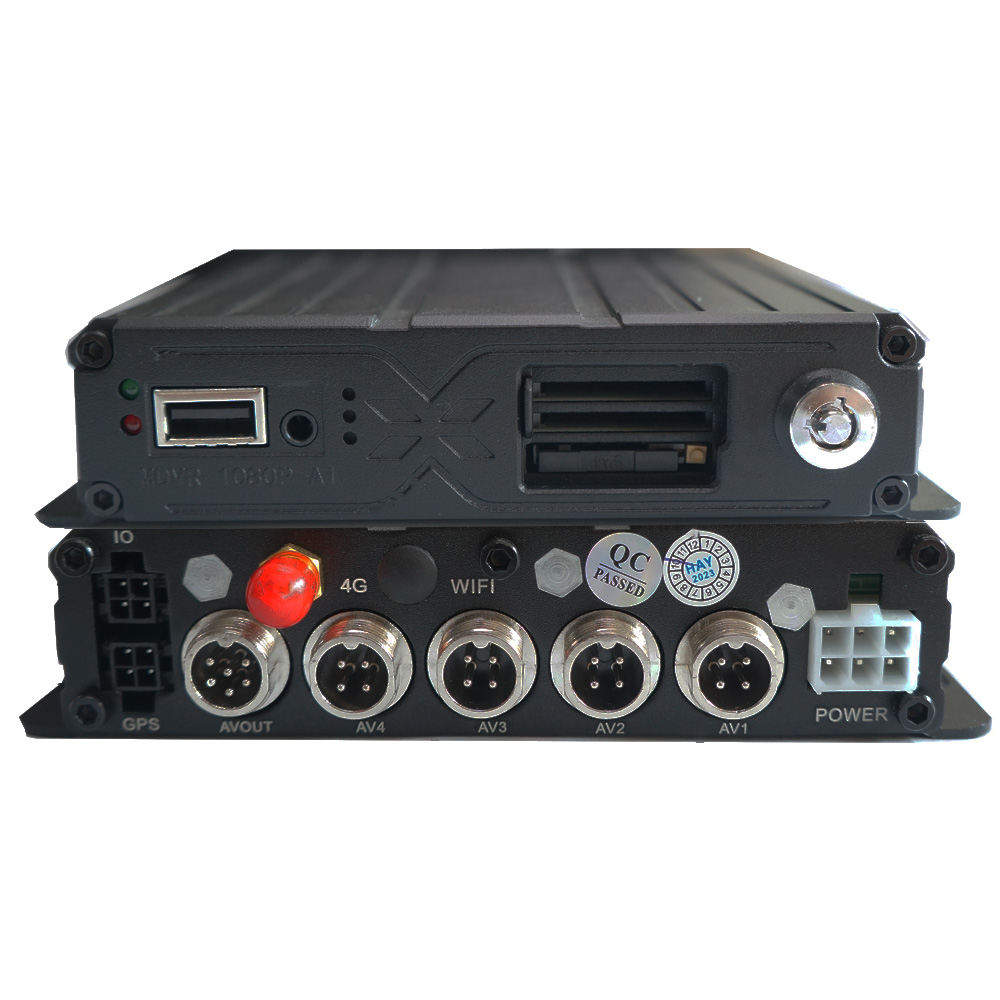

Front and Rear panel

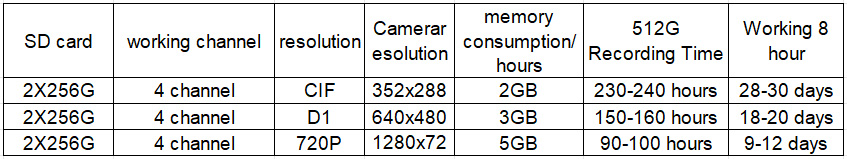

Memory Cost details

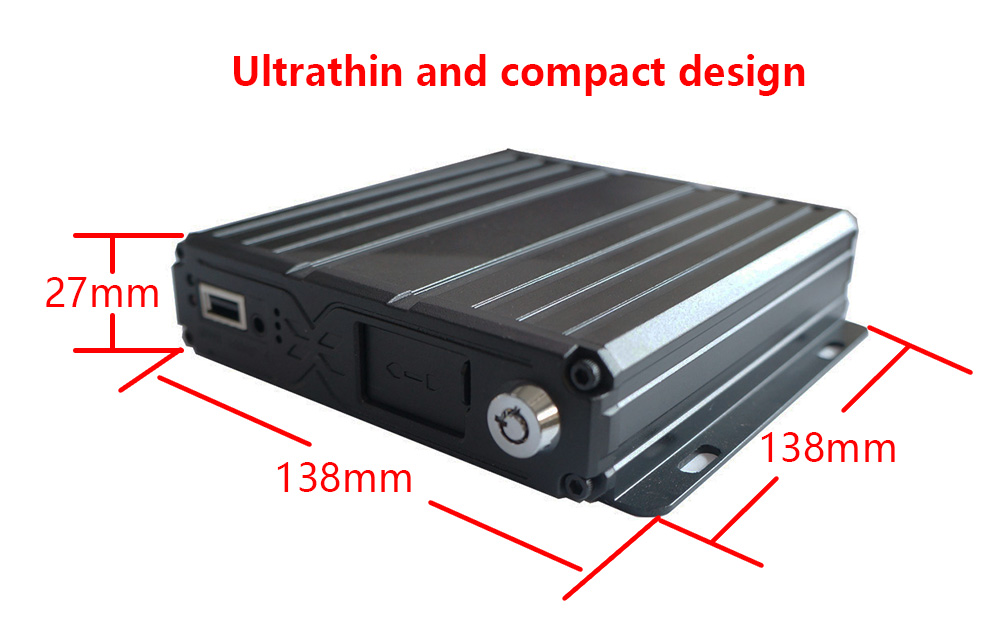

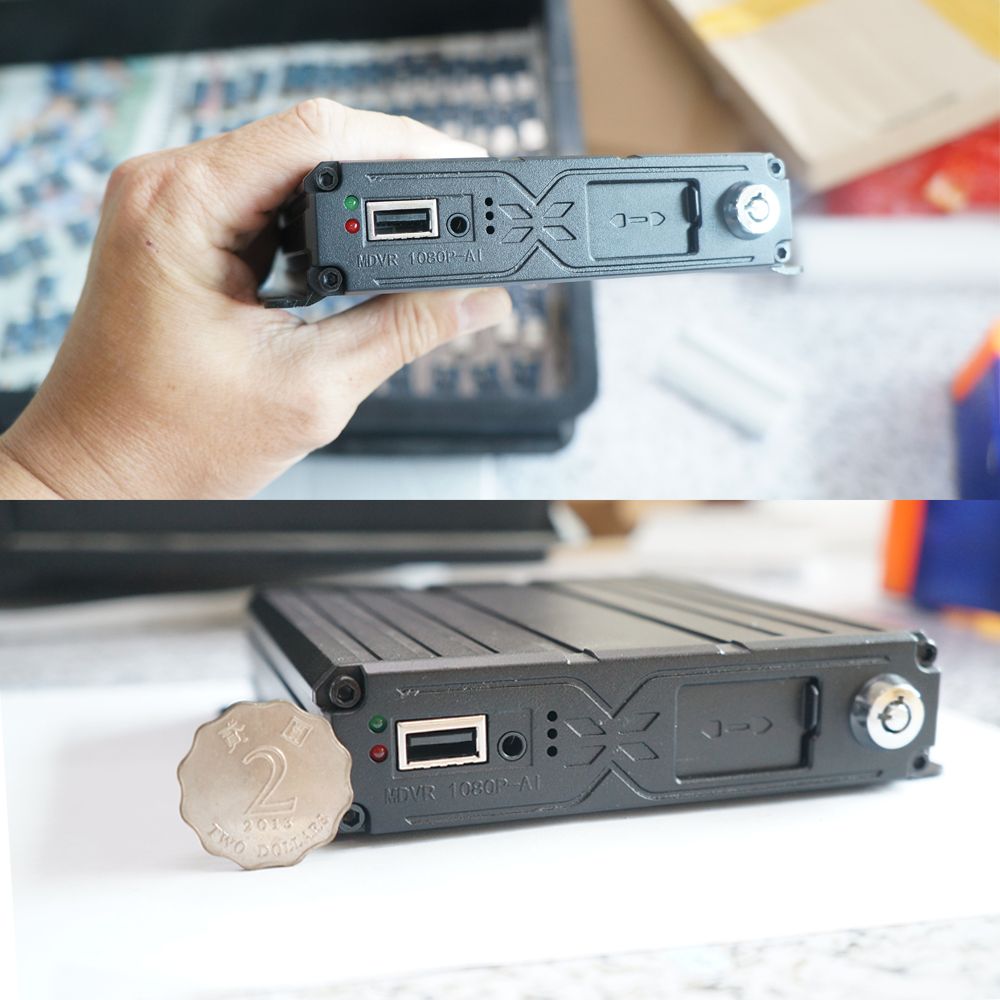

Compact design

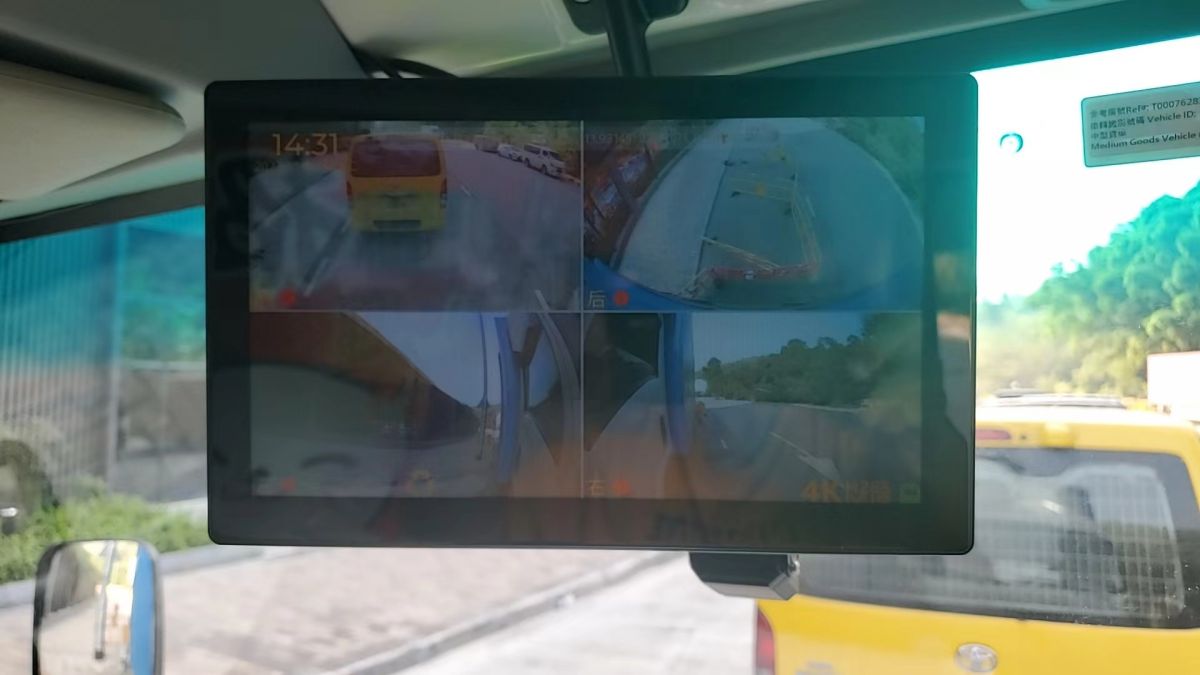

HD video recorded

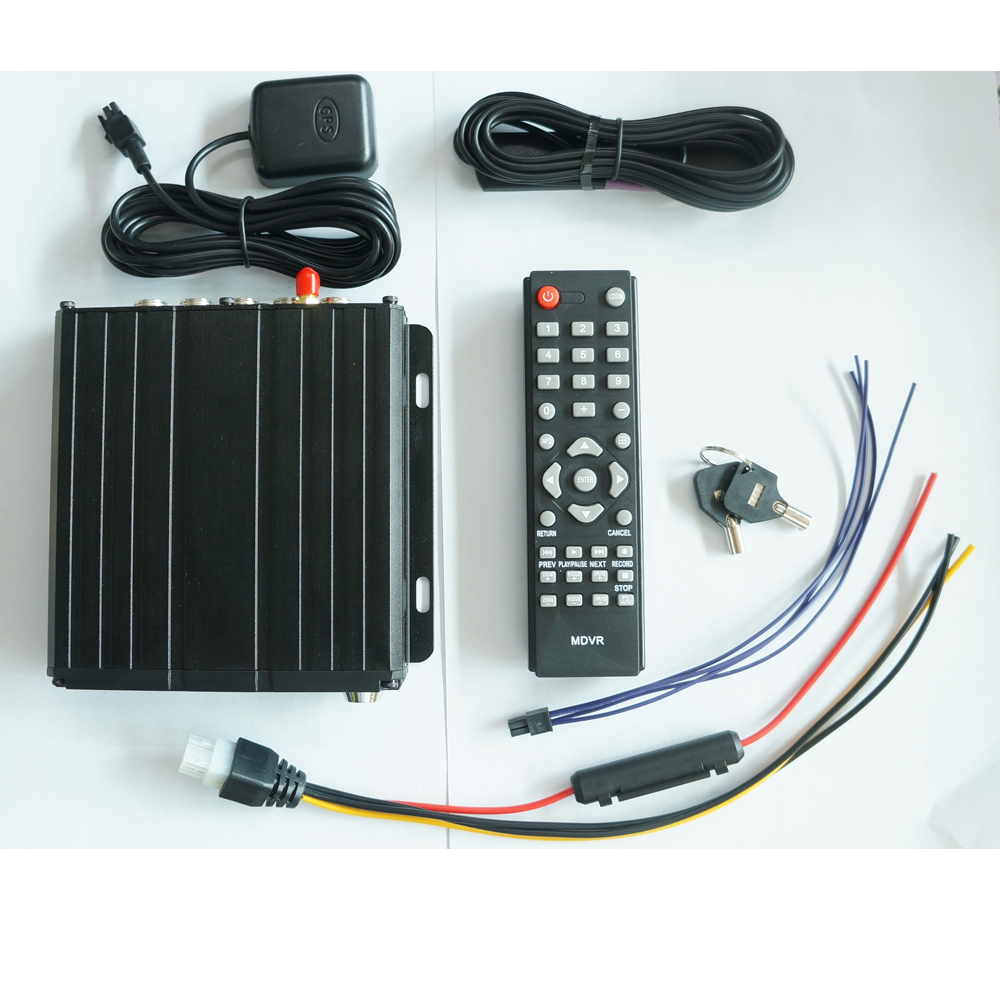

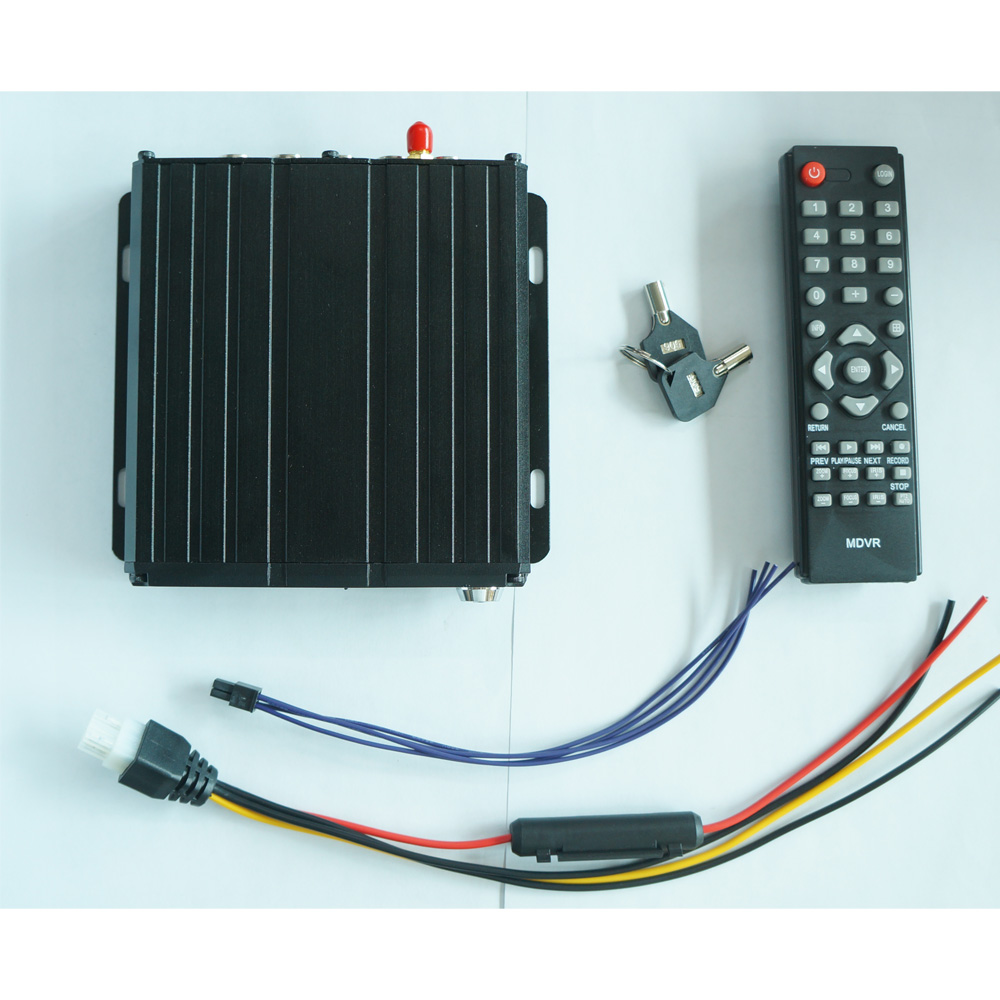

Accessrories
4G Version accessories
Parameters
| Items | Parameters | Specifications |
| System | Language | Chinese/English/Russian |
| Operation Menu | Graphical User interface（OSD menu） | |
| Password | Administrator Password | |
| Video | Video input | 4-CH video input 1.0Vp-p，75Ω |
| Rec Resolution |
720P: 1080x720 |
|
| D1: 704X576 | ||
| CIF: 352X288 | ||
| Video output | CVBS or VGA. Only 1 output available. | |
| Video Display | 1 channel or synchronous 4 channels | |
| Video Signal | PAL/NTSC optional | |
| Video Compression | H.264 Main profile | |
| Audio | Audio input | 4-ch Audio input |
| Audio output | 1-ch Audio output | |
| Recording mode | Audio & Video sync Recording | |
| Image processing & storage | Video format | 720P/D1/CIF Optional |
|
Video stream Standard |
ISO14496-10 | |
| Video bit rate | 720P: 3mbps | |
| 960H: 1mbps | ||
| D1: 1mbps | ||
| Audio Bit rate | 8KB/s | |
| Storage | CLASS 10, 256GB SD, 2PCS | |
| Alarm | Alarm input | 3 inputs |
|
|
Alarm output |
no |
