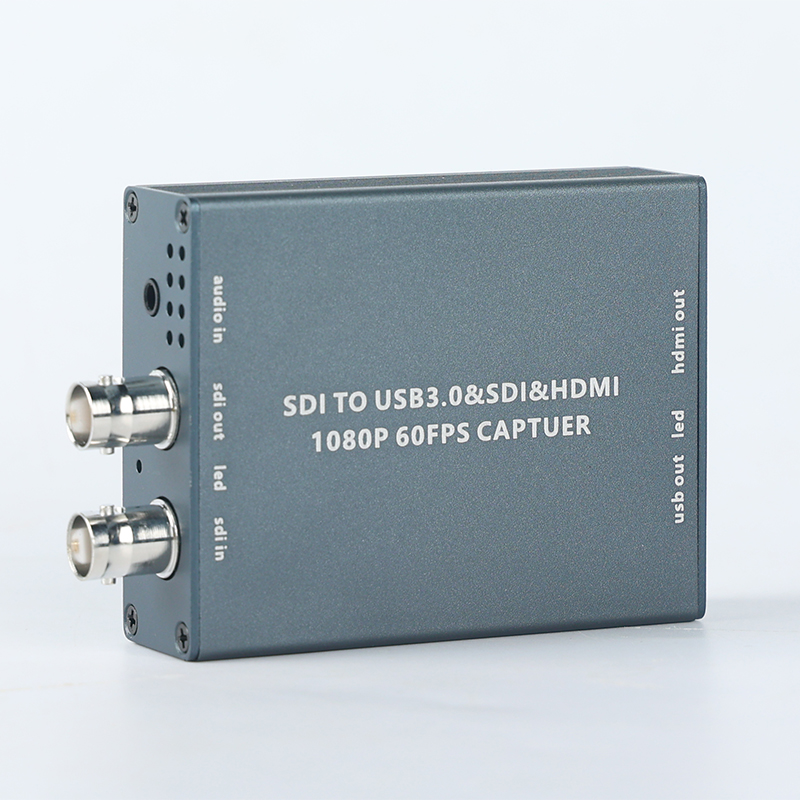

New SDI to USB Capture Card SDI HDMI Loop Out Model S2U-2
- Details
Features:
> SDI input, USB 3.0 output
> SDI+HDMI loop out
> Max. 1080P 60f/s
> UVC/UAC standard
> Audio/mixing audio pick up
Parameters:

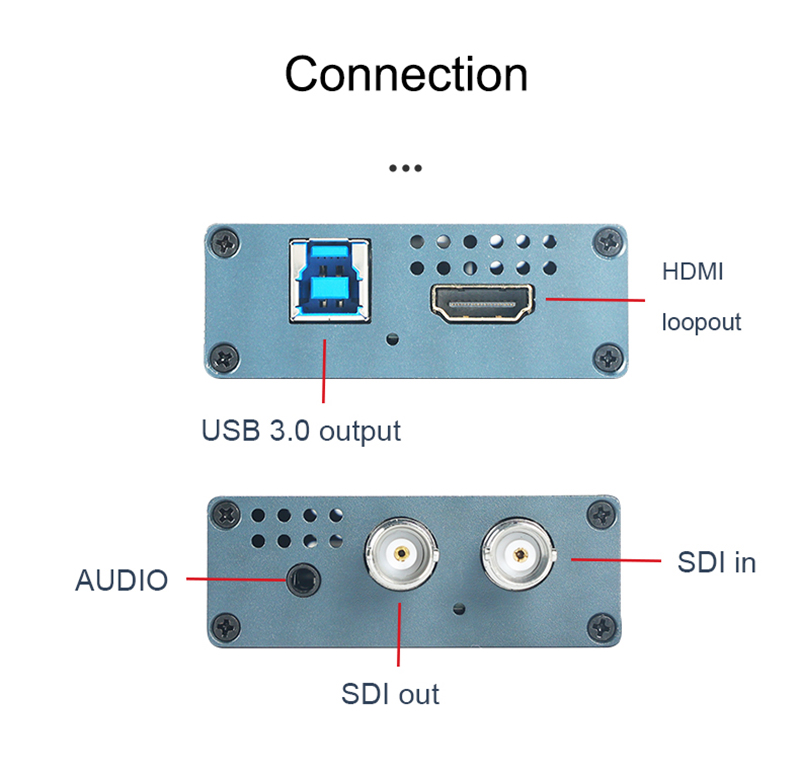

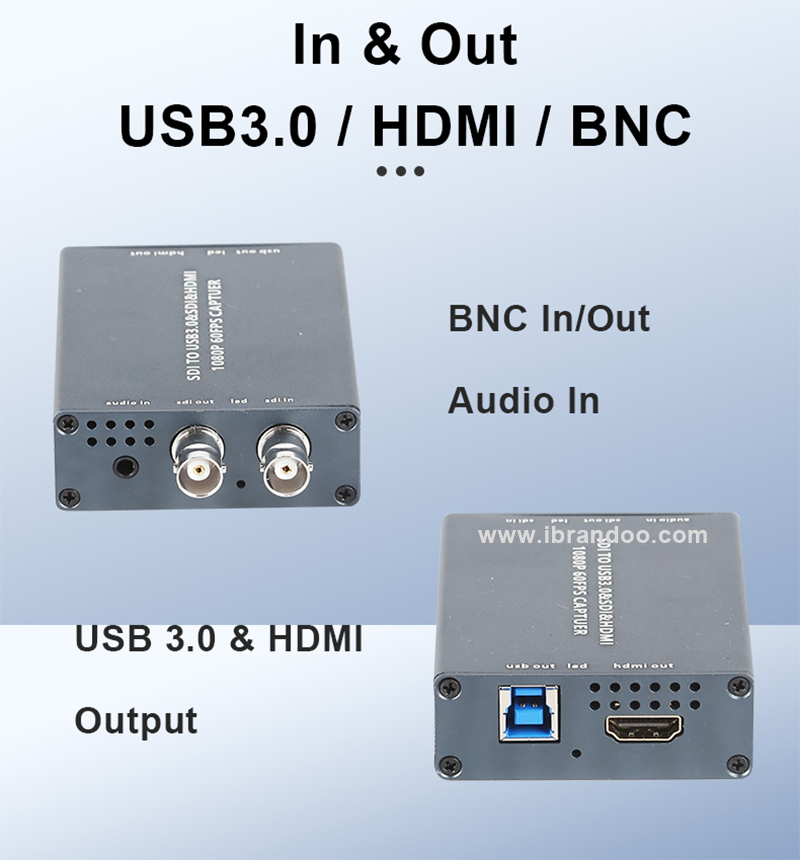

Input SDI signal,BNC female
Output USB3.0,BNC female,HDMI
Audio port 3.5mm , 3 level
Video out resolution 1920*1080、1600*1200、1360*768、
1280*1024 、1280*960 、1280*720 、
1024*768 、800*600 、720*480 、
720*576、640*480
Video format YUY2 MJPEG
Frame rate 60 50 40 30 25 15 10 frames
AV capture protocal Standard UVC/UAC
Driver Free, plug and play
Operation system Windows/Linux /Android/MAC
Video capture software OBS Potplayer(windows)
Consumption ＜3Wat
Working Temp. -20℃-65℃
Working Hum. 5%-90%

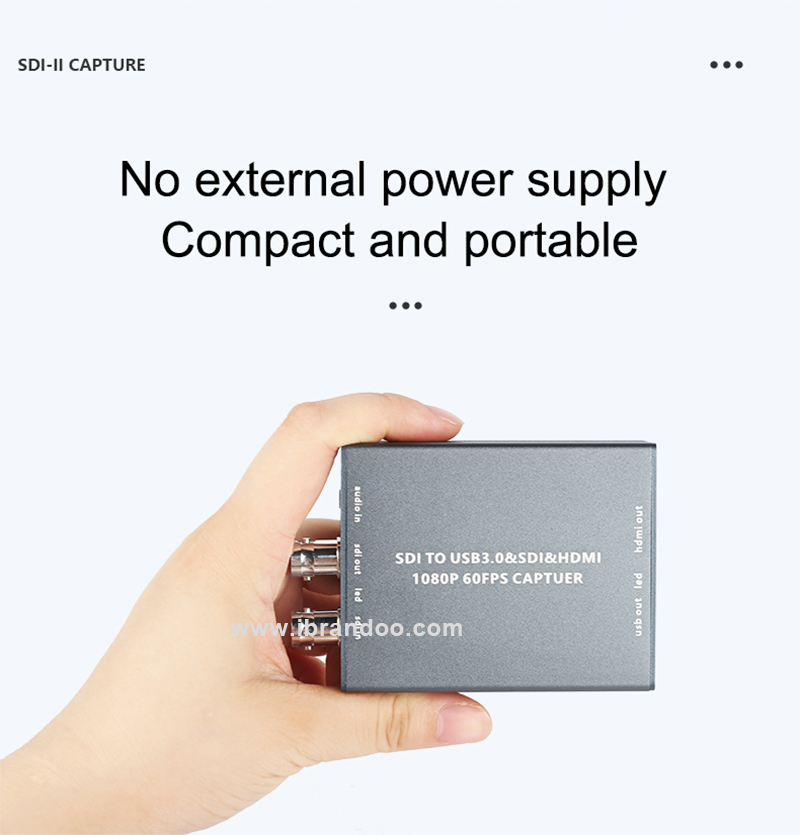

Dimension 94mm*64mm*24mm
Weight Device:110g
Packing：240g
