Micro Camera

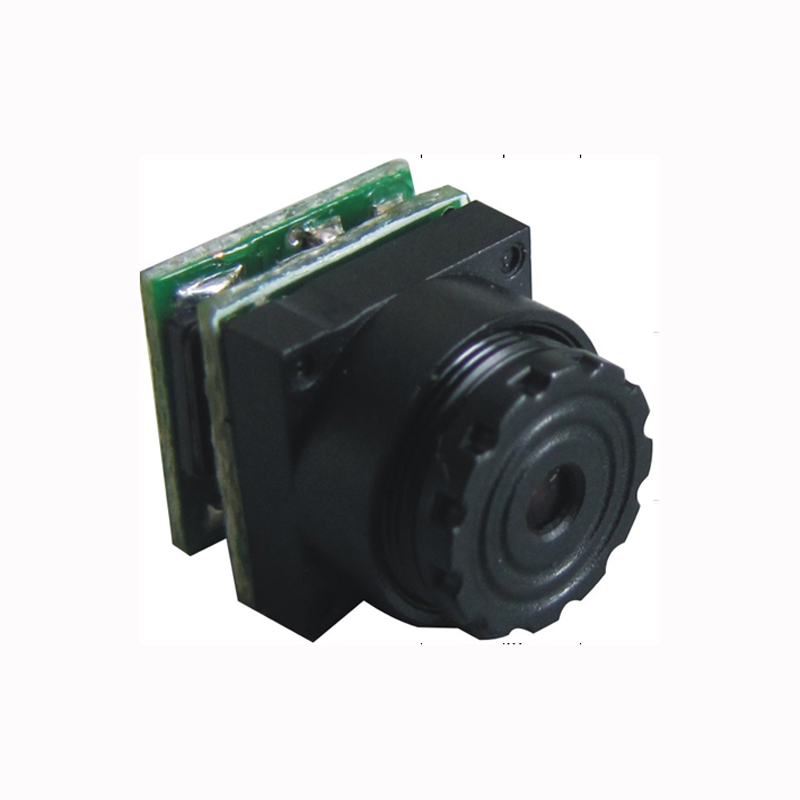

Normal CCD pinhole camera Model: BD-900
This is a mini size pinhole camera, audio available, BNC or RCA connector selectable.
- Details
Features:
>High definition
>TV Mode: NTSC/PAL
>Resolution:NTSC：656（H）×492（V） PAL：786（H）×576（V）
>Horizontal：520TV Lines
>0.008Lux /F1.2
>Lens and view angle:0.5mm F2.0 / 55°
>Dimension:D x H：9.5mm x 9.5mm x 12mm
>Power:DC 3.6V-5V
>High definition
>TV Mode: NTSC/PAL
>Resolution:NTSC：656（H）×492（V） PAL：786（H）×576（V）
>Horizontal：520TV Lines
>0.008Lux /F1.2
>Lens and view angle:0.5mm F2.0 / 55°
>Dimension:D x H：9.5mm x 9.5mm x 12mm
>Power:DC 3.6V-5V
>Video output:1.0V p-p/75ohm

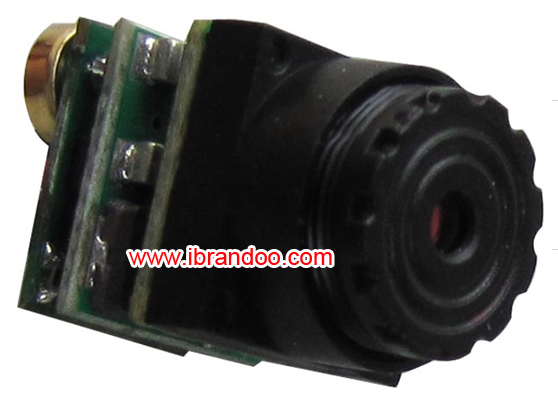

Audio available Model: BD-900A

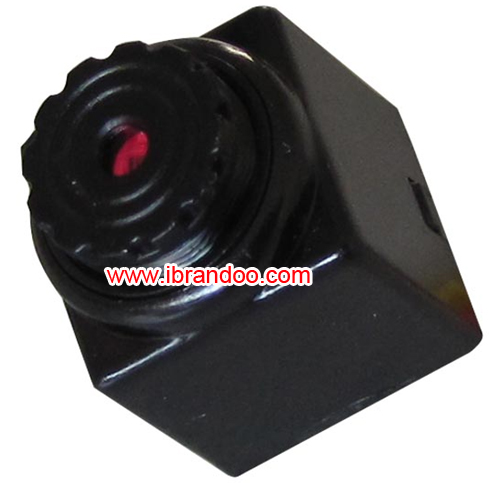

Cased type Model: BD-900D
