AHD car camera

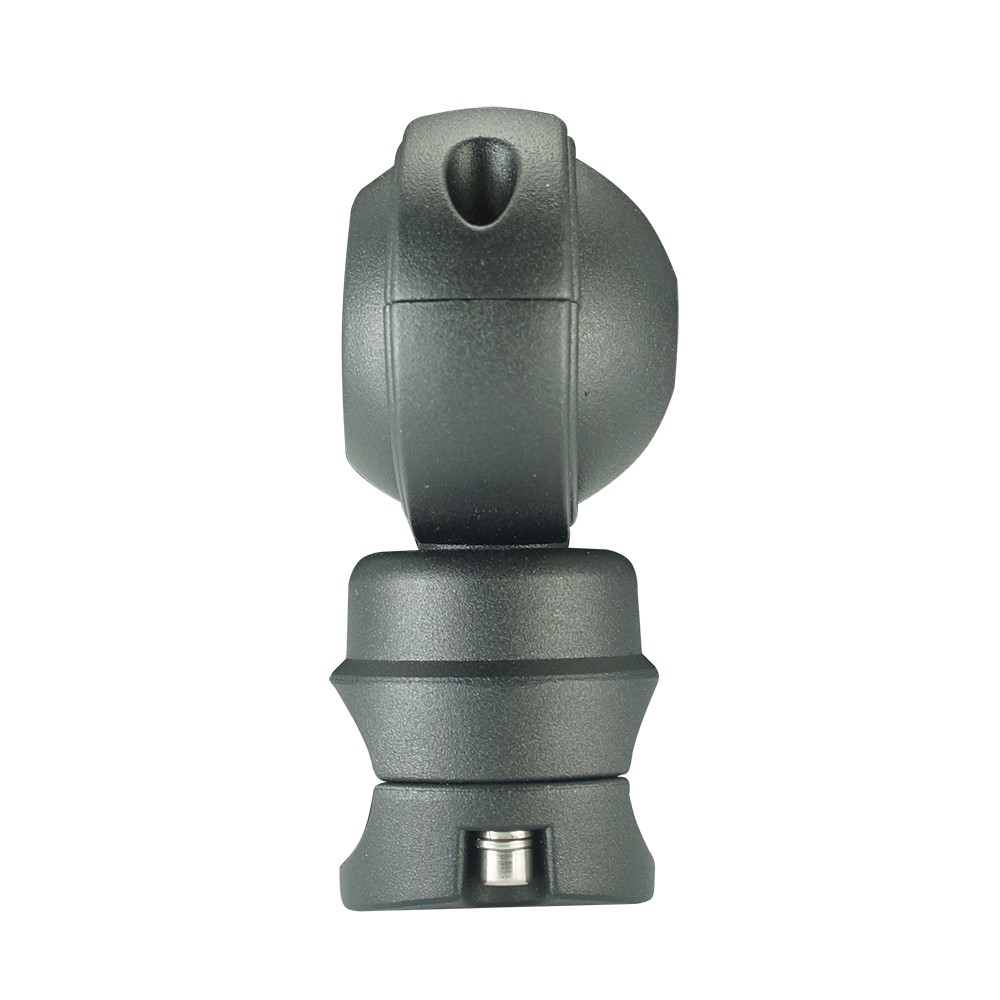

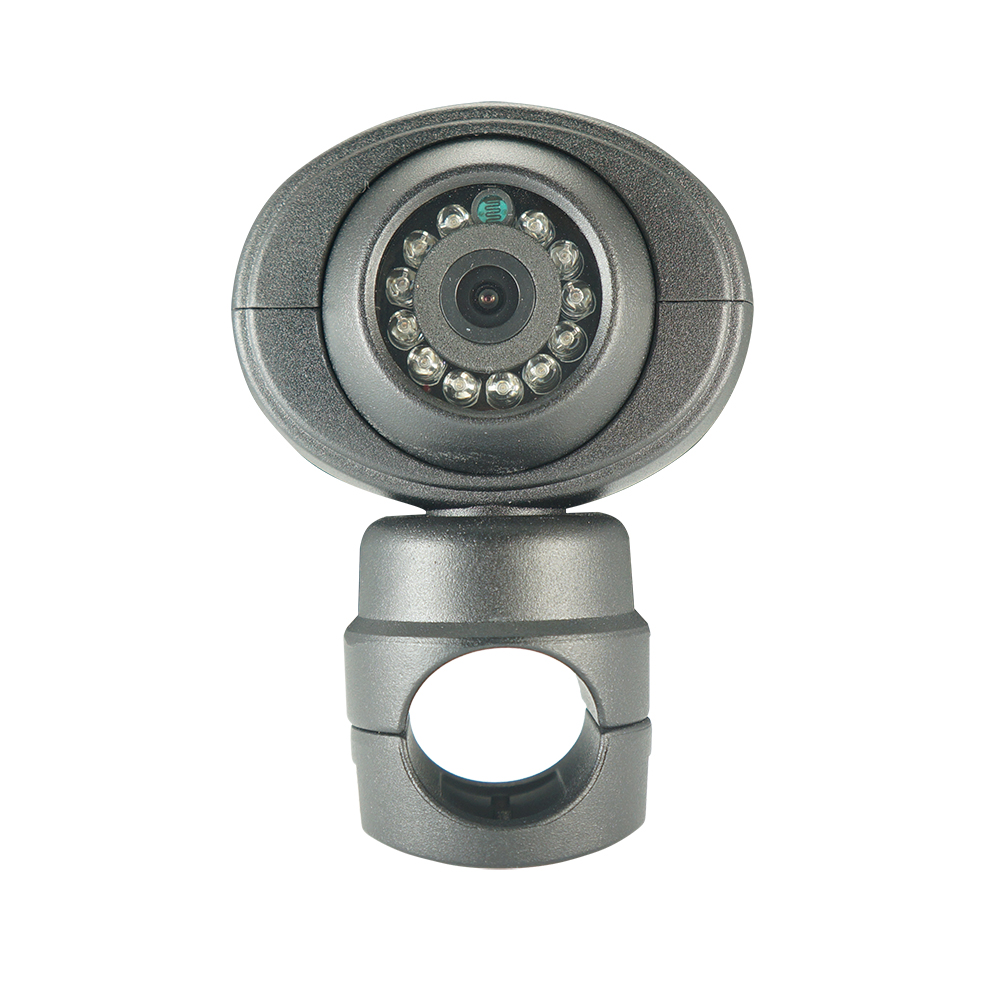

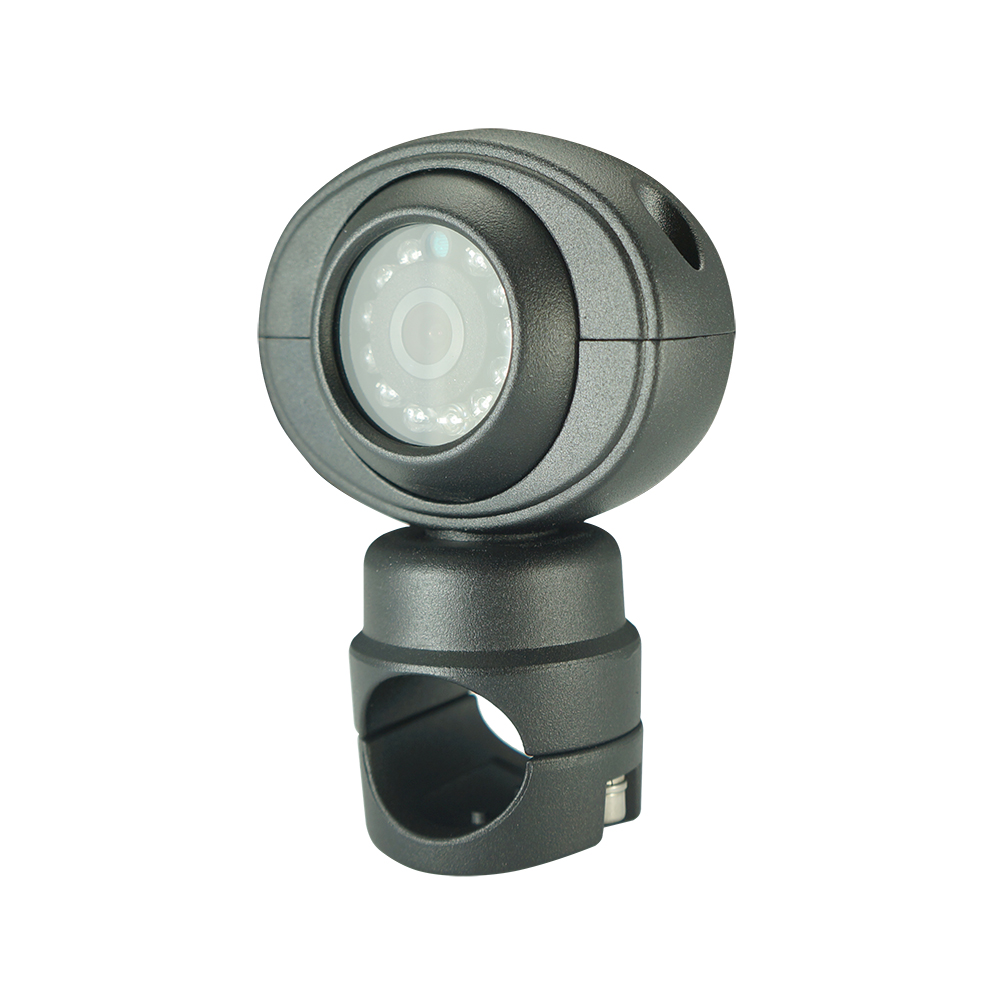

Tube Installation Car Side mirror Camera TC-620
- Details
Specifications:
|
Image sensor |
1/3 AR0130 CMOS |
|
|
Mode |
PAL |
NTSC |
|
Pixel |
PAL：1920x1080 / 1280（H）×960（V） |
NTSC：1920x1080 / 1280（H）×960（V） |
|
Min. Illuminance |
0.0001 LUX / F1.2 |
|
|
Horizontal |
AHD：2mp 1080P/ 1.3MP 960P，Analog：1200 TVL |
|
|
Lens and view angle |
3.6mm(80°) / 2.8mm(90°-110°) lens optional |
|
|
Scan frequency |
50Hz@PAL, 60Hz @ NTSC |
|
|
Gamma value |
0.45 |
|
|
Electrical shutter |
1/50～1/100000s |
1/60～1/100000s |
|
Noise |
>46dB |
|
|
Video out |
1.0V p-p |
|
|
Working temp. |
-20 º C - 50 º C |
|
|
Working Hum. |
<95 % |
|
|
Dimension |
80x65x70mm |
|
|
Power |
DC12V (±10%) |
|
