1 to 4 SDI signal Splitter 3G-SDI Model S4SP

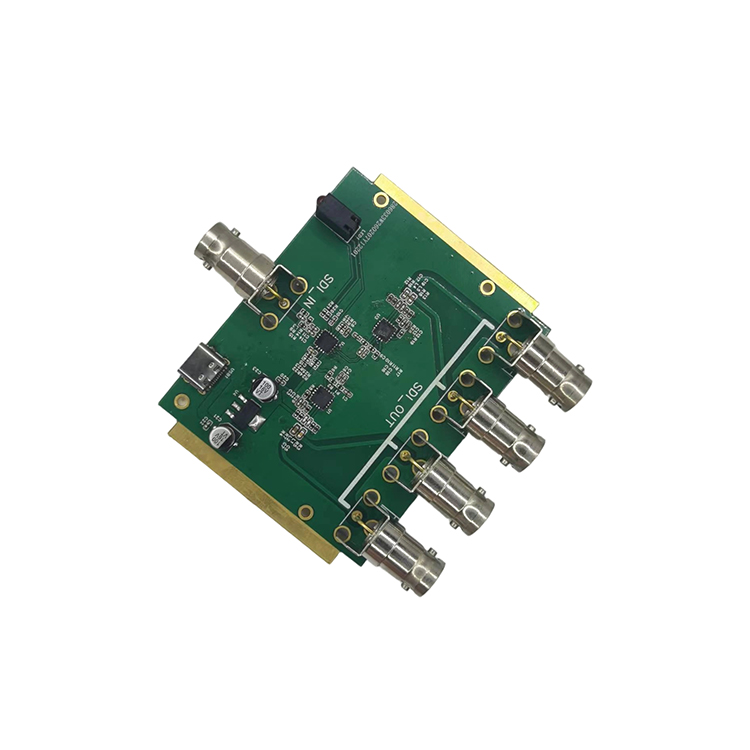

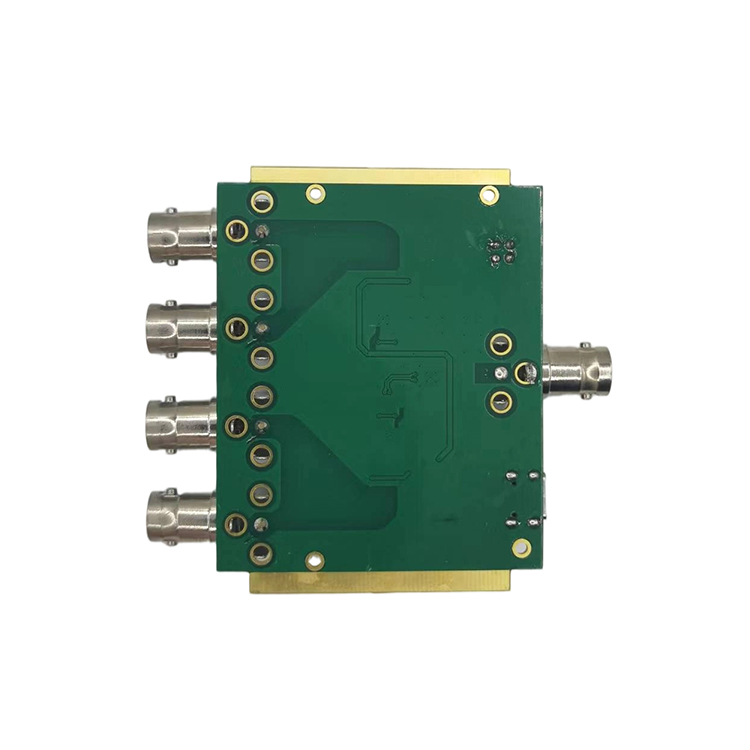

It is an industrial-grade SDI signal splitter. 1 SDI signal input, and 4 same SDI signal loop out. It support 3G-SDI and HD-SDI input. 5V power in from USB-C.
- Details
Features:
>1 channel 3G-SDI, HD-SDI input
>4 channel SDI signal loop out
>Industrial-grade main chip
>5v-15v wide voltage input
>USB-C power input
>1 channel 3G-SDI, HD-SDI input
>4 channel SDI signal loop out
>Industrial-grade main chip
>5v-15v wide voltage input
>USB-C power input
>Simple operation, plug and play
Specifications:
|
Item |
Data |
|
Power input |
USB-C 5V |
|
Signal input |
3G-SDI / HD-SDI |
|
Input connector |
Q9-BNC |
|
Output connector |
Q9-BNC * 4 |
|
Output data
|
1080P 50/60HZ 、1080P 25/30HZ 1080I 50/60HZ 720P 50/60HZ 720P 25/30HZ |
|
Consumption |
＜1wat |
|
Working Temp. |
-40 ~ 85 ℃ |
|

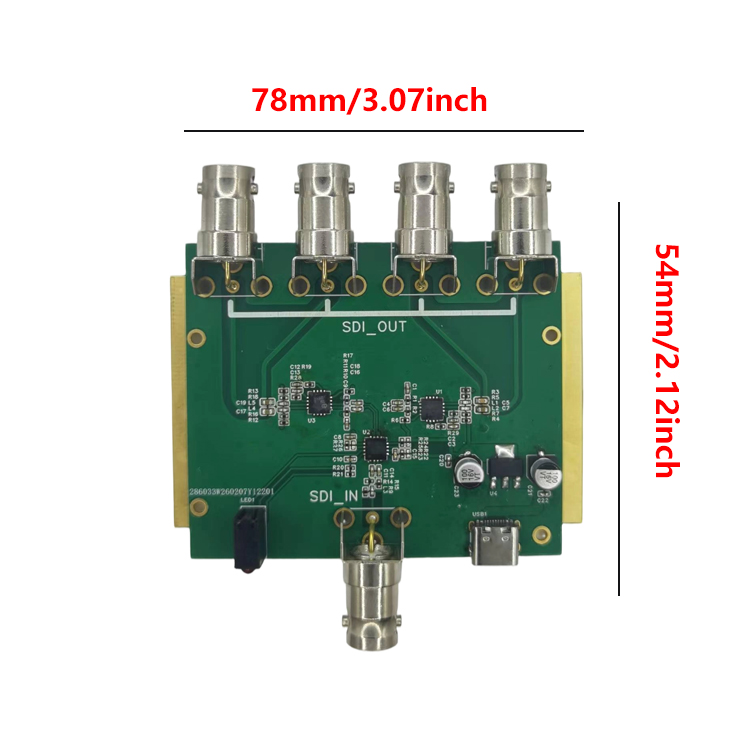

Dimension |
78*54 (L*W*H),78*87mm with BNC connector |
|
Weight |
0.2kg |
