10.1 IPS Touch Screen Monitor DVR BSD 4CH 1080P BD-10324T
- Details
Features:

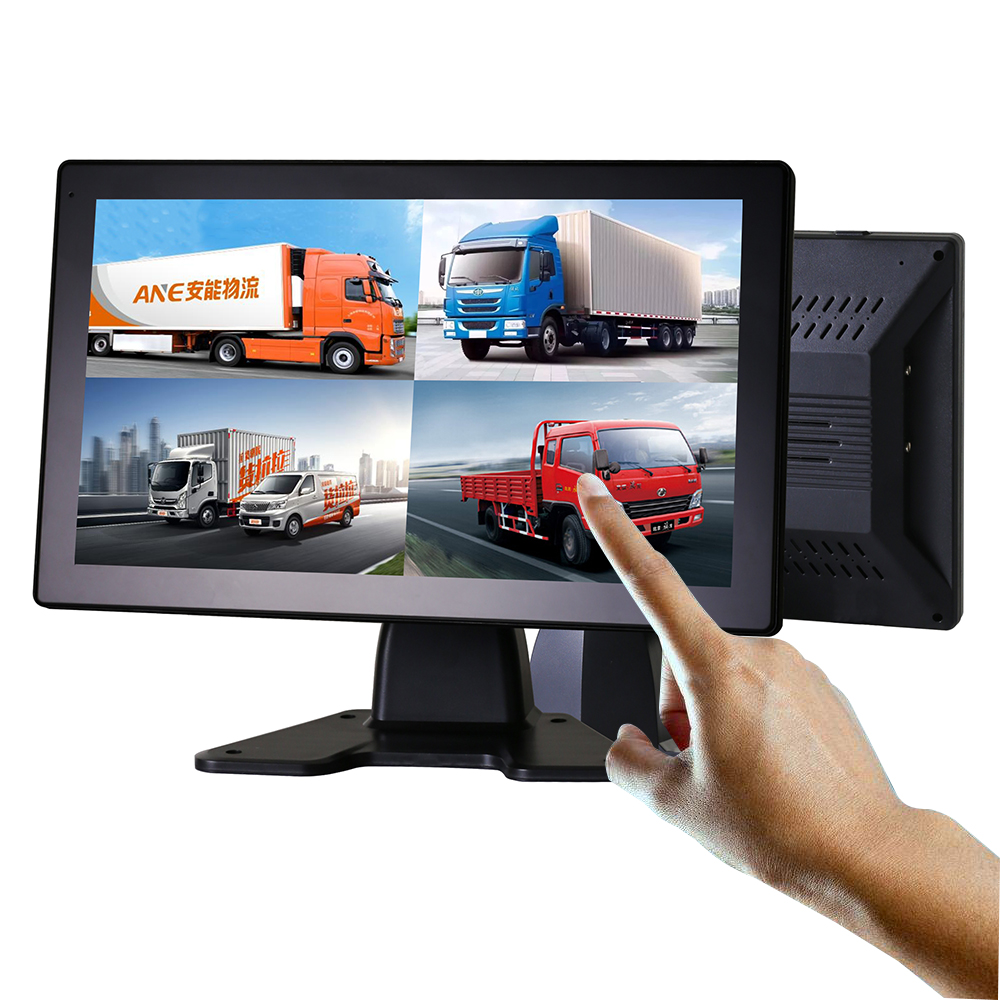

1. 10.1 inch IPS Touch Screen
2. 4G GPS BSD function available
3. Build in 4ch 1080p DVR
4. H.265 compression, 200fps

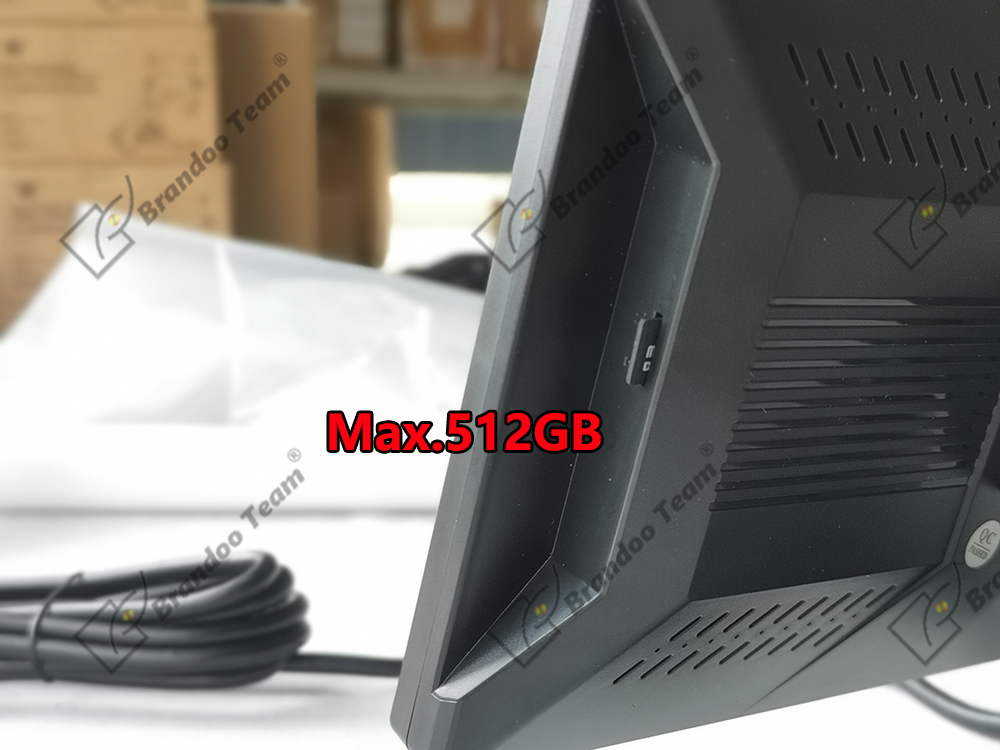

5. Max. 512GB Micro SD Card
6. Works with 2mp AHD camera
7. 9V-36V power input and 12V output

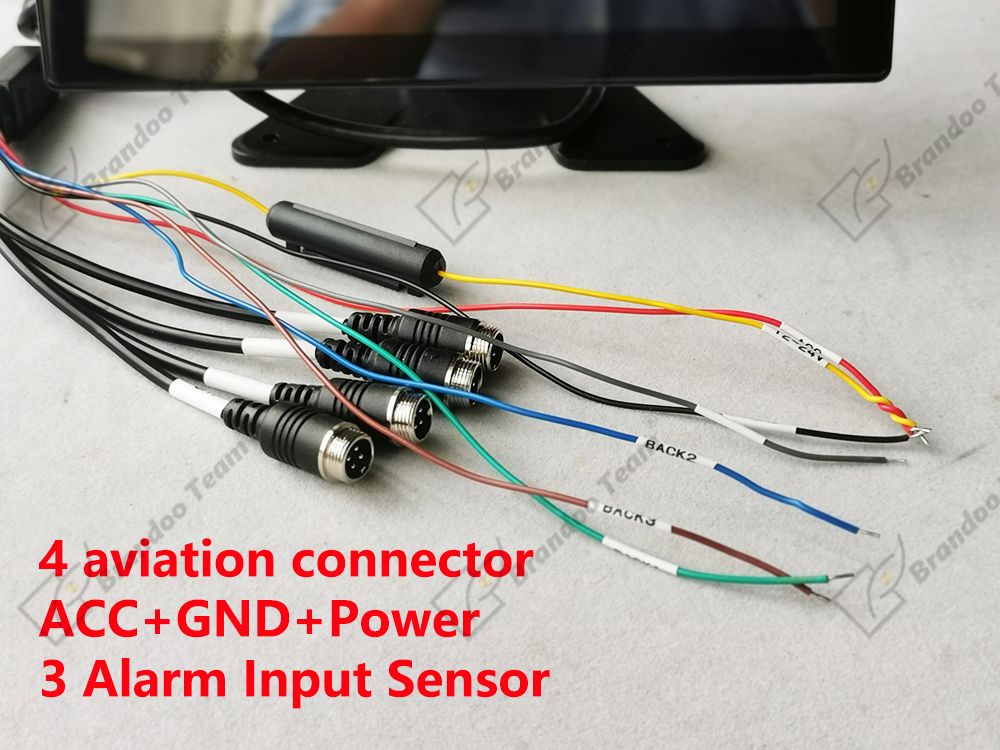

8. 3 Alarm Input

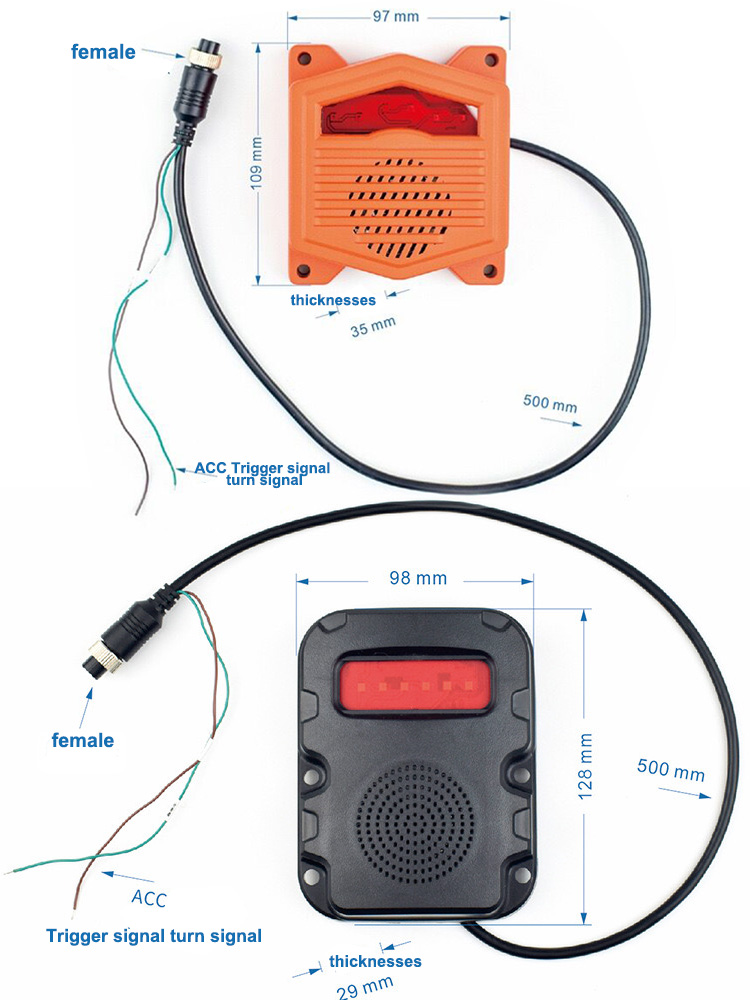

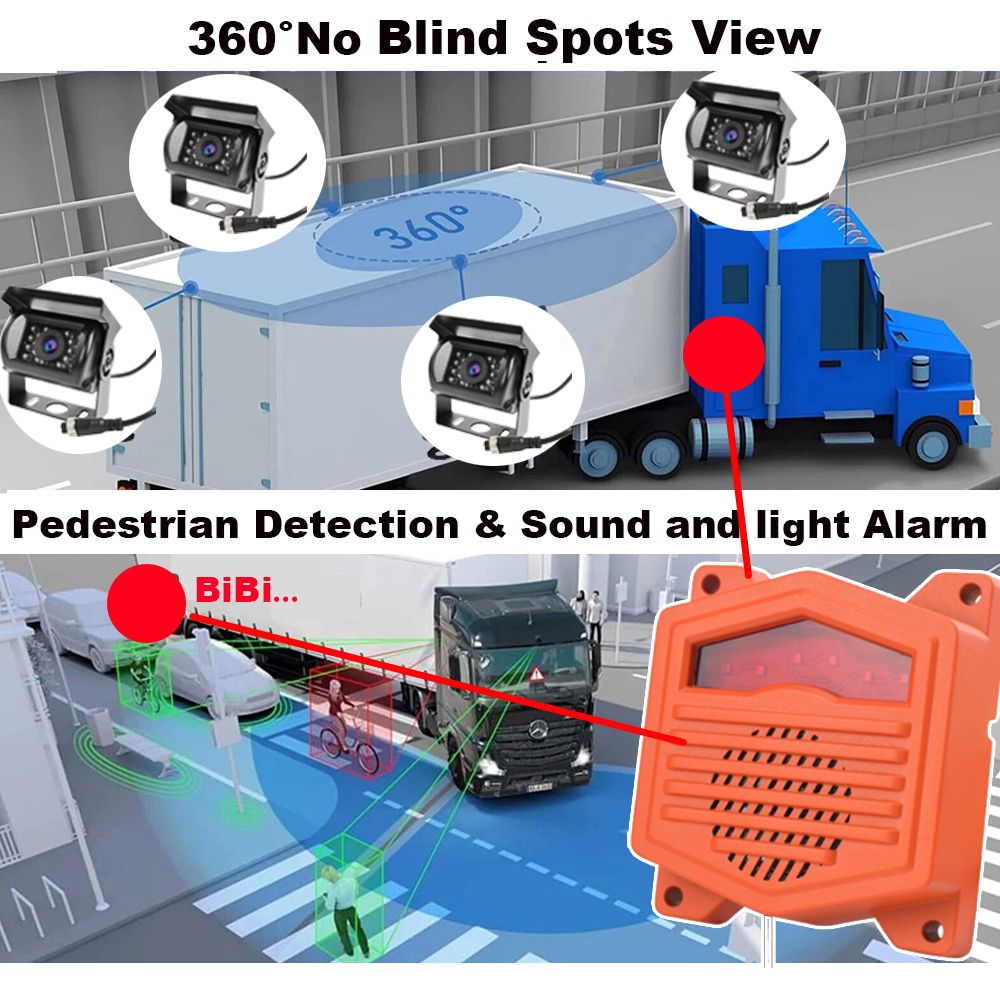

BSD function optional(pay extra)
Parameters
|
Item |
Data |
|
|
Program |
ALLWINNER V535 |
|
|
OS |
Linux |
|
|

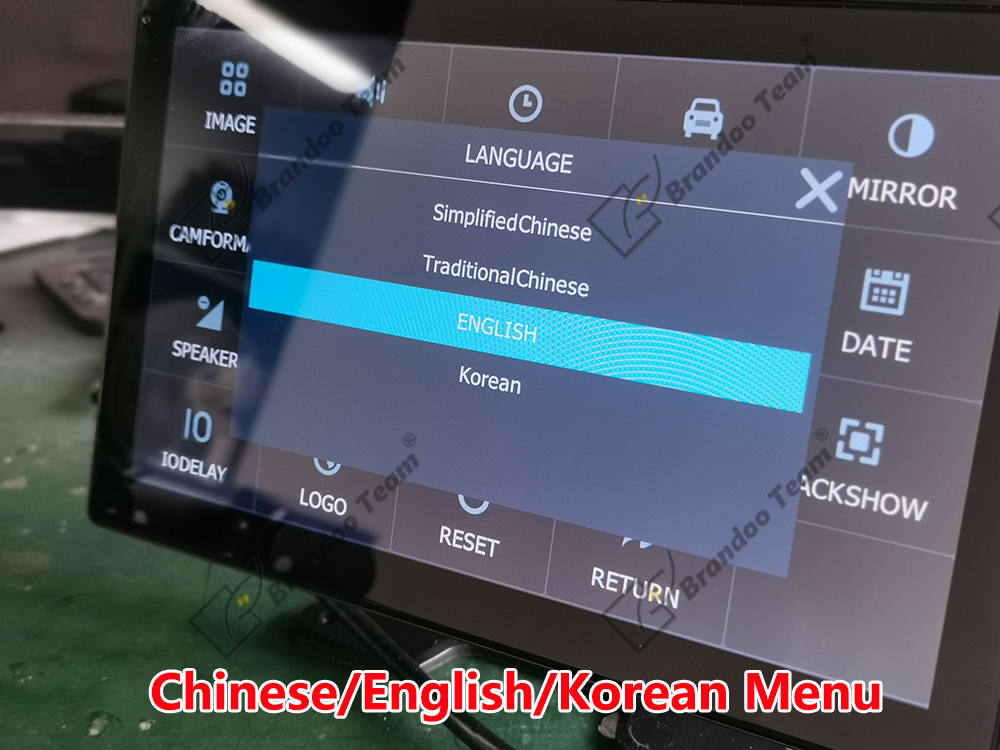

Language |
English/Chinese (Customized) |
|
|
Compression |
H.265 |
|
|
OSD |
Support |
|
|

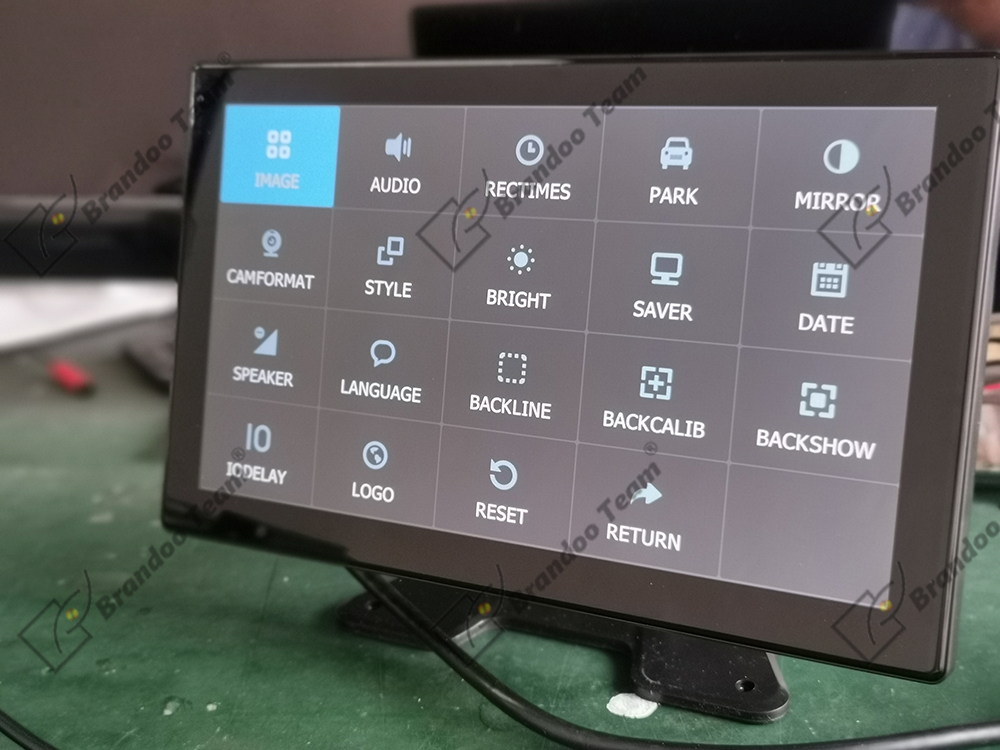

GUI |
ICONS |
Connect with RGB screen, touch screen optional |
|
Video and Recording |
Video In |
1.3mp AHD video input, 1.0Vp-p, 75Ω |
|

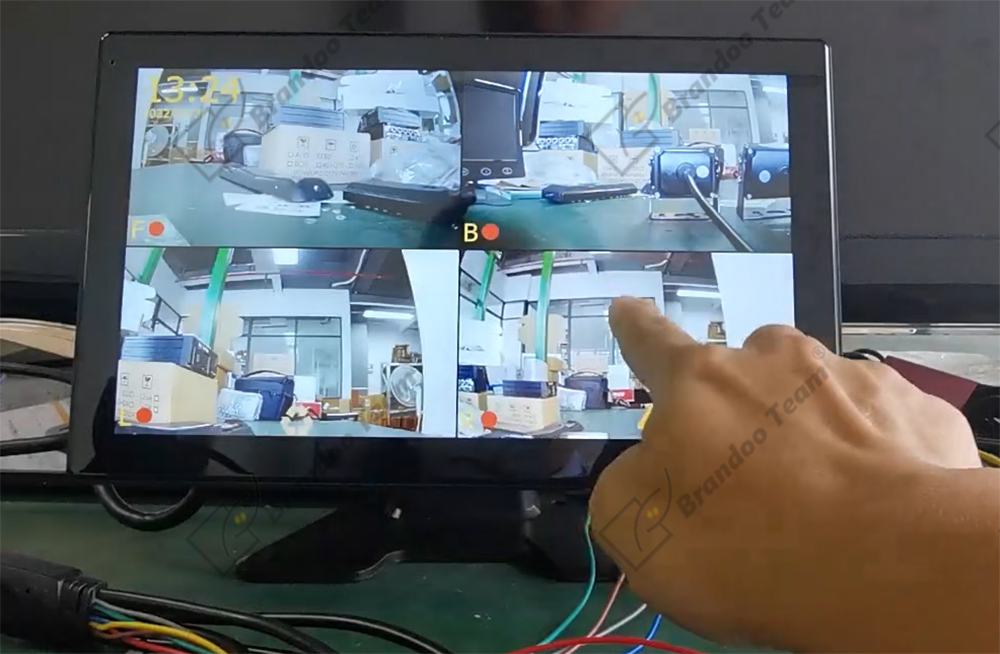

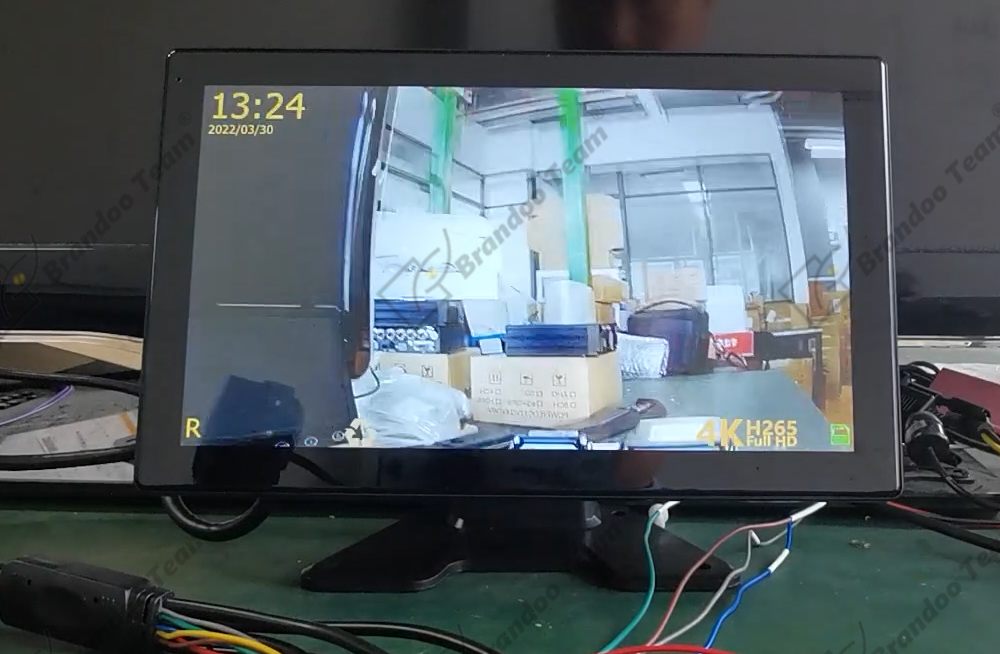

Preview |

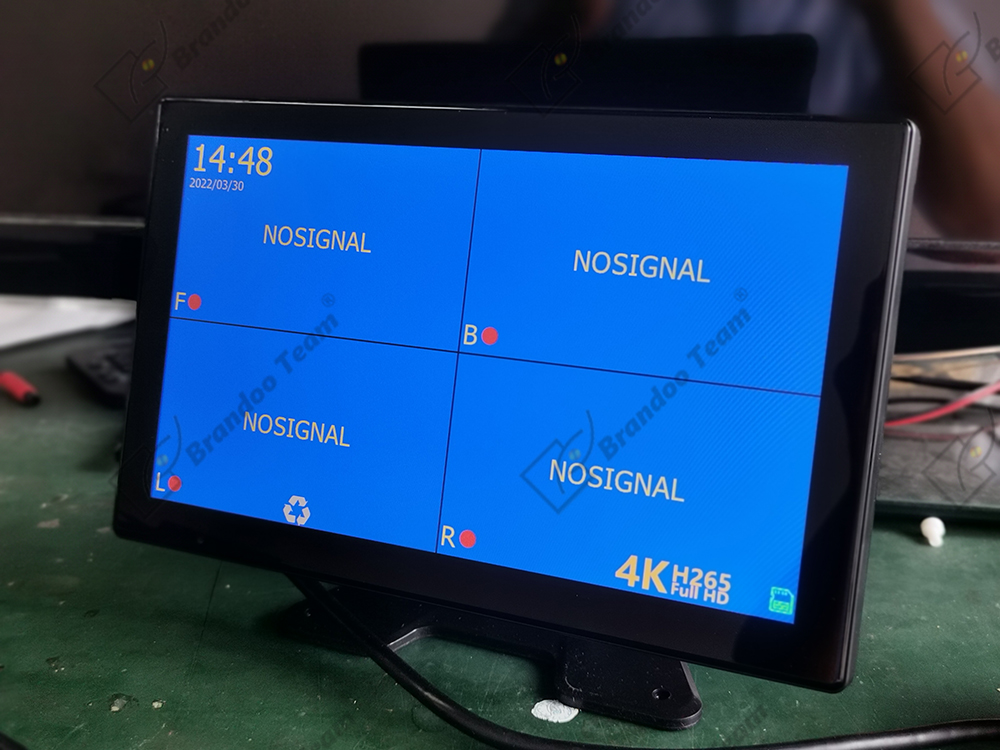

4 screen, full screen, shift to alarm channel |
|
|
Resolution |
1080X720P |
|
|
Frame rate |
PAL:100 f/s，CCIR625line NTSC:120 f/s，CCIR525line 720P：800Kbps - 4Mbps,8 level video quality optional |
|
|
Rec. Mode |
Auto / ACC |
|
|
Alarm Input |
3 inputs |
|
|
Memory |
Media |
1pcs 512GB Micro SD card |
|
Upgrade |
Micro SD upgrade |
|
|
File format |
TS |
|
|
File system |
exFAT32 |
|
|
Playback |
Search |
Time index |
|
Playback |
1 channel only |
|
|
Power |
Power management |
Adaptive wide-width power input, with overload, under-voltage, short-circuit, reverse connection and other protection functions, support delayed shutdown function. |
|
Input |
DC:+10V - +36V |
|
|
Output |
+12V@1.5A |
|
|
Consumption |
Normal＜14W， Standby＜0.5W |
|
|
Working Condition |
Temperature |
-20℃ - +70℃ |
|
Humidity |
20% - 80% |
|
|
DVR info |
Dimension |
250mm(L)*40mm(W)*155m(H）without bracket |
|
Weight |
1.3KG |
|
