5 Channel

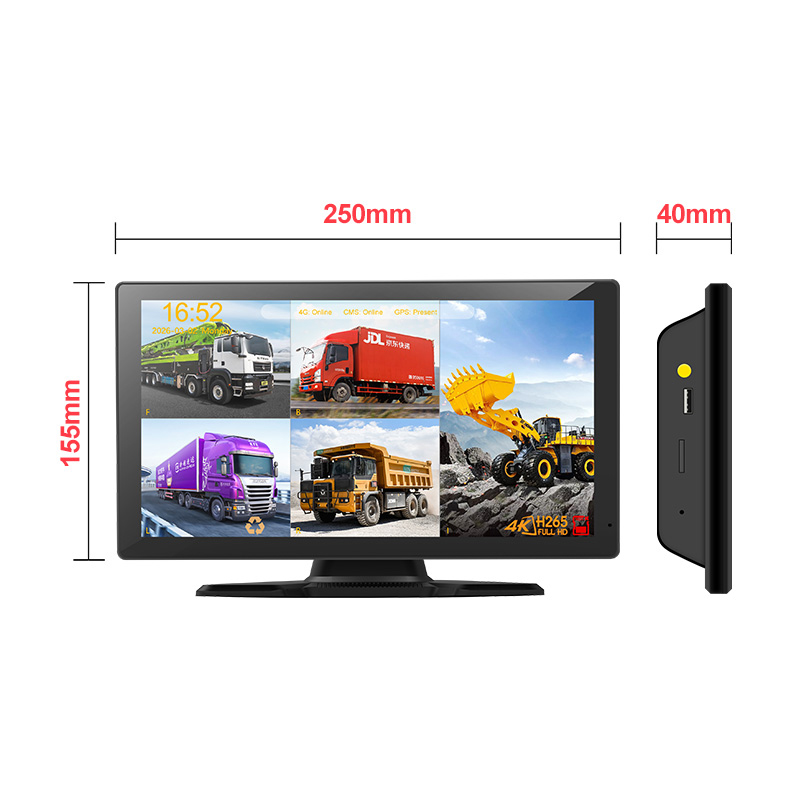

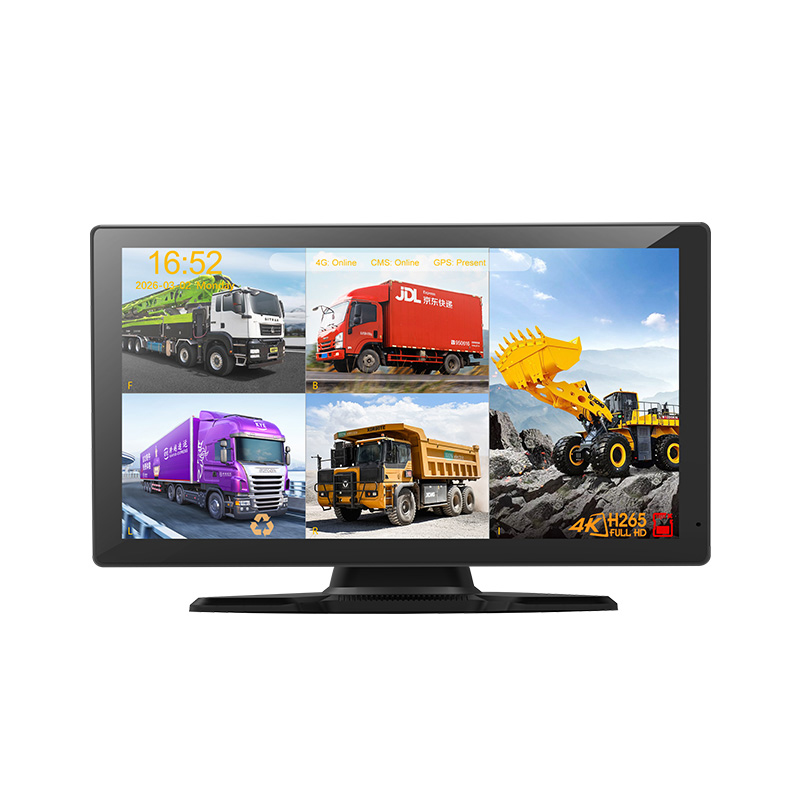

10.1INCH 5CH Car Monitor DVR BD-Q906
this is a 10.1 inch monitor DVR which support max 5 cameras inputs, all channels 720P HD recording, support Max. 256GB SD card. 4G and GPS function optional. Widely used for big vehicle, bus, industrial trucks.
- Details
this is a 10.1 inch monitor DVR which support max 5 cameras inputs, all channels 720P HD recording, support Max. 256GB SD card. 4G and GPS function optional. Widely used for big vehicle, bus, industrial trucks.
1. 5CH 720P Recording
2. 5pcs 1080P AHD camera
3. Max. 512GB micro SD card
4. 12V-24V power input
5. 10.1inch IPS touch screen
6. 4G/GPS function optional
Specifications
| Item | Data |
| OS | Linux |
| Screen type | 10.1 inch IPS touch screen |
| Recording Resolution | 720P |
| Input signal | 5 channel AHD cameras inputs |
| Memory | Max. 256GB micro SD card |
| I/O sensor | 3 channel inputs |
| Output voltage | 12V 1.5A |
| Working Voltage | 12V-24V |
| Power consumption | Recording <20W,Standby<7W |
| Working Temp. | -20℃ ~ 70℃ |
| Working Humid. | 20%-80% |
