4 Channel SD MDVR support ADAS DMS BD-324FH

This is a SD card type 4 channel MDVR support ADAS DMS, it support Max. 256GB SD card for video recording. It support AHD and analog camera both.

Features:

> 1pcs Max. 256GB SD MEMORY

> ADAS+DMS optional

> 4CH 1080P AHD or 720P AHD video input

> Recording resolution 720P (1080X720)

> H.264 Compression

> Aviation connector

> 25f/s each channel

> 4G/GPS function available

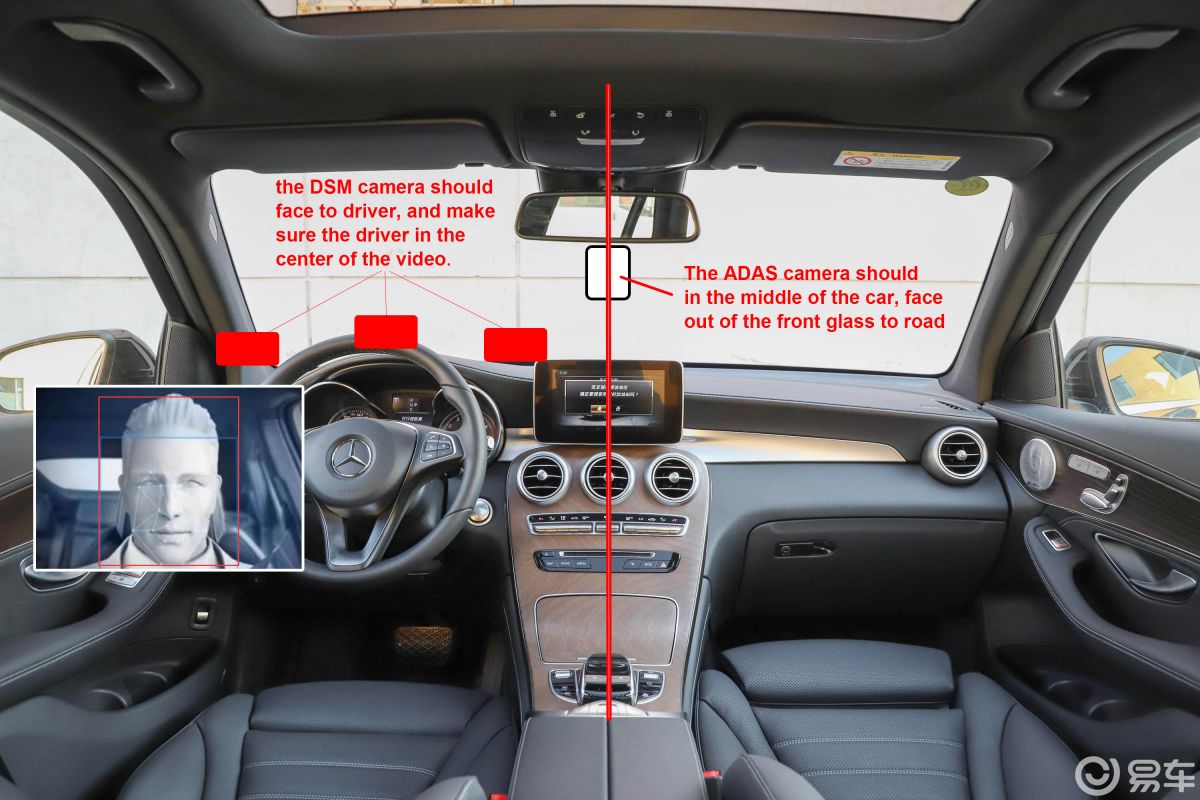

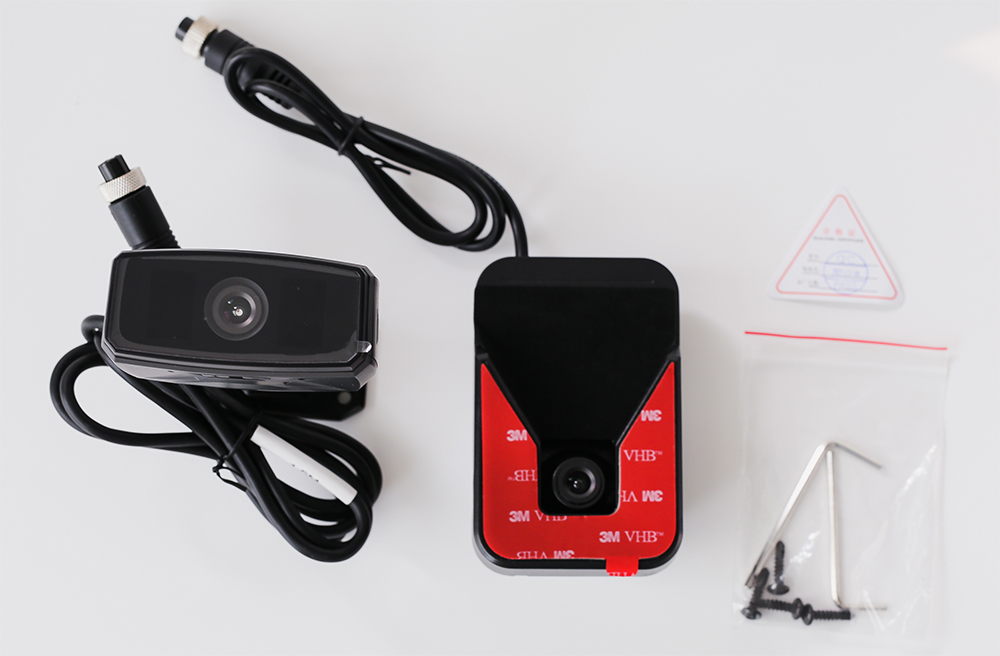

Support ADAS+DMS cameras

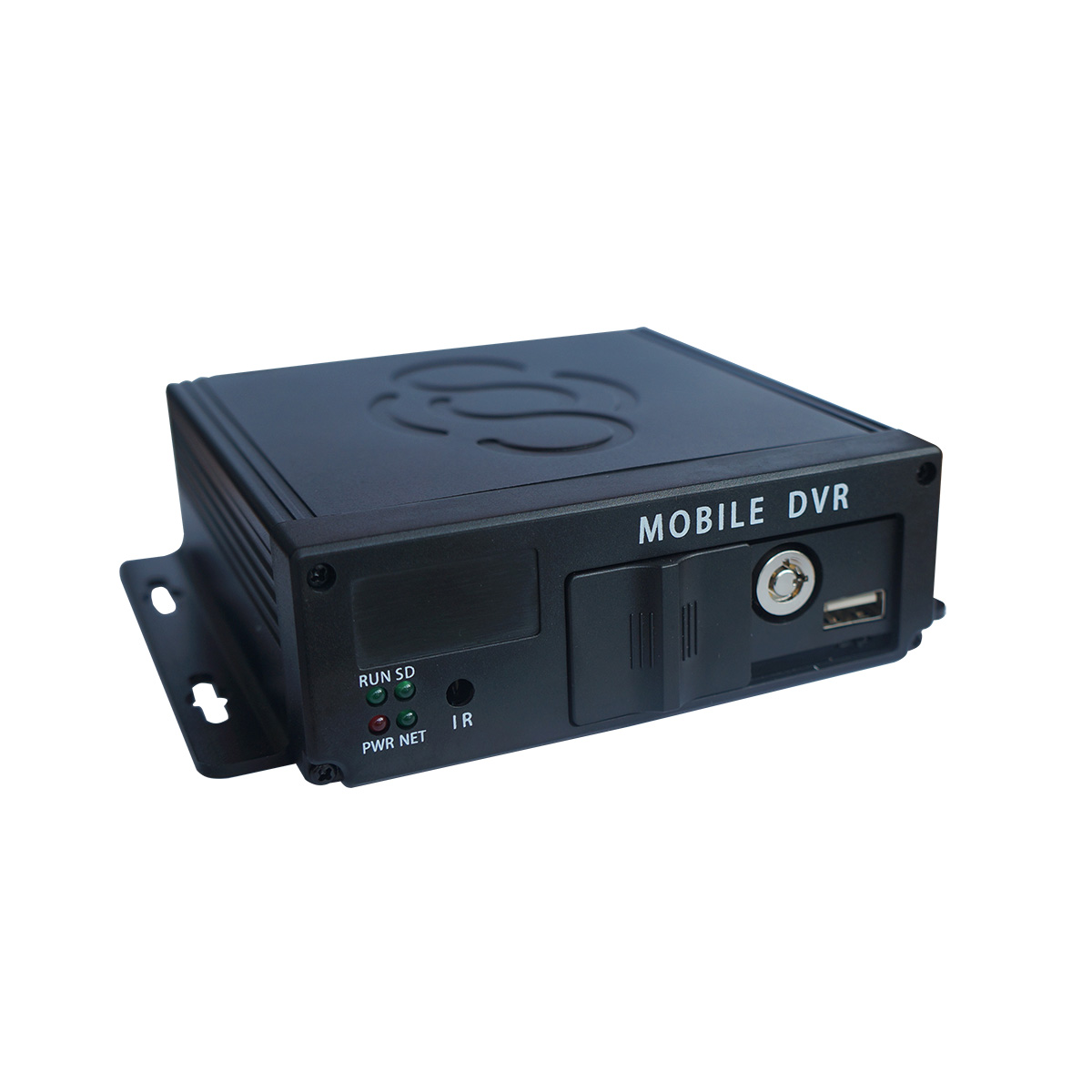

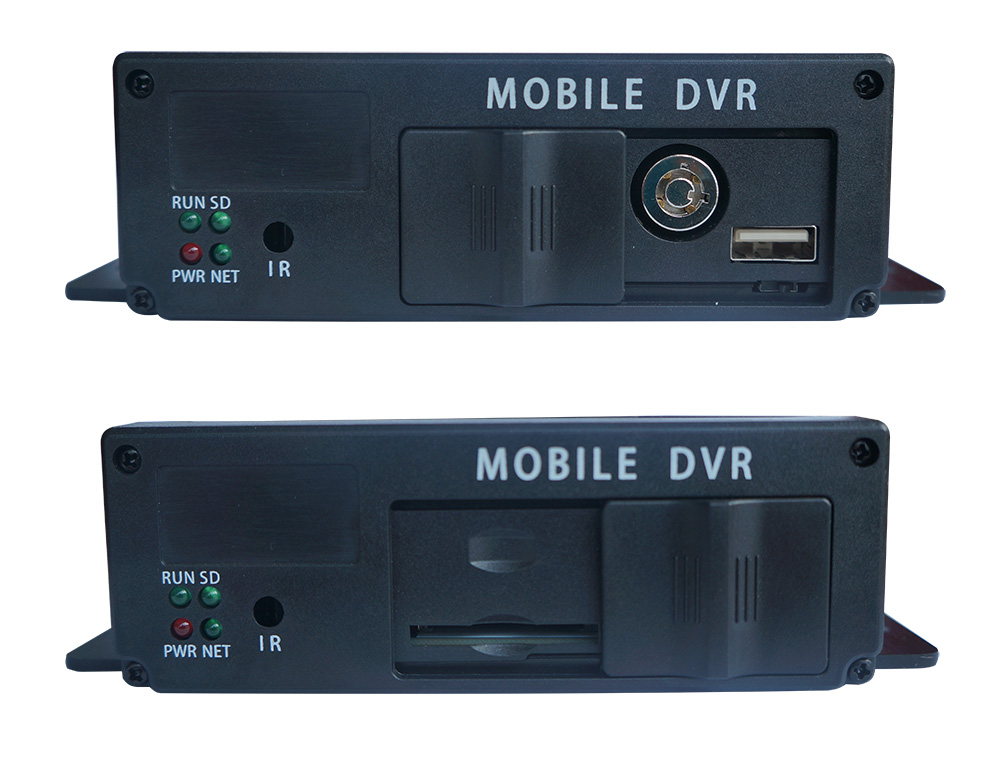

Front panel of DVR

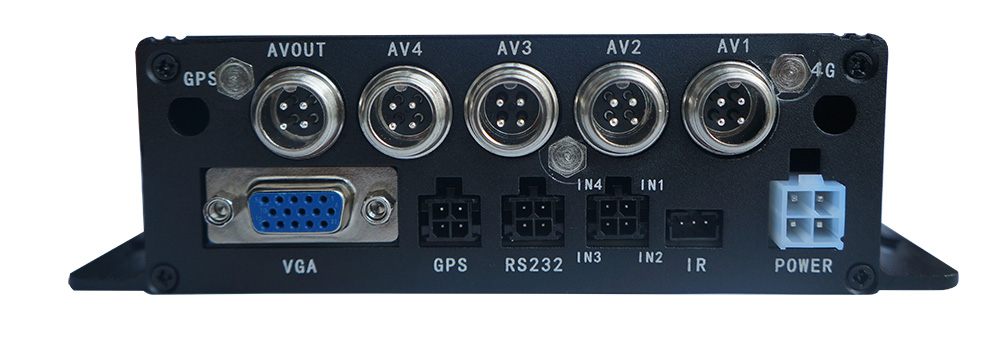

Rear panel

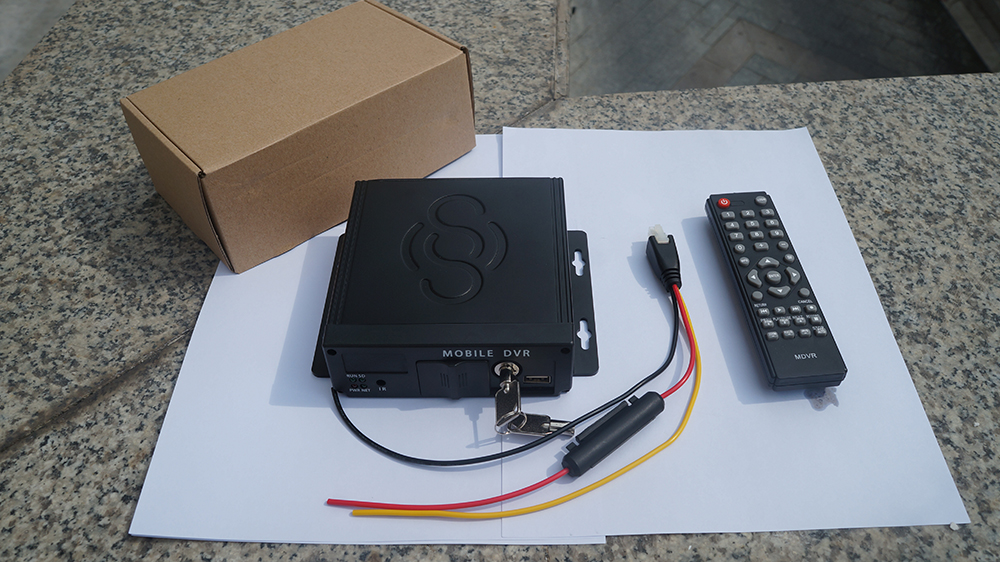

Standard version Accessories:

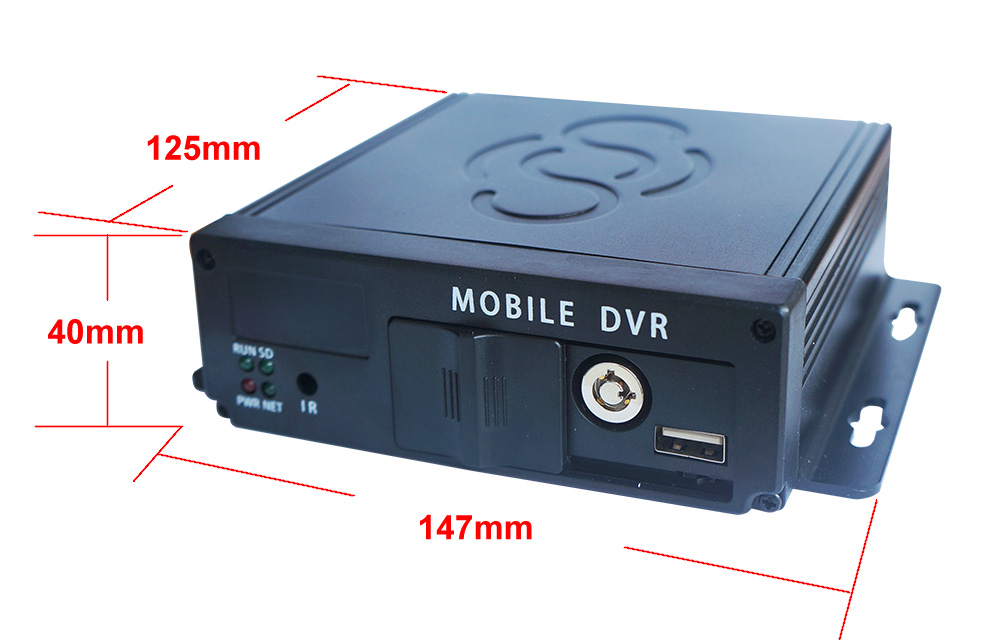

DVR dimension

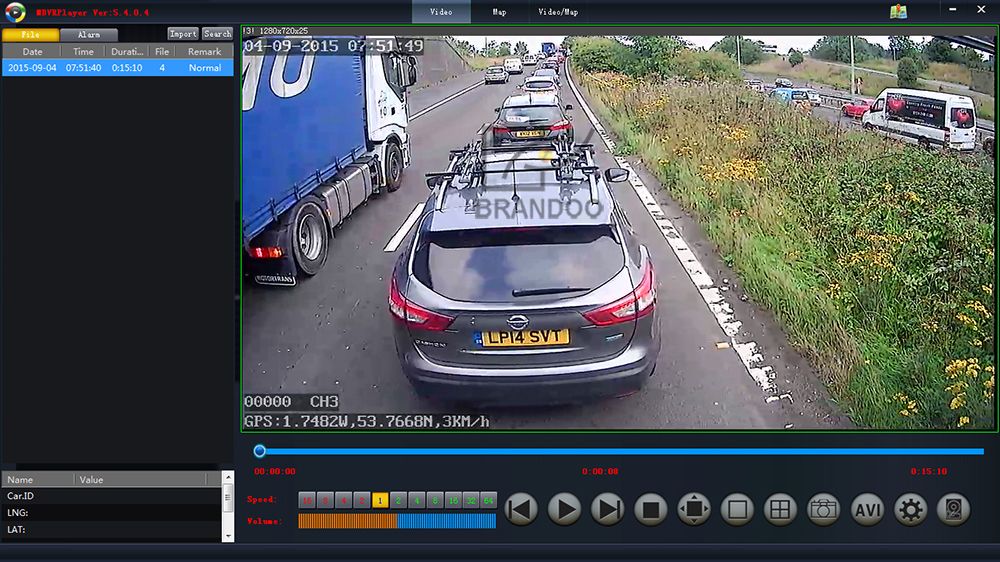

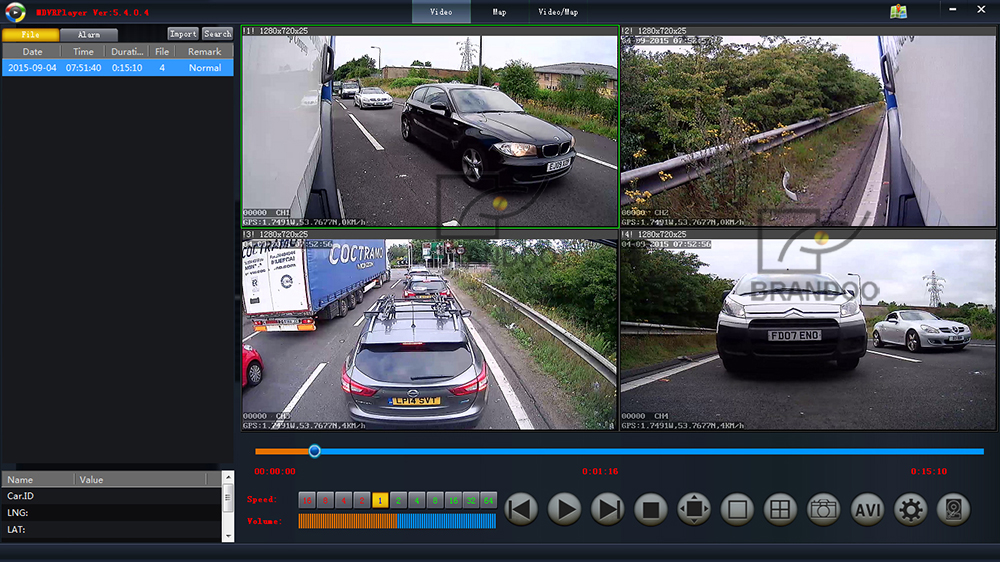

Professional player for free

Full screen of each channel

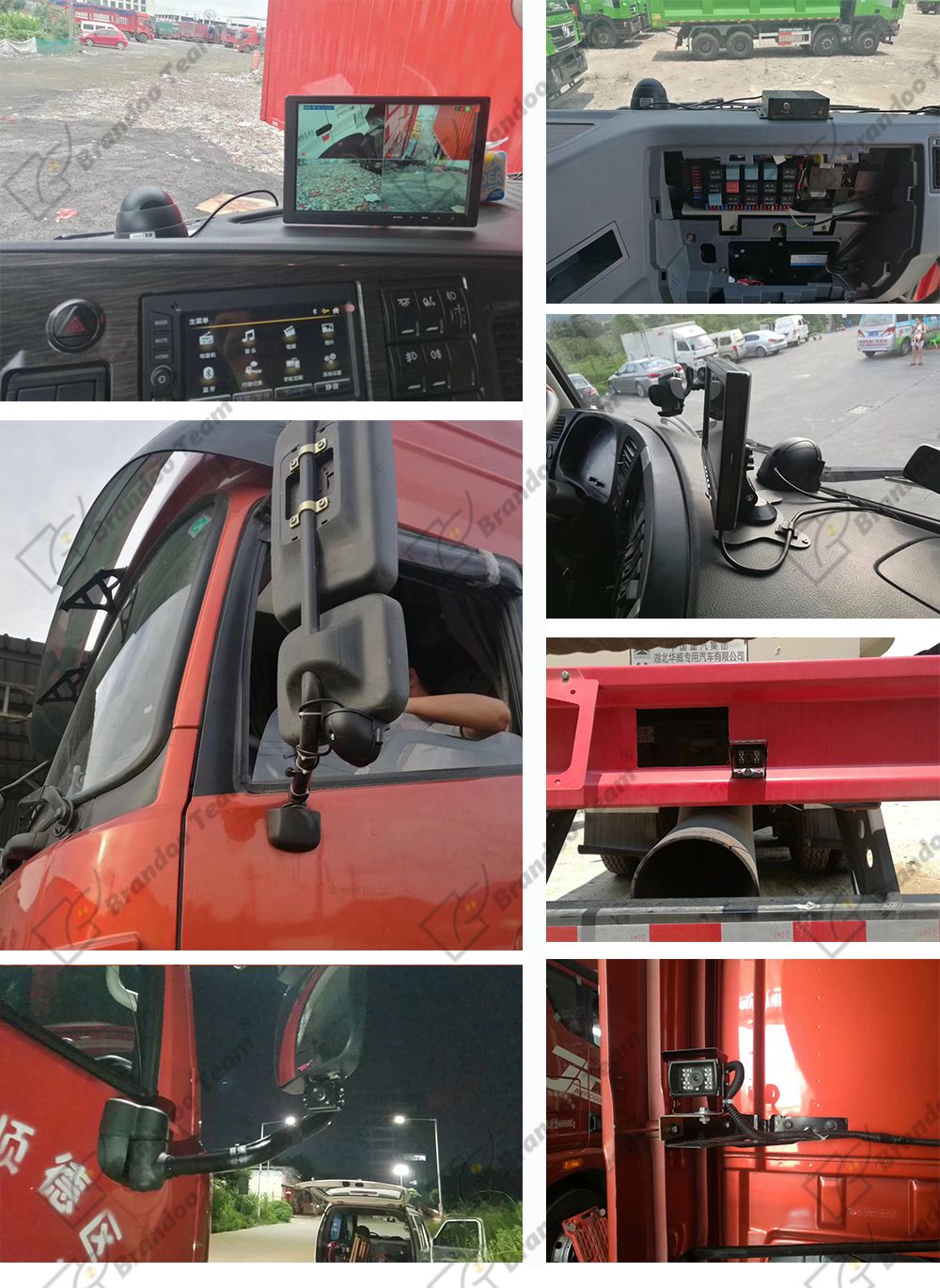

Successful solutions for big vehicles

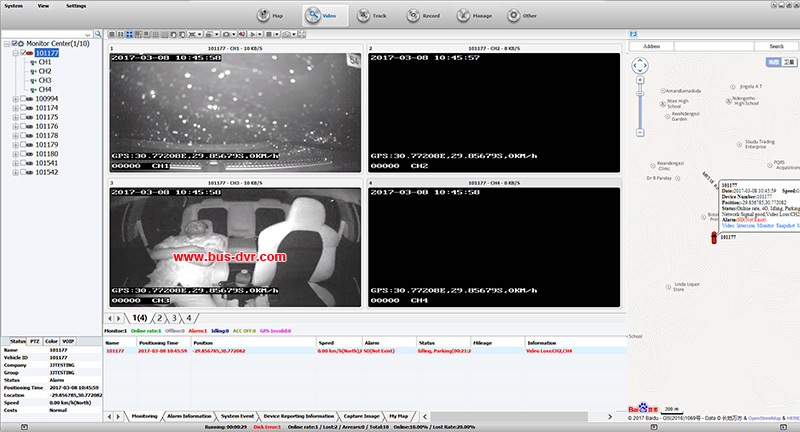

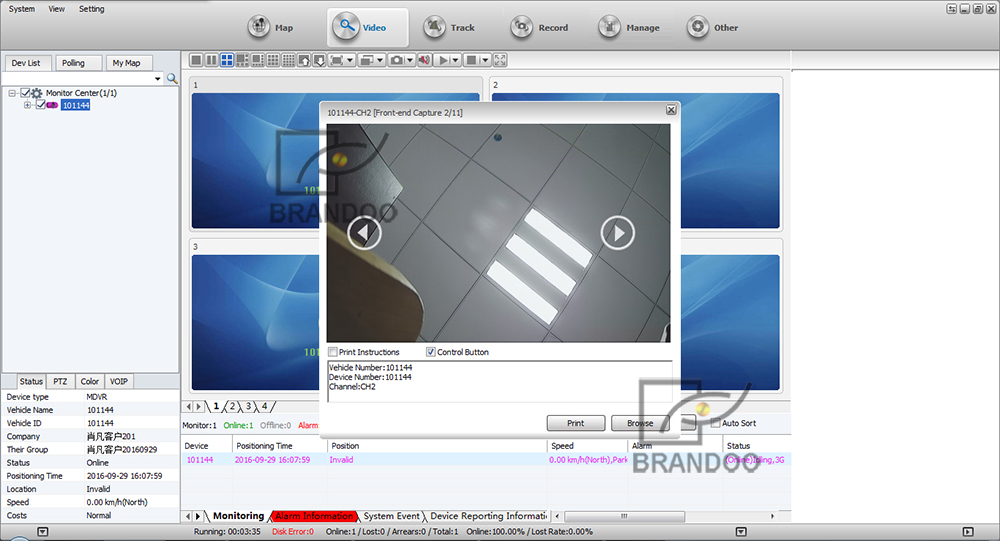

4G and GPS for remote view and tracking, CMS software free for use

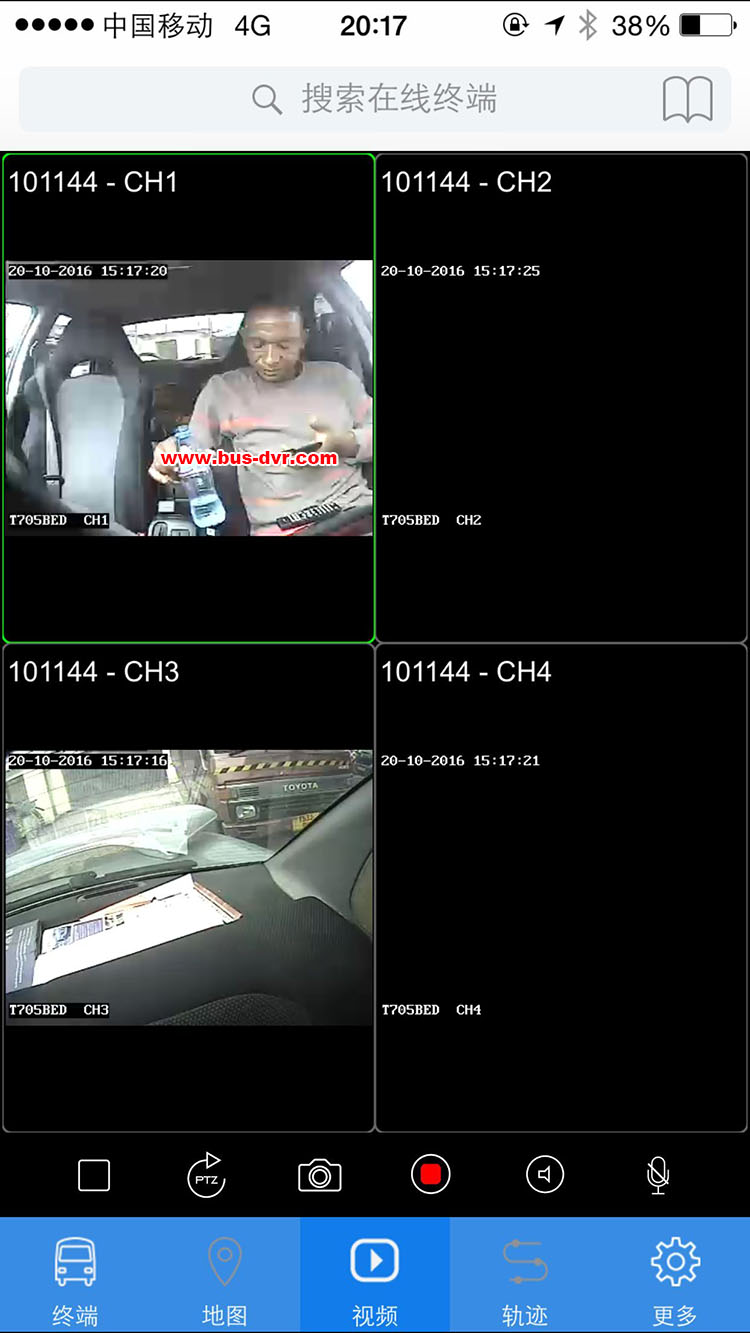

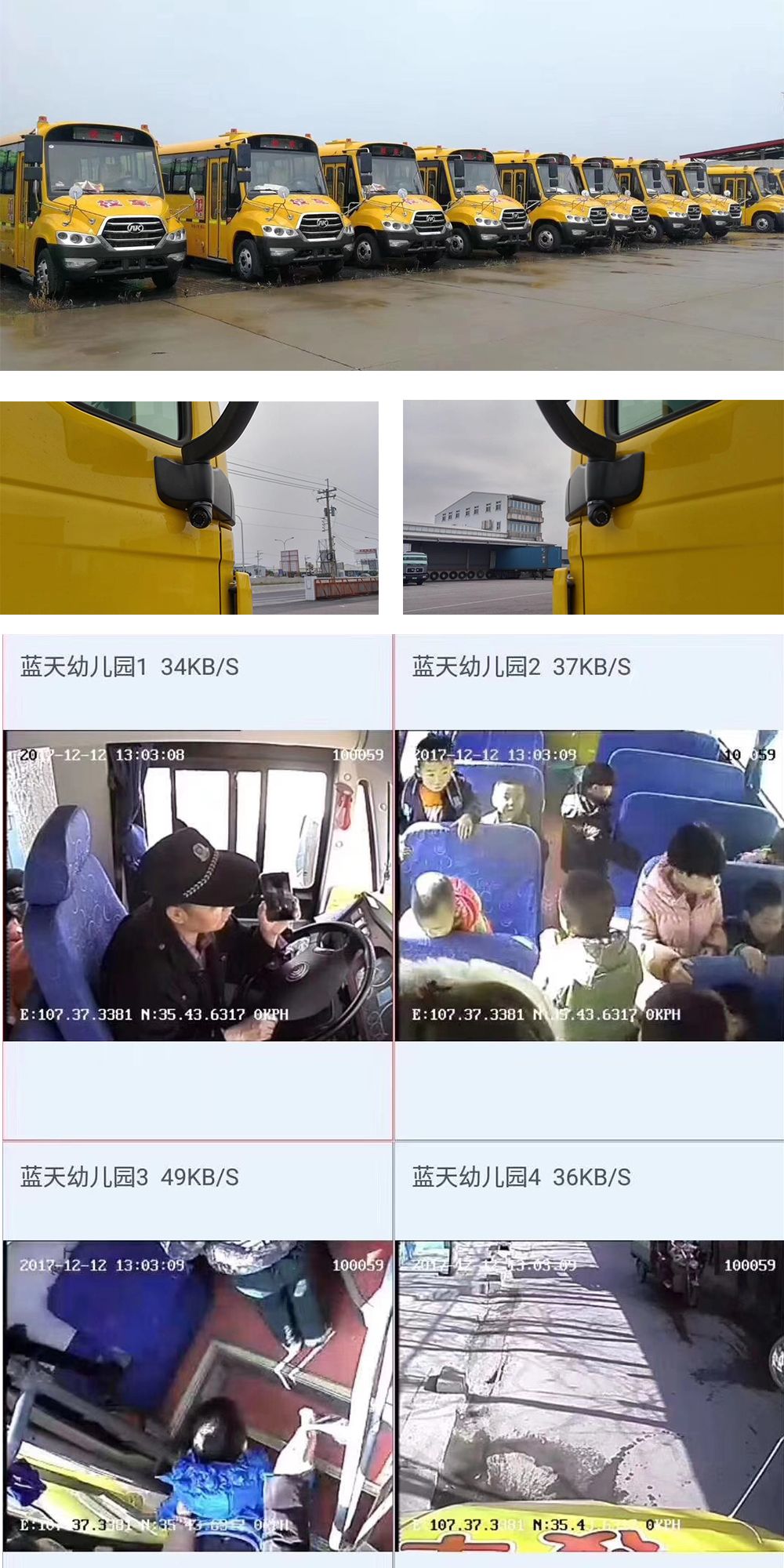

Remote view on IOS and Android Mobile Phone

Panic button for emergency alarm (need to by customized)

Specifications:

Items	Parameters	Specifications
System	Language	Chinese/English/Russian (OEM)
	Operation Menu	Graphical User interface（OSD menu）
	Password	Users Password/ Administrator Password
Video	Video input	4-CH video input 1.0Vp-p，75Ω
	Video output	1-CH video COMPOSITE output　1.0Vp-p，75Ω
	Video Display	1 channel or synchronous 4 channels
	Video Singal	PAL、NTSC
	Video Compression	H.264 Main profile， 75fps D1/s
Audio	Audio input	4-ch Audio input
	Audio output	1-ch Audio output
	Recording mode	Audio & Video sync Recording
Image processing & storage	Resolution	1080p/720p
	Video stream Standard	ISO14496-10
	Video bit rate	CIF: 1536Kbps ~ 128Kbps，8 levels optional.　Highest:1 level HD1: 2048Kbps ~ 380Kbps，8 levels optional.　Highest:1 level D1: 2048Kbps ~ 400Kbps，8 levels optional.　Highest:1 level
	Audio Bit rate	8KB/s
	Frame	25f/s each channel.
Alarm	Alarm input	4 channel
Communication Interface	RS232 Interface	Customized
Software	Analysis of PC playback	Playback Recording on PC，and analyses the vehicle recording info.
Software Upgrade	SD cards upgrade.
