4 channel

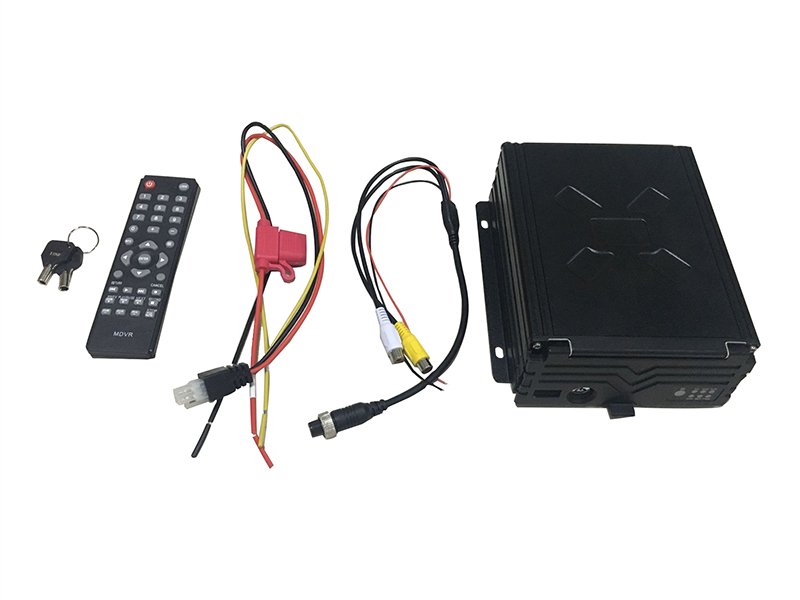

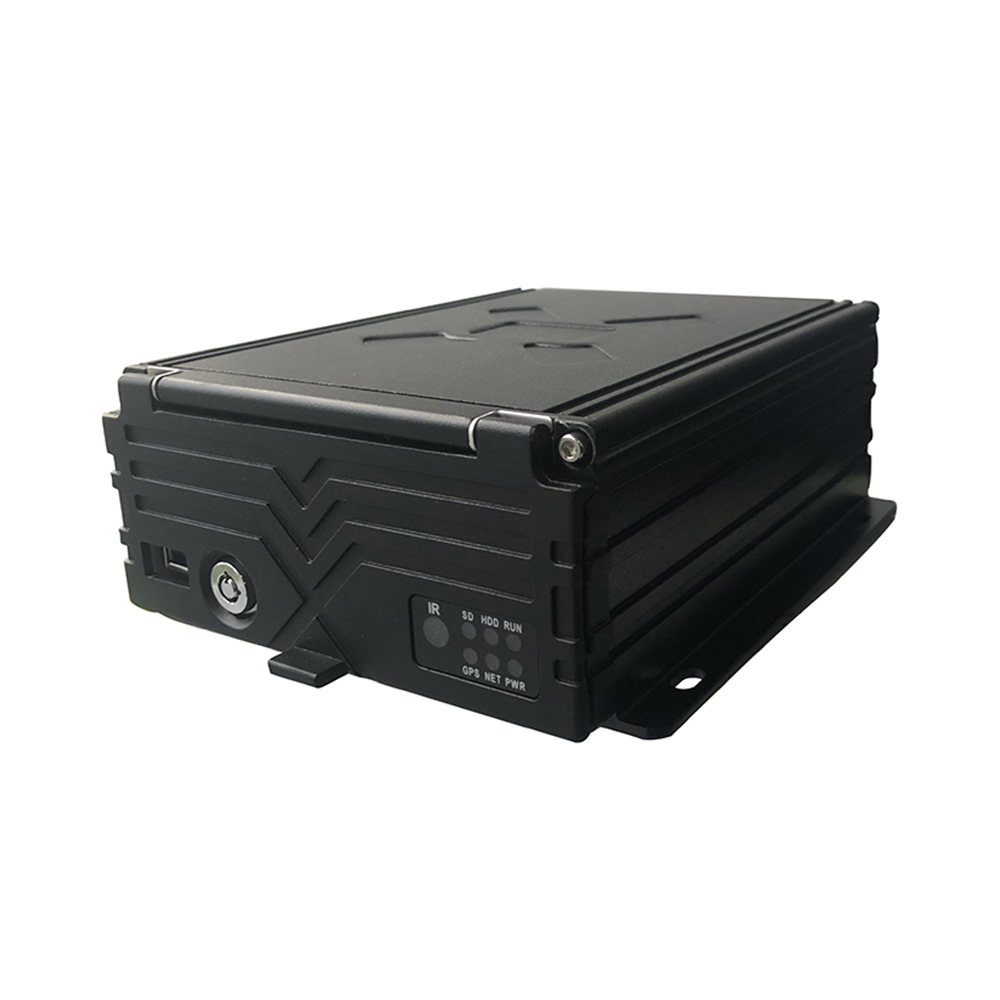

4CH 1080P HDD MDVR BD-407HD
- Details
Features:

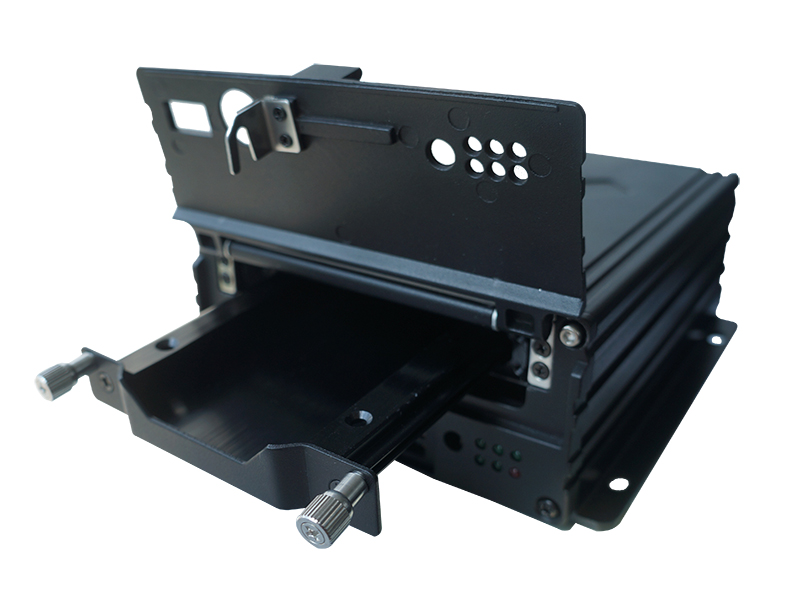

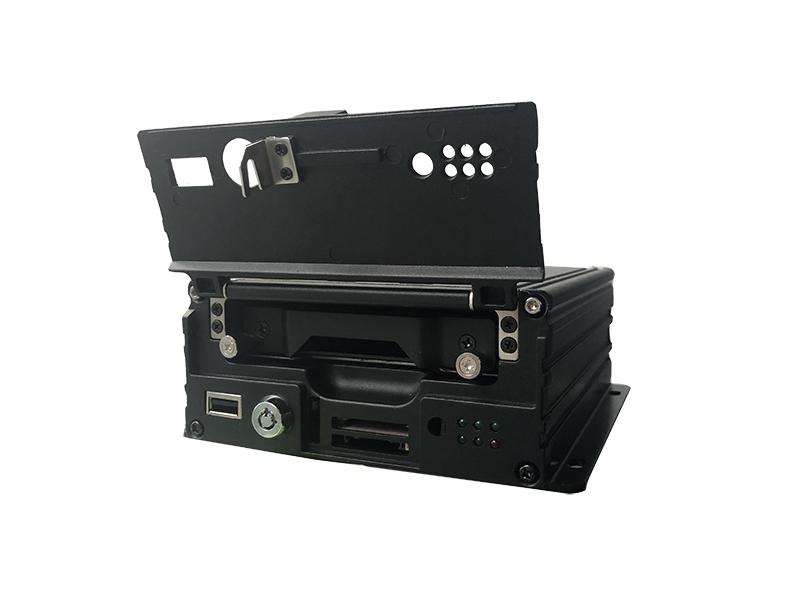

>Max support 2TB HDD memory used
>Support 128GB SD card ( only used for upgrade software )
>1080P (1920X1080) video resolution
>PAL 100F/S. NTSC 120F/S
>Works with AHD and analog cameras

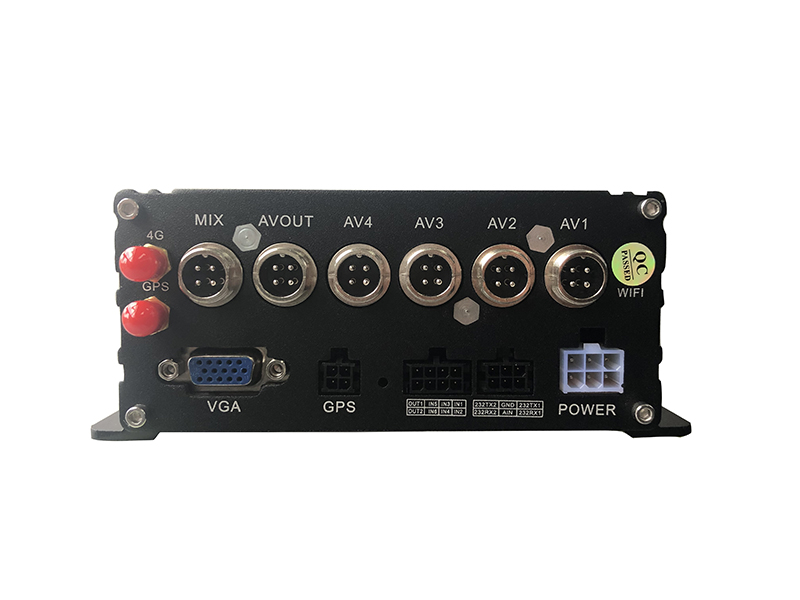

> Support VGA/CVBS video output
>6 channel alarm input and 2 outputs
>Built in capacitor,used for save the last video file when power off suddely
>Support Fuel inspection monitoring (Need pay extra)

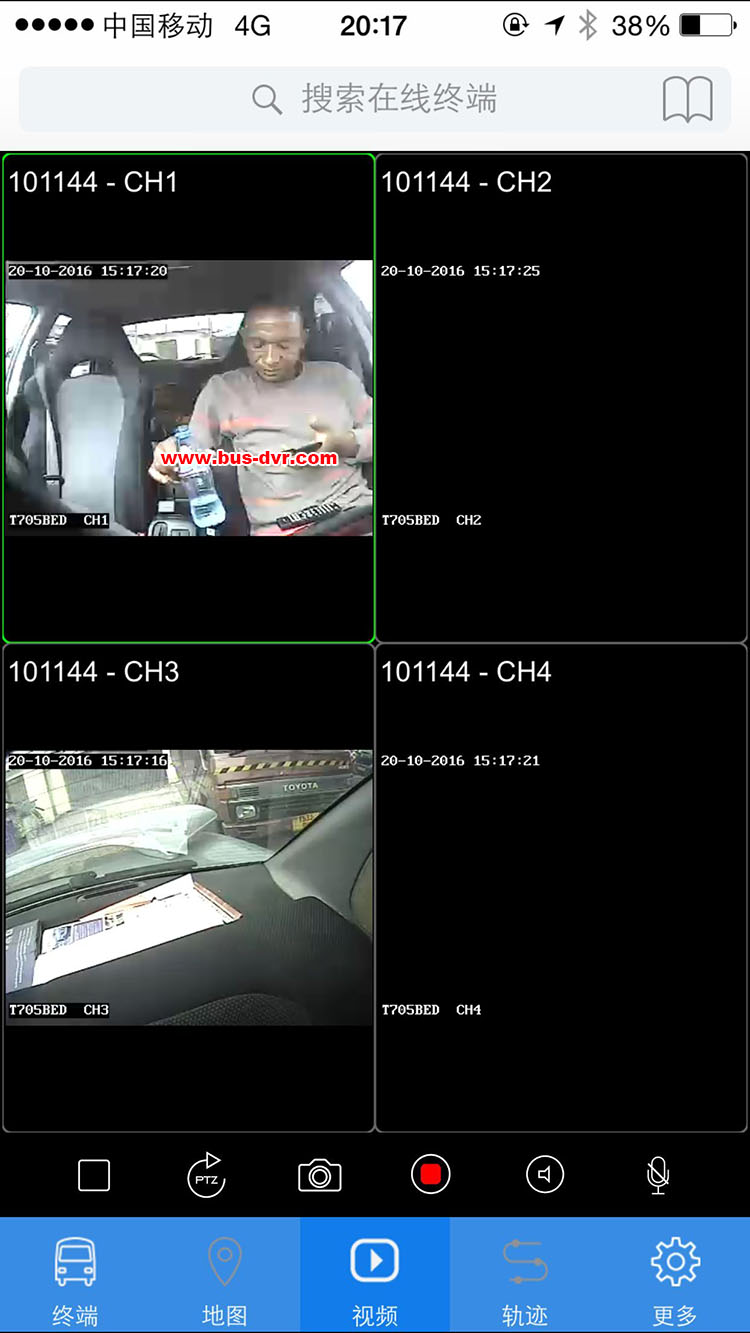

>Support intercom with CMS platform ( Need pay extra )
>Support WIFI for view online video no support download video file ( Need pay extra )
>8V-36V power input
Specifications:
Item
Data
System
Linux
TV Mode
Pal / NTSC
Compression
H.265
Resolution
1920x1080
Frame
Pal: 25f/s each channel
NTSC: 30f/s each channel
Special function

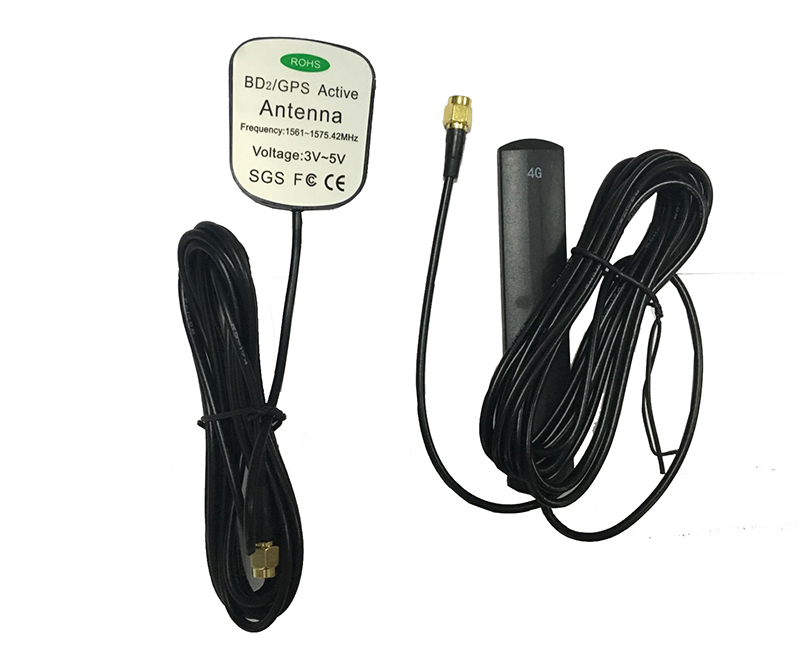

4G/GPS/WIFI

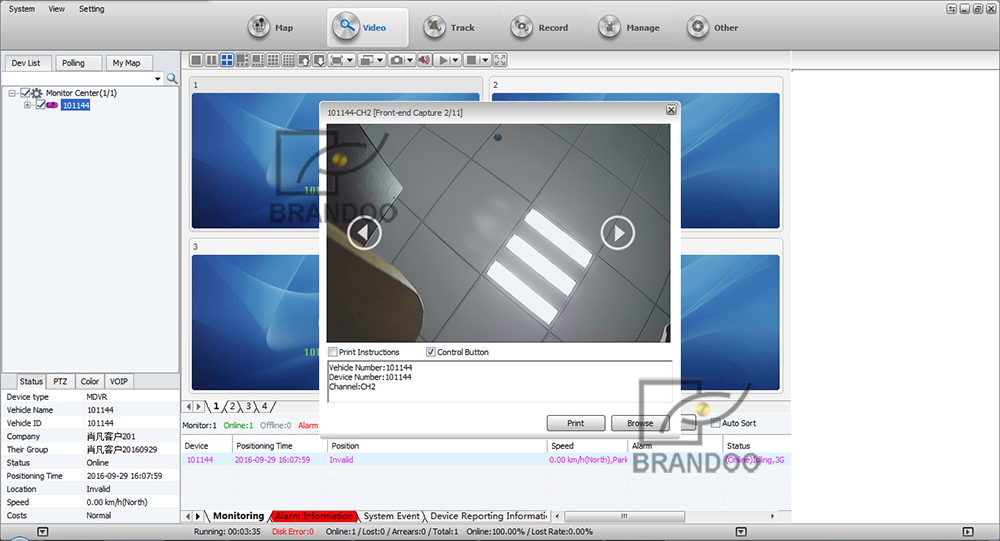

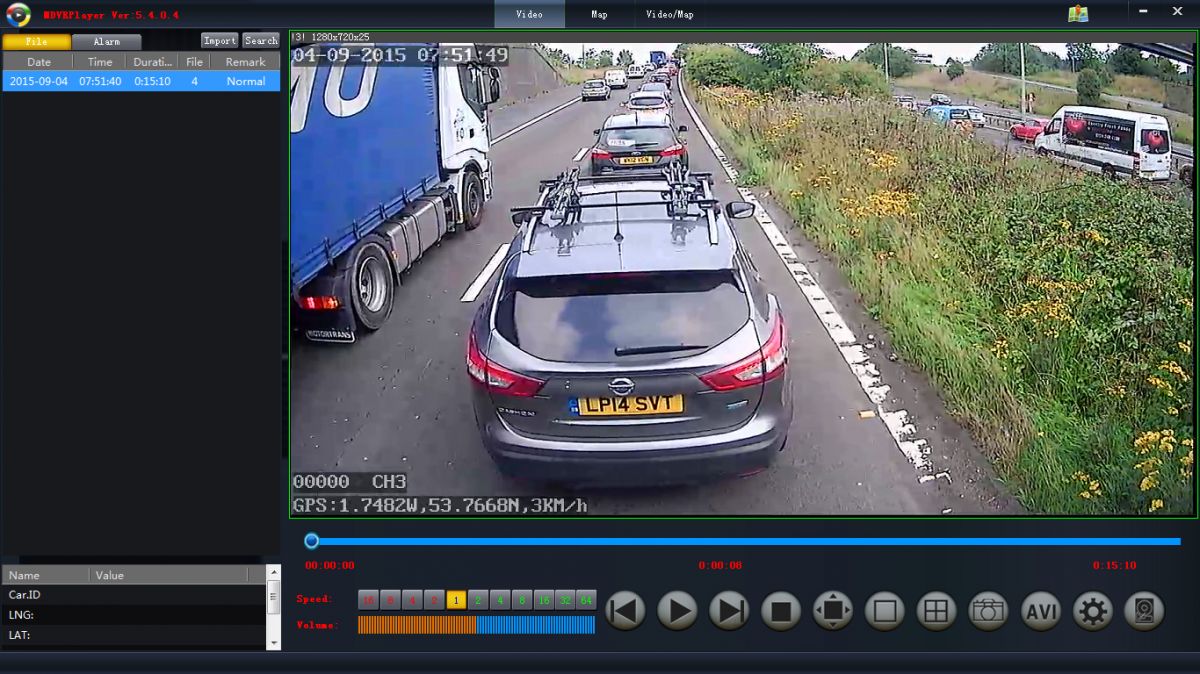

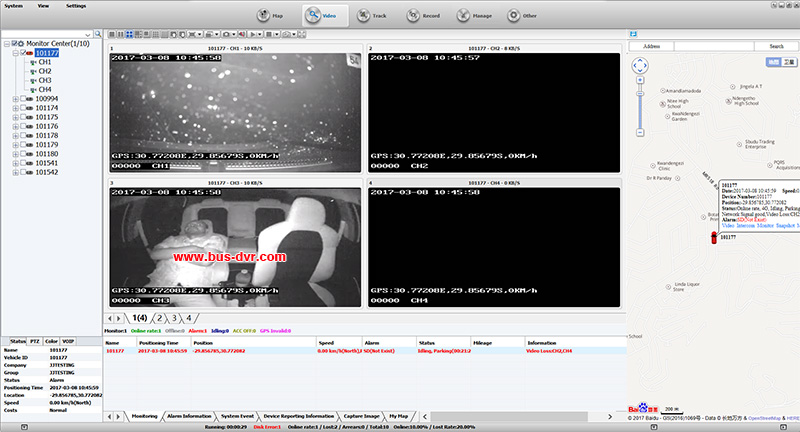

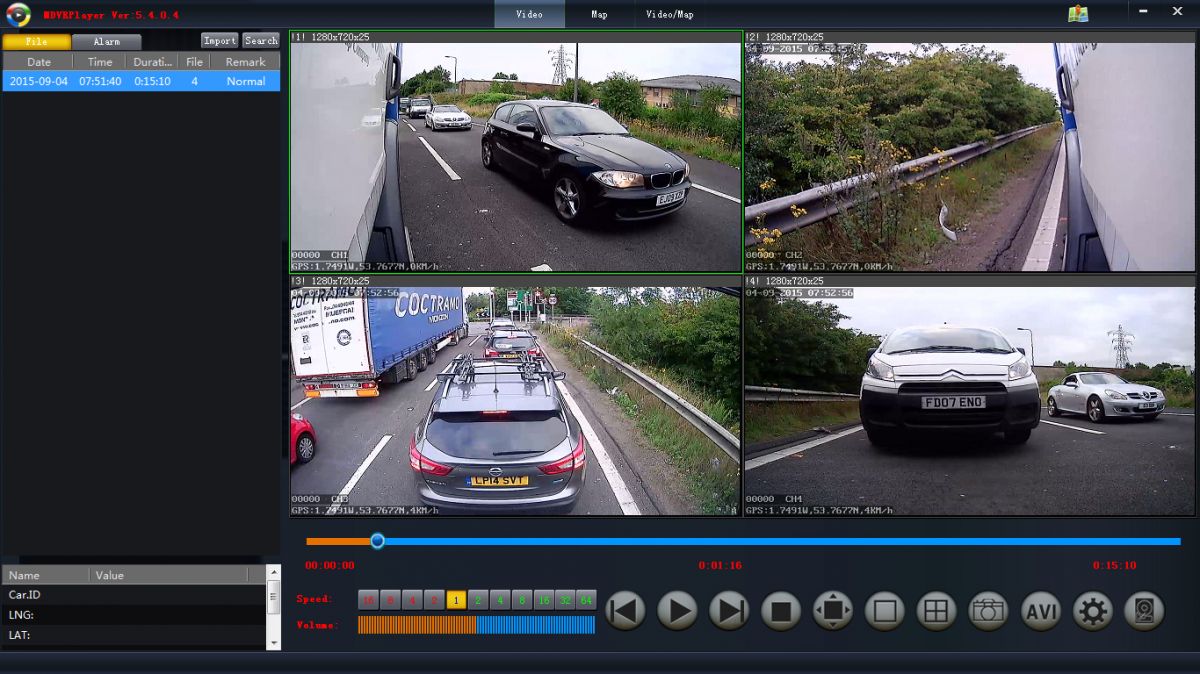

CMS Software
Offered for free
Recording mode
Power up, manual, scheduled,
Memory type
SD card. (Class 10)
Max. memory
2pcs 128GB sd card
Video input
4 channel
Audio output
1 channel
System upgrade
Support (SD card only for upgrade)
Power input
8V-36V
Power output
12V
Working temperature
-40℃ to 80℃
motion detection, alarm
