360° Panorama MDVR

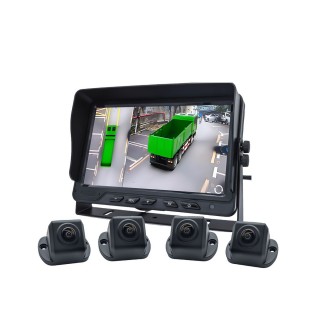

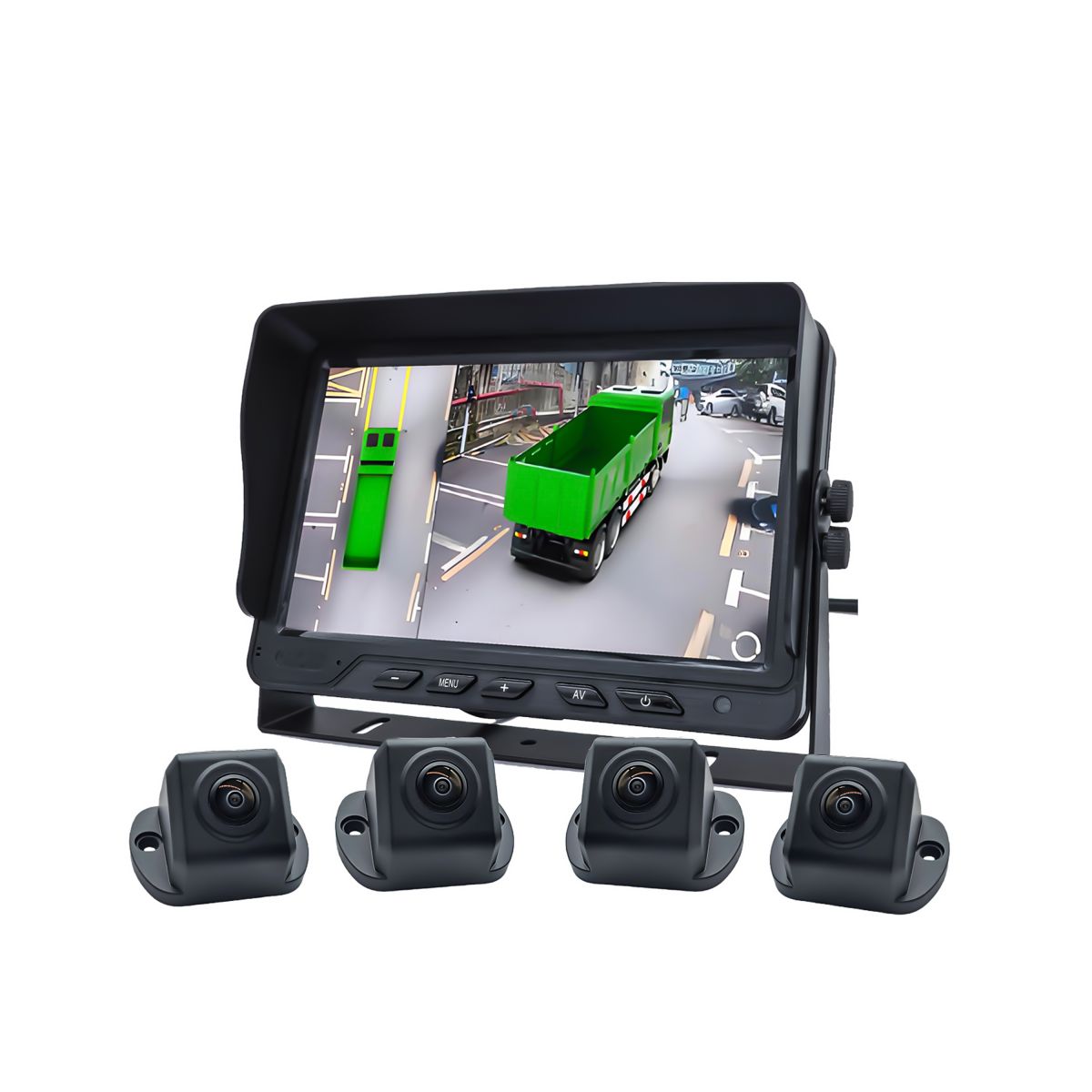

9inch 360 Panorama Monitor DVR BD-Q1201

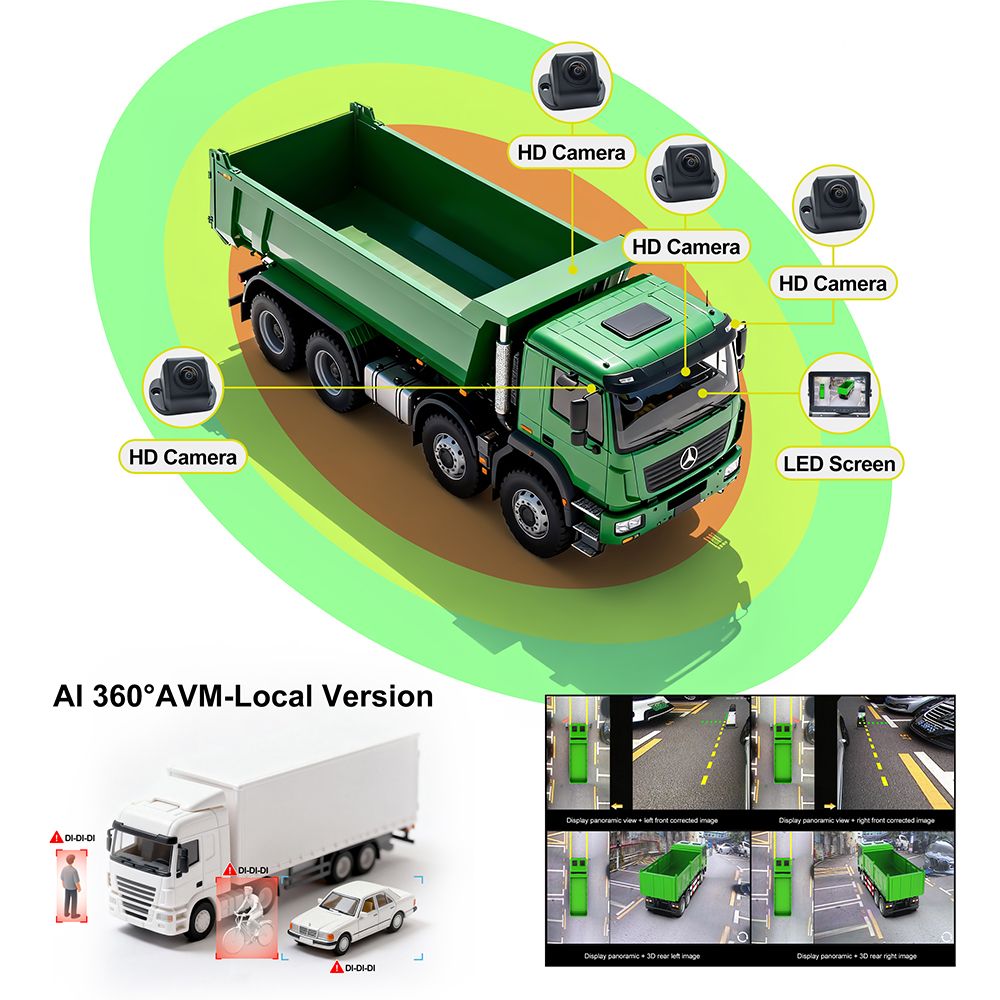

It is a 360 panorama view Monitor DVR which comes with 4 210 degree wide view cameras. It's support BSD alarm function. it's wide used for big trucks, long vehicles.
- Details
It is a 360 panorama view Monitor DVR which comes with 4 210 degree wide view cameras. It's support BSD alarm function. it's wide used for big trucks, long vehicles.
1. 4ch 1080P/720P AHD inputs
2. 360 panorama view recording
3. Max. 256GB TF card
4. 12V-36V power input
5. I/O 4 channels
6. Auto recording
| Item | Data |
| Screen brightness | 500cd |
| Screen size | 9inch IPS touch Screen |
| Screen resolution | 1024x600 |
| Video mode | Panorama / 4CH |
| Recording Resolution | 720P |
| Frame | 25f/s |
| Input signal | 4 channel AHD cameras inputs |
| Memory | Max. 256GB SD card |
| I/O sensor | 4 channel inputs |
| BSD alert | Support |
| Camera type | Waterproof IP68 |
| View angle | 210 Level /126 Ver. |
| Output voltage | 12V 1.5A |
| Working Voltage | 12V-36V |
| Power consumption | 10W-30W |
| Working Temp. | -30℃ ~ 70℃ |
| Working Humid. | 20%-80% |
