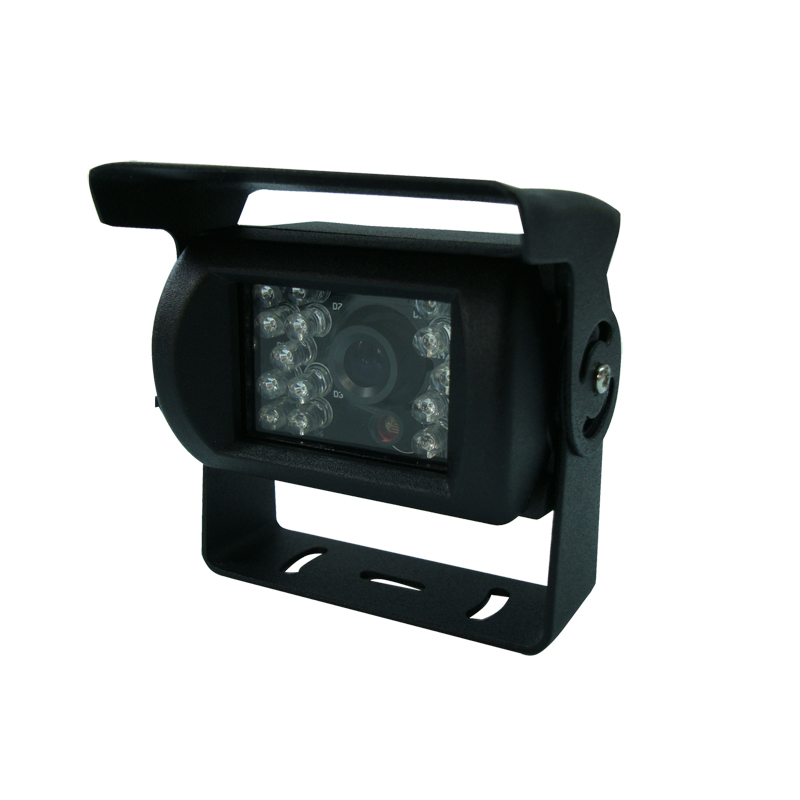

Waterproof AHD Car rear view camera Model: AHD-05
This is a waterproof type car rear view camera works with AHD 1.3M image sensor. IR leds for 10-15 meters night vision.
- Details
Features:
> Sensor: AHD 1/3"CMOS NVP2431+IMX238 AHD 960P
> Resolution: AHD 960P 1.3 megapixel> Unfading Color: Black, Metal case
> 12pcs IR leds for 10-15 meters night vision
> Dimension: 70x90mm

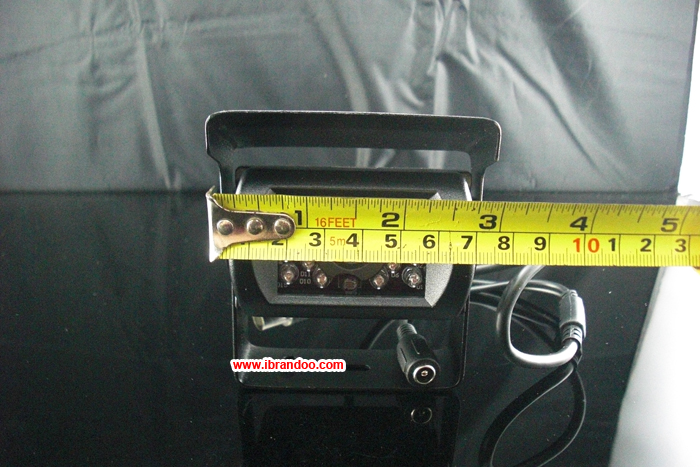

Camera width 70mm

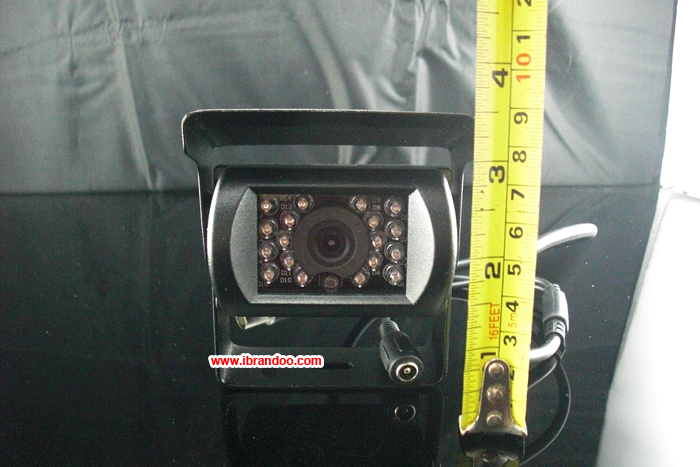

High 90mm
Specifications:
| Image Sensor | 1/3" SONY IMX238 CMOS Sensor |
| Main Processor | NVP2431H |
| Effective Pixels | 1280(H) X 960(V) 1.3MP |
| Horizontal Resolution | 1200TVL |
| Min. Illumination | 0.01 Lux / F1.2 , B/W: 0 Lux / F1.0 (With IR) |
| S/N Ratio | >46dB (AGC OFF) |
| Electronic Shutter | 1/50~1/100000s(PAL), 1/60~1/100000s(NTSC) |
| Lens | 3.6mm board lens |
| IR Led | 12pcs x F5 |
| IR Distance | 10M |
| IR-CUT | Built-in IR-CUT Module |
| SHUTTER | AUTO (1/25,1/50,FLK,1/200,1/400,1/1000,1/2000,1/5000,1/10000,1/50000, |
| X2,X4,X6,X8,X10,X15,X20,X25,X30) | |
| AGC | 0-15 |
| SENS-UP | Auto / Off |
| BRIGHTNESS | 1-100 |
| D-WDR | Auto / On / Off |
| DEFOG | Auto / Off |
| Back Light | HSBLC / BLC / OFF |
| White Balance | ATW / AWC-SET / Indoor / Outdoor / Manual / AWB |
| Day & Night | Auto/Color/B&W/EXT |
| 3D-DNR | MIDDLE/HIGH/OFF/LOW |
| 2D-DNR | MIDDLE/HIGH/OFF/LOW |
| D-EFFECT | Freeze / Mirror / Neg-image |
| Motion Detection | 4 Areas |
| Privacy | 4 Areas |
| OSD Languages | CHN1/CHN2/GER/FRA/ITA/SPA/POL/RUS/POR/NED/TUR/ENG |
| Synchronization System | Internal |
| Video Output | AHD 1.0Vp-p / 75Ohms(Lightning and static electricity protection) |
| Input Voltage | DC 12V (±10%) |
| Power Consumption | 85mA |
| Operating Temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Operating Humidity | 20 to 80 % |
| Storage Temperature | -40 °C to +60 °C (-40 °F to 140 °F) |
| Storage Humidity | < 95 % |
| Dimension | 70x90mm |
| Weight | 0.4KG |
