AHD to USB Type-C grabber 1080P USB video capture card Model A2UC

This is a grabber works with 1080p and 720p AHD video signal input, and capture to PC or Phone via USB. Max. 1080P USB output, UAC,UVC standard, free driver, compatible with windows,android,linux,mac system.
  • Details

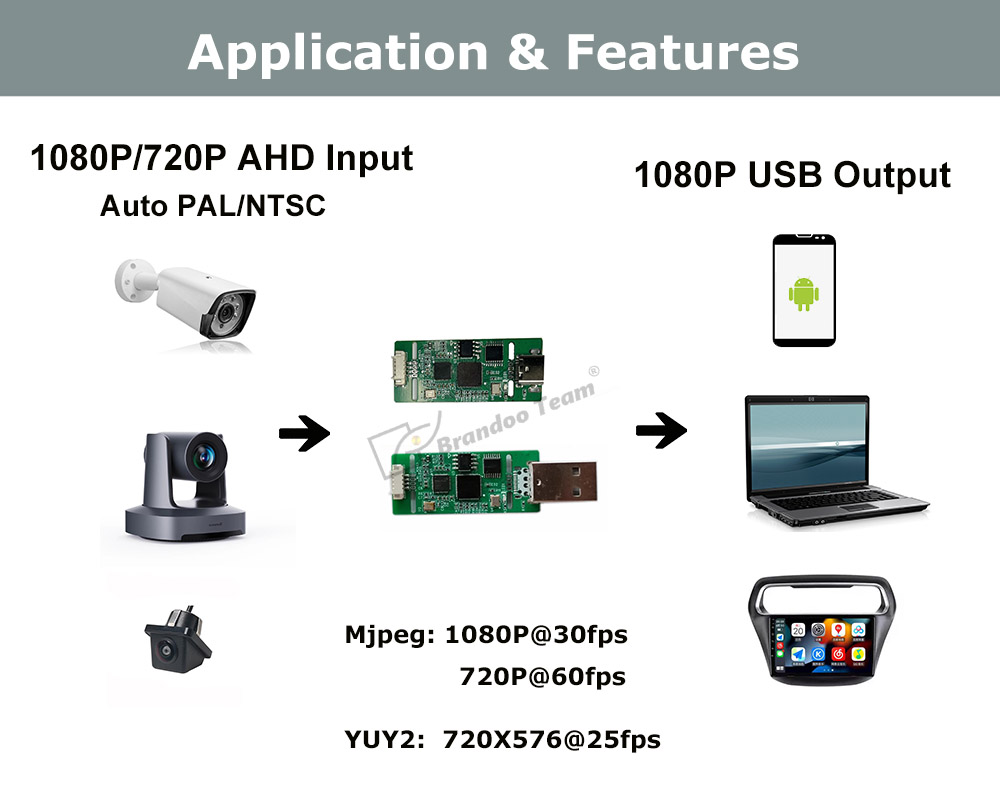

Features:

>1080P/720P AHD signal input

>USB or TYPE-C output

> PAL/NTSC auto detect

> Output 5V power to camera

> MJPEG and YUY2 Format

> 1080P@30F/S or720P@60F/S in MJPEG

> 720X576@25F/S in YUY2format.

>Standard UVC/UAC

> USB or TYPE-C optional


Specifications:

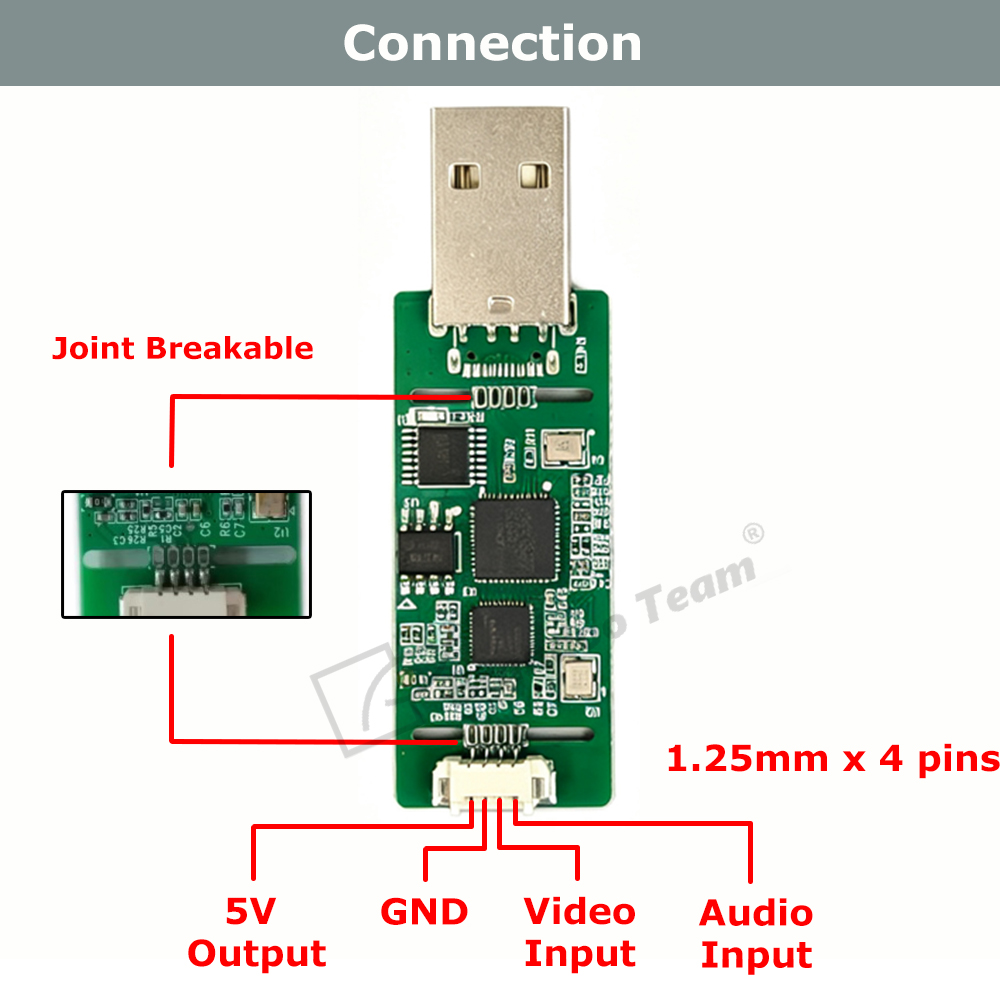

 Input port

1.25mm pin base

Input signal

720P and 1080P AHD signal(compatible with PAL and NTSC mode)

Output port

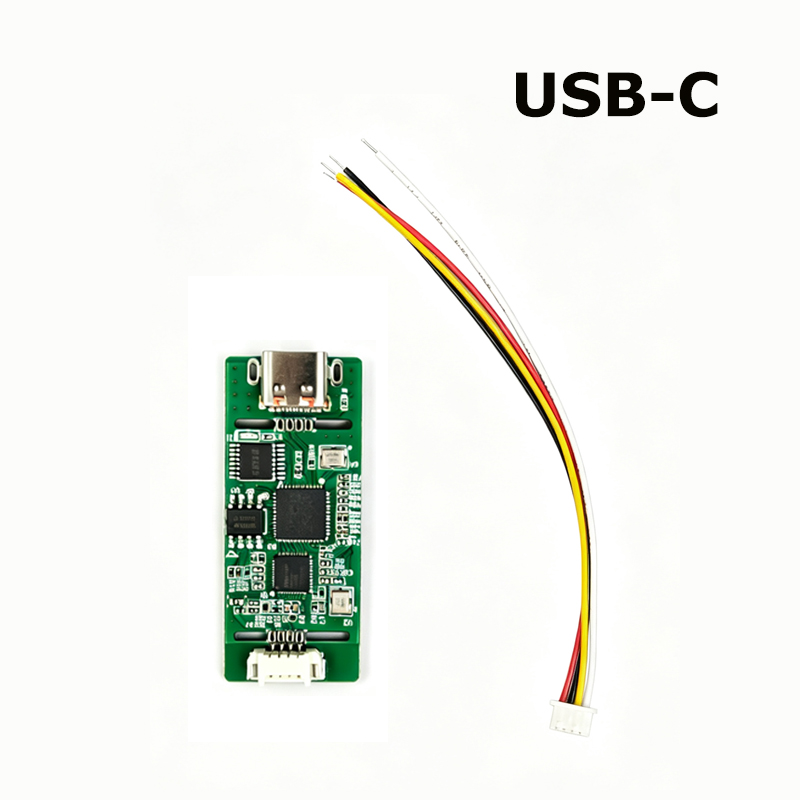

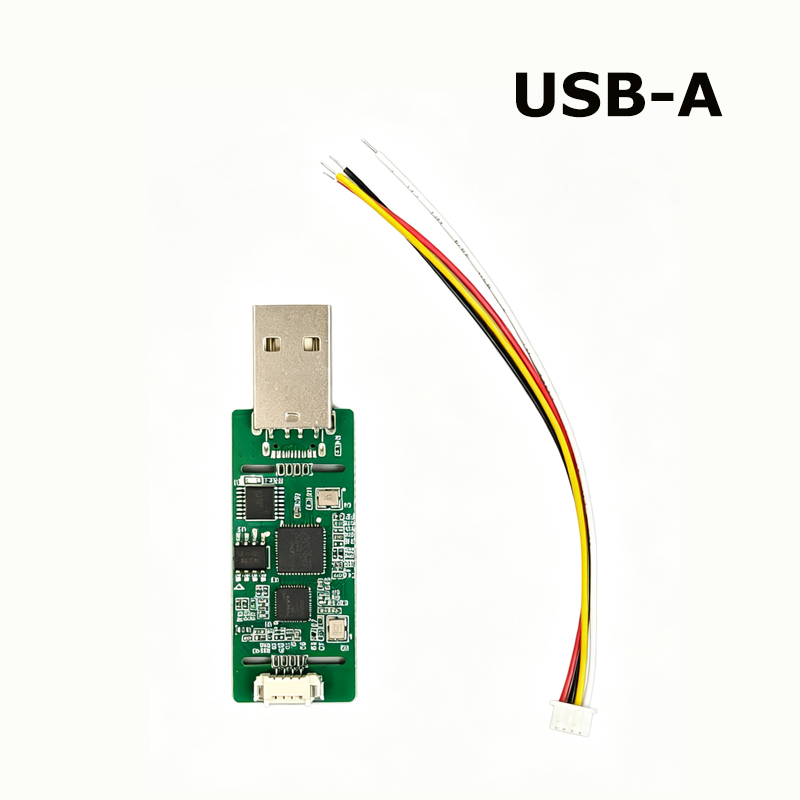

USB or USB-C (optional)

Output format

MJPEG,YUY2

Video output resolution and frame rate

MJPEG Format: 1920*1080（30fps）、1280*720（60 fps）、800*600、720*576、720*480、640*480、480*320、320*240

YUY2 Format:1920*1080(5 fps)1280*720（10 fps）720*576（25 fps）、720*480（30 fps）、640*480、480*320、320*240

Audio output

48KHZ Stero

A/V protocal

Standard UVC/UAC

Driver

Driver free, plug and play

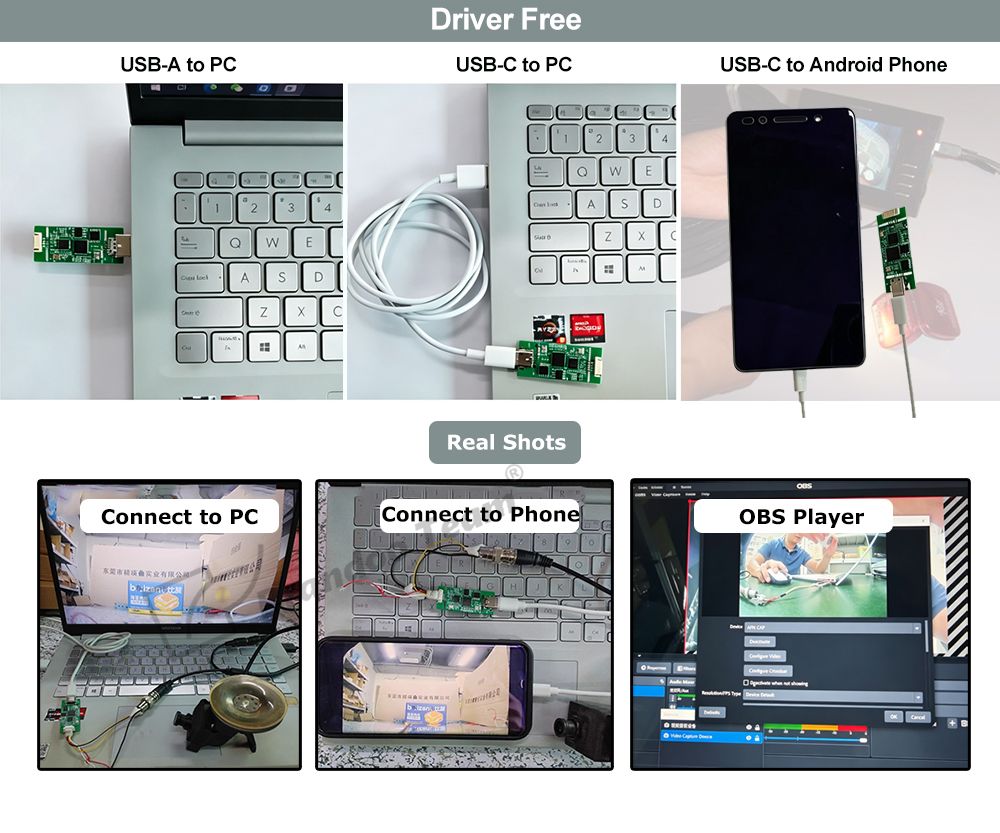

Operation system

Windows/Linux/Android/MAC

Regular capture software recommended

OBS/Potplayer（Windows）

Consumption

＜3Wat

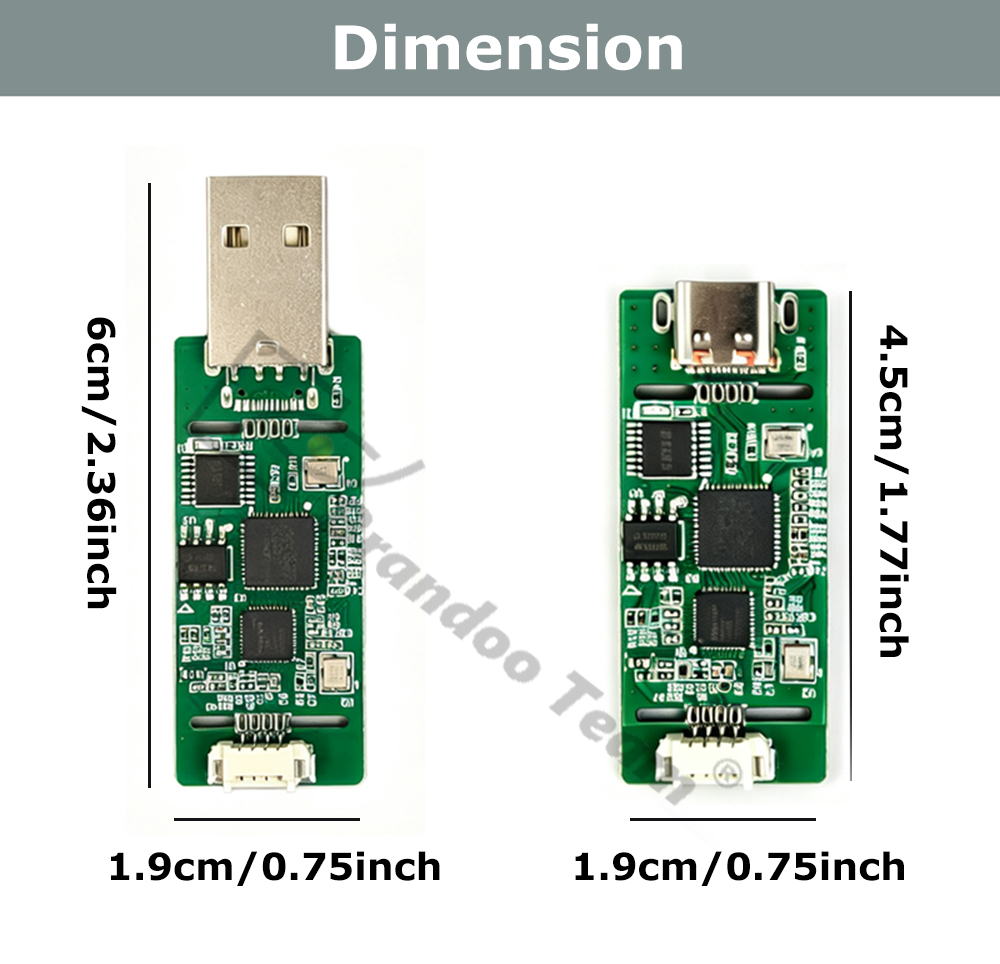

Size

1.9*4.5cm

Weight

10g
