OEM Graber and Convertor

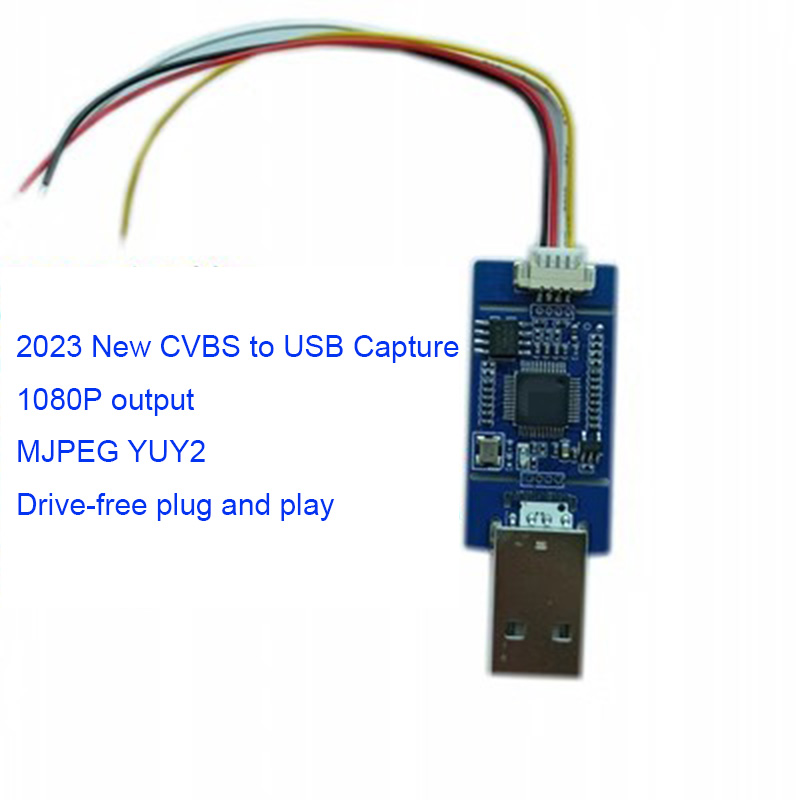

AV CVBS to USB Type-C HD 1080P video Capture board OEM Model C2U
It is a CVBS to USB video capture board which support max. 1080P@30F/S or 720P@60F/S video. USB or USB-C output port optional. 5V power to camera. We are original developer and OEM orders are welcomed.
- Details
Features:
> CVBS signal input, USB output
> PAL/NTSC auto detect

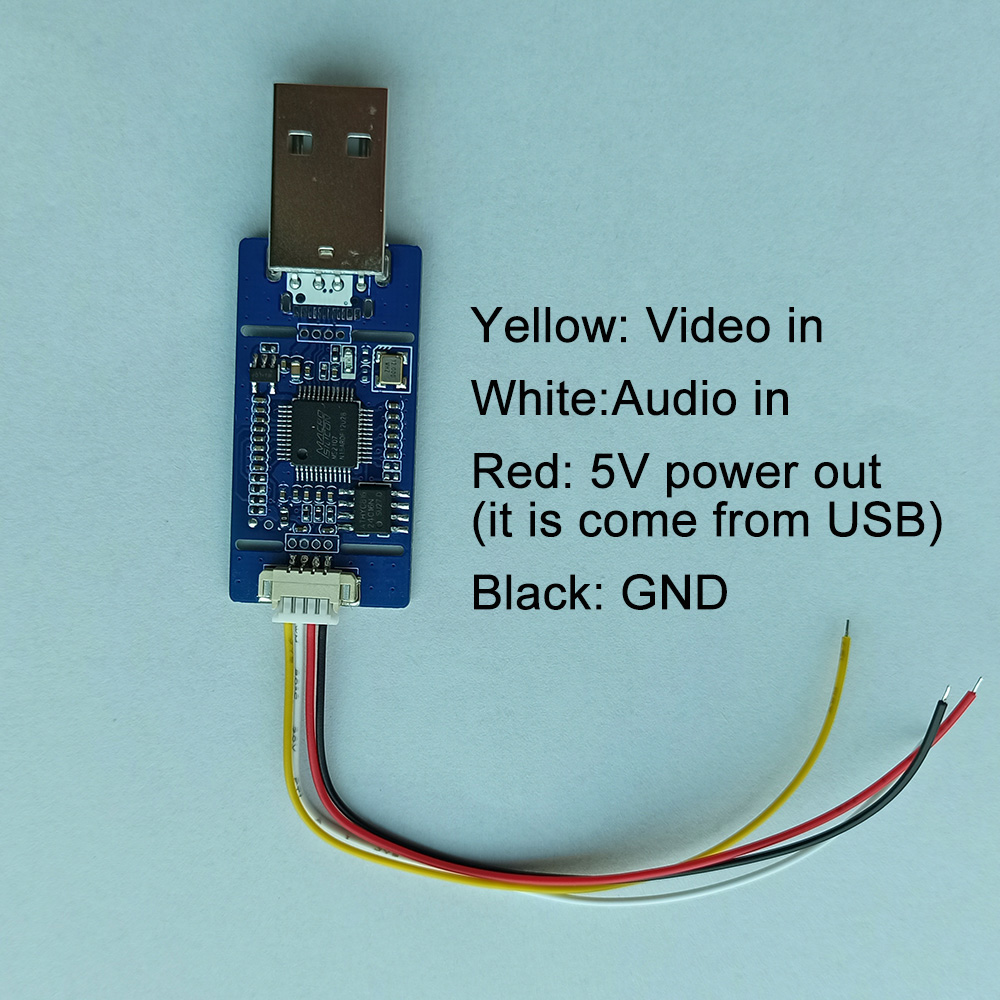

> Output 5V power to camera
> MJPEG and YUY2 Format
> 1080P@30F/S or 720P@60F/S in MJPEG
> 720X576@25F/S in YUY2 format.
> Driver free

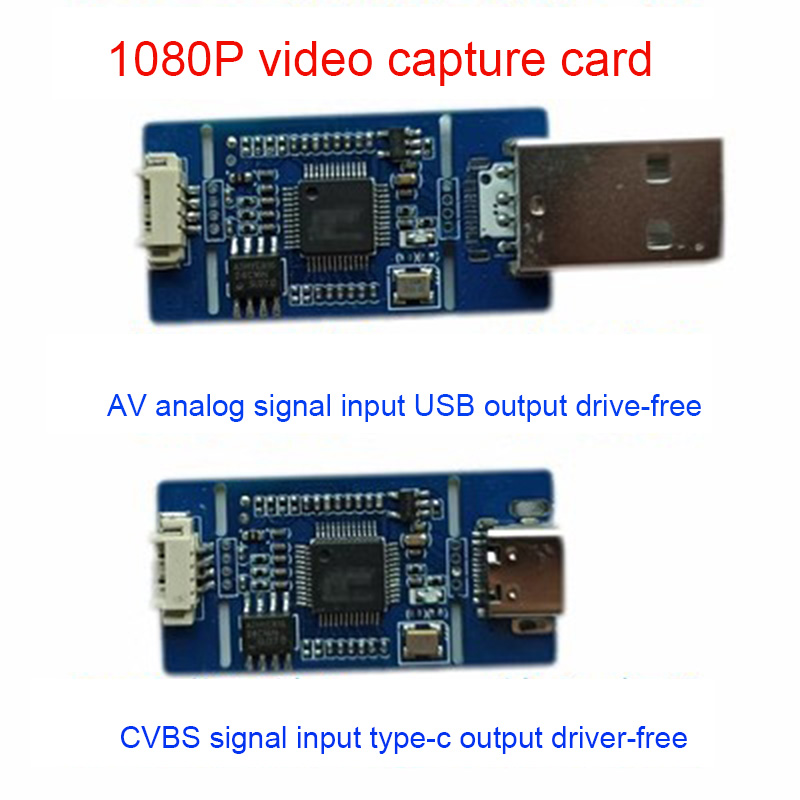

> USB or TYPE-C connector optional

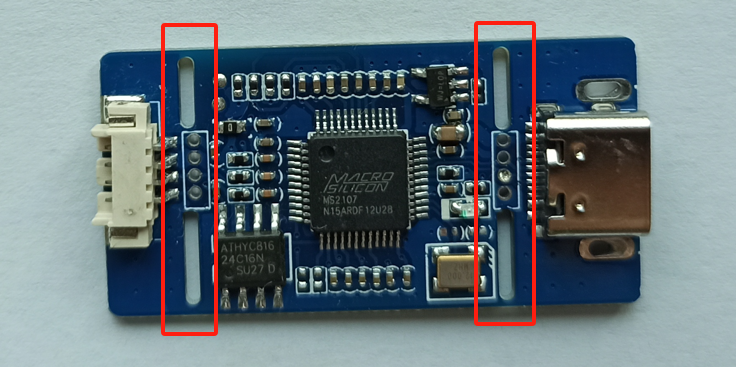

The two sides connector parts can be break up
Parameters
| Item | Data |

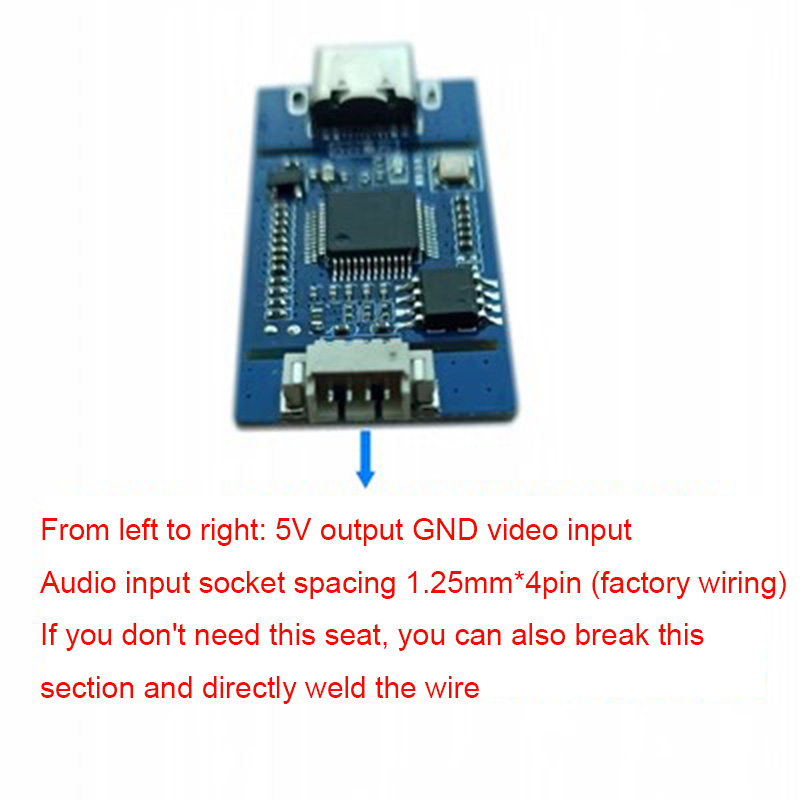

| Input port | 1.25*4 pins terminals |
| Input signal | AV/CVBS/S-Video |
| Video Mode | PAL/NTSC |
| Output | USB/Type-C |
| Video output format | MJPEG, YUV422 |

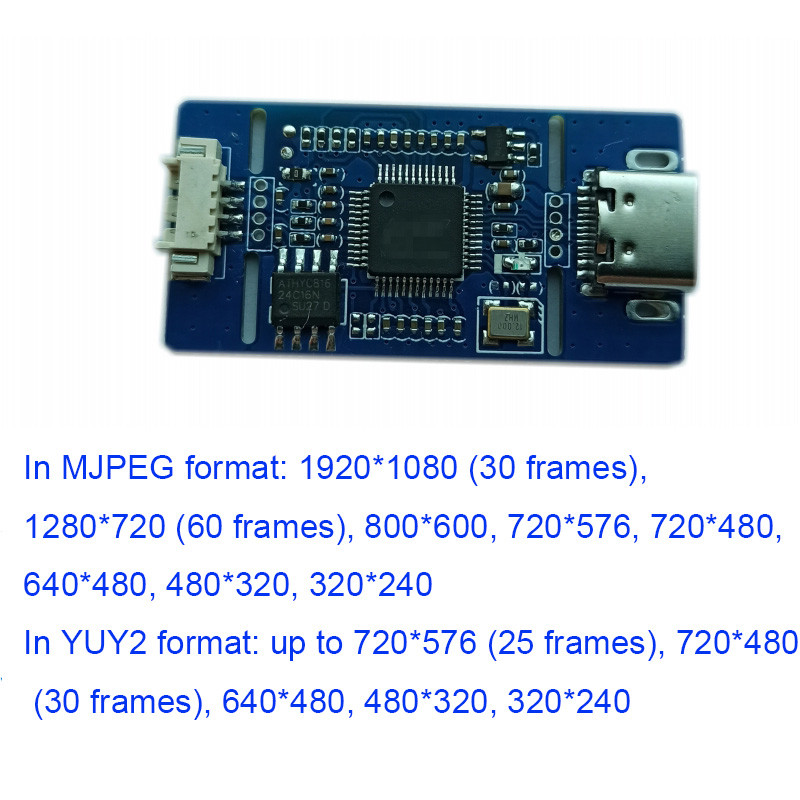

| Video output resolution |
MJPEC:
1920*1080 (
30fps)、1280*720(60fps)、800*600、720*576、720*480、640*480、480*320、320*240 YUY2:720*576（25fps)、720*480 (30fps)、640*480、480*320、320*240 |
| Audio Output | 48KHZ Stero |
| AV Protocal | Standard VUC/UAC |
| Driver | Free Deriver |
| OS | Windows/Linux/Android/MAC |

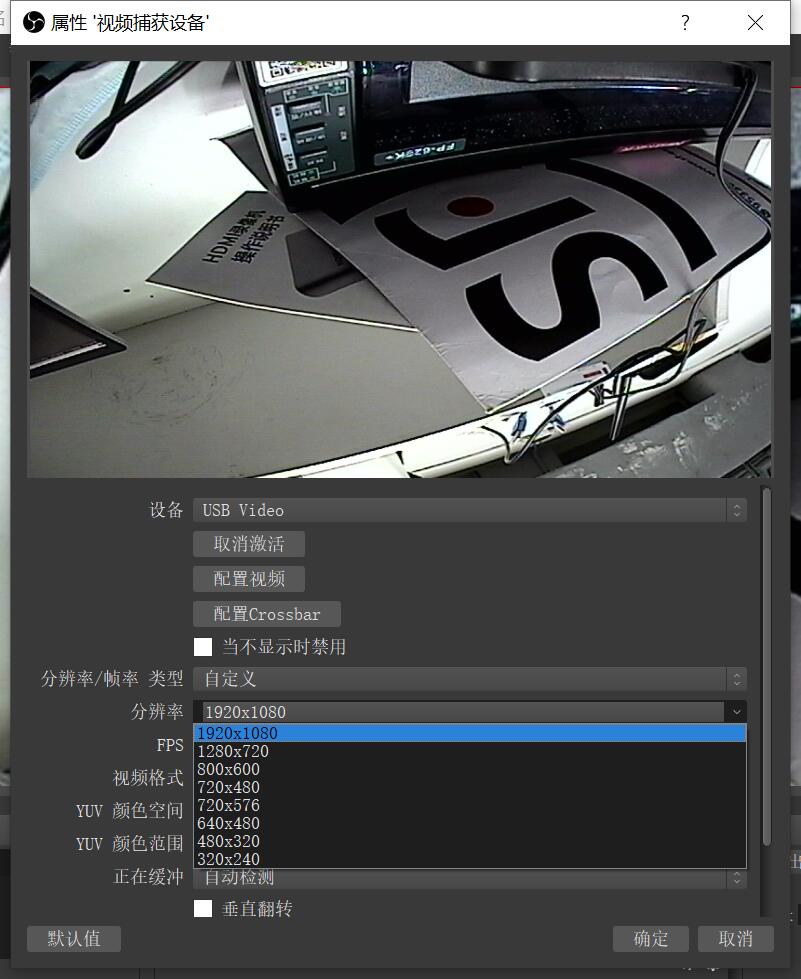

| Capture software | OBS/PotPlayer |
| Consumption | >3Wat |
| Dimension | 1.94x3.87cm |
| Weight | 10g |
