Crane and Forklift Camera

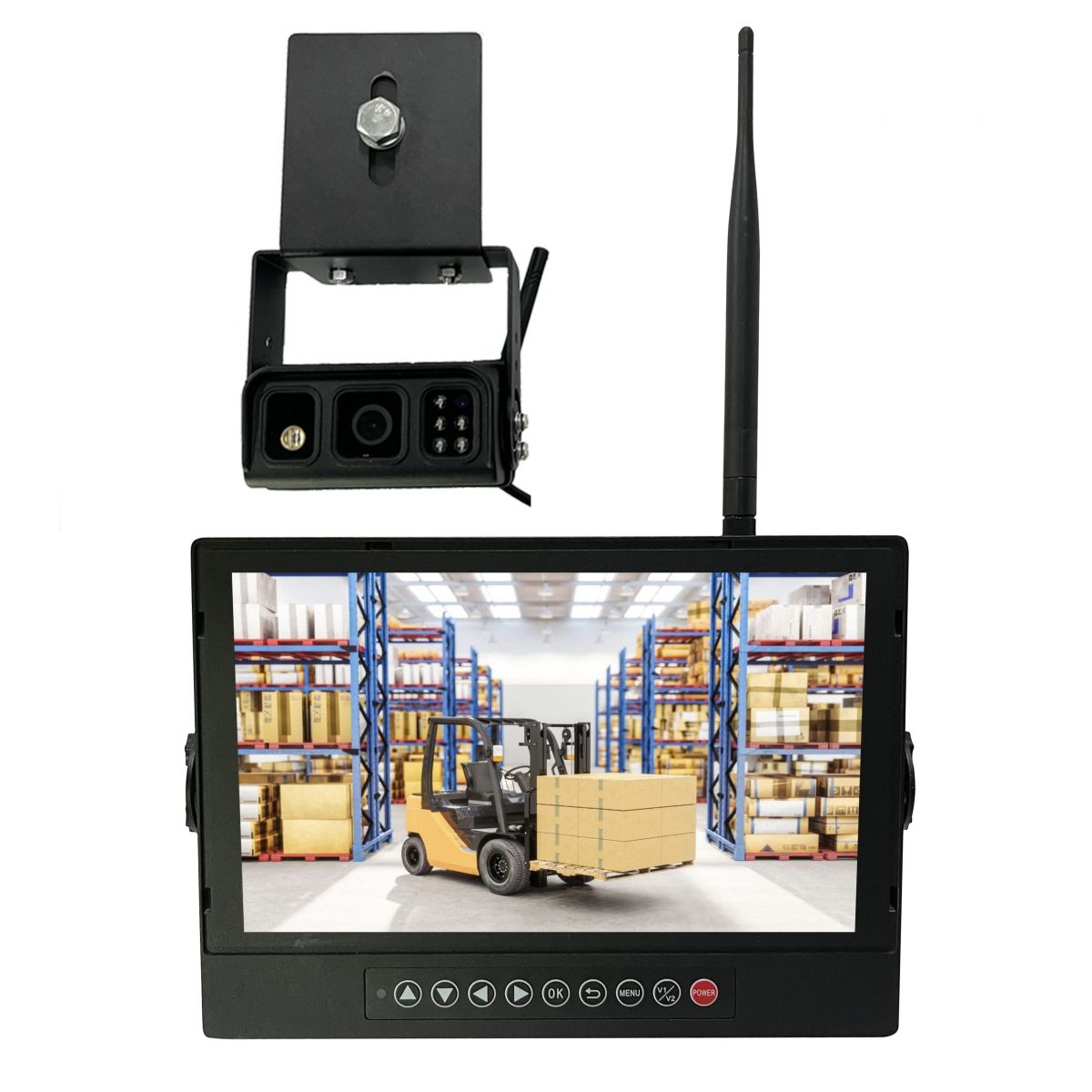

Cold Room Forklift Vehicle Camera kit waterproof FKC-1001-W
- Details
Features:

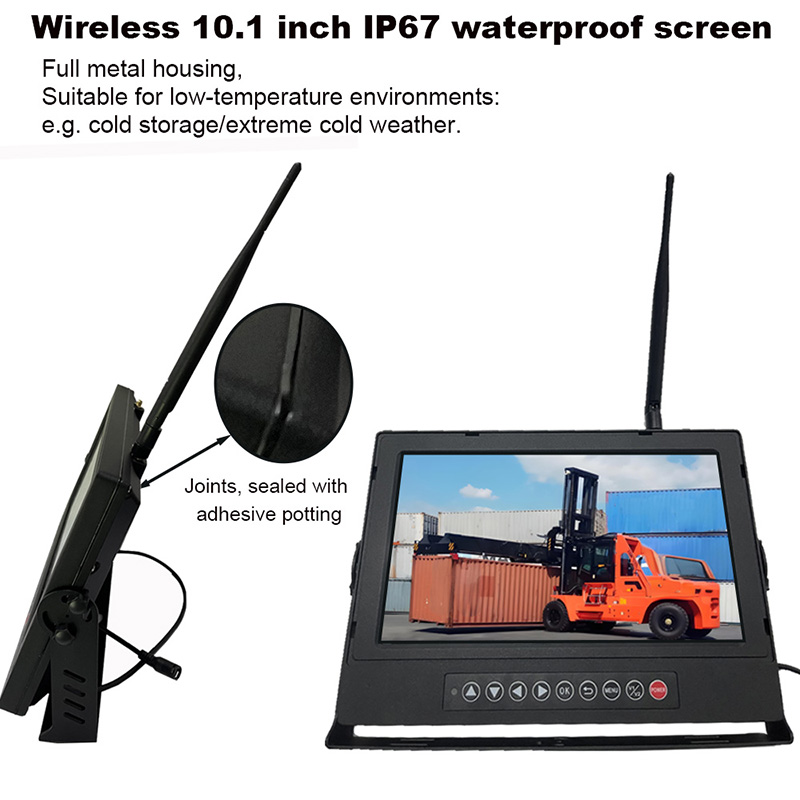

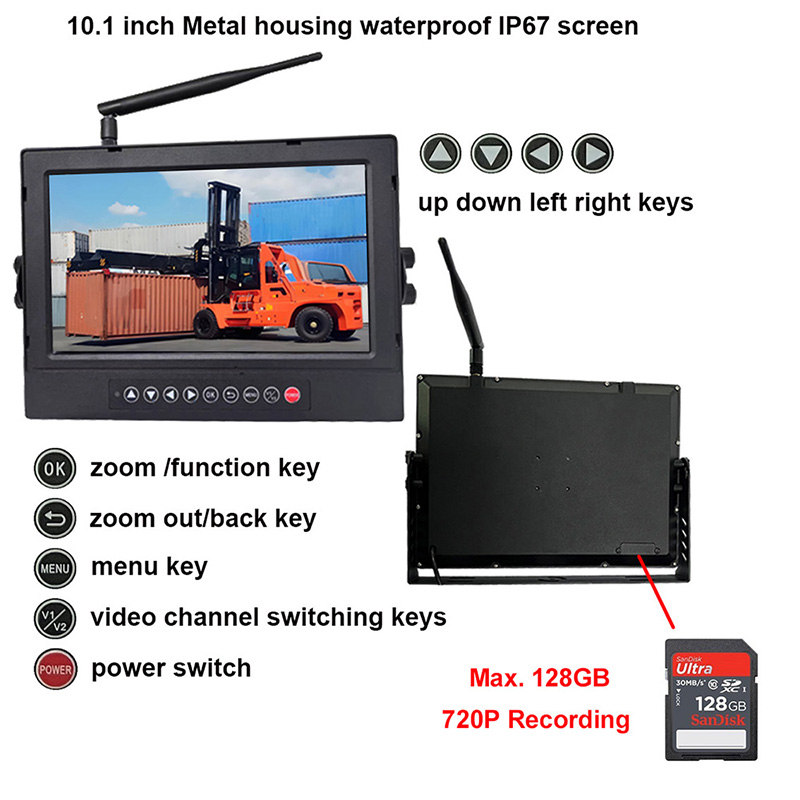

> 10.1 inch monitor, metal housing, IP67 waterproof
> 720P Recording, max. 128GB sd card
> 2.4G wireless, 500m working distance
> Control camera laser light by monitor keys
> Monitor 8V-40V wide power input, Camera 12V-30V power input
> IP69K camera waterproof
> HD IMX307 Camera sensor

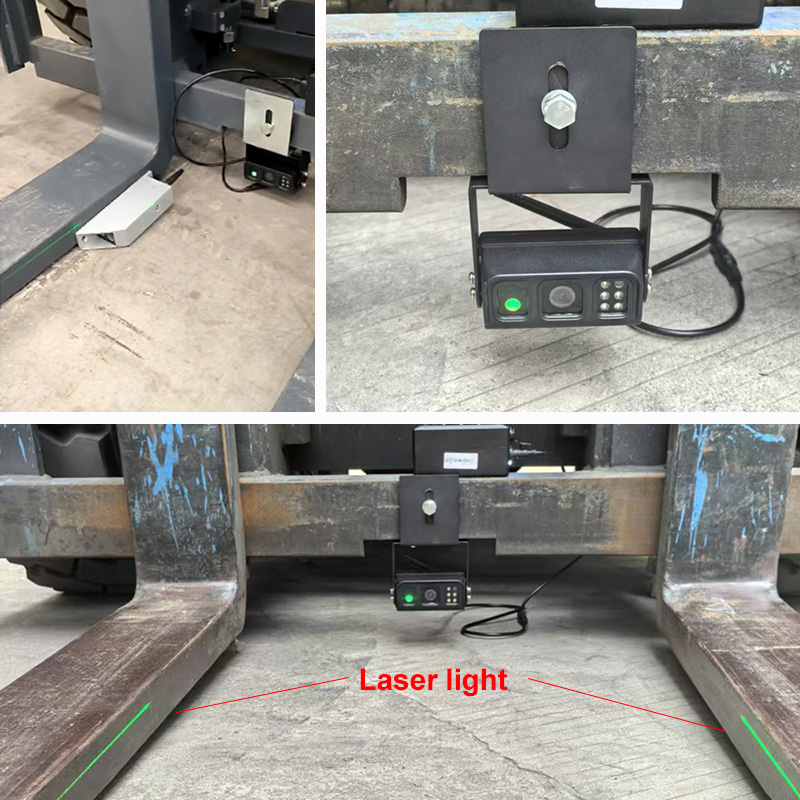

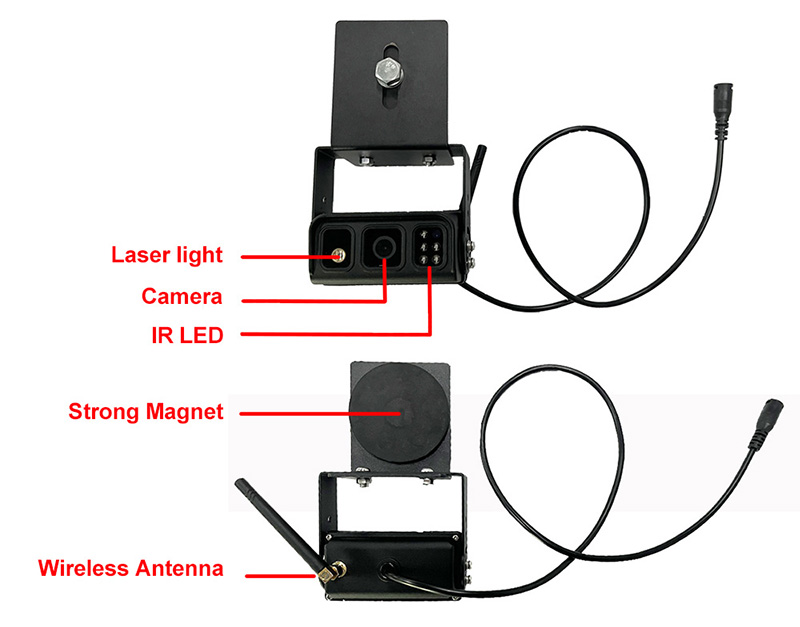

Forklift bar camera, with magnet and laser light.

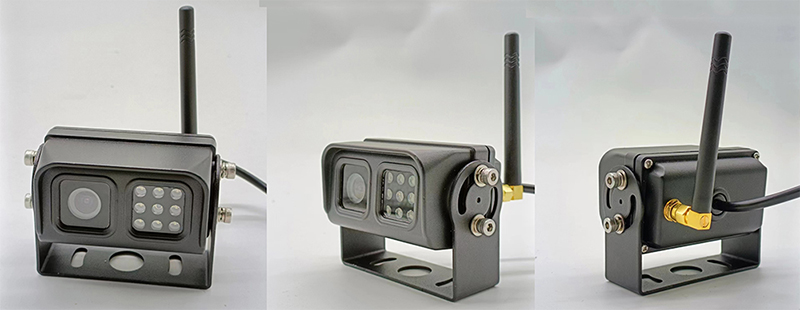

Normal camera for recording in driving room
Specifications:
|
Monitor |
Data |
|
Screen size |
10.1 inch |
|
Ratio |
16:9 |
|
Resolution |
1024*600 (RGB) |
|
Back light and brightness |
LED,300cd/m2 |
|
Contrast |
1000:1 |
|
View angle |
UP-50°/ DOWN-70°/LEFT-70°/ RIGHT-70° |
|
OSD |
English |
|
Display mode |
1/2/4 windows display |
|
Recording memory |
Max. 128GB sd card |
|
Max. working camera |
4 channels |
|
Working voltage |
DC 5-40V |
|
Power consumption |
<5W |
|
Max. current |
<550mA |
|
Working Temp. |
-10 to 60 ºC |
|
Recording Temp. |
-20 to 70 ºC |
|
Waterproof |
IP67 |
|
2.4G working distance |
1500 meters (receiving distance) |
|
2.4g wireless frequency |
2403-2480MHz |
|
Camera |
Data |
|
Camera sensor |
1/2.8'' CMOS imx307 |
|
Resolution |
1920x1080 |
|
Level view angle |
70.9～7.1°(wide view-zoom in) |
|
Zoom Speed |
About 3 seconds |
|
Working voltage |
DC12-30V |
|
2.4G working distance |
500 meters (transmit distance) |
|
Waterproof |
IP68 |
