Crane and Forklift Camera

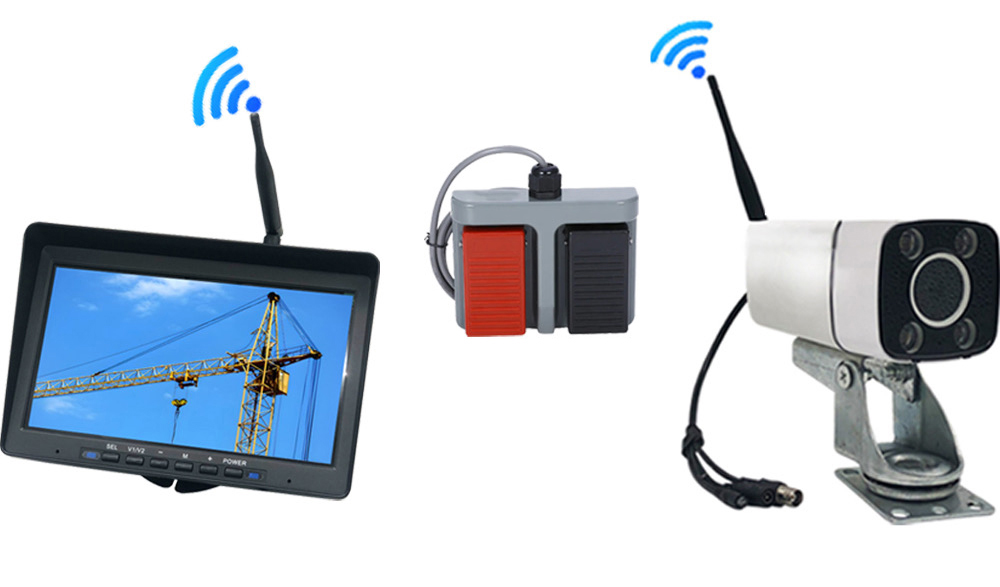

Crane Camera Tower Bridge Wireless Camera system Model TBC-7001
- Details
Features:

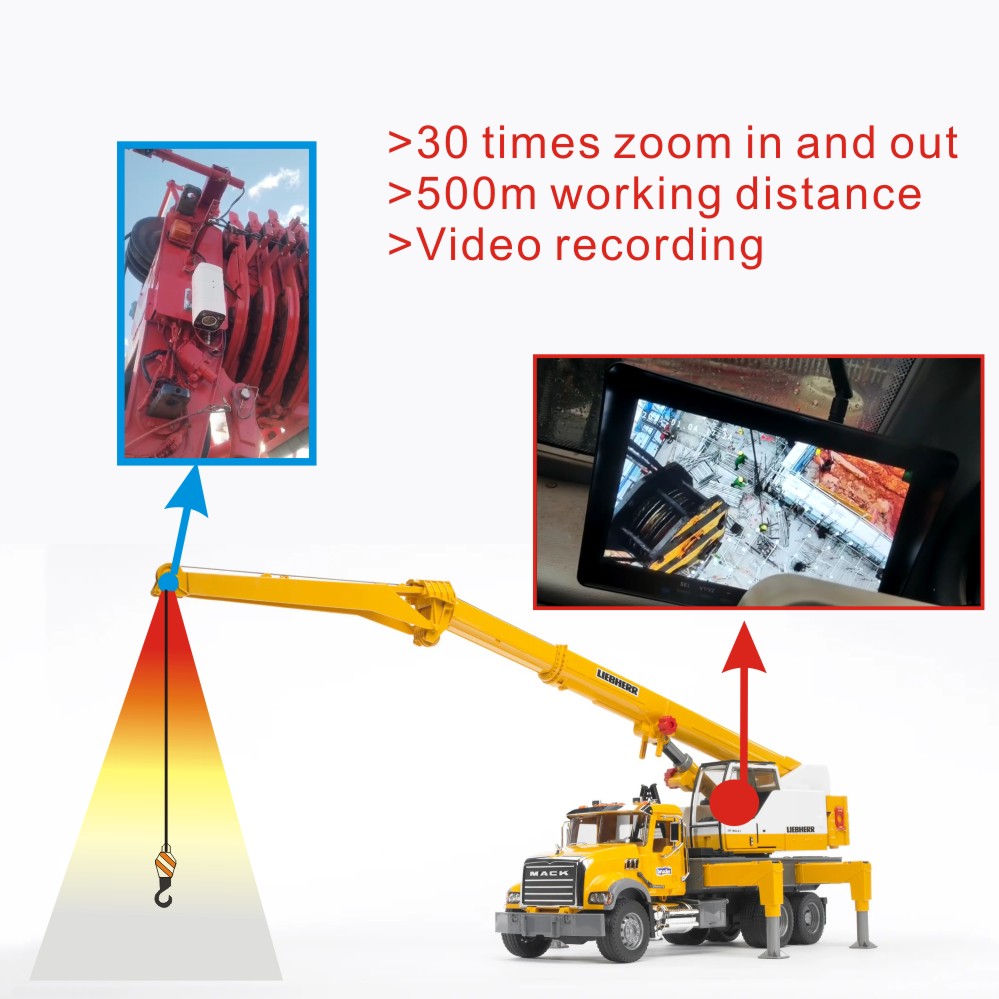

> Wireless working between camera and monitor
> Wireless working distance 500 meters
> 1080P Camera, 720P recording resolution
> Zoom in and out 1-30 times
> camera power range 12-36V
> with 32GB micro sd memory

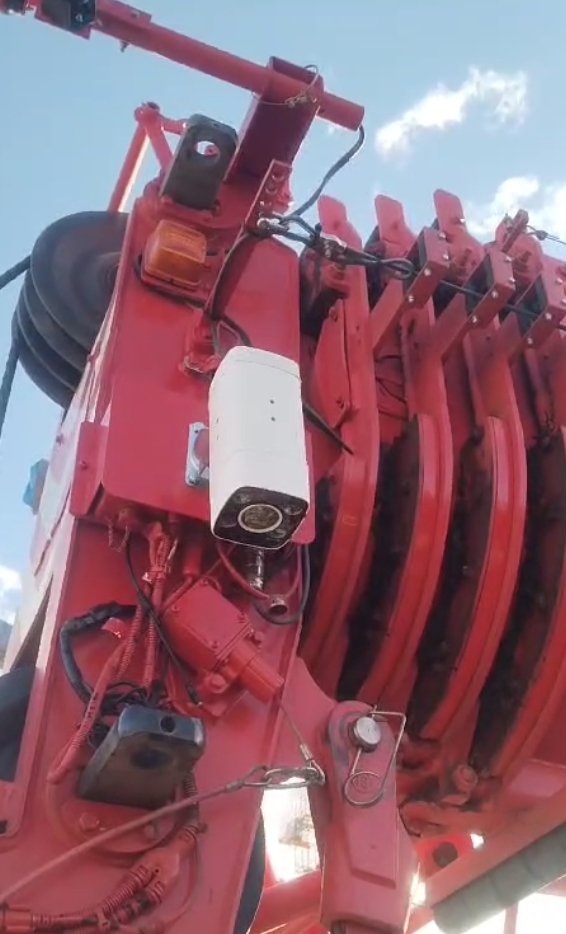

Camera installation

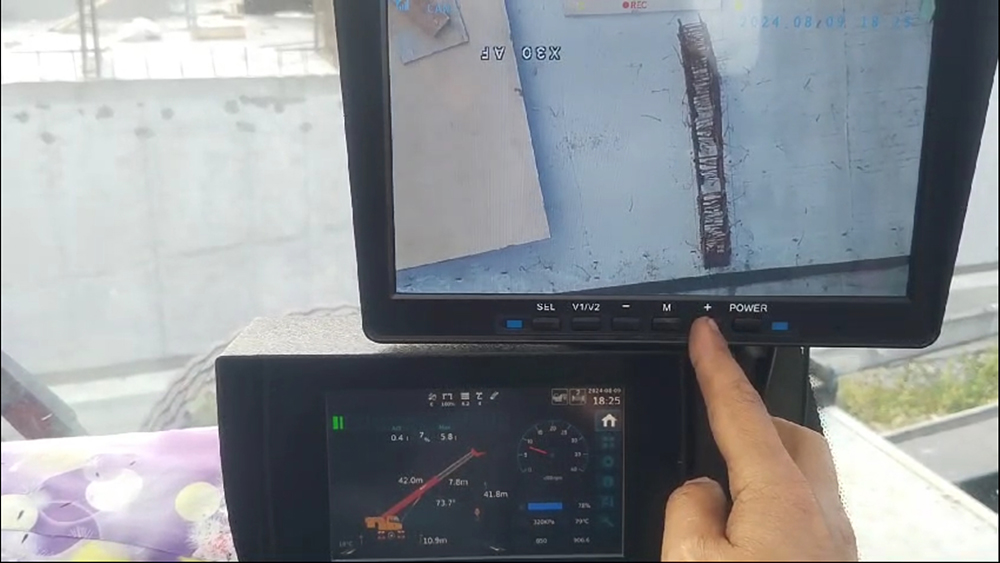

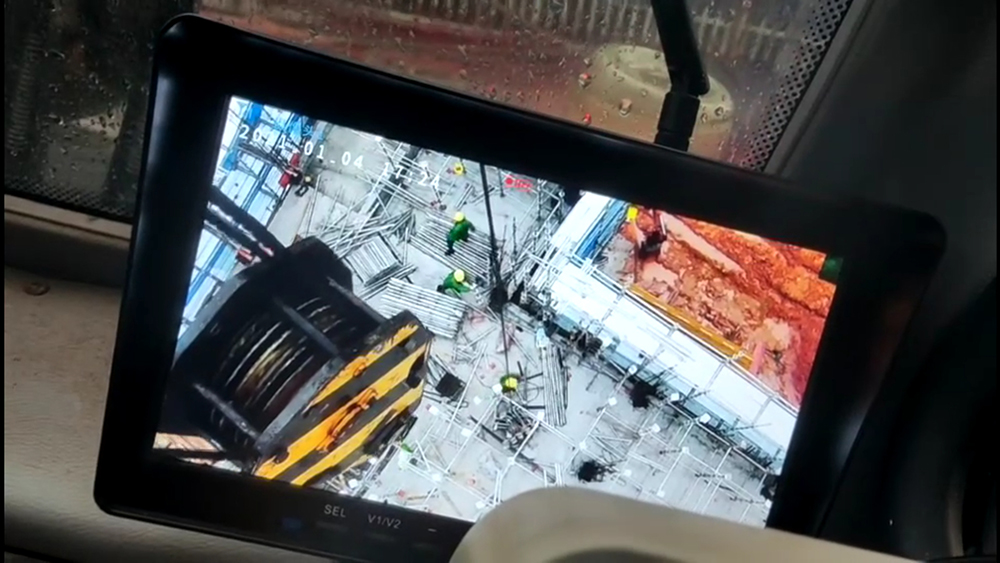

Driver view

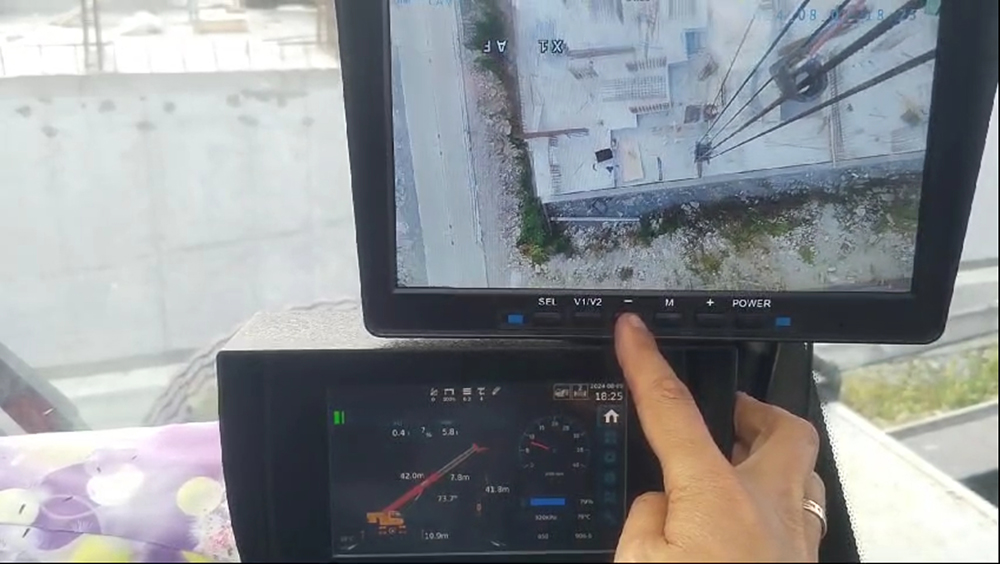

Zoom in and out from 1-30 times
Pedal control zoom in and out (pedal need pay extra)

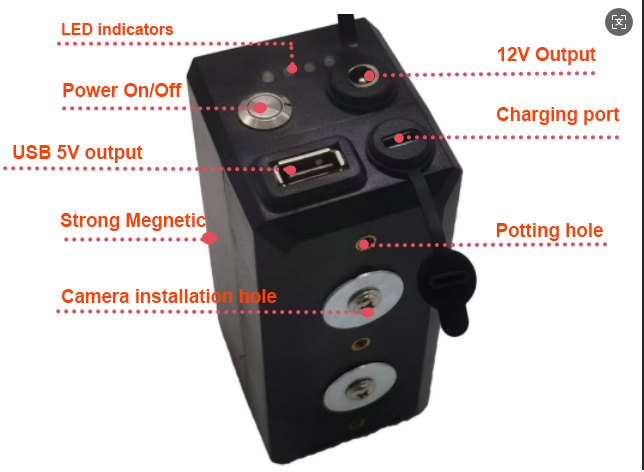

Recharging input: USB-C 5V 2A
Recharging time: 10-12 hours
USB output: 5V 2A
DC output: 12V 1A
Battery power: 74Wh
Battery capacity: 20000mAh/3.7V
Specification
|
Monitor |
Data |
|
Screen size |
10.1 inch (2 MONITORS OPTIONAL) |
|
Ratio |
16:9 |
|
Resolution |
1024*600 (RGB) |
|
Back light and brightness |
LED,300cd/m2 |
|
Contrast |
1000:1 |
|
View angle |
UP-50°/ DOWN-70°/LEFT-70°/ RIGHT-70° |
|
OSD |
English |
|
Display mode |
1/2/4 windows display |
|
Recording memory |
Max. 128GB sd card |
|
I/O Sensor |
4 channels |
|
Working voltage |
DC 5-40V |
|
Power consumption |
<5W |
|
Max. current |
<550mA |
|
Working Temp. |
-10 to 60 ºC |
|
Recording Temp. |
-20 to 70 ºC |
|
Size |
24mm*61.5mm |
|
2.4G working distance |
1500 meters (receiving distance) |
|
2.4g wireless frequency |
2403-2480MHz |
|
Camera sensor |
1/2.8’’ CMOS imx307 |
|
Resolution |
1920x1080 |
|
Level view angle |
70.9～7.1°(wide view-zoom in) |
|
Zoom Speed |
About 3 seconds |
|
Working voltage |
DC12-35V |
|
2.4G working distance |
500 meters (transmit distance) |
