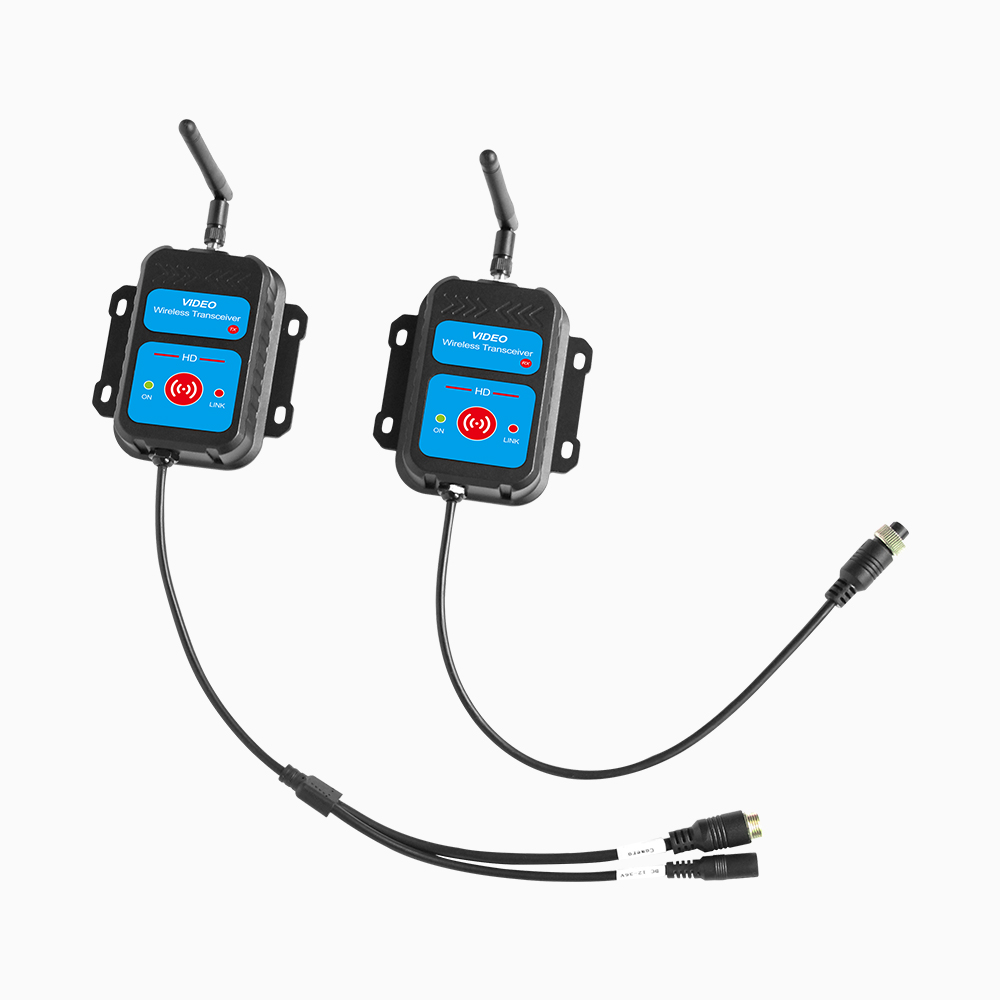

IP69 Waterproof AHD/TVI/CVI/CVBS Wireless T/R Kit for Truck Video WX007

This is the latest version wireless video transmitter and receiver kit which support 4 video signals, including AHD, TVI, CVI and CVBS. The waterproof level IP69.
  • Details
Key features:
> IP69 Waterproof
> Trasmite and receiving distance 500m
> 9V-45V Power input
> Input Video signal AHD,CVI,TVI
> Auto PAL/NTSC detecting
> Video compression H.264

Specifications

Specifications
Video compression: H.264
Transmission distance: 500M
Spreading method: FHSS
Standard: NTSC/PAL
Waterproof: IP69
Electricity supply: 9V-45V
Input Format: AHD/CVI/TVI 1080P,720P
Operating frequency range: 2.4GHz-2.4835GHz
Debugging method: 16QAM/QPSK/BPSK
Transmitting power: TX Power=24dBm+1dBm
Storage temperature: -40°C~+80°C
Operating temperature: -35°C~+70°C
TX current consumption: 140mA(Typ.)@12V Working humidity: 85%RH
RX current consumption: 140mA(Typ.)@12V Resolution: 720P 30fps/1080P 25fps
RF transmission rate: 3MHz/6MHz/12MHz BER<1E-3
Reception sensitivity:
-86dBm(Typ.)@12MHz QPSK BER<1E-3
-81dBm(Typ.)@12MHz,16QAM BER<1E-3
