HD to USB capture Card

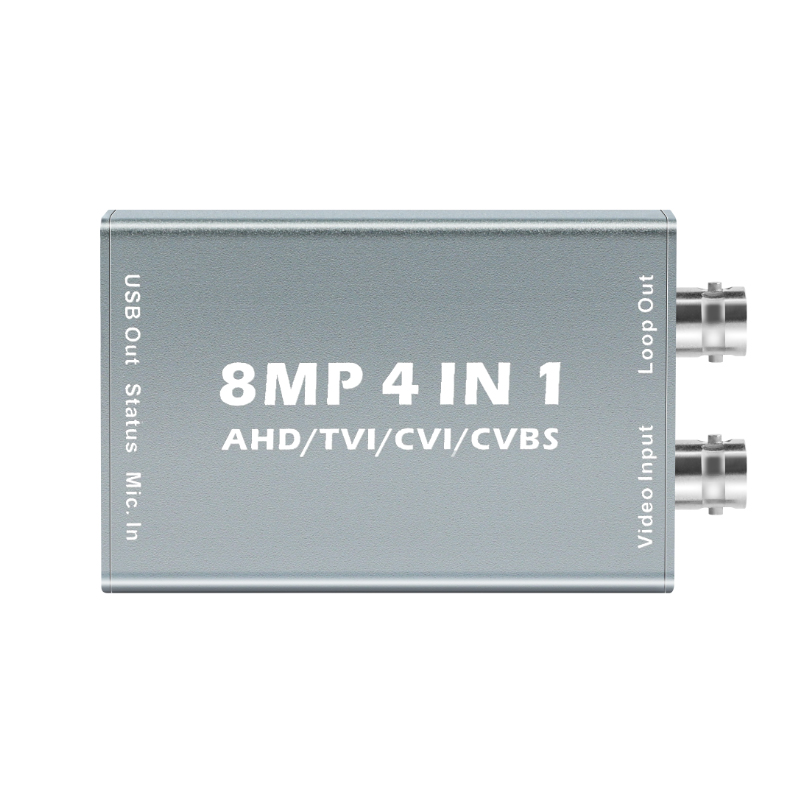

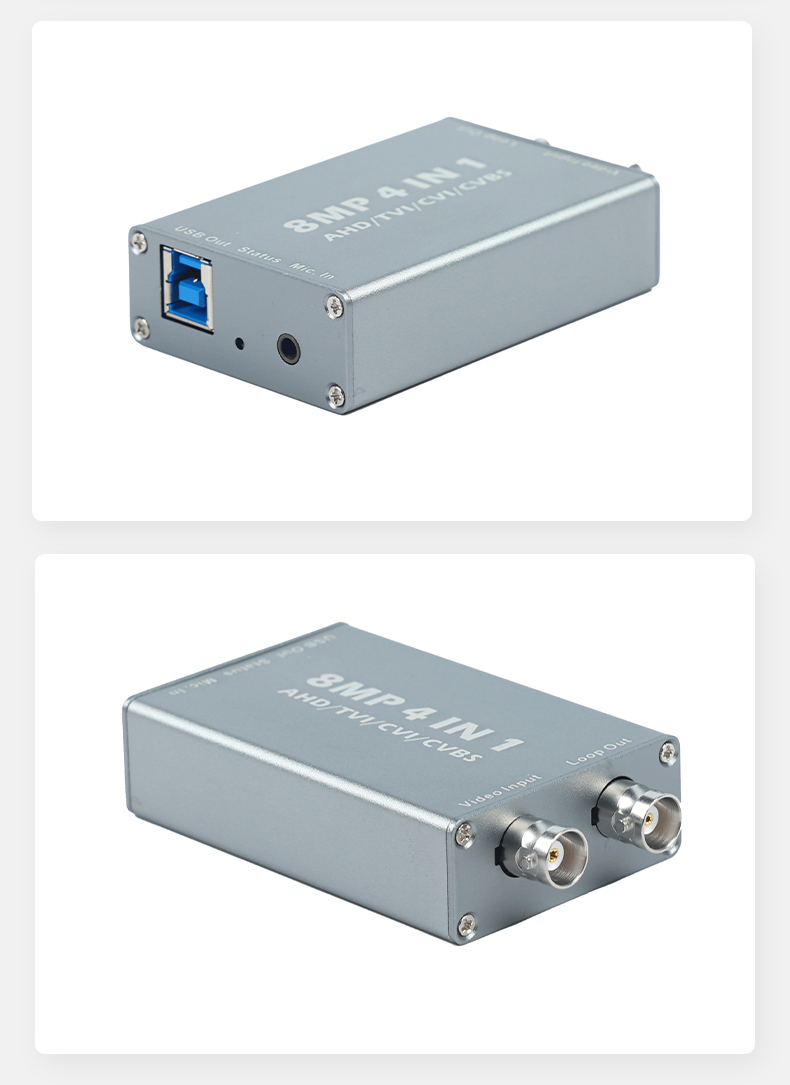

New 8MP 4 in 1 AHD CVBS CVI TVI to USB Video Converter A2U4

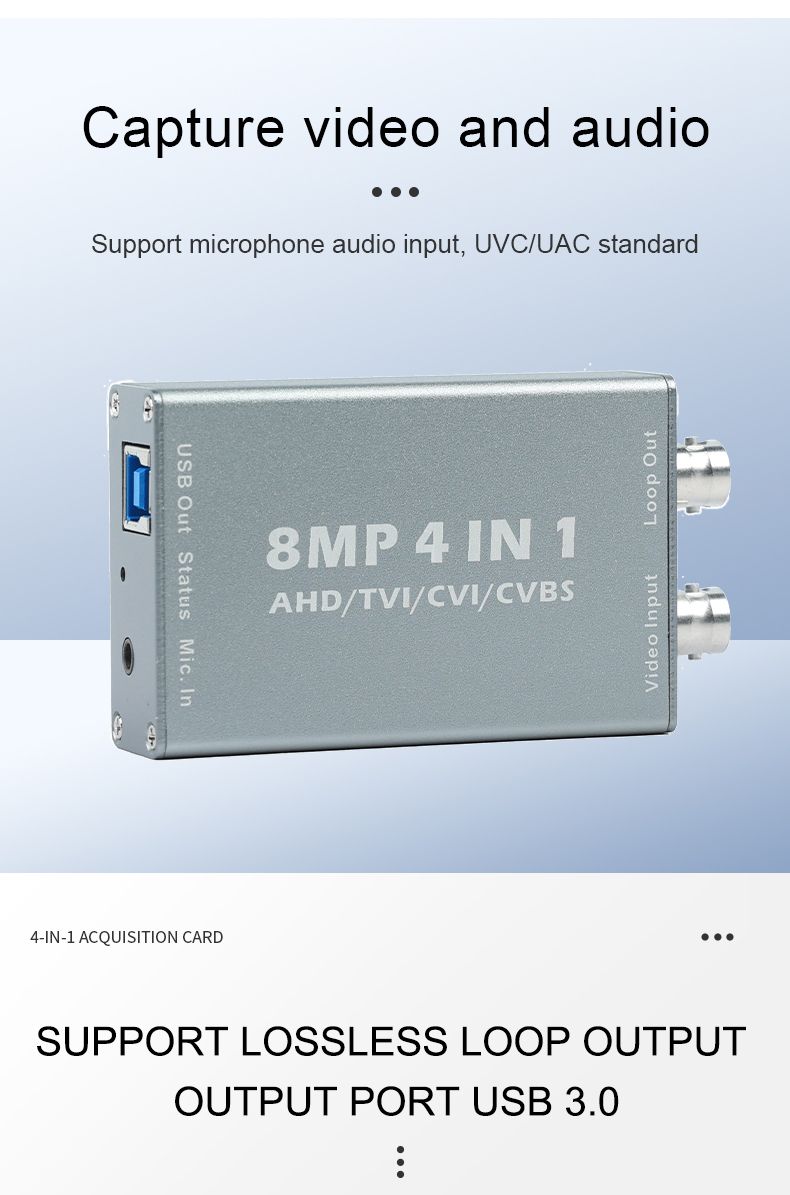

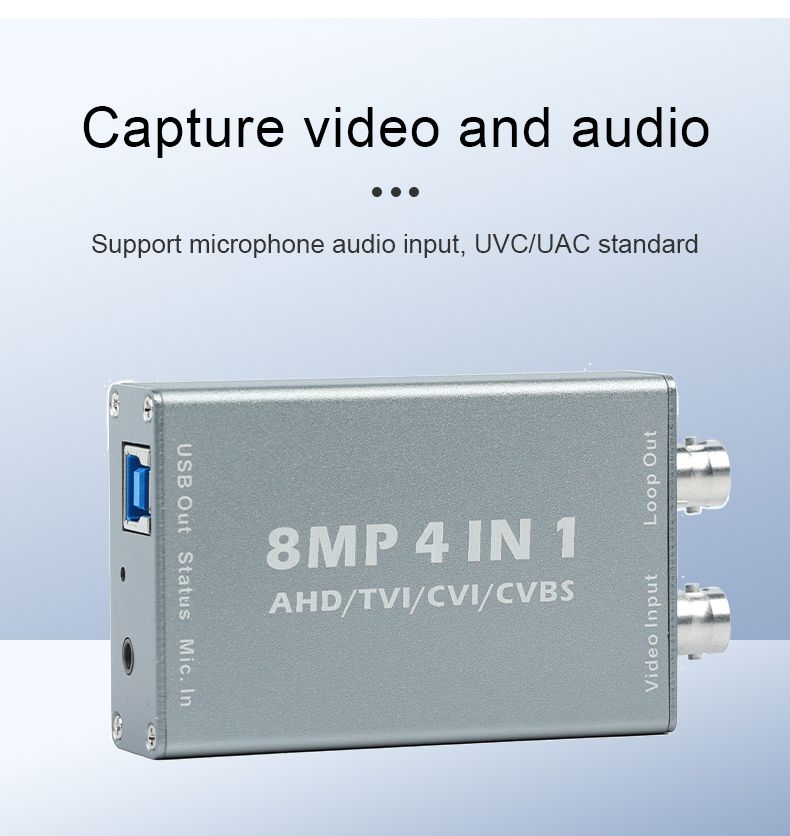

It is a 4 in 1 capture card which support AHD/TVI/CVI/CVBS signal input, and USB output to computer. It capture video and audio both, it is a high cost effective AV capture card which support UVC/UAC STANDARD. The output port is USB 3.0. It compatible Windows, Linux and also Android system. It is a plug and play tools for HD AV capture.
  • Details

Features:

1. Input signal AHD, CVBS, TVI, CVI

2. Output USB

3. Resolution 1080P

4. 5-60 fps adjustable

6. UVC UAC standard

7. Driver free

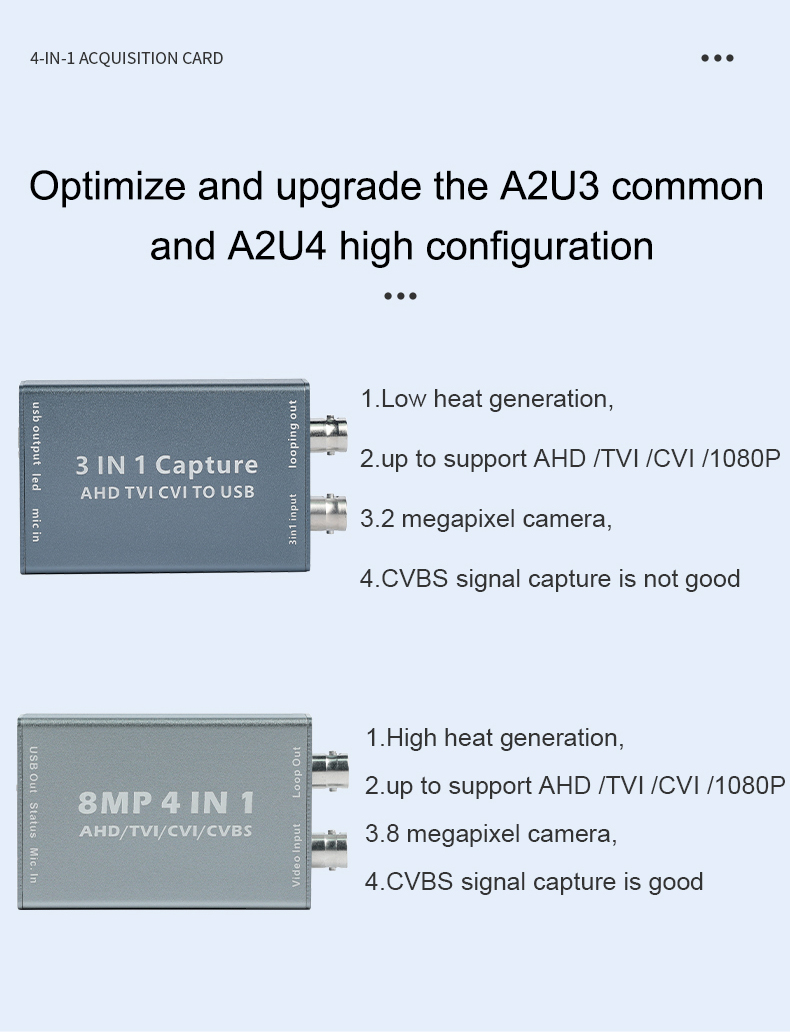

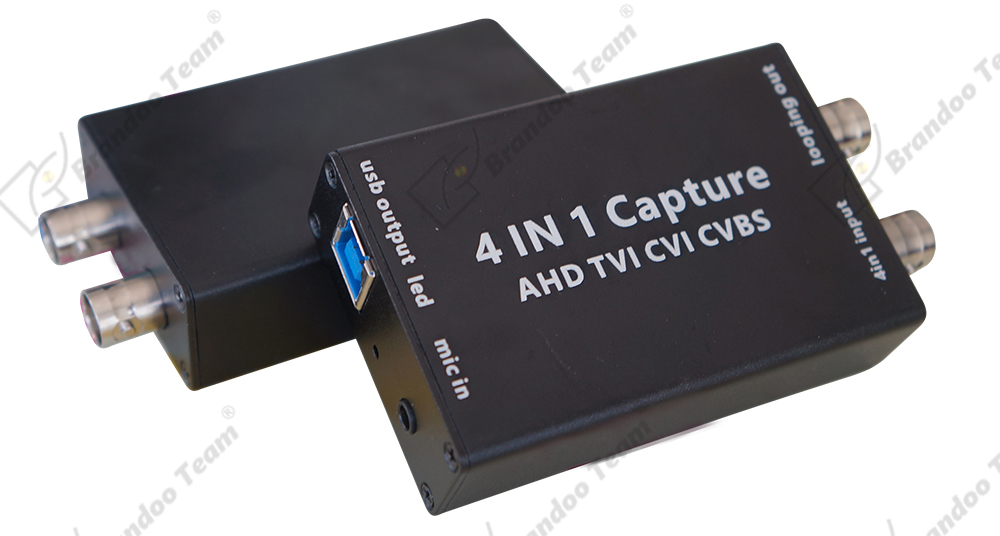

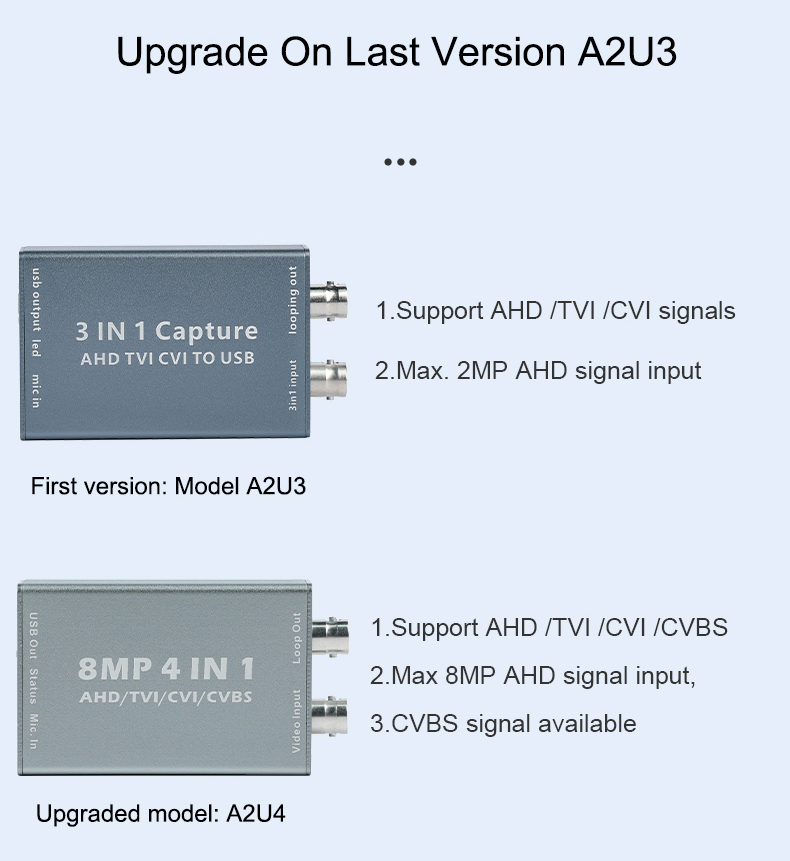

The Black one is old version.

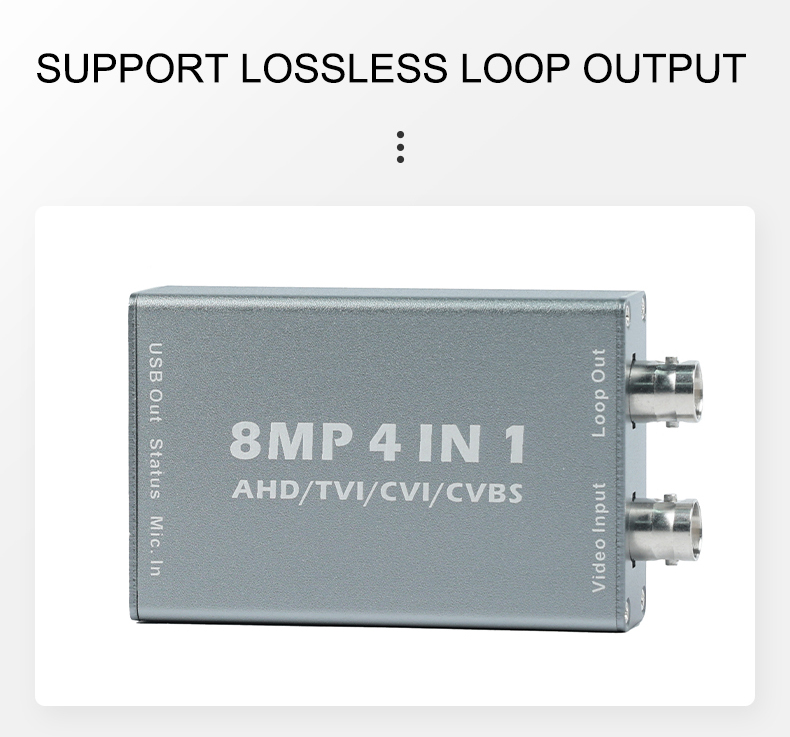

The current upgraded version


Specifications：

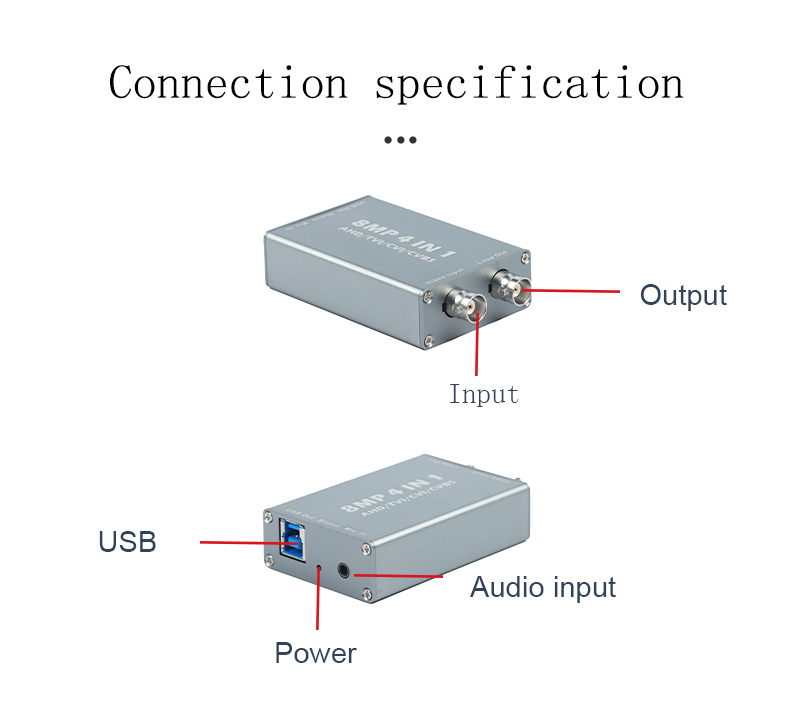

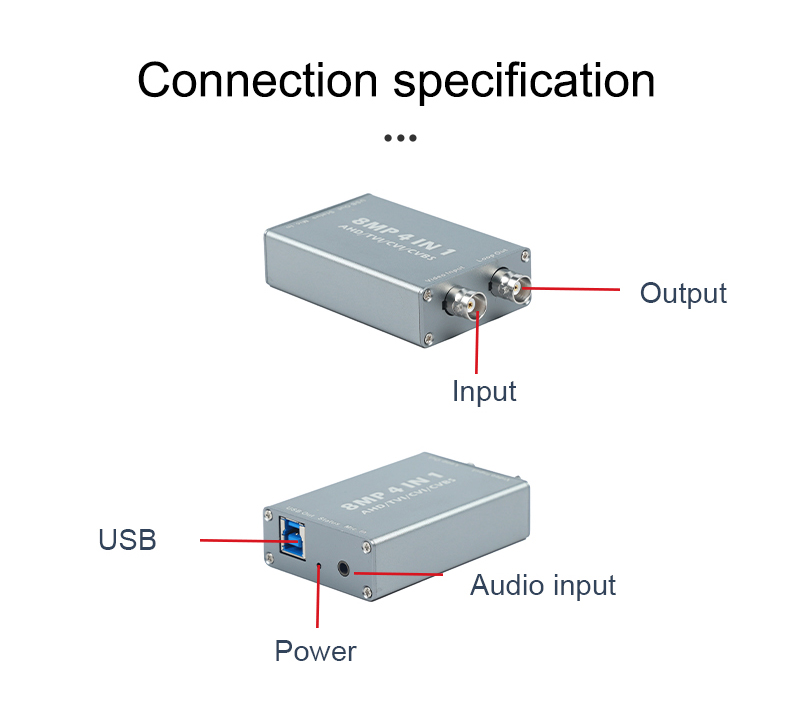

 In/out put port

BNC

Input signal

AHD TVI CVI CVBS

Output port

USB3.0

Video resolution

for output

1920*1080、1600*1200、1360*768、1280*1024、1280*960、1280*720、1024*768、800*600、720*480、720*576、640*480

Frame rate

5-60 frame adjustable

A/V capture

Standard UVC/UAC

Driver

Driver free

Operation system

Windows/Linux / Android

Compatible software

OBS/Potplayer（Windows）

Consumption

＜3Wat

Working temp.

-20℃-65℃

Working Humd.

5%-90%

Dimension

97mm*51mm*21mm

Weight

100g
