Micro Camera
Pinhole lens mini ccd camera Model: BD-496
This is a micro type pinhole lens camera has 90° view angle. Audio is available. RCA or BNC connector available too.
- Details
Features:
>1/4CCD, High definition
>TV Mode: NTSC/PAL
>Resolution:NTSC:720x480 PAL:720x576
>Horizontal:520TV Lines
>0.008Lux /F1.2
>Lens and view angle: F2.8mm / 90°
>Dimension:D x H:15.5mm x 15.5mm x 22.5mm
>Power:DC 3.6V-24V
>1/4CCD, High definition
>TV Mode: NTSC/PAL
>Resolution:NTSC:720x480 PAL:720x576
>Horizontal:520TV Lines
>0.008Lux /F1.2
>Lens and view angle: F2.8mm / 90°
>Dimension:D x H:15.5mm x 15.5mm x 22.5mm
>Power:DC 3.6V-24V
>Video output:1.0V p-p/75ohm

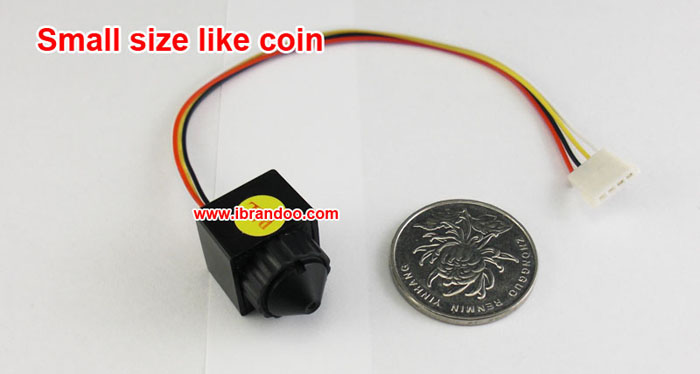

Smaller than a coin

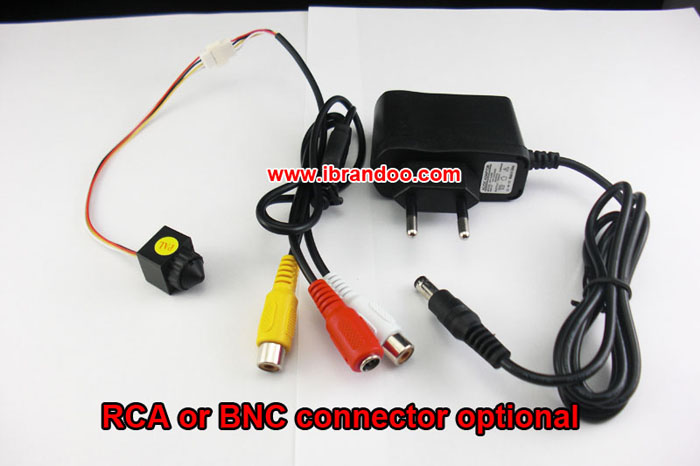

RCA or BNC connector selectable.

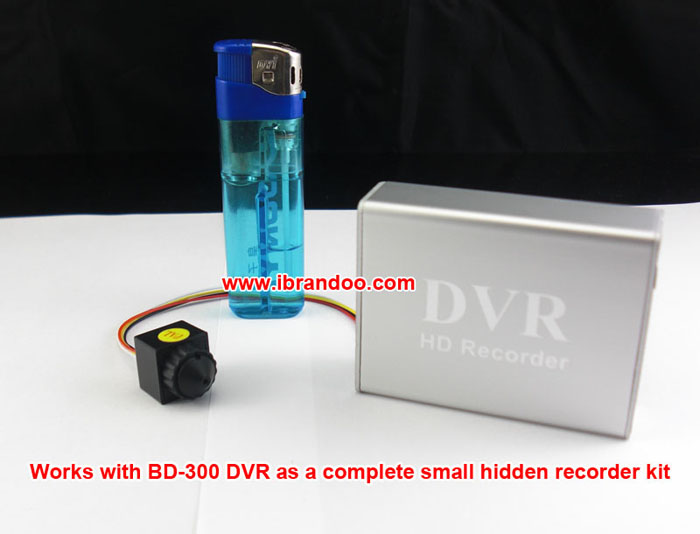

Works with BD-300 DVR as a complete hidden recorder system
