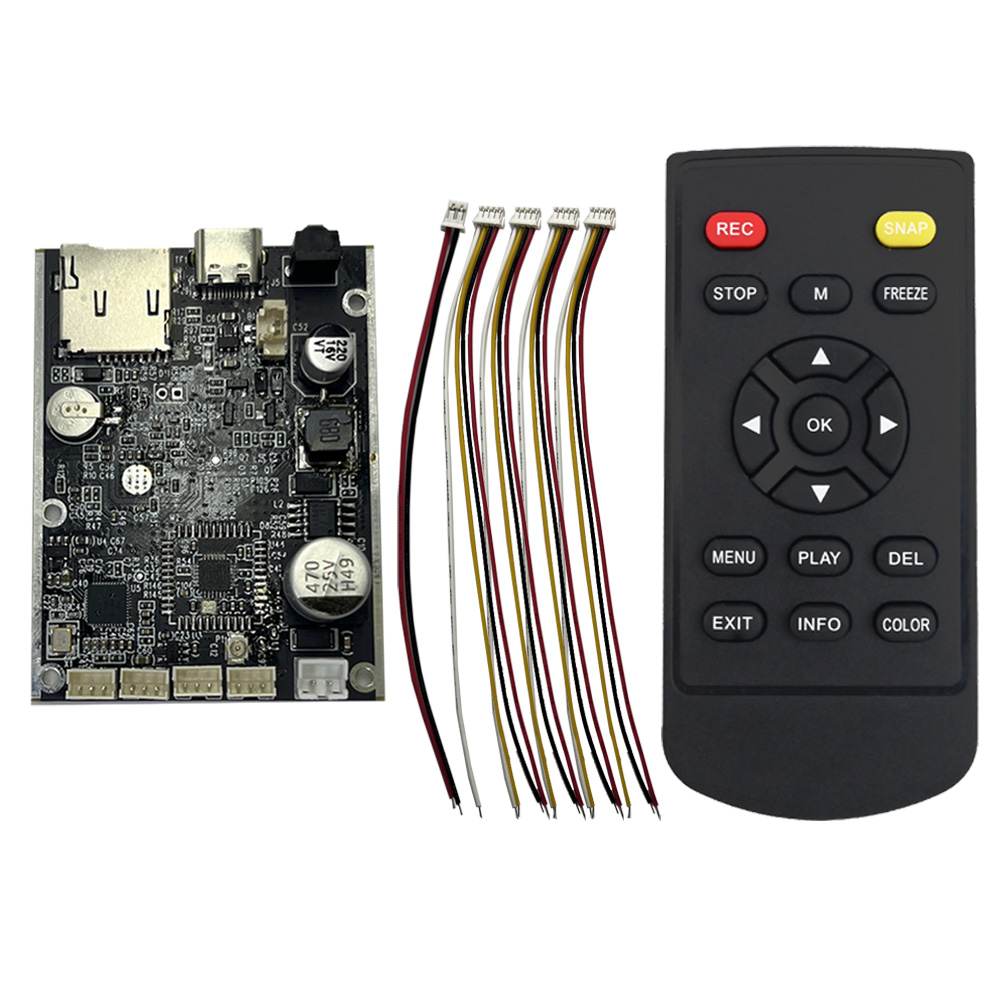

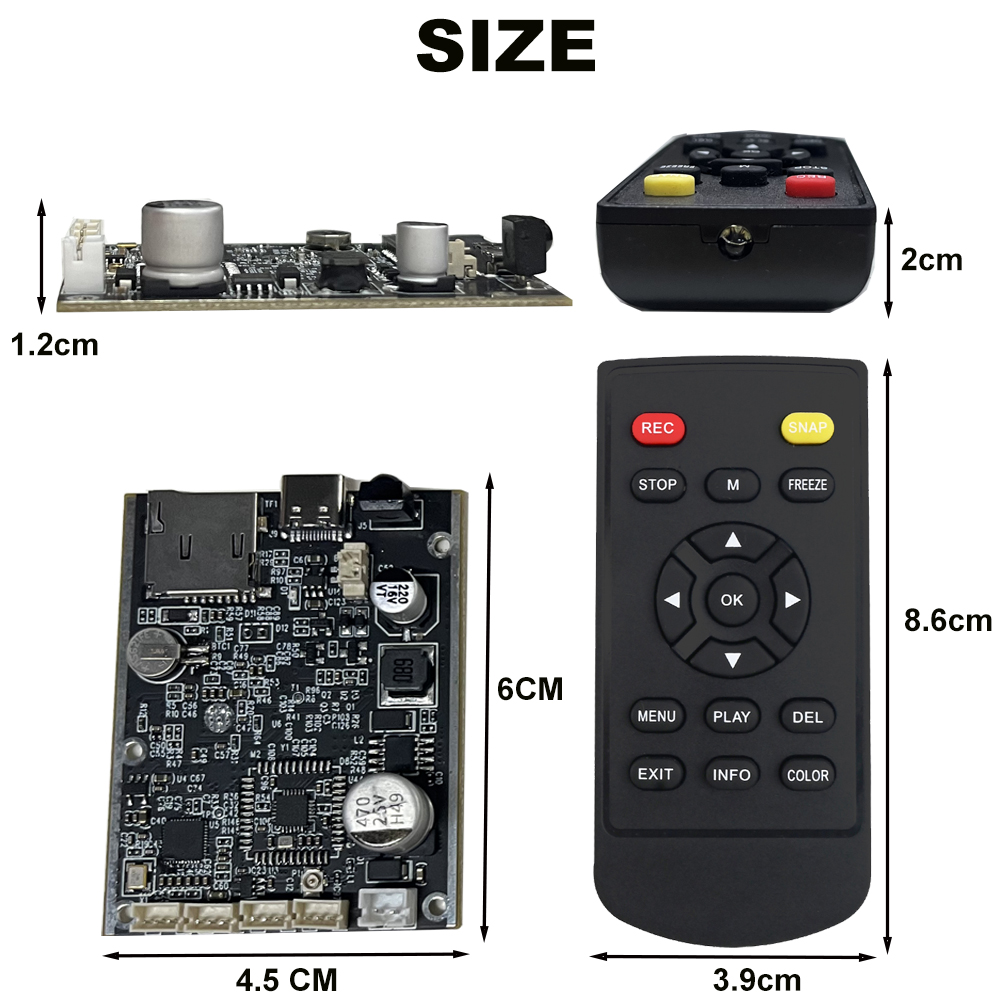

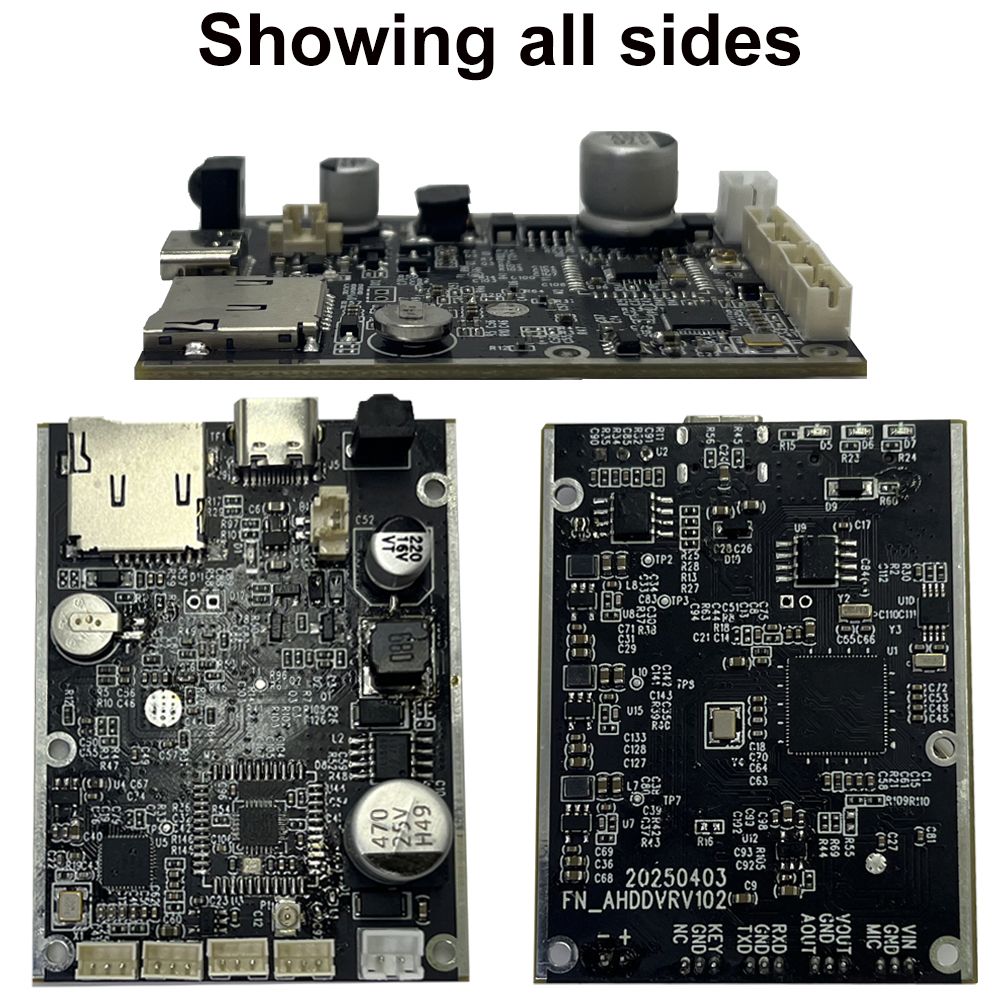

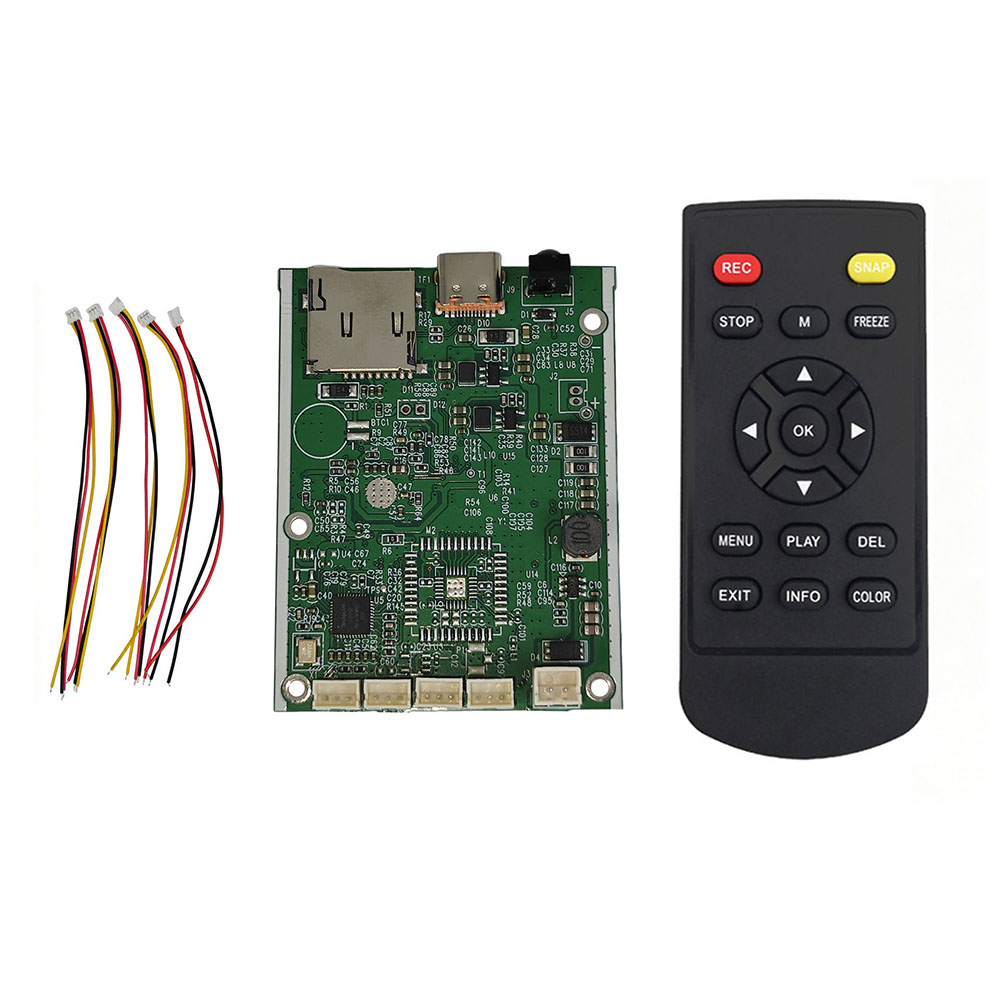

TVI CVI AHD CVBS 4 in 1 multy signal SD DVR Module BD-700P
This is a 4 in 1 mini DVR which support AHD/TVI/CVI/CVBS signal input. Max. 256GB micro sd card for recording,max. 2MP camera working and 1080P video recording. It's widely used as a recording core board in FPV, inspection video system, medical video system, CCTV, security accessing system and so on. We provide customization for different applications.
- Details
Features:

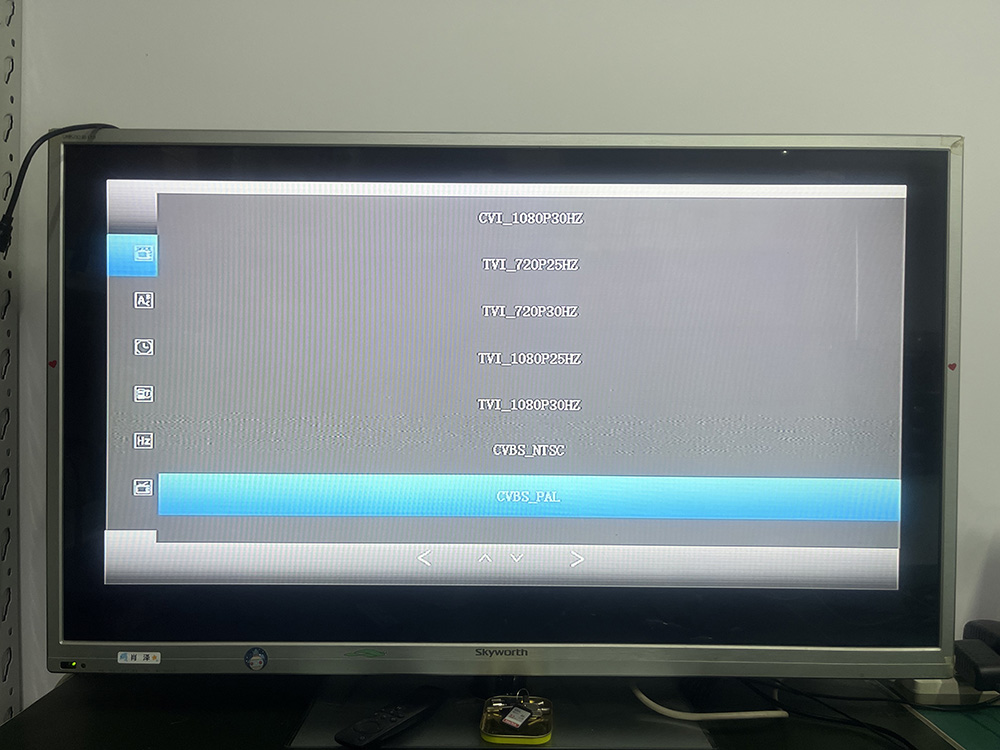

1. AHD,TVI,CVI,CVBS signal input
2. 1080P,720,480P recording resolution
3. Max. 512GB Micro SD memory
4. Recording mode Auto,Manual,motion
5. Frame rate 5,15,30fps optional
6. Language English,Japanese,Russian,Chinese
7. USB-C for power in or transfer files to PC
8. 5-20V wide voltage input

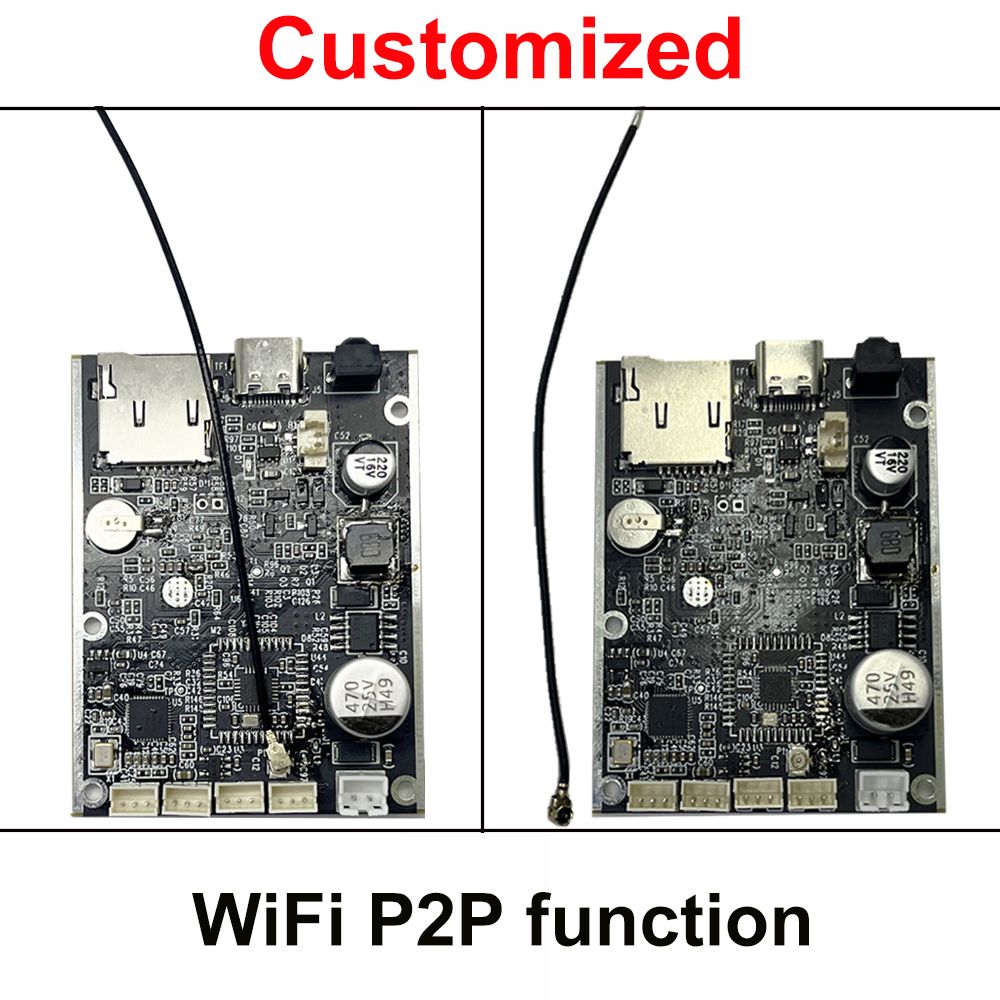

9. WiFi P2P customized, works with free APP on phone.
1. AHD,TVI,CVI,CVBS signal input
2. 1080P,720,480P recording resolution
3. Max. 512GB Micro SD memory
4. Recording mode Auto,Manual,motion
5. Frame rate 5,15,30fps optional
6. Language English,Japanese,Russian,Chinese
7. USB-C for power in or transfer files to PC
8. 5-20V wide voltage input
9. WiFi P2P customized, works with free APP on phone.
Specifications:
| Item | Data |
| Input signal | AHD,TVI,CVI,CVBS |
| Camera pixel | 2mp/1.3mp/1mp |
| Recording resolution | 1080P/720P/480P |
| Frame rate | 5,15,30fps |
| Memory type | Micro SD card |
| Memory capacity | Max. 256GB |
| Video output | CVBS PAL/NTSC |
| Audio In/Out | Support |
| Communication | Serial port/Keypad |
| USB-C | Power input,read card,upgrade |
| Recording mode | Manually/Power up |
| Recording time | 1,3,5,15,30 minutes |
| Language | English,Russian,Chinese |
| OSD On/off | Support |
| Power input | DC5V-15V |
| Power consumption | about 1.5W |
