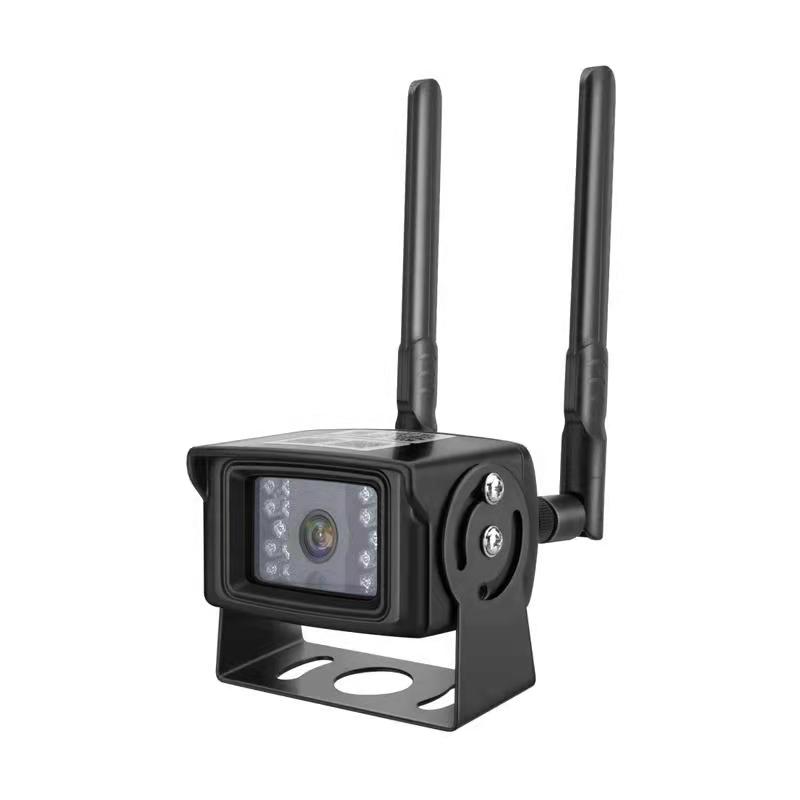

4G WiFi Car Camera Remote View Free APP A18
- Details
Features:
>Metal and Rainproof case, IP66
>Resolution 2.0 Megapixel 1080P@25FPS.
>15-20 meters night vision
>TF Card Max 128G.
>Built-in 3MP 3.6mm lens

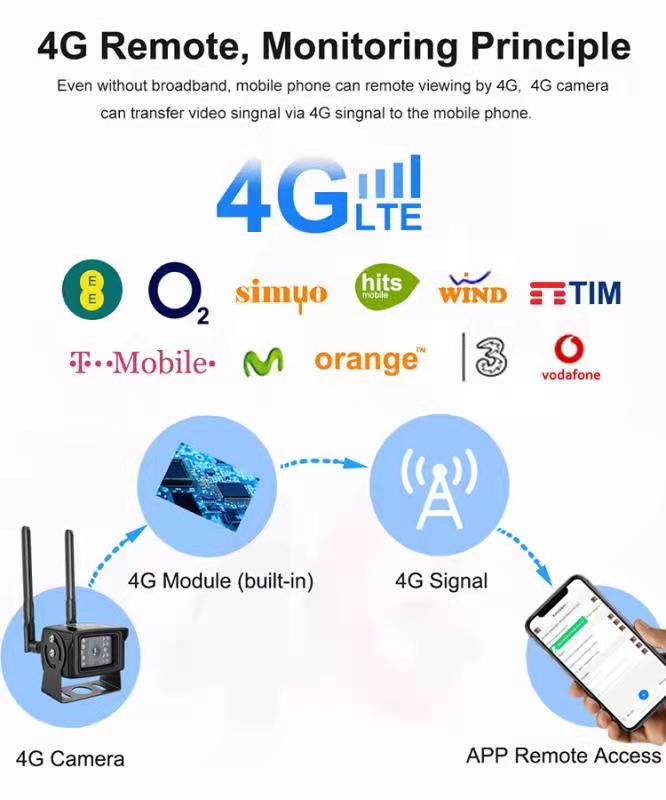

>4G Wifi optional
>Support Onvif.
>Two Way Audio.
>Power input 12V 2A
>Camera sensor 1/2.8" SONY CMOS sensor (IMX307), DSP (GK7205V200).
>Mobile APP Name: Camhi.
>CMS:HiP2P for PC.
Parameters
Model No.
A18
Sensor
1/2.8"
SONY CMOS Sensor
Resolution
2.0
Megapixle(1080P=1920*1080)
Illumination
Color
0.001 Lux@F1.2(AGC on), B&W 0.00 Lux@F1.2(IR on)
Lens
Mount
Built-in
3MP 3.6mm Fixed Lens
IRLED
Built-in
5:18pcs IR LED
IR
Distance
20M
( Night Vision )
System
PAL
/ NTSC
Resolution
Main
Stream: 1920*1080;
JPEG
Video Bitrate
Q720P:640*352;QQ720P:320*176;Special
For Mobile Phone View
Frame
2.0MP and below 25fps(50HZ),30fps(60HZ)；CBR/VBR
adjustable
Video
Processing
H.265+
video coding, support dual stream, AVI format; code stream 32~6144kpbs
adjustable
Support
3DNR,Support Digital WDR,Support JPEG Snapshot
Setting
Brightness,
contrast, saturation, exposure, up and down inversion, left and right mirror
adjustable

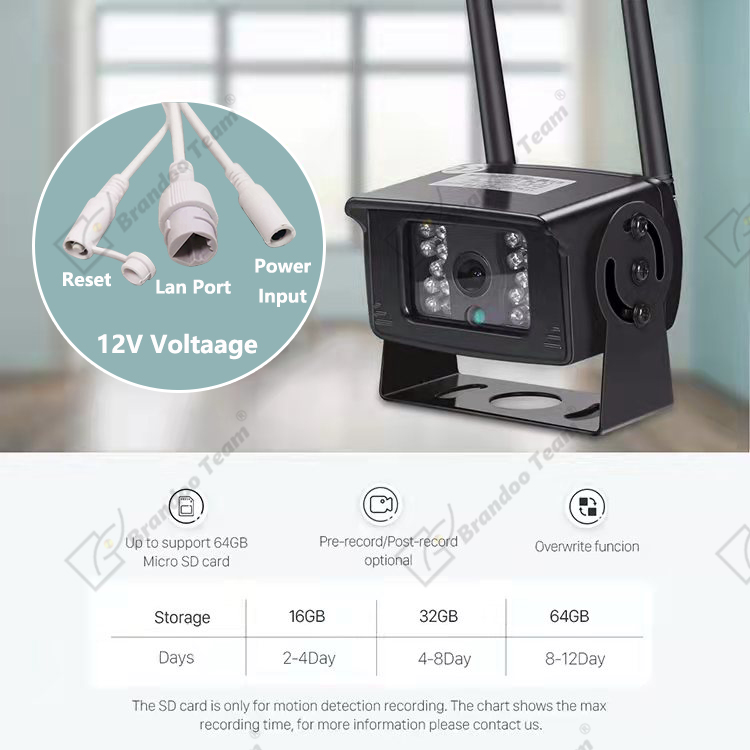

Network
Interface
1*RJ45
Ethernet interface,10/100M self-adaption;
Audio
Built-in
Microphone and Speaker
Network
Protocol
TCP/IP,HTTP,
HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, IPv6,
IPv4
Storage
TF
Card (Max 128G)
Protocol
Support
Onvif to NVR
Motion
Detection
4 independent
detection areas can be set (sensitivity 1-100 can be set)
Action
with alarm
Send
the alarm picture to the designated mailbox;
Alarm
upload pictures and videos to FTP server

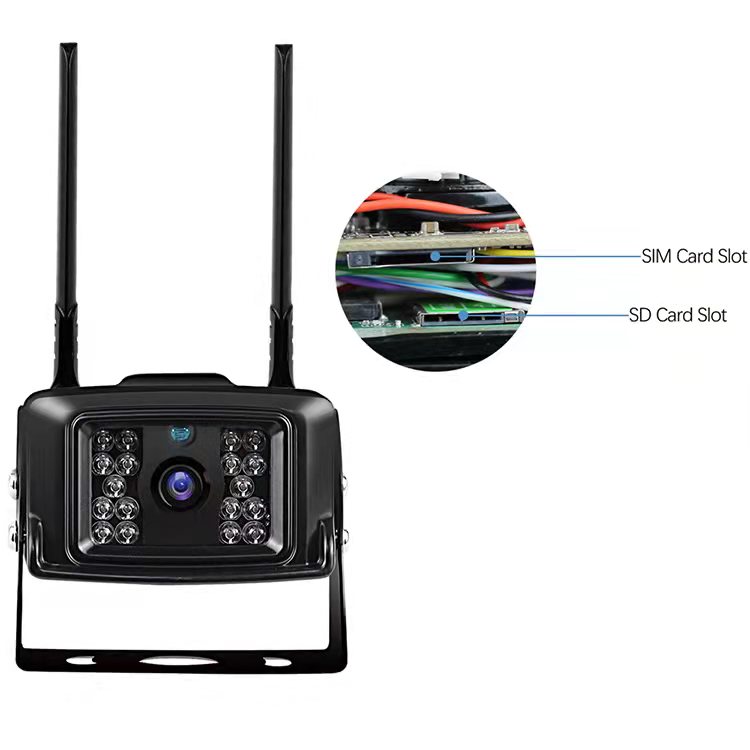

Sim
Card
Support
2G/3G/4G
Type
of network
FDD-LTE,
TDD-LTE, WCDMA/HSPA+, TD-SCDMA, GSM/GPRS/EDGE
Operating
Frequency
LTE
B1/B3/B8/B38/B39/B40/B41
WCDMA 2100/900MHz、TD-SCDMA
B34/B39
TD-SCDMA
B34/B39
GSM/GPRS/EDGE:
900/ 1800MHz
Speed
FDD-LTE/TDD-LTE:UP
50M /Down 150Mbps
HSPA+:UP
5.76M /Down 21Mbps
TD-SCDMA:UP
2.2Mbps /Down 2.8Mbps
USIM/SIM
Micro
SIM Card
WIFI
Protocol
802.11b/g/n(Max
72Mbps Speed)
APP
Camhi
CMS
HiP2P
Function
Configure
by WEB, OSD(on screen display),real-time video transmission, motion detection
and IO alarm linkage ,center prompt and picture pop-up after IO alarm;
support remote surveillance client software;support mobile monitoring(iPhone,
Android).
S/N
Ratio
>=50dB
ES
1/50
- 1/10,000S
White
Balance
Auto
Tracking White Balance
Gamma
Ratio
>=0.45
Working
Temp.
Outdoor:
-40C to +60C
Humidity
0
to 95% RH (non-condensing)
Consumption
450mA

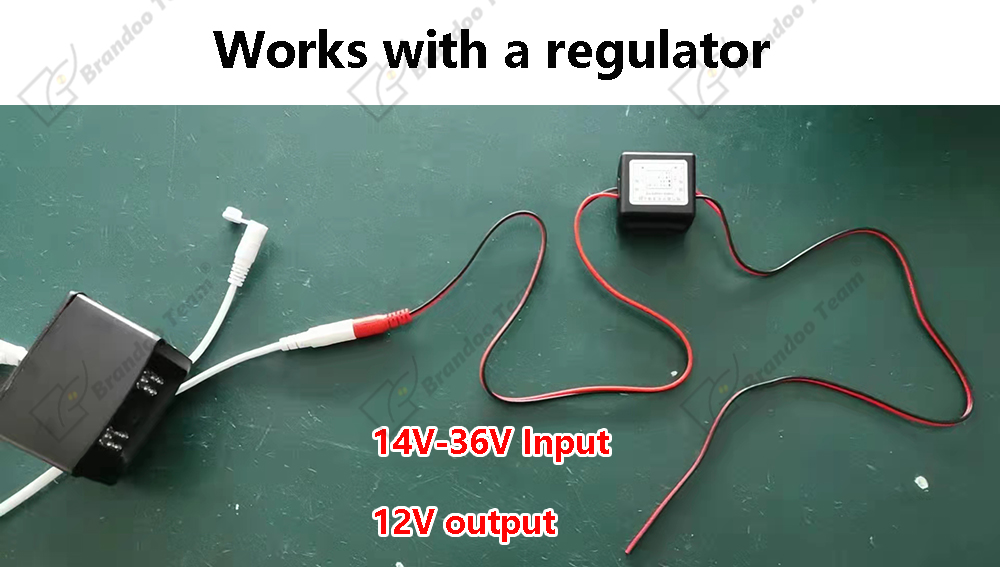

Voltage
Input
Power
12V DC 2A

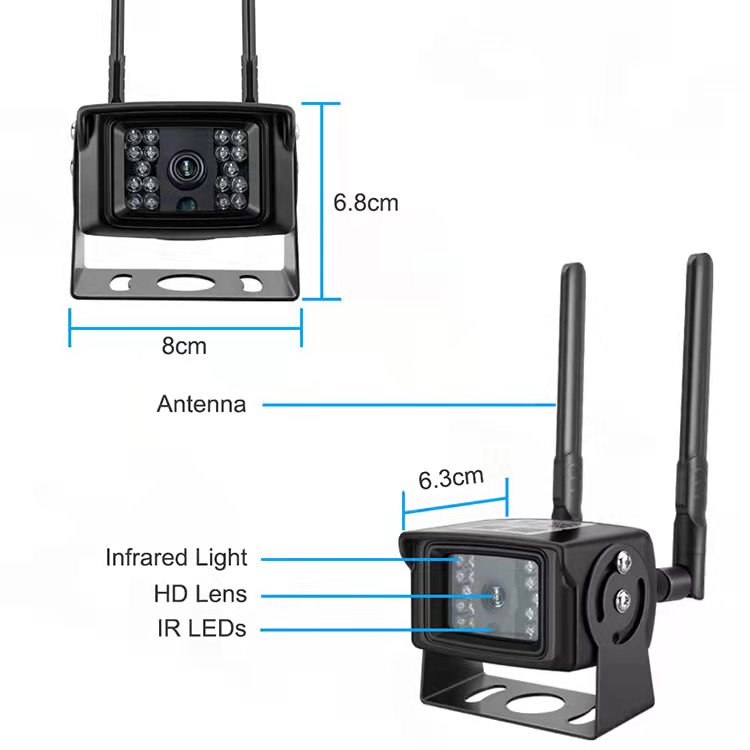

Package
Size
10CM*5CM*5CM
Weight
Appro
x 0.5kgs
Second Stream:1920*960;
Third Stream: 640×480,320×240;
