4G GPS MDVR
8CH 720P 4G SD Mobile DVR Model BD-338GE
- Details
This is an inexpensive type 4G 8 channel MDVR, works with 2pcs Max. 128GB SD card, support 8 1.3mp/2.0mp AHD camera working. VGA/CVBS video output.
Features:
> H.264 compression for video, AVI format
> Wide power range DC10V to DC36V
> Recording mode: Power up, motion detection, Manual, Scheduled and Alarm record
> Video resolution up to 8 channel 720P (1080x720)
> 8 channels "Video & Audio" recording and playback simultaneously;
> 4 channels alarm inputs
> AHD and analog cameras workable

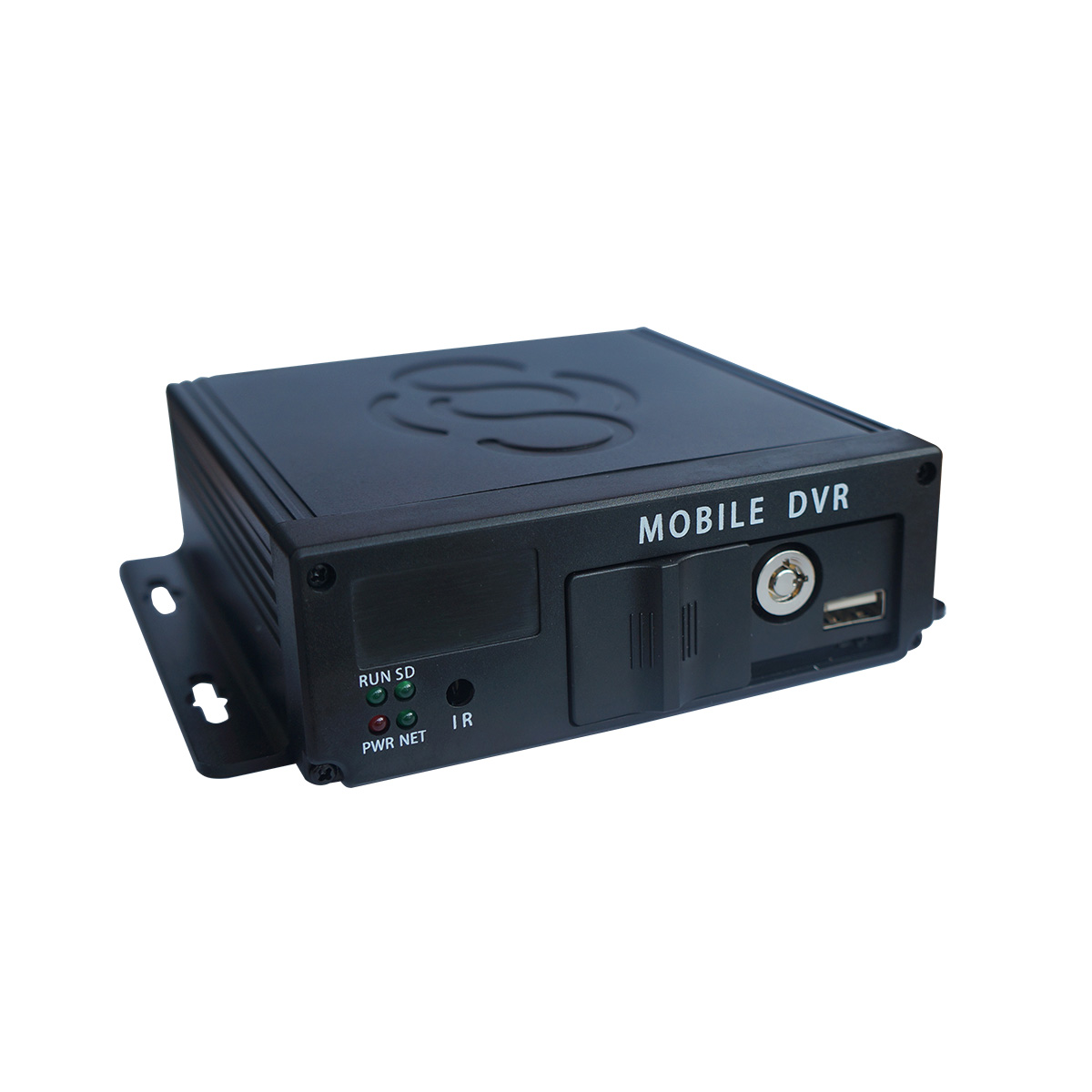

Front and Rear panel of DVR
Compact size for easy installation
5 pins aviation connector with convertor video cable
DVR Accessories
Professional player
Free CMS software for 4G live view and GPS tracking in real time
Watching on mobile phone too. Support IOS and Android phone both.
Success solution for big vehicles
Specifications:
|
Power input |
DC8V-DC36V |
|
Working Temperature |
-10C - +50C |
|
Working humidity |
15%-80% |
|
Memory |
SD card |
|
Max. Memory |
2pcs 128GB |
|
Compression |
H.265 |
|
Video format |
H.265/AVI |
|
Rec. Mode |
Power up/motion detection/Manually/Sechdule/alarm input |
|
Resolution |
1920x1080P |
|
Frame rate |
15f/s EACH CHANNEL |
|
Video input |
8 channel |
|
Audio input |
8 channel |
|
TV Mode |
PAL/NTSC |
|
Overwriting |
Available |
|
Alarm I/O |
6 input and 2 outputs |
|
RJ45 port |
For network (customized) |
|
Video output |
CVBS / HDMI |
|
Dimension |
180x155x44(mm) |
