Licence plate camera

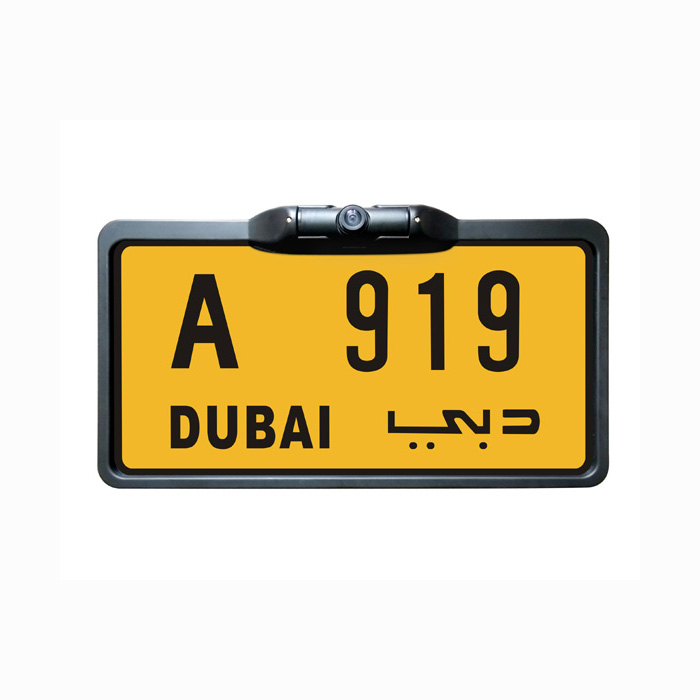

Dubai car licence plate camera Model: BD-S664
This is a car license plate camera for Dubai vehicles, it can be installed at rear of the vehicle, and for rear driving. It has a waterproof housing.
- Details
Features ：
>High definition
>Waterproof
>Shockproof
>Easy to install
>Mirror/Non-mirror image switch(optional to some chipset)
>Parking lines can be turned on and off (optional to some chipset)
Quality Assurance：
1.Aging test
2.Vibration test
3.Waterproof test
4.High-and-low temperature test
| Specification: | |||
| Technical term | Technical parameters | ||
| Model | CCD type | CMOS(OV7960) | CMOS(OV7959/7950) |
| Images sensors | Sony CCD/Sharp ccd | CMOS(OV7960) | CMOS(OV7959/7950) |
| Power Supply（DCV） | DC12V±1V | DC12V±1V | DC12V±1V |
| Power | <1W | <1W | <1W |
| Effective pixels | 728*582/728*512 | 668*576/668*512 | 580*540/580*492 |
| Electronic shutter | 1/60(NTSC)1/50（PAL） | 1/60(NTSC)1/50（PAL） | 1/60(NTSC)1/50（PAL） |
| 1/10,000second | 1/10,000second | 1/10,000second | |
| Minimum illumination | 0.1lux | 0.5lux | 1lux |
| S/N Ratio | ≥48dB | ≥48dB | ≥48dB |
| Resolution（TV Line） | 520 | 480 | 420 |
| TV System | PAL/NTSC | PAL/NTSC | PAL/NTSC |
| lens Angle（Deg.） | 170° | 170° | 170° |
| Video output | 1.0vp-p.75Ω | 1.0vp-p.75Ω | 1.0vp-p.75Ω |
| IP rating | Ip68 | Ip68 | Ip68 |
| White Balance | Auto | Auto | Auto |
| AGC | Auto | Auto | Auto |
