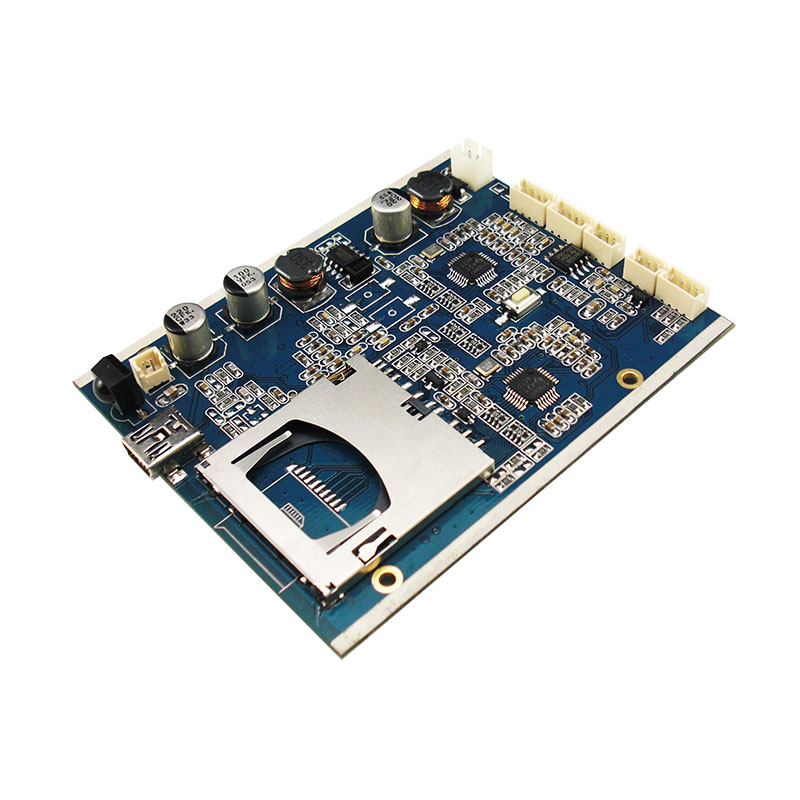

2 channel DVR module Model: BD-302P
This is a 2 channel DVR module, it support Max. 128GB SD/micro sd memory. 2 channel D1 resolution. We offer OEM business on this item.USB 2.0, RS232, alarm I/O all available.
- Details
Features:
> 2 channel video input and recording at the same time
> Video resolution 640x480
> Mpeg4 compression, video format ASF
> Max. 128GB SDHC card used (Micro sd card optional)
> 5-30V power input available
> Video recording / Snap shot selectable
> USB 2.0 for communicate with computer(system update)
> RS232 communication available
> Alarm I/O function available

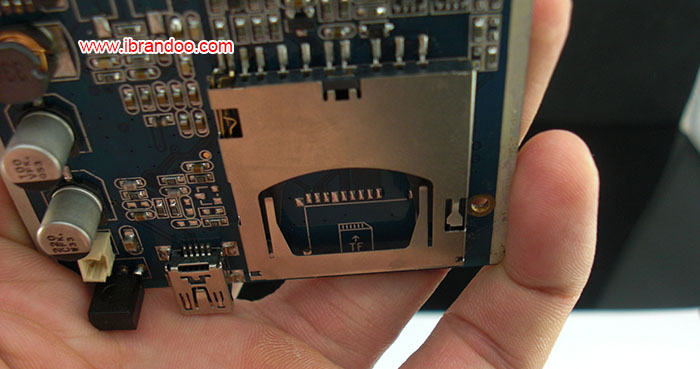

Micro SD/TF card slot available. (please confirm before order placed.)

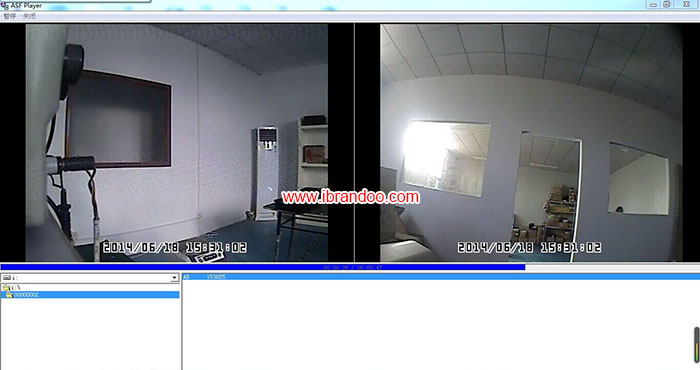

Professional player, 2 channel playback in one screen.
Specifications:
Item | Data | |
Video | video input | 2 channel |
Video output | 1 channel | |
Resolution | D1 @ 640x480 | |
Frame | 5/15/30 fps | |
Audio | Audio input | 2 channel |
Audio output | 1 channel | |
Audio format | MP3 | |
Working mode | Working mode | Video/snap shot |
Recording mode | Power up/Motion/manual | |
Special mode | Alarm I/O / RS232 | |
Memory | Memory type | SD card/micro sd card |
Max. Memory | 128GB | |
Memory cost (1 hour) | about 700mb/1 channel | |
about 1.2G/2 channel | ||
Photos | 20kb/pcs | |
SD card type | SDHC | |
Communication | RS232 | Available |
USB | USB 2.0 | |
IR | IR remote controller | |
Power | Power input | 5-30V |
Standby consumption | 2W | |
Working consumption | 2.4W |
