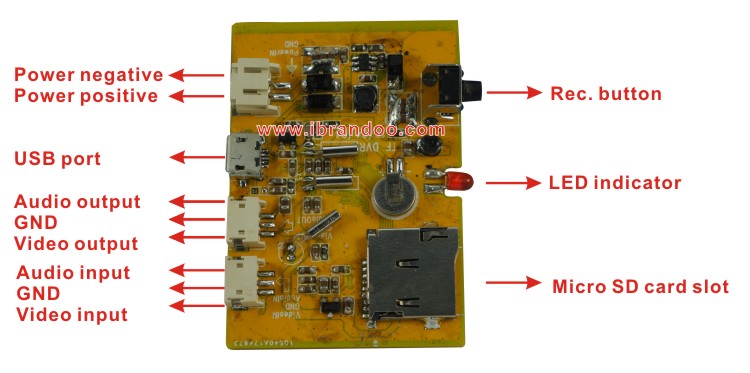

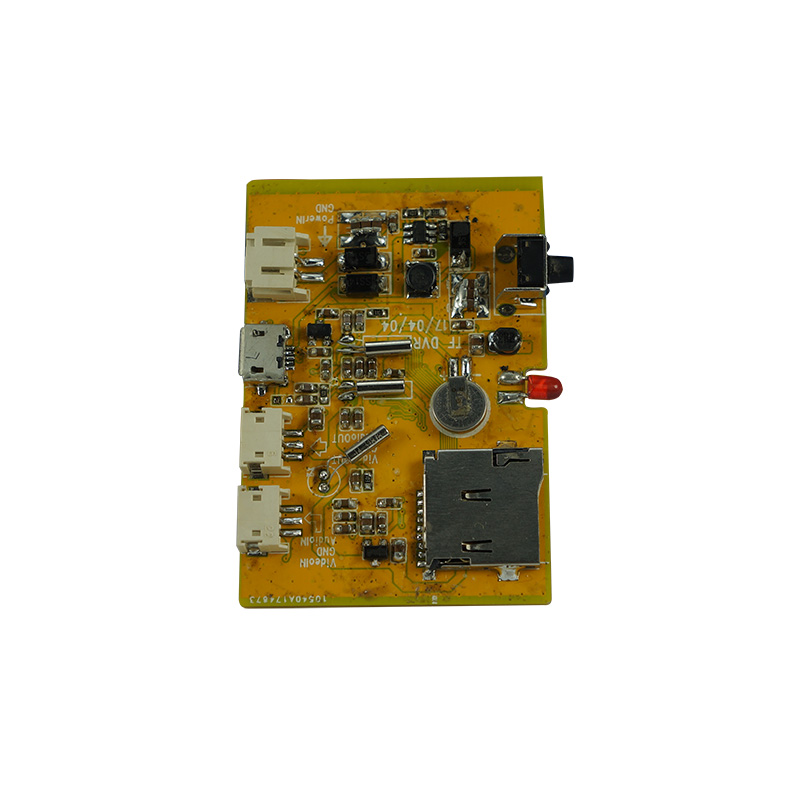

FPV 1CH SD DVR module BD-300FP

This is a super micro and light type 1CH SD DVR. the total weight only 9g. Support HD analog camera for recording in 32GB micro sd card.
  • Details

Features:

> Resolution: HD 1280*720 / VGA 640*480 / CIF 320*240

> Compression: MJPEG

> Frame rate: 30f/s

> Mode: PAL/NTSC

> Power input: 5V-15V

> Current: 140mAh

> Weight: 9g

> Dimension: 55x38mm

> No menu for operation


Definitions:


Dimension: 55x38mm



Specifications
Item Data
Power input: 5V-15V
TV mode PAL/NTSC
Video resolution HD(1280x720), D1(720x480), VGA (640x480)
A/V input 1 channel
Audio Recording Yes
USB Power (5V) / File transfer
Frequency 50HZ/60HZ
Video compression MJPEG
Audio compression 128Kbps PCM
Video format AVI
Audio format MP3
Frame rate PAL:25f/s, NTSC: 30f/s
Memory Max. 32GB TF card
Overwrite Yes
Power consumption 0.8W
Dimension 55x38mm
DVR Weight 11g
