8 channel
Russian 8CH 720P HDD Mobile DVR BD-438
- Details
Features:
> Max. 2TB HDD MEMORY
> 8CH 720P (1080X720) resolution
> H.264 Compression
> Aviation connector
> 25f/s each channel
> 4G/GPS function available
Front panel of DVR
Lockable front panel to protect HDD

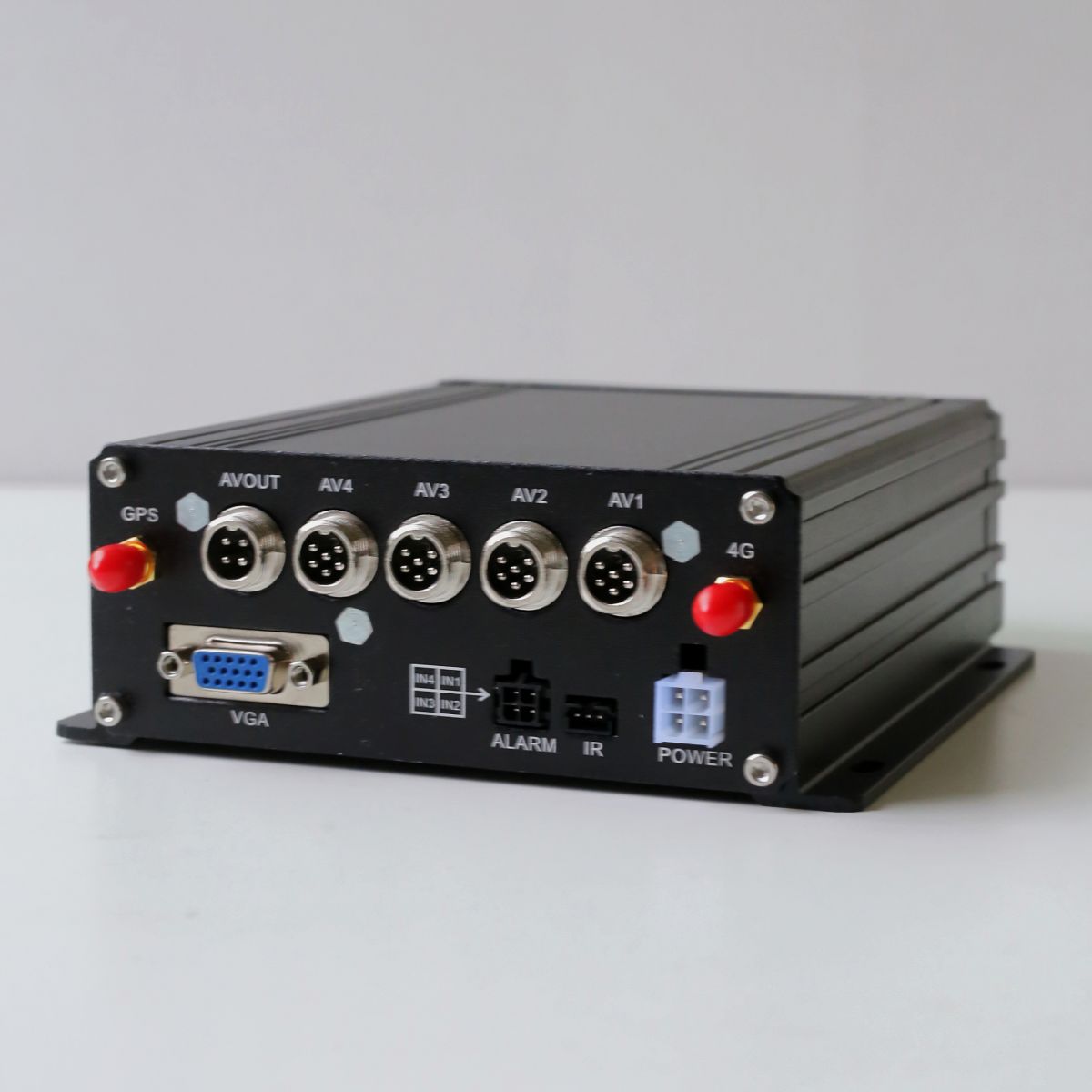

Rear panel of DVR
Standard version Accessories:
4G+GPS version Accessories:
DVR dimension
Professional player for free
Full screen of each channel
Successful solutions for big vehicles
4G and GPS for remote view and tracking, CMS software free for use
Remote view on IOS and Android Mobile Phone
Panic button for emergency alarm (need to by customized)
Specifications:
|
Items |
Parameters |
Specifications |
|
System |
Language |
Chinese/English/Russian (OEM) |
|
Operation Menu |
Graphical User interface（OSD menu） |
|
|
Password |
Users Password/ Administrator Password |
|
|
Video |
Video input |
8-CH video input 1.0Vp-p，75Ω |
|
Video output |
1-CH video COMPOSITE output 1.0Vp-p，75Ω |
|
|
Video Display |
1 channel or synchronous 8 channels |
|
|
Video Singal |
PAL、NTSC |
|
|
Video Compression |
H.264 Main profile， 75fps D1/s |
|
|
Audio |
Audio input |
8-ch Audio input |
|
Audio output |
1-ch Audio output |
|
|
Recording mode |
Audio & Video sync Recording |
|
|
Image processing & storage
|
Resolution |
720p |
|
Video stream Standard |
ISO14496-10 |
|
|
Video bit rate |
CIF: 1536Kbps ~ 128Kbps，8 levels optional. Highest:1 level HD1: 2048Kbps ~ 380Kbps，8 levels optional. Highest:1 level D1: 2048Kbps ~ 400Kbps，8 levels optional. Highest:1 level |
|
|
Audio Bit rate |
8KB/s |
|
|
Frame |
25f/s each channel. |
|
|
Alarm |
Alarm input |
4 channel |
|
Communication Interface |
RS232 Interface |
Customized |
|
Software |
Analysis of PC playback |
Playback Recording on PC，and analyses the vehicle recording info. |
|
Software Upgrade |
Support |
|
