8CH 1080P HDD Mobile DVR 4G GPS WIFI BD-408HD
H.265 8CH 1080P HDD Mobile Car DVR Model BD-308HHD-2658CH 1080P HDD Mobile DVR 4G GPS WIFI BD-408HD
- Details
This is a 8 channel 1080P Mobile DVR support 4G,GPS and WiFi function. It supports HDD up to 2TB for saving video files. We offer CMS V6 APP for PC and smart phone for monitoring on line.
Function
> H.265compression
> Wide power range DC10V to DC36V
> Recording mode: Power up, motion detection, Manual, Scheduled and Alarm record
> Video resolution up to 1920x1080P
> 8 channels "Video & Audio" recording and playback simultaneously;
> 6 alarm input and 2 alarm output
> Max. HDD up to 2TB
> AHD and analog cameras workable

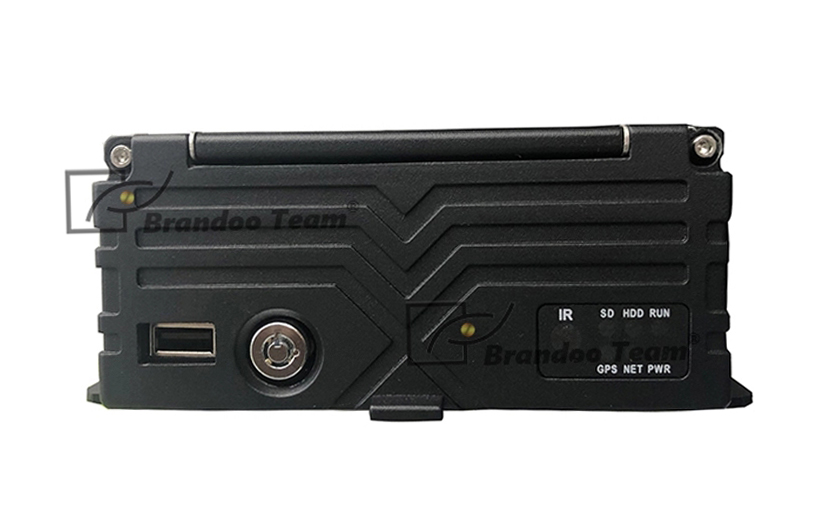

Front panel of DVR

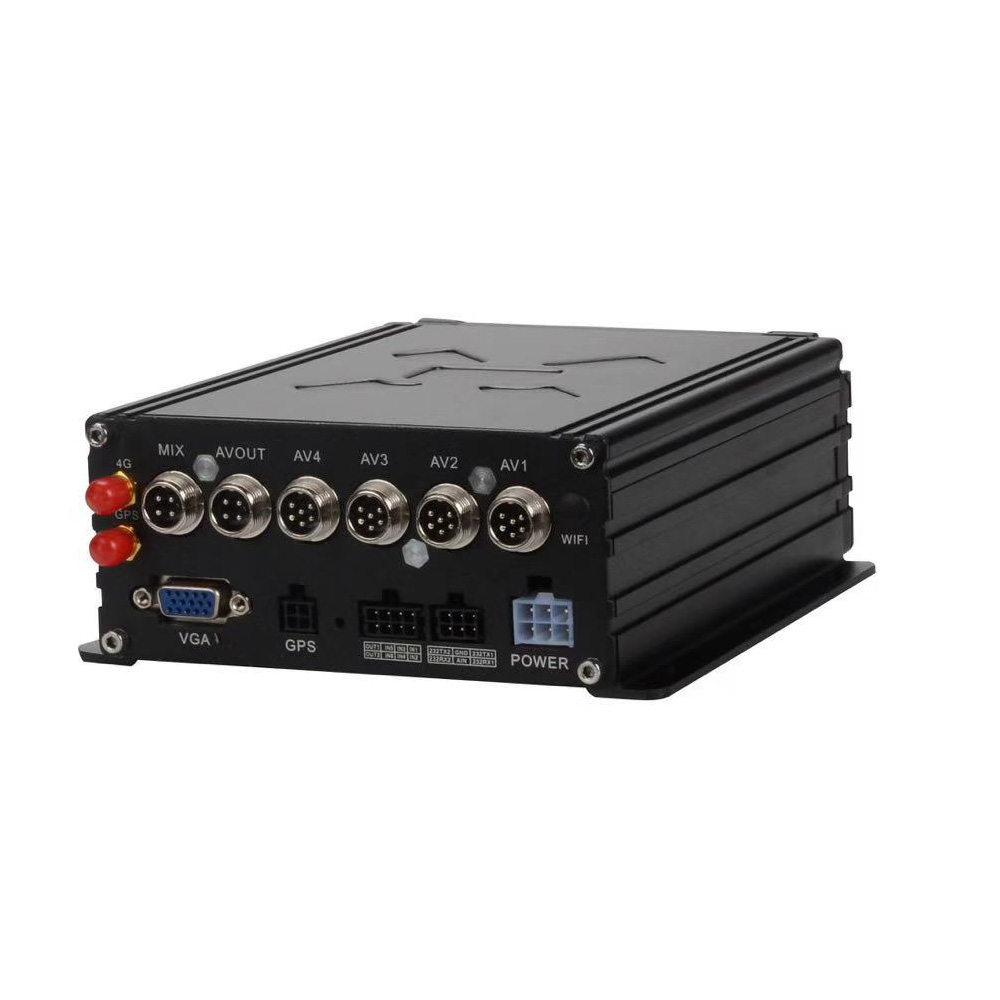

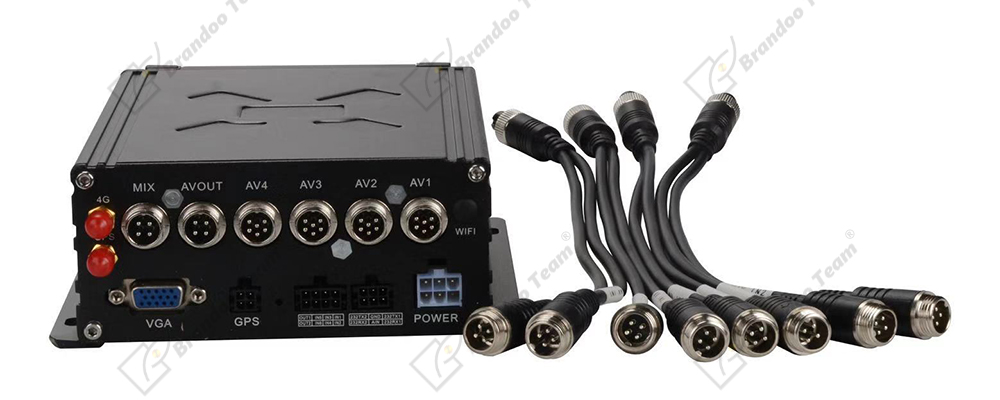

Rear panel of DVR, 5 pins aviation connector with convertor video cable

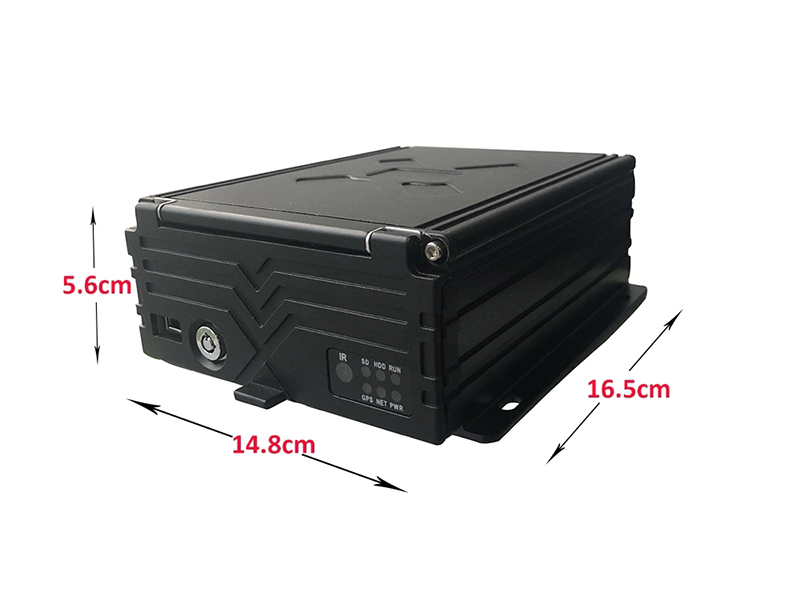

DVR dimension

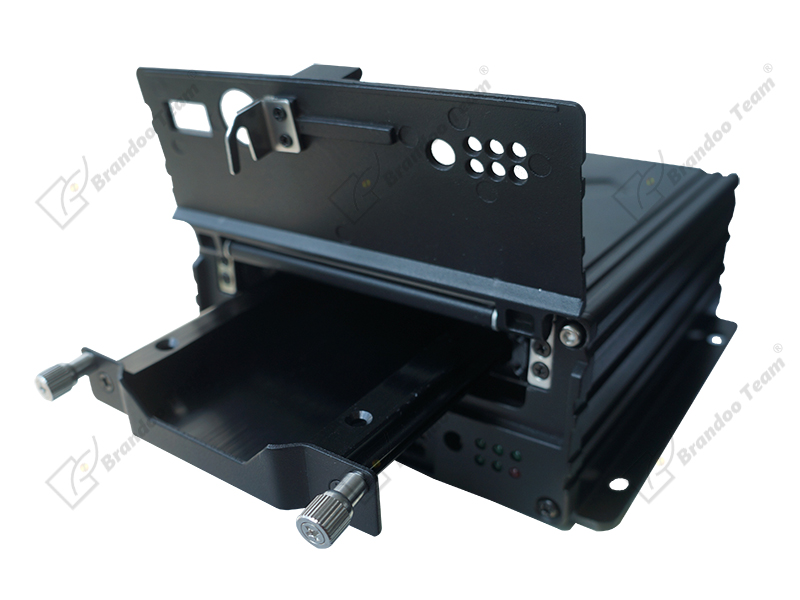

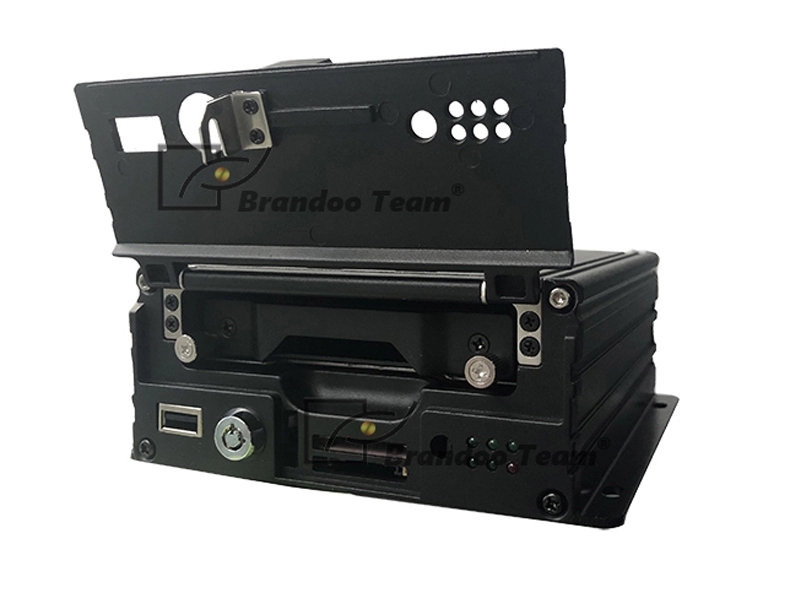

Shockproof base inside of HDD holder
Professional player

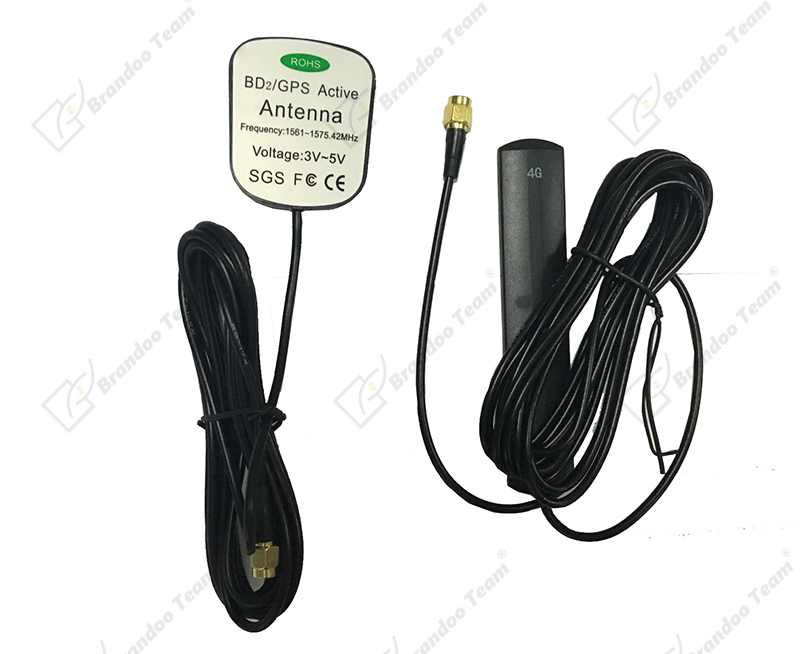

Accessories for 4G and GPS WIFI
Free CMS software for 4G live view and GPS tracking in real time
Watching on mobile phone too. Support IOS and Android phone both.
Accessories
Specifications:
|
Power input |
DC8V-DC36V |
|
Working Temperature |
-10C - +50C |
|
Working humidity |
15%-80% |
|
SD Memory |
For upgrade only |
|
HDD Memory |
Max. 2TB |
|
Compression |
H.265 |
|
Video format |
.265 (support convert to AVI) |
|
Rec. Mode |
Power up/motion
detection/Manually/Sechdule/alarm input |
|
Resolution |
1920x1080P |
|
Frame rate |
15f/s EACH CHANNEL |
|
Video input |
8 channel |
|
Audio input |
8 channel |
|
TV Mode |
PAL/NTSC |
|
Overwriting |
Available |
|
Alarm I/O |
6 input and 2 outputs |
|
RJ45 port |
For network (customized) |
|
Video output |
CVBS / VGA |
|
Dimension |
205x184x70(mm) |
