OEM/ODM case
Customized 1080P SD DVR Module BD-310P
This is a 1 channel 1080P SD DVR module, 128GB Micro SD card memory used, motion detection support. works with 2.0mp AHD camera.It support USB connect to PC to read , copy and playback the files.
- Details
Features:
> 1080P resolution optional
> 128GB Micro sd memory used
> Works with 2.0MP AHD camera
> PAL/NTSC optional
> Multi language optional
> 5V-24V wide power
> Highest quality memory cost: 6GB per hour.
Mini size: 60x45mm

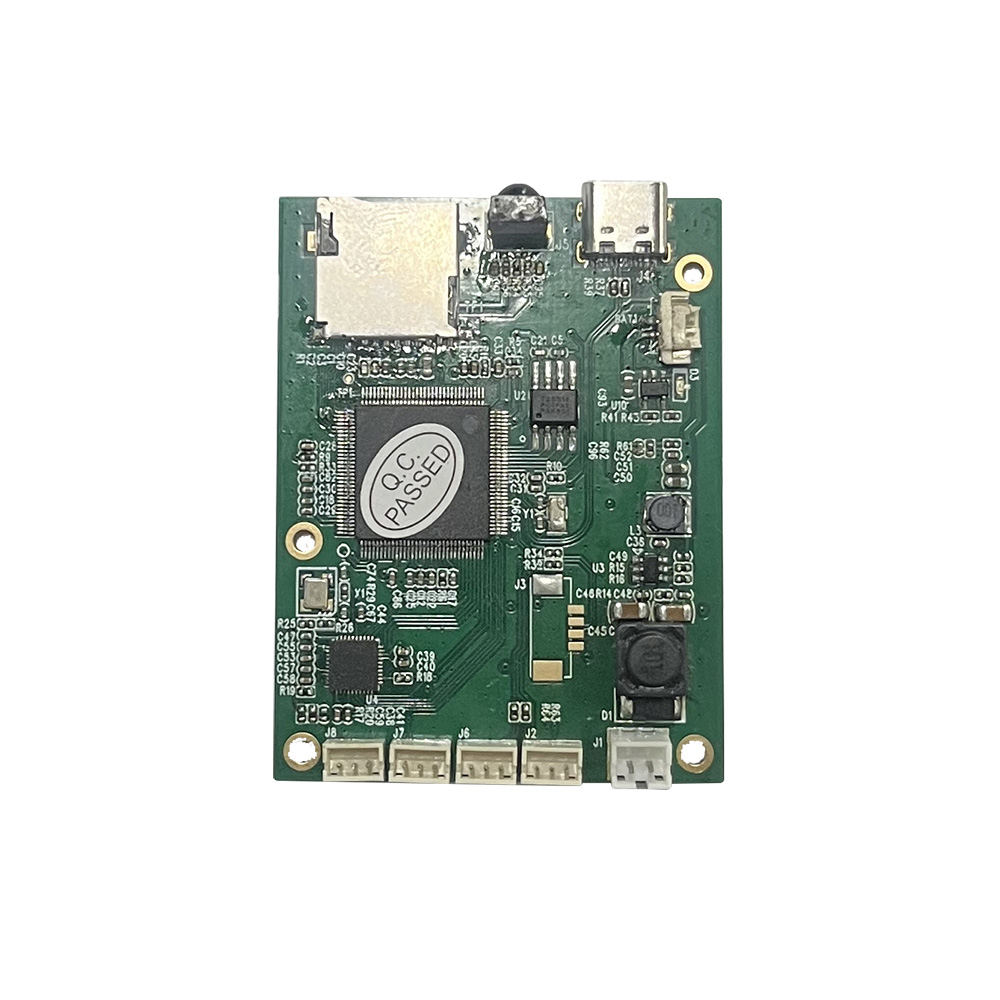

Board in hand, compared with coin

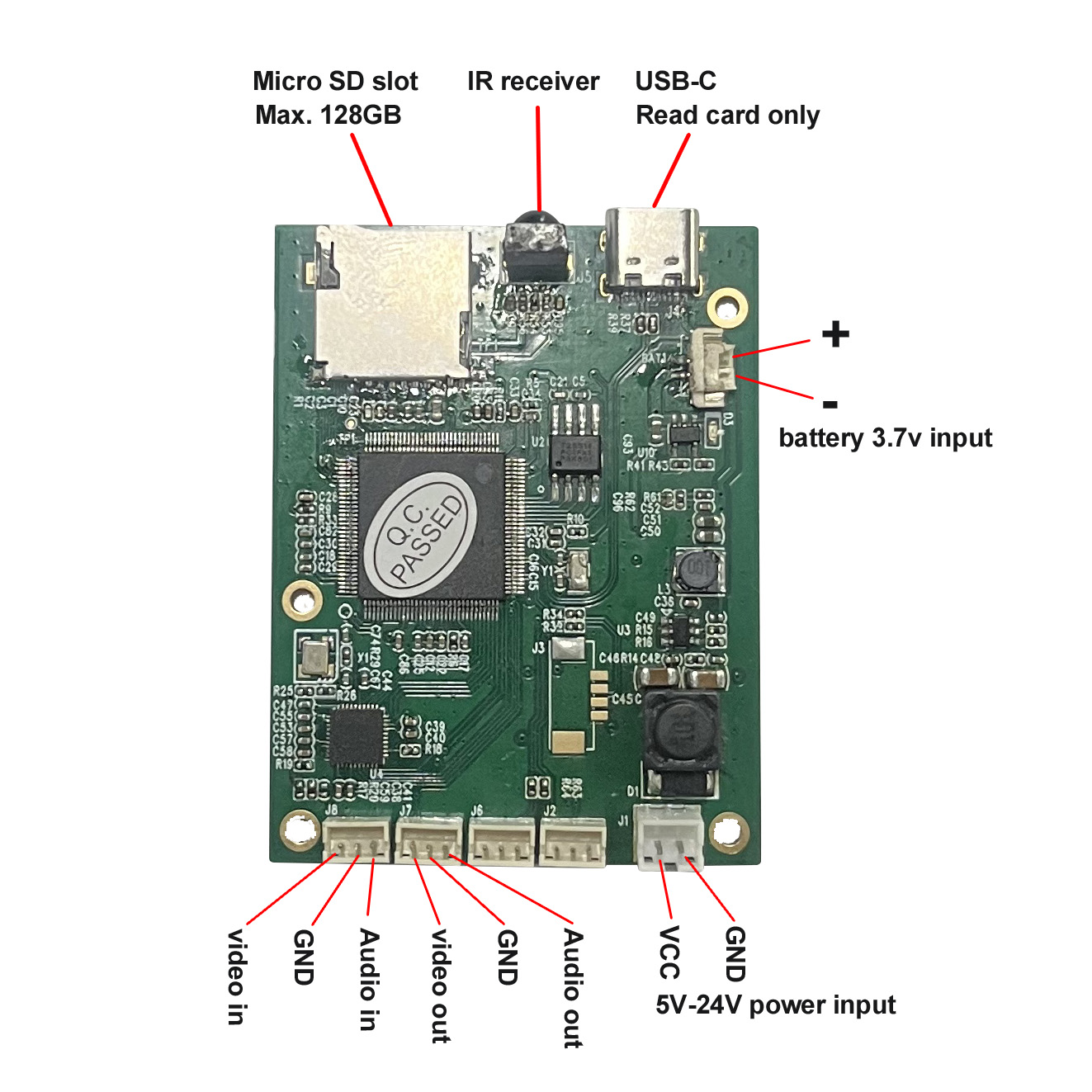

DVR PCBA instruction

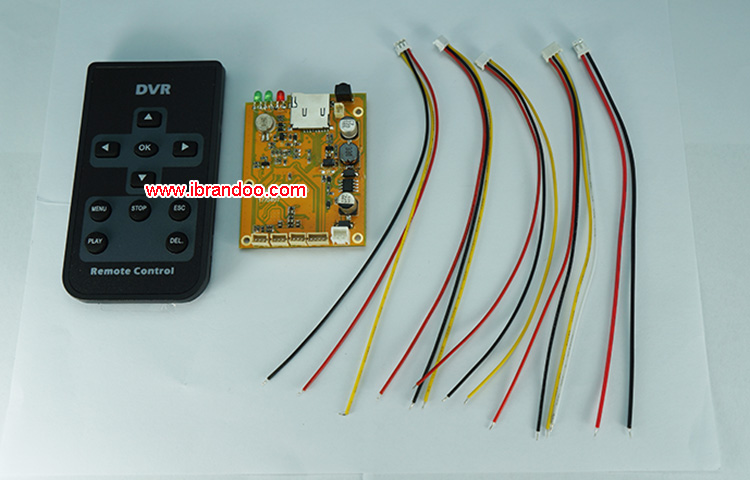

DVR module and accessories
Specifications:
| Item | Data |
| Resolution | 1080P (1920X1080) |
| / | |
| / | |
| Frame | 1080P@30f/s |
| 1080P@25f/s | |
| Compression | H.264 |
| Video format | MOV |
| Video clip | 0.5/1/5/15/30 minutes optional |
| Playback | Support |
| Remote control | Support |
| Memory | Micro SD Max. 128GB |
| Recording mode | Power up/Manual/MOTION |
| Power input | DC 5V-24V |
| Power consulption | 2W-3W |
| Weight | 25g |
| Module dimension | 60x45 mm |
| Language |
English/Japanese |
